Road and Bridge Construction Quarry Machine Stone Crusher Plant for Sale

1. Stone Crusher Introduction

1) Different kinds of crusher to choose, hammer crusher, jaw crusher, impact crusher, cone crusher, etc.

2) High capcity, high crushing ratio, 3-300 t/h.

3) Uniform particle size, simple structure

4) Low investment, easy operation and maintenance.

5) Applied to industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics

6) Can crush hard and soft ores into medium or small size, such as barite, limestone, gypsum, terrazzo, coal, slag, and up to 100 different kinds.

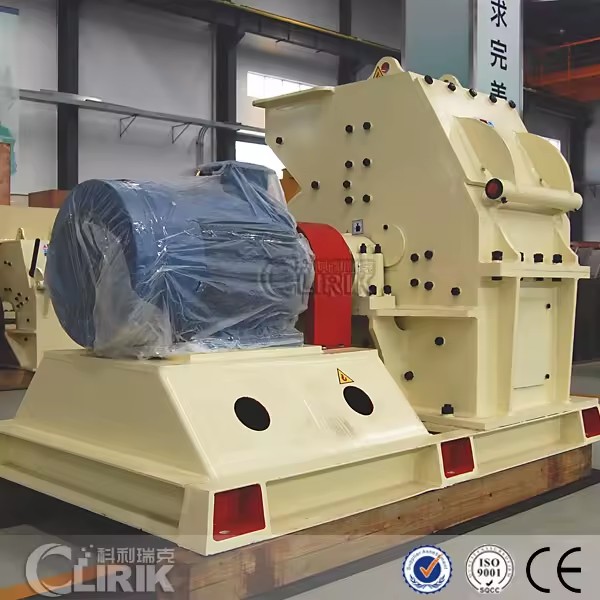

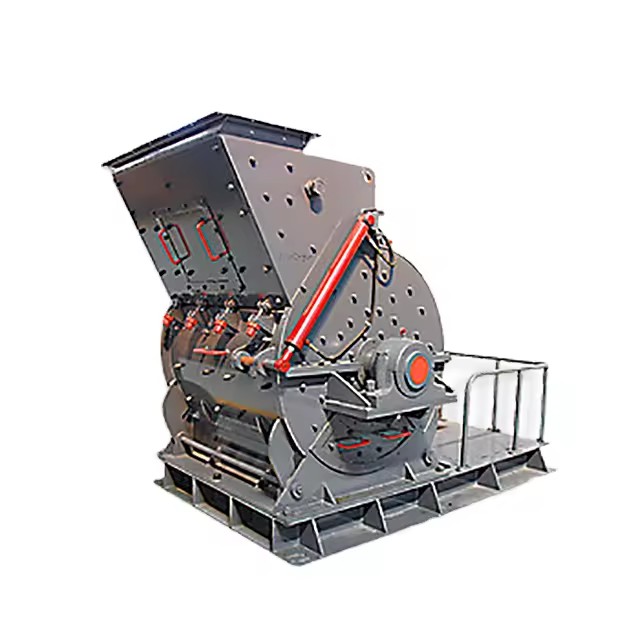

2. Stone Crusher-Hammer Crusher

Hammer crusher is equipment using high-speed rotary hammers to crush materials, mainly applied to the industries of metallurgy, mining, chemistry, cement, construction, refractory materials and ceramics. It can crush hard and soft ores into medium or small size, such as barite, limestone, gypsum, terrazzo, coal, slag, and up to 100 different kinds.

Stone Crusher Machine-Hammer Crusher Working Pinciple

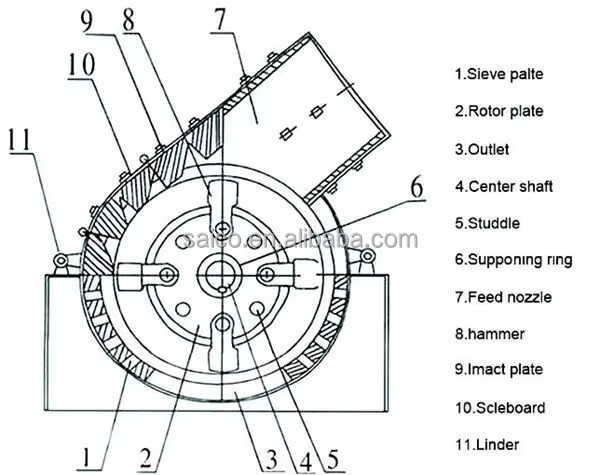

Hammer crusher mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: Upper part and lower part which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of the turn plate, pin shafts, and hammers which are grouped regularly in the main shaft. The motor drives the rotors to rotate quickly in the crushing cavity, and hammers spread outward as a result of centrifugal force from the rotation of the rotors. Large materials entering the crusher through the feed inlet are stricken, impacted, cut and ground by the high-speed hammers to small size. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement.

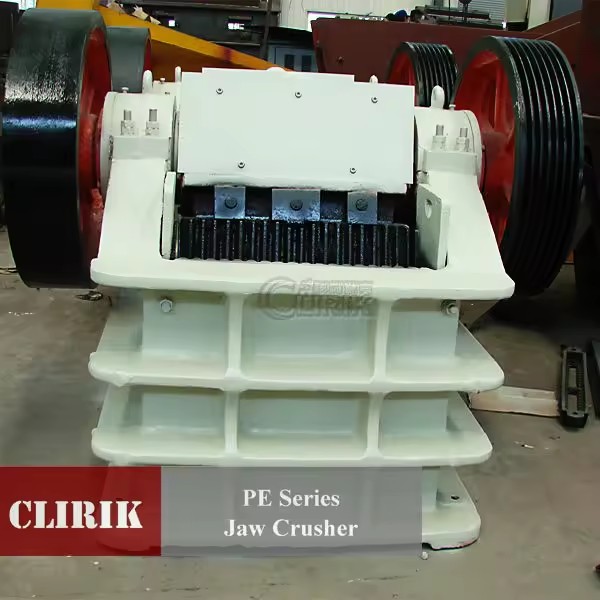

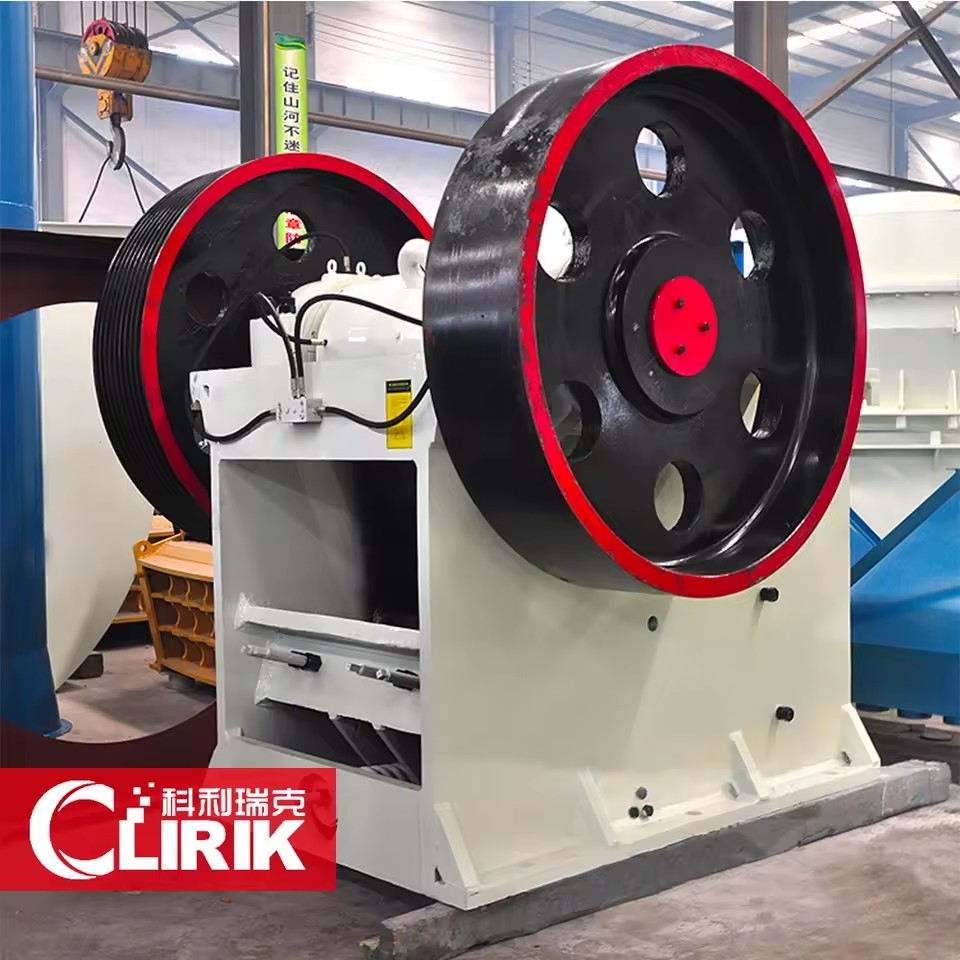

3. Stone Crusher Machine-Jaw Crusher

Jaw Crusher is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320Mpa. The jaw crusher is widely used in mining, metallurgical industry, building material, highway, railway and chemical industry. This machine can break materials into medium size and fine size.

Stone Crusher Machine-Jaw Crusher Working Principle

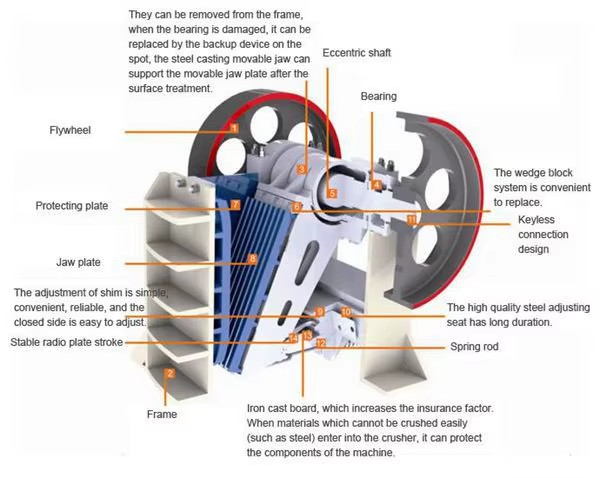

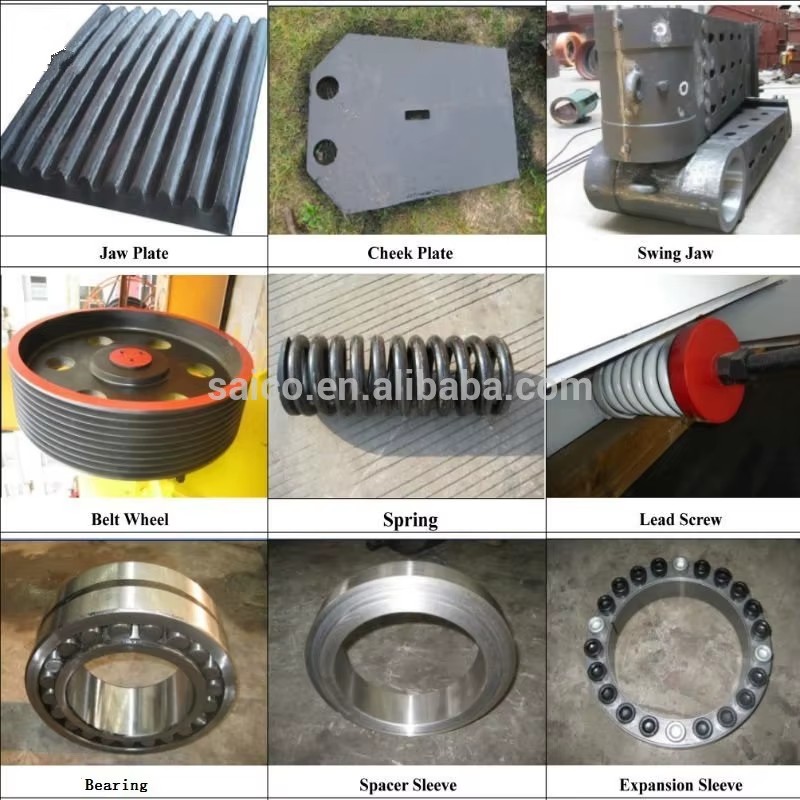

Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring. The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw. When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.

Stone Crusher Machine-Jaw Crusher Technical Tata

4. Other Kinds of Stone Crusher Machine

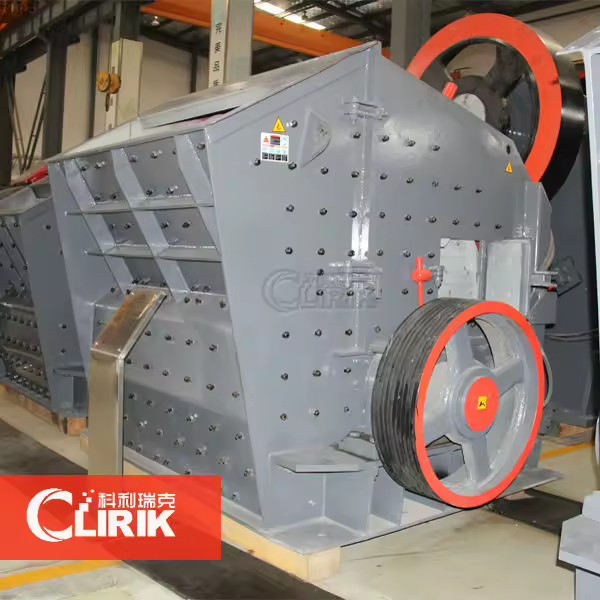

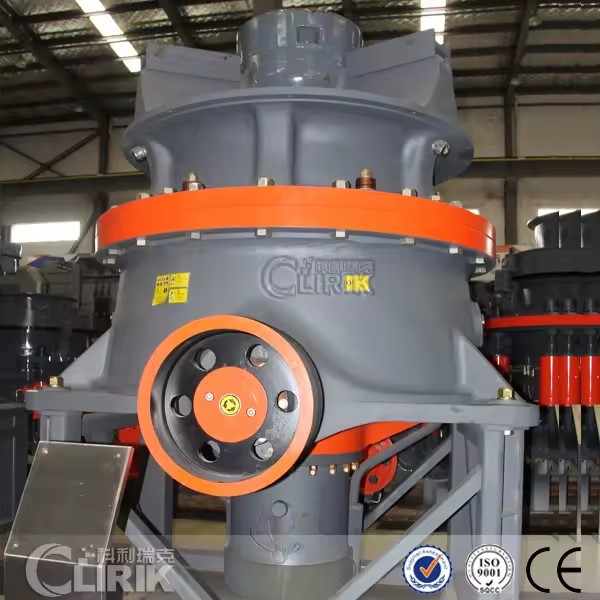

We have many other kinds of stone crusher machine to meet your specific demands. Roller crusher, cone crusher, impact crusher, European Version Crusher to meet your first cruhing, sencond crushing, coarse crushing and fine crushing needs.

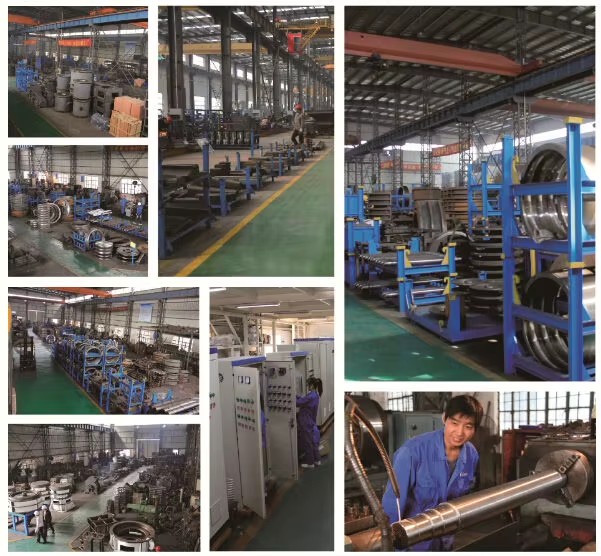

Company Brief Introduction
