Custom Aluminum Desktop Enclosure Instrument case 03A

CHANGHE Desktop Enclosures

CHANGHE provide users with numerous options in aluminum and plastic desktop enclosures. Different size and designs offer maximum flexibility to meet your specific application. In addition to a wide range of customization services, we provide cost-effective solution for mold design and fabrication. We offer you the following customization services for these products

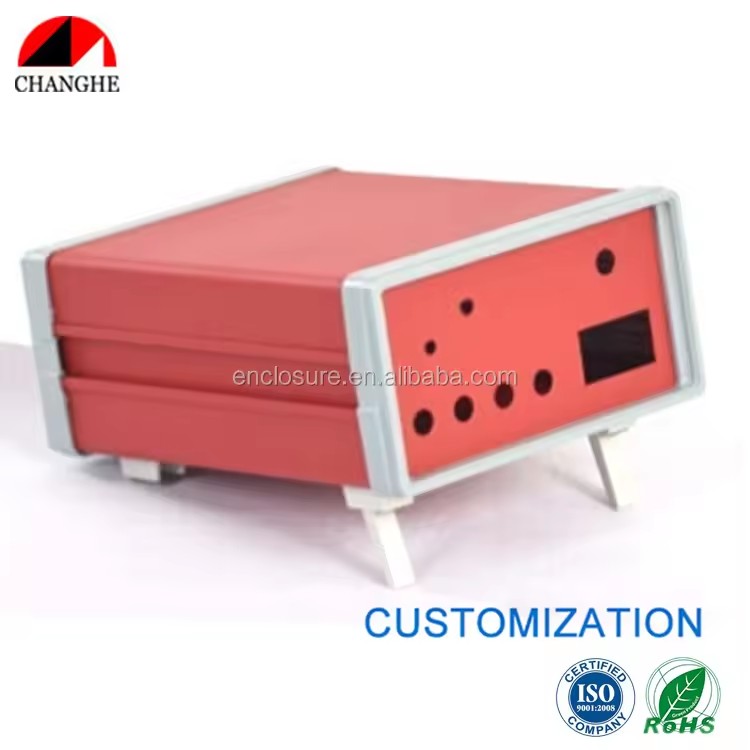

Cut-outs in the front and rear panel - Secondary tooling for top and bottom cover - Special vent holes in the decorative panel and side plate - Additional extrusion

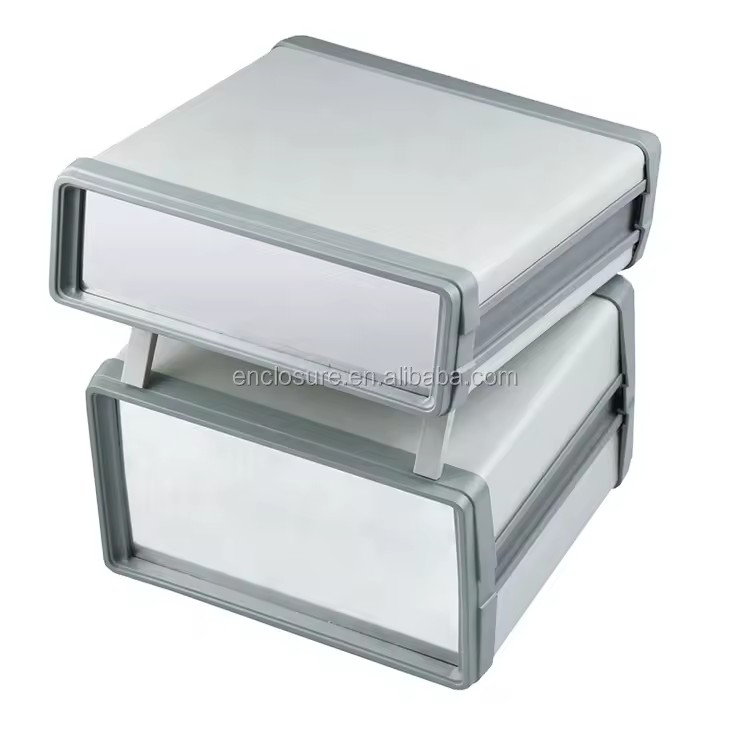

Aluminum desktop enclosure 03A

Custom depth available - Up to 10 combination of width and height - Handle option: T3 - Suitable for for small-sized instruments and power supply equipment

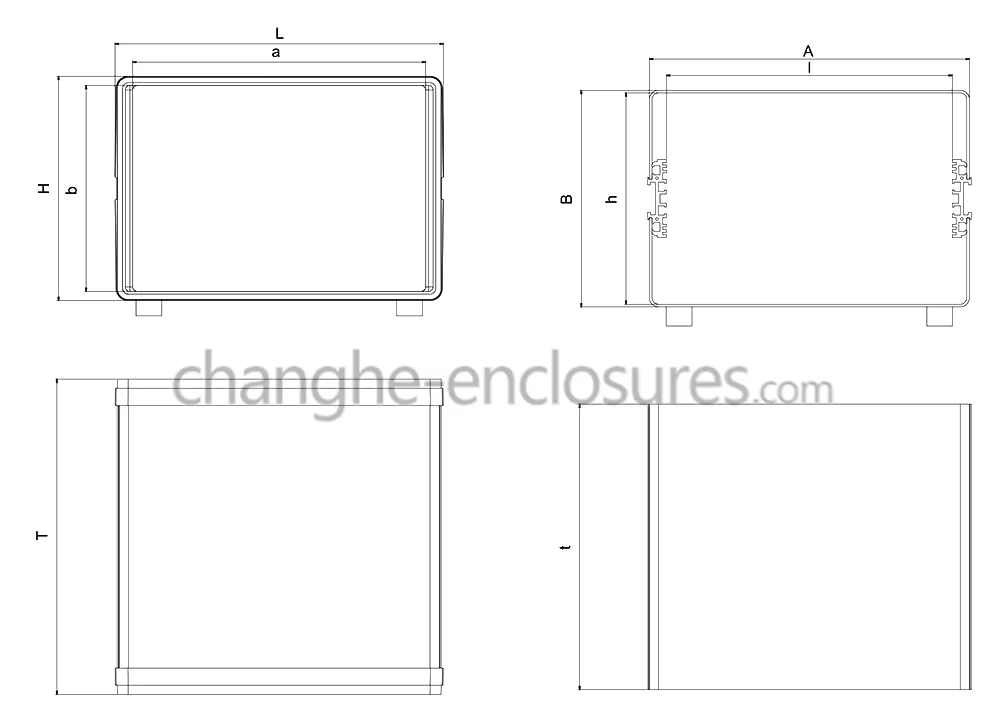

03A Dimension Chart

03A Standard Configuration

1. Front/rear frame 2. Cover 3. Side plate 4. Bottom foot 5. Panel

01-05 series Aluminum Enclosures

Custom height, width and depth - Aluminum construction - Top and bottom cover with spray plastic coating - Pre-punched holes (pitch of 5.08mm) on the front/rear horizontal rail - Optional mounting flange for rack mounting

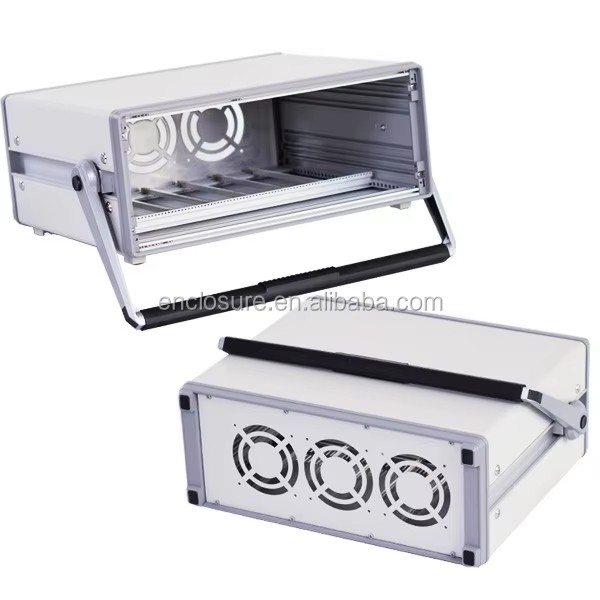

Multiple handle options

>> For more dimensions, please contact our sales team for a personal quote

02 Series Aluminum & Plastic desktop enclosure

Multiple choices of width and depth - Height range from ‘2U’ to ‘9U‘ - With or without front handles - Plastic top and bottom covers

Aluminum front and rear panels
