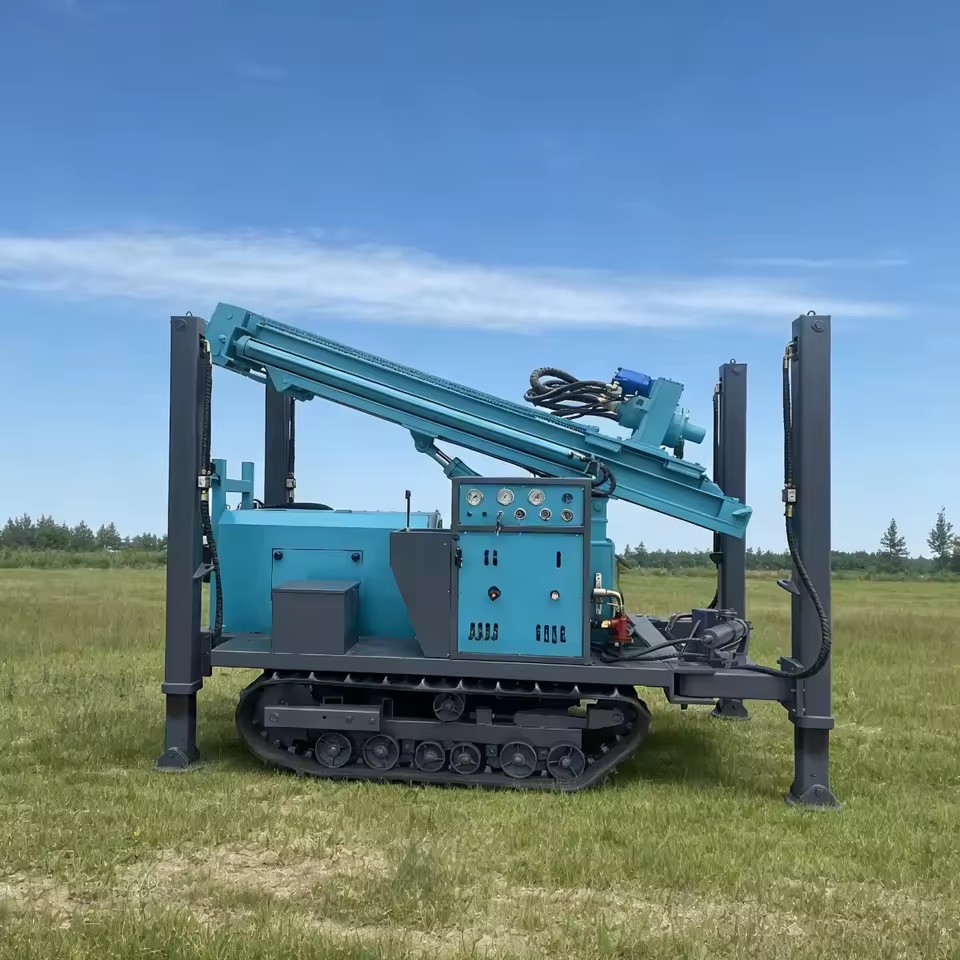

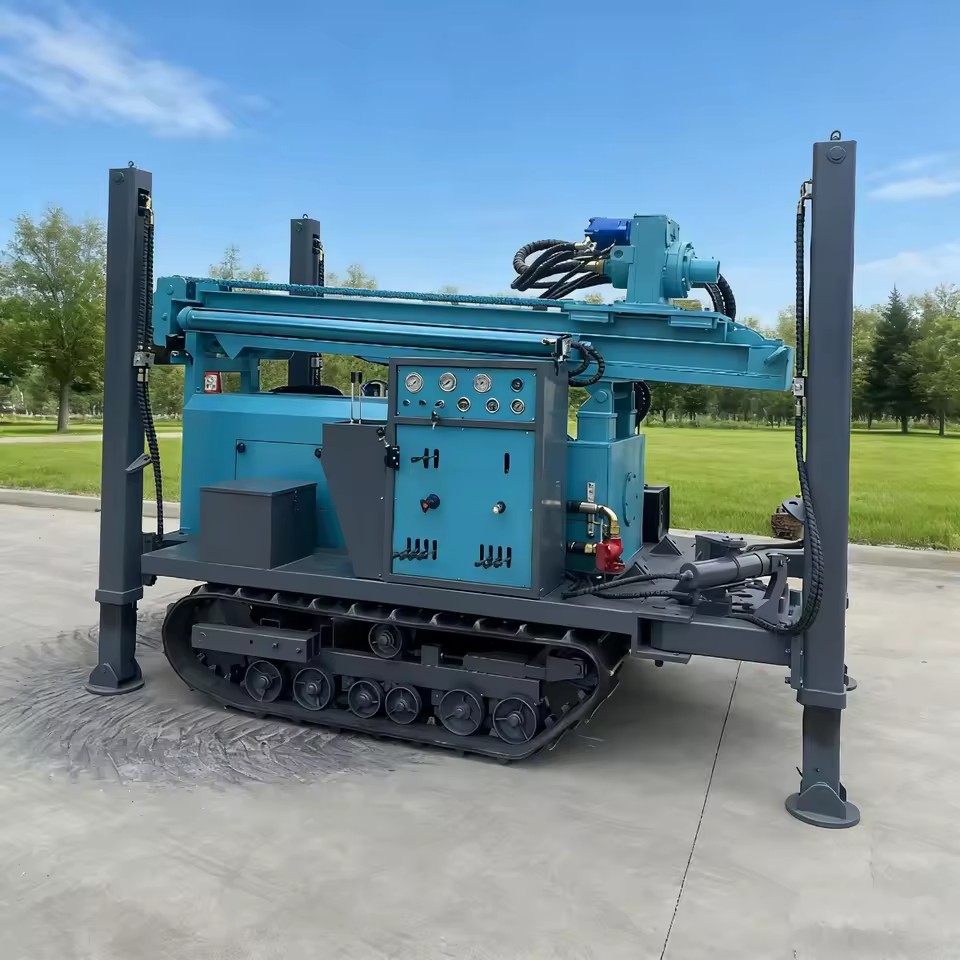

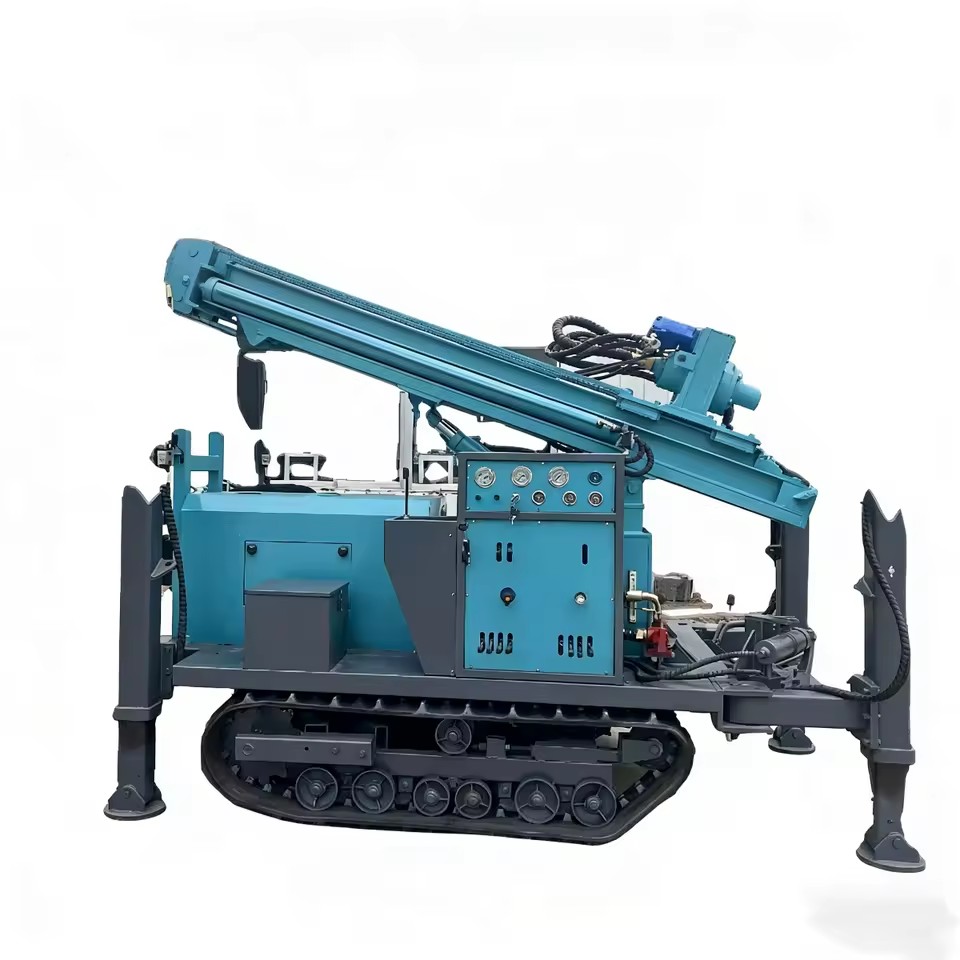

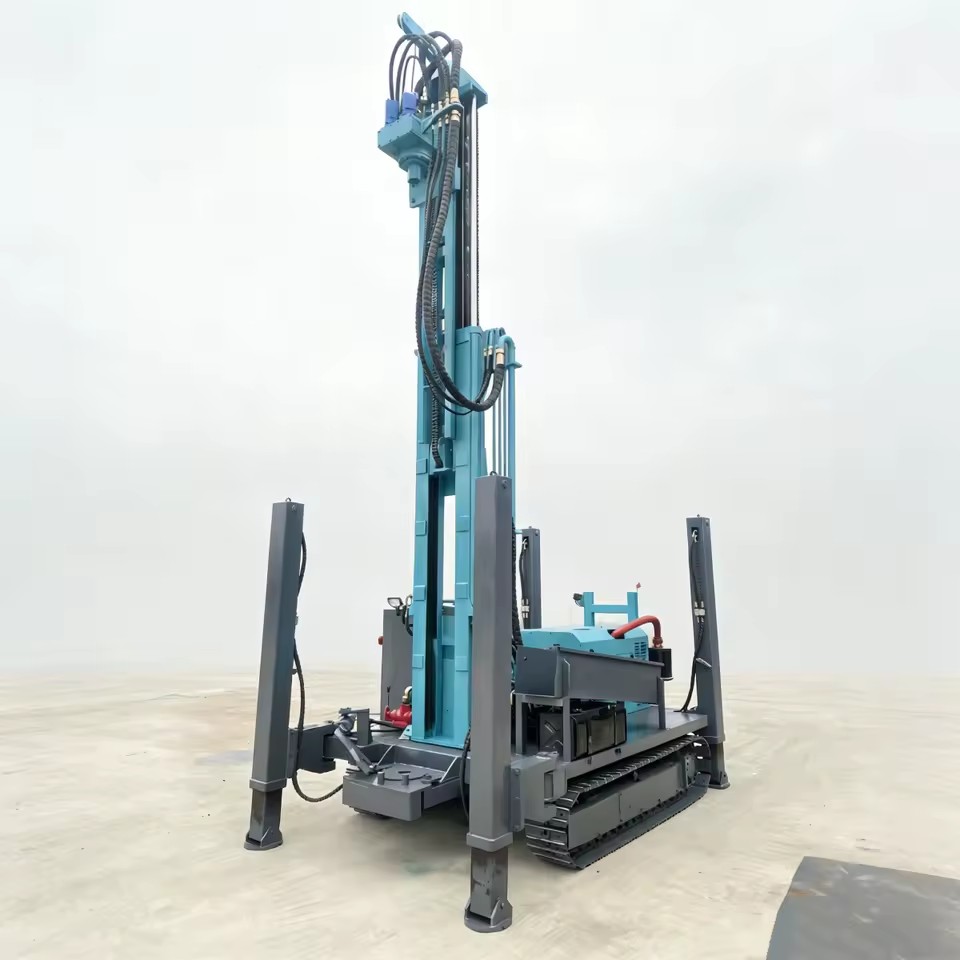

Free Shipping 200m 300m 400m Mining Drilling Rig Water Well Drilling Rig Drilling Rig Water Well

Available for enquiry 0.0 · 0 reviews
USD

$ 3,100.00 3100.0 USD $ 3,100.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Name
  • Feature
  • Keyword
  • Drilling method
  • Function
  • Application
  • Max Drilling Depth
  • Color
  • Advantage
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.500m
Drilling Diameter
300 mm(11.81in), 1200mm(47.24in), 100 mm(3.94in), 700 mm(27.56in), 200 mm(7.87in), 450 mm(17.72in), 600mm(23.62in)
Power Type
Diesel
Voltage
220v
Product description

HZ series water well drilling rig

ModelHZ180HZ220HZ260HZ320HZ450
Overall weight （T )3.54.26.4910
Dimension (mm )3400*1500*24003800*1700*23504100*1900*26004200*1900*26005300*2050*2700
Drilling diameter (mm )130-245130-294140-300140-350130-400
Drilling depth (m)180200260300400
One-time advance length of the drill(mm)3000300030003000/60003000/6000
Traveling speed （km/h )2.52.52.52.56
Climbing ability (max )25°30°30°30°30°
Minimum Ground Clearance (mm）250250250230300
Working Air Pressure (mpa )1.45 - 2.51.7-2.51.7-3.01.7-3.31.7-3.5
Air consumption(m³/min)15 - 2715-2717-352317-35
Main machine power （kw)42Kw60Kw73Kw85kw100/6 cylinder
Rotary Speed (rpm)38 - 8048 - 7040-7055-11545-75
Rotary torque (Nm)4000-50004200-56007000-90008500-100009000-10000
Description images

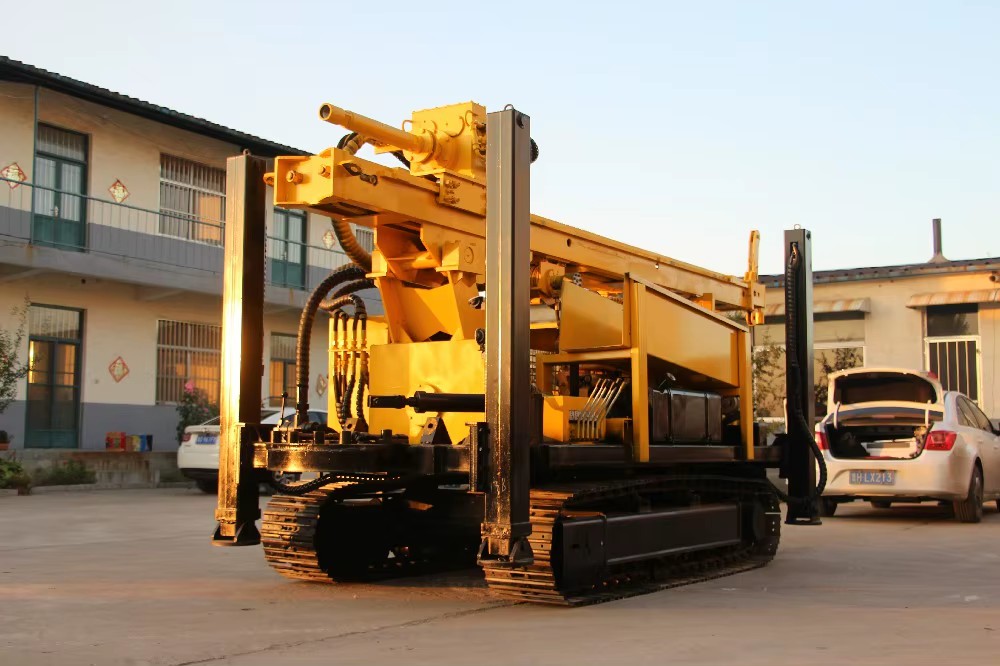

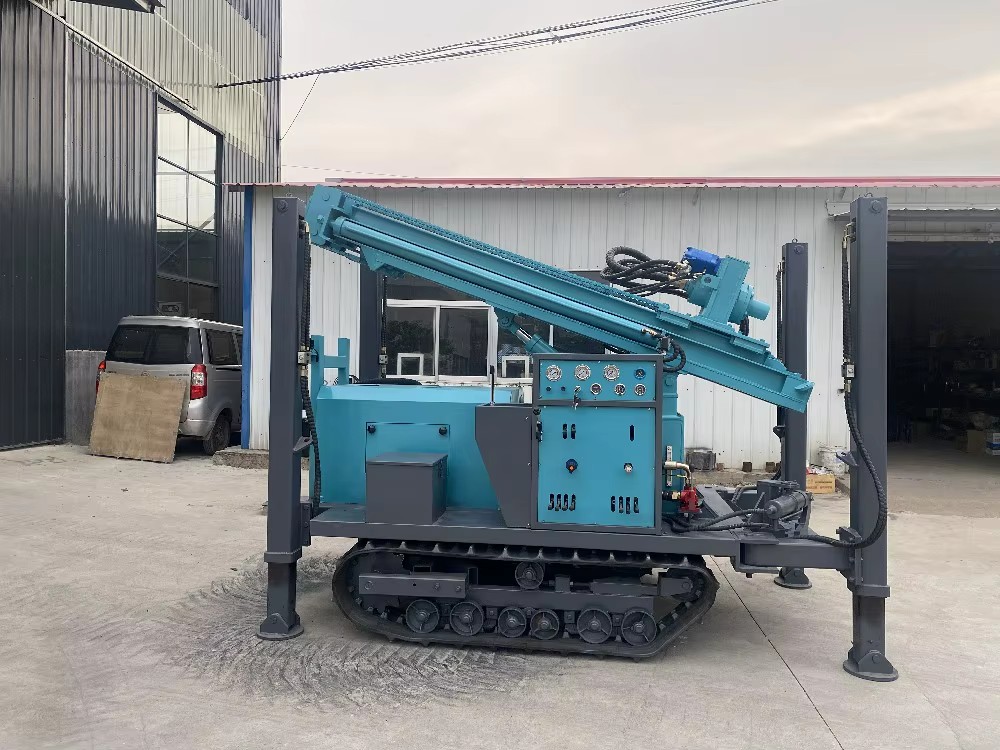

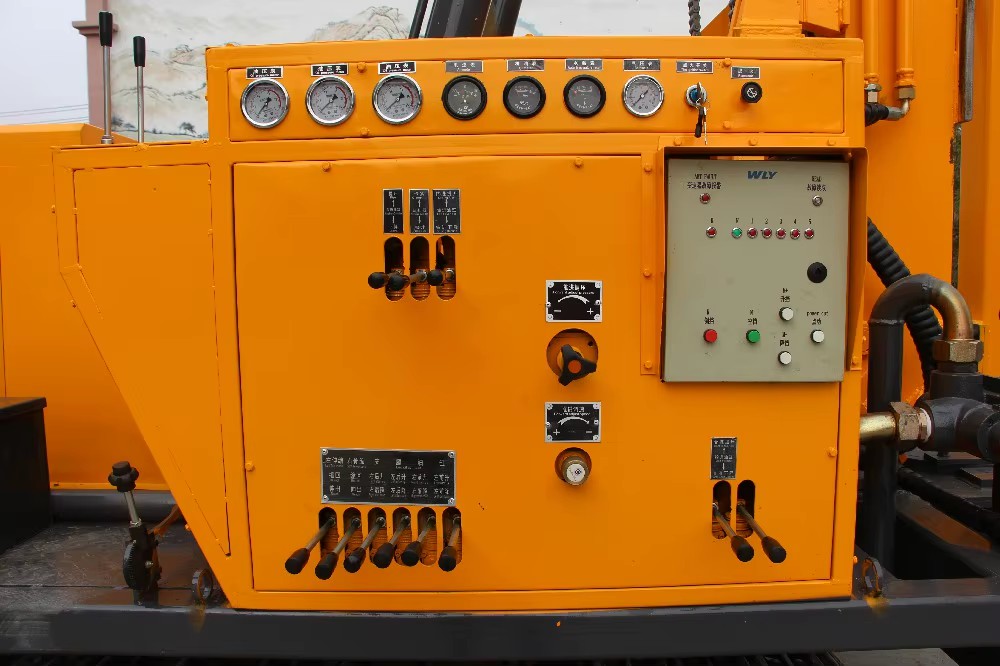

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.500m
Drilling Diameter
300 mm(11.81in), 1200mm(47.24in), 100 mm(3.94in), 700 mm(27.56in), 200 mm(7.87in), 450 mm(17.72in), 600mm(23.62in)
Power Type
Diesel
Voltage
220v
Core components
Motor
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Shandong
Weight
4200 kg(9259.42lb)
Dimension (L*W*H)
380*170*235CM(149.61*66.93*92.52in)
Mobility
move
Name
Borehole Dth Drilling Rig
Feature
High Drilling Efficiency
Keyword
Drilliing Rig
Drilling method
Pneumatic Hammer Drilling
Function
Borehole Drilling Rig DTH Borehole Drill Rig
Application
Geological Exploration
Max Drilling Depth
600 Meter
Color
Yellow
Advantage
High Performance
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
HZ180, HZ220, HZ260, HZ320, HZ450
Power (W) (Product option)
42kw(56.32hp), 100kw(134.10hp), 60KW(80.46hp), 73KW(97.89hp), 85KW(113.99hp)
Lead time
7 days
Minimum order
1 Units
