Product video
Certifications 2006/42/EC

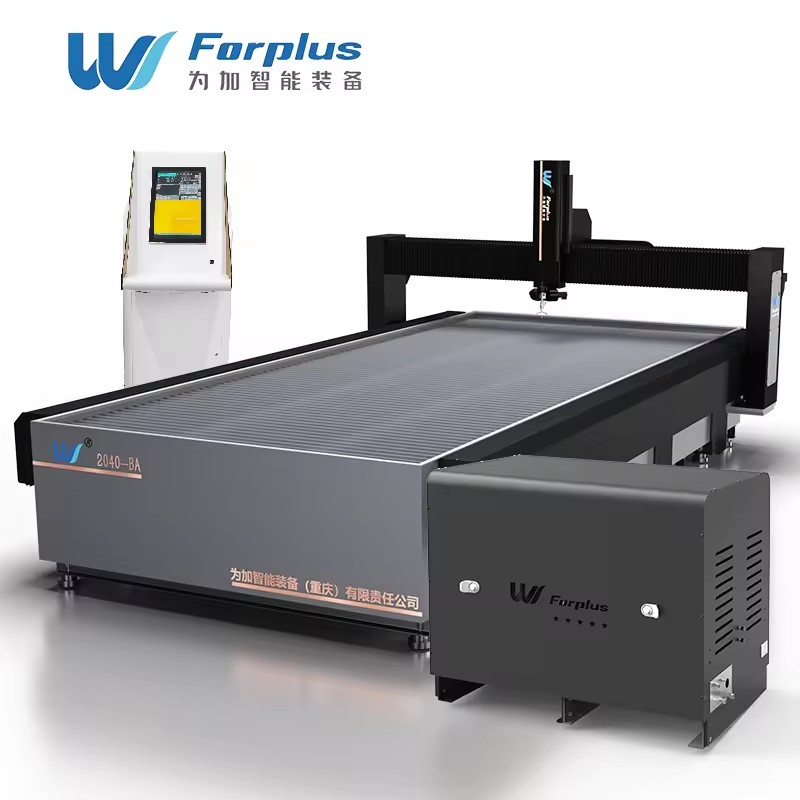

Forplus 3-Axis Waterjet Cutting Machine High-Performance Water Jet Cutter

Available for enquiry 0.0 · 0 reviews
USD

$ 31,410.00 31410.0 USD $ 31,410.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Voltage
  • Number of axes
  • Repeatability (x/y/z) (mm)
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Dimension(L*W*H)
  • Key selling points
  • Rated power
  • Place of origin
  • Weight (kg)
  • Table travel (x) (mm)
  • Table travel (y) (mm)
  • Table travel (z) (mm)
  • Cutting accuracy(mm)
  • Max pressure
  • Flow
  • Condition
  • Marketing Type
  • Warranty of core components
  • Showroom Location
  • Applicable Industries
  • Selling Units
  • Single package size
  • Single gross weight
  • Effective cutting range (mm)
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Voltage
220V/50Hz
Number of axes
3
Repeatability (x/y/z) (mm)
±0.05
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
1 Year
Product description

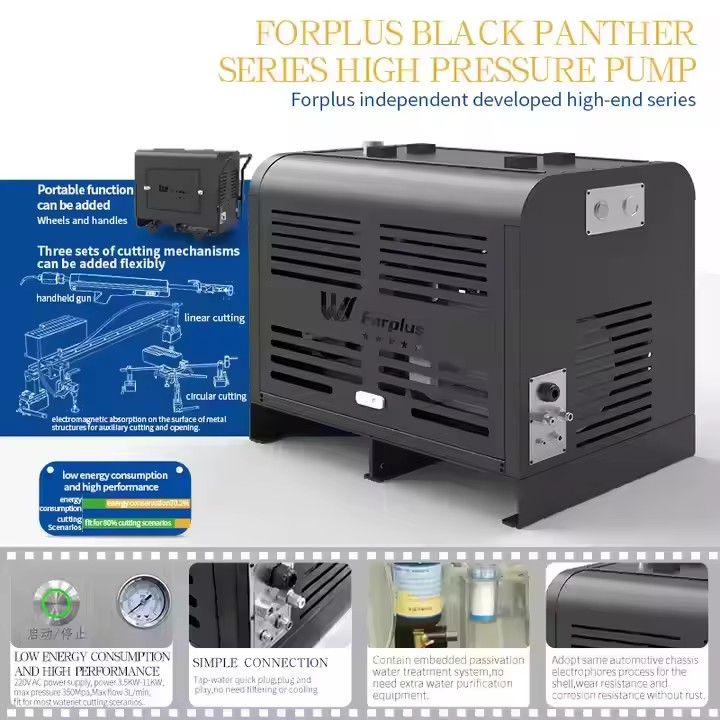

Forplus black panther series high pressure pump

Forplus black panther series high pressure pump

Model

Forplus-D30K

Forplus-D40K

Forplus-D50K

Forplus-D50K Plus

Rated pressure

30000psi(200MPa)

40000psi(260MPa)

50000psi(300MPa)

55000psi(350MPa)

Rated flow

0.96L/min

1.3L/min

1.5L/min

1.84L/min

Rated power

4KW

5.5KW

7.5KW

11KW

Max gem orifice

0.2mm

0.22mm

0.24mm

Inlet water pressure

2-6bar

Water inlet caliber

Φ12mm

Inlet water flow

6-8L/min

Voltage

single phase 220V 50HZ

Name

1520 cutting platform

X*Y*Z Stroke

1500*2000*150mm

voltage,rated power

220v,50HZ

core components

PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump, auto abrasive feeding system(selective)

Product Paramenters

Glass cutting applying by D50k plus pump and standard cutting machine

D50K Plus high pressure pump matched with 3-AXIS CNC standard cutting machine is well working in Glass cutting.

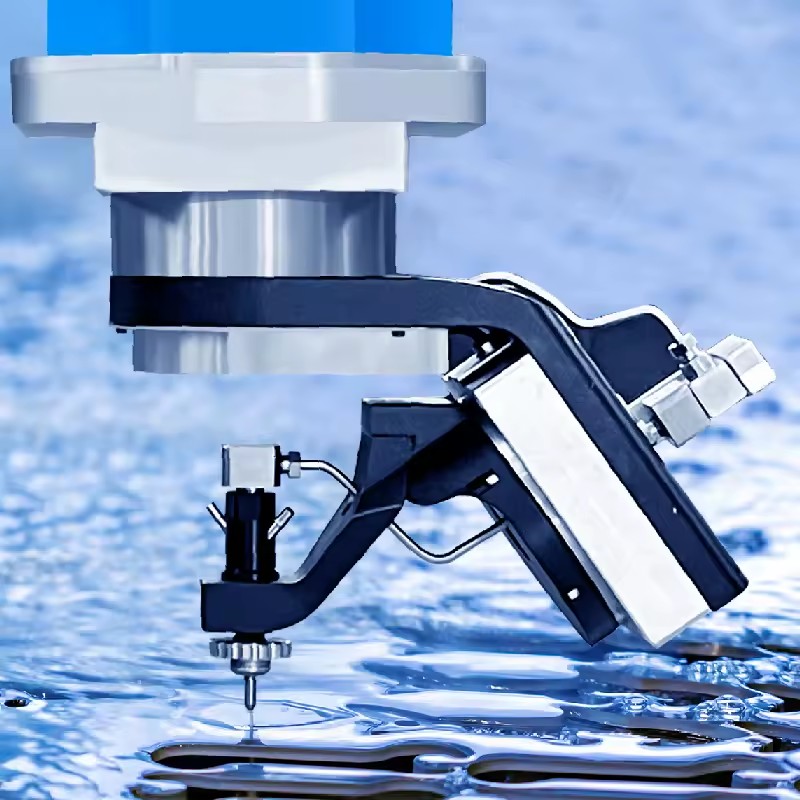

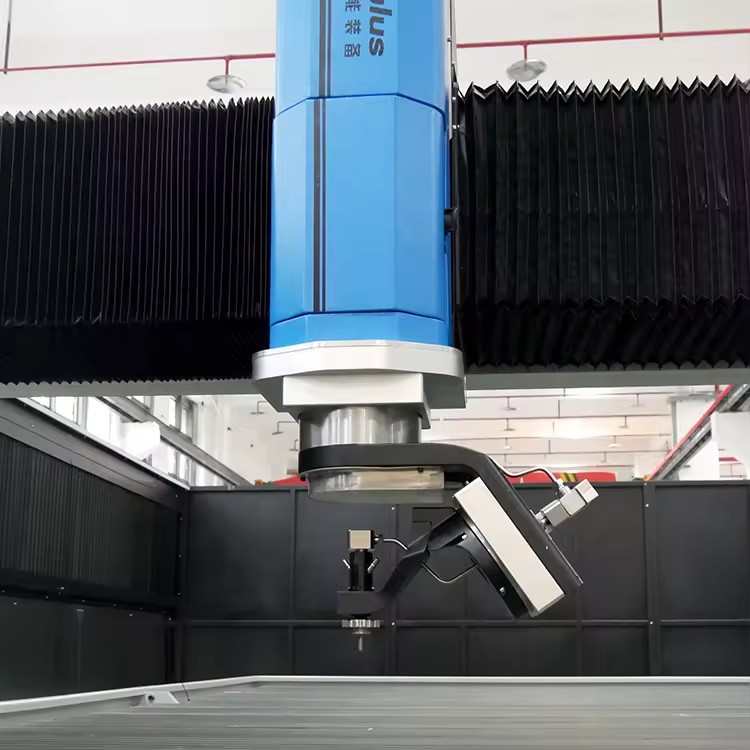

we can also choose to use 5-axis cutting head.

Product advantages

1.

low energy consumption and high performance

.220V AC power supply, power 3.5KW-11KW,max pressure 350Mpa,Max flow 3L/min,fit for most waterjet cutting sceranios.

2.

Simple Connection.

Tap-water quick plug,plug and play,no need filtering or cooling.

3.

Contain embedded passivation water treatment system

no need extra water purification equipment.

4.

Adopt same automotive chassis electrophores process for the shell

wear resistance and corrosion resistance without rust.

5.

Portable function can be added

.Wheels and handles.

6.

Three sets of cutting mechanisms can be added flexibly

.linear cutting/circular cutting/handheld gun.

220V AC power supply, power 3.5KW-11KW, max pressure 350Mpa,Max flow 3L/min, fit for most waterjet cutting sceranios.

Contain embedded passivation water treatment system,no need extra water purification equipment.

Adopt same automotive chassis electrophores process and spray-painting for the shell,wear resistance and corrosion resistance

without rust.

Certifications & compliance
2006/42/EC
EU Machinery Compliance
Description images
2006/42/EC
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Economy · Approx. shipping fee: $ 649.40 for 1 piece · Estimated delivery: Sep 8–Oct 13 (8–43 days)

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Voltage
220V/50Hz
Number of axes
3
Repeatability (x/y/z) (mm)
±0.05
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
920mm*660mm*800mm(36.22in*25.98in*31.50in)
Key selling points
Long Service Life
Rated power
11KW(14.75hp)
Place of origin
China, Chongqing
Weight (kg)
445
Table travel (x) (mm)
1500
Table travel (y) (mm)
2000
Table travel (z) (mm)
150
Cutting accuracy(mm)
0.1mm(0in)
Max pressure
55000psi/350MPa
Flow
1.84L/min
Condition
New
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Showroom Location
None
Applicable Industries
Mining, petroleum extraction, Roads, railways, and ships, automation
Selling Units
Single item
Single package size
120.0X100.0X98.0 cm
Single gross weight
500.0 kg
Effective cutting range (mm)
1500x2000
Model number
Forplus-U1520-Z150, Forplus-D50Kplus, Forplus-D50Kplus and Forplus-U1520-Z150
Certifications & Compliance
2006/42/EC
