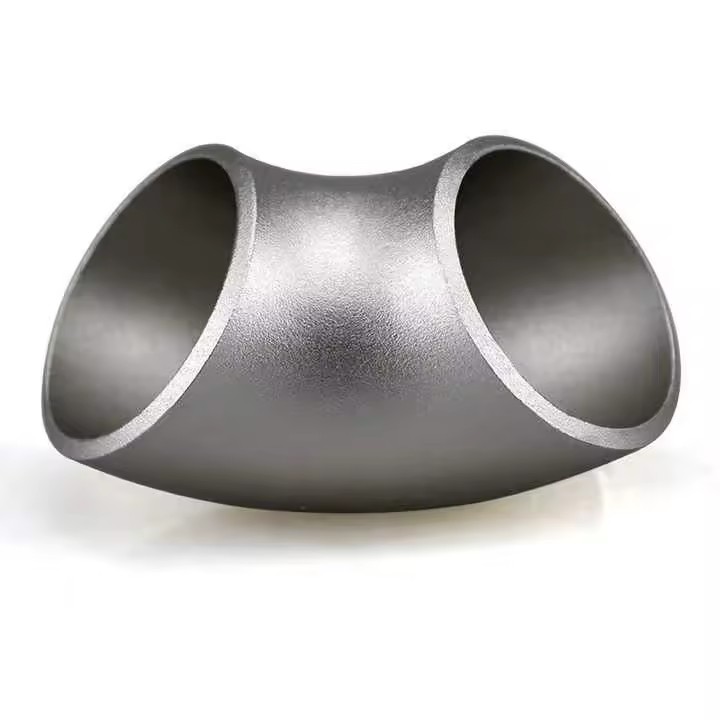

Name: Forged Buttwelding Carbon Steel Pipe Fittings WELDING EQUAL Elbow JIS DIN ANSI ASME ISO BS Standards
SKU: B2B-3415
Price: 20.0 USD
Availability: PreOrder

Product description

Product Name	Elbow
Material	Stainless Steel、Carbon steel
Standard	DIN,ANSI,JIS,ASME,SMS,BSP,API,IDF,EN,ASTM.
Customized support	OEM, ODM
Media	Gas/Water/Oil
Connection Method	Welded Connecting
Sample	Sample Freely
Service	24 Hours Online

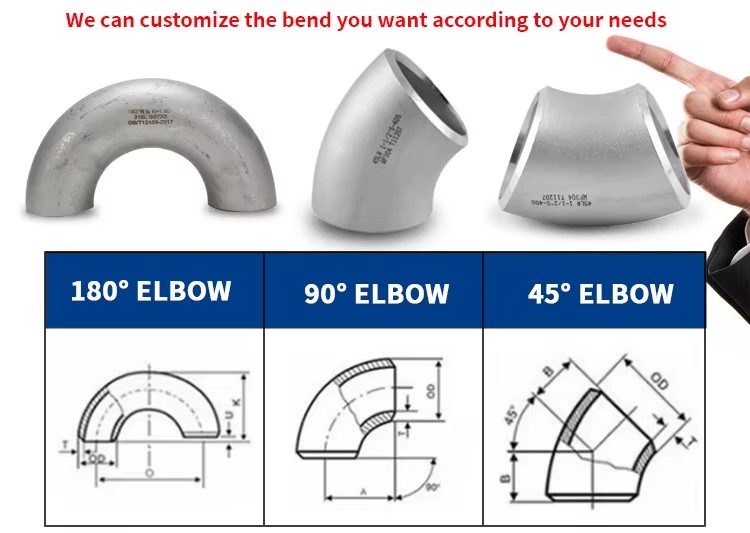

Nominal size	Outside diameter at bevel （D/mm）	center to end
DN	NPS	I	Ⅱ	90° Elbow A/mm	45° Elbow B/mm
15	1/2	21.3	18	38	16
20	3/4	26.9	25	38	19
25	1	33.7	32	38	22
32	1-1/4	42.4	38	48	25
40	1-1/2	48.3	45	57	29
50	2	60.3	57	76	35
65	2-1/2	73.0	76	95	44
80	3	88.9	89	114	51
90	3-1/2	101.6	133	57
100	4	114.3	108	152	64
125	5	141.3	133	190	79
150	6	168.3	159	229	95
200	8	219.1	219	305	127
250	10	273.0	273	381	159
300	12	323.9	325	457	190
350	14	355.6	377	533	222
400	16	406.4	426	610	254
450	18	457.0	480	686	286
500	20	508.0	530	762	318
550	22	559.0	838	343
600	24	610.0	630	914	381
650	26	660.0	991	406
700	28	711.0	720	1067	438
750	30	762.0	1143	470
800	32	813.0	820	1219	502
850	34	864.0	1295	533
900	36	914.0	1372	565
950	38	965.0	1448	600
1000	40	1016.0	1524	632
1050	42	1067.0	1600	660
1100	44	1118.0	1676	695
1150	46	1168.0	1753	727
1200	48	1219.0	1829	759
1300	52	1321.0	1981	821
1400	56	1422.0	2134	884
1500	60	1524.0	2286	947

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

3 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Pipe Class

Not Rated

Connectivity

Welding

Pressure

High Pressure, Class150/300/600/9001500/2500

Surface Treatment

Polishing

Pipe Features

Corrosion-resistant, Flexible, Chemical Resistant

Technic

Casting

Shape

Equal

System of Measurement

inch

Head code

Equal

Mounting hole diameter

custom

Overall Length

Custom

Customized support

OEM, ODM, OBM

Warranty

3 Years

Model number (Specification)

DongXing-1

Place of origin

China, Hebei

Height

Custom

Size

1/2"-120"

Application

Pipe Lines Connect

Usage

Joining Pipe Lines

Keyword

joint

Packing

Wooden Case

Delivery Time

3-5 Days

Feature

Corrosion Resistant

Selling Units

Single item

Single package size

23X23X4.3 cm

Single gross weight

1.23 kg

Type (Product option)

Elbow

Pipe size

Custom

Material (Product option)

Stainless Steel, Aluminium

Lead time

3 days

Minimum order

10 Units
