Product video
Certifications CE

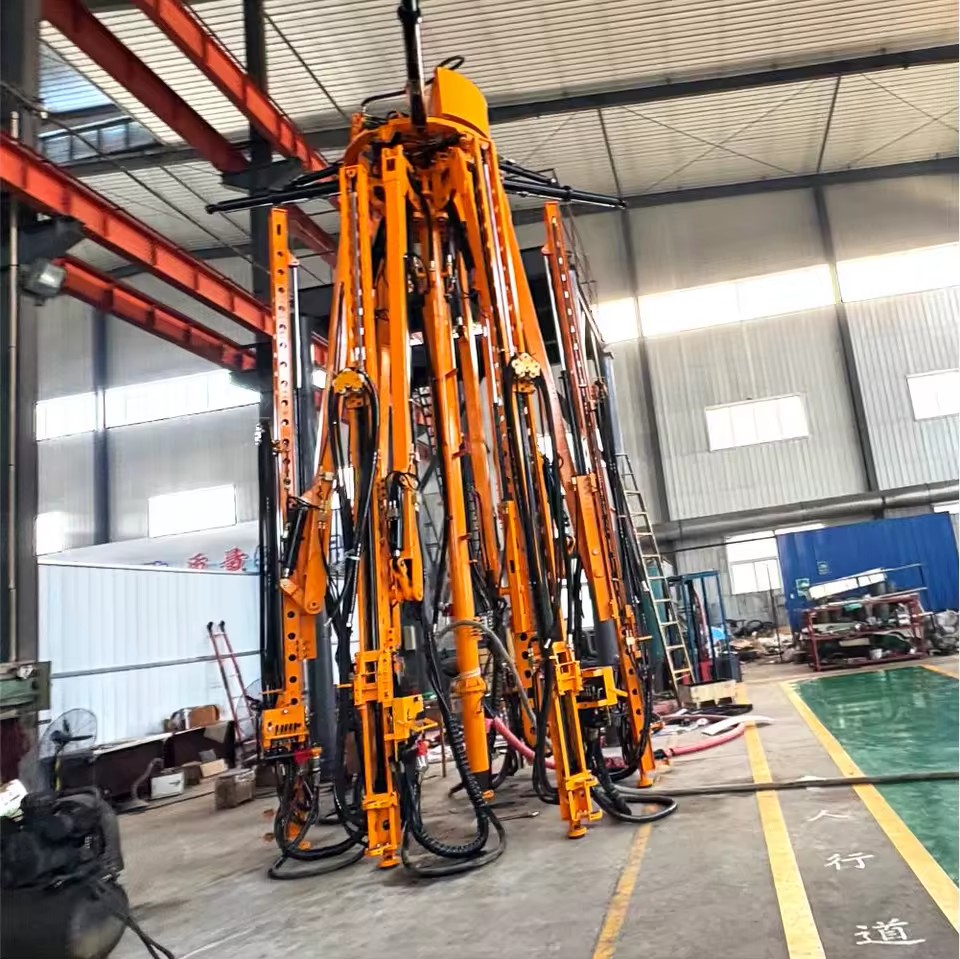

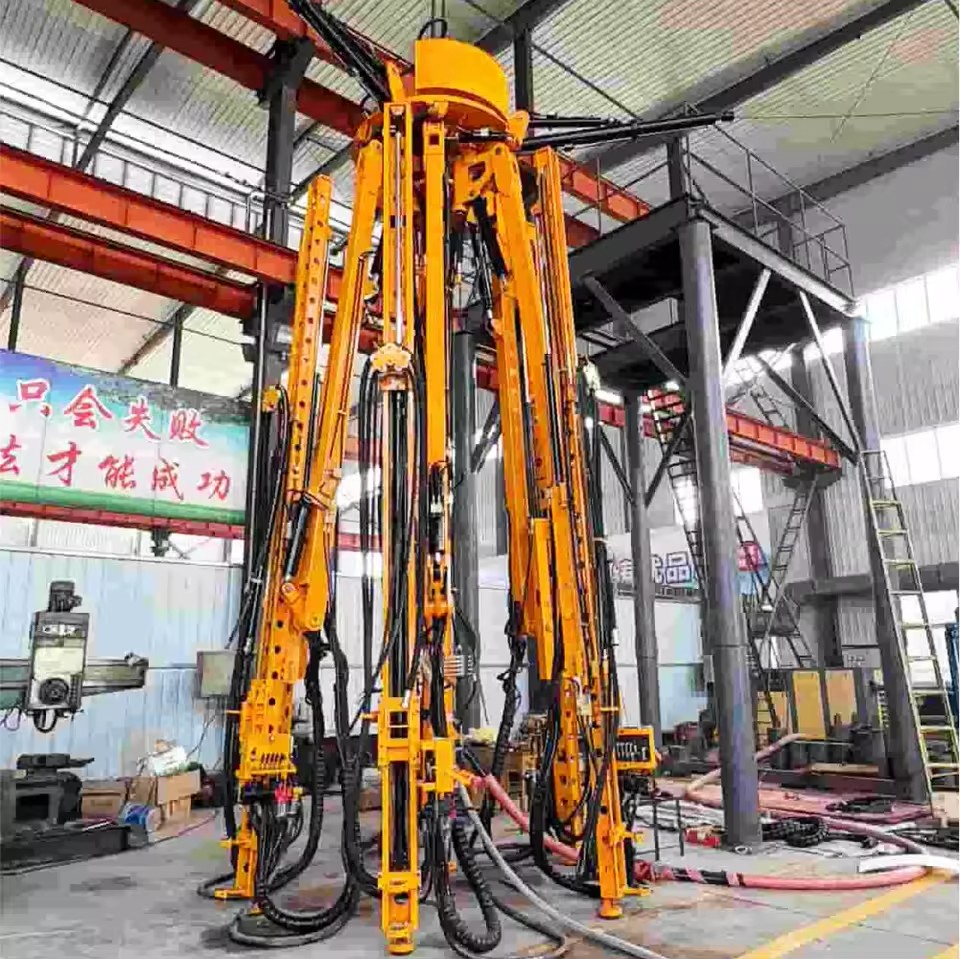

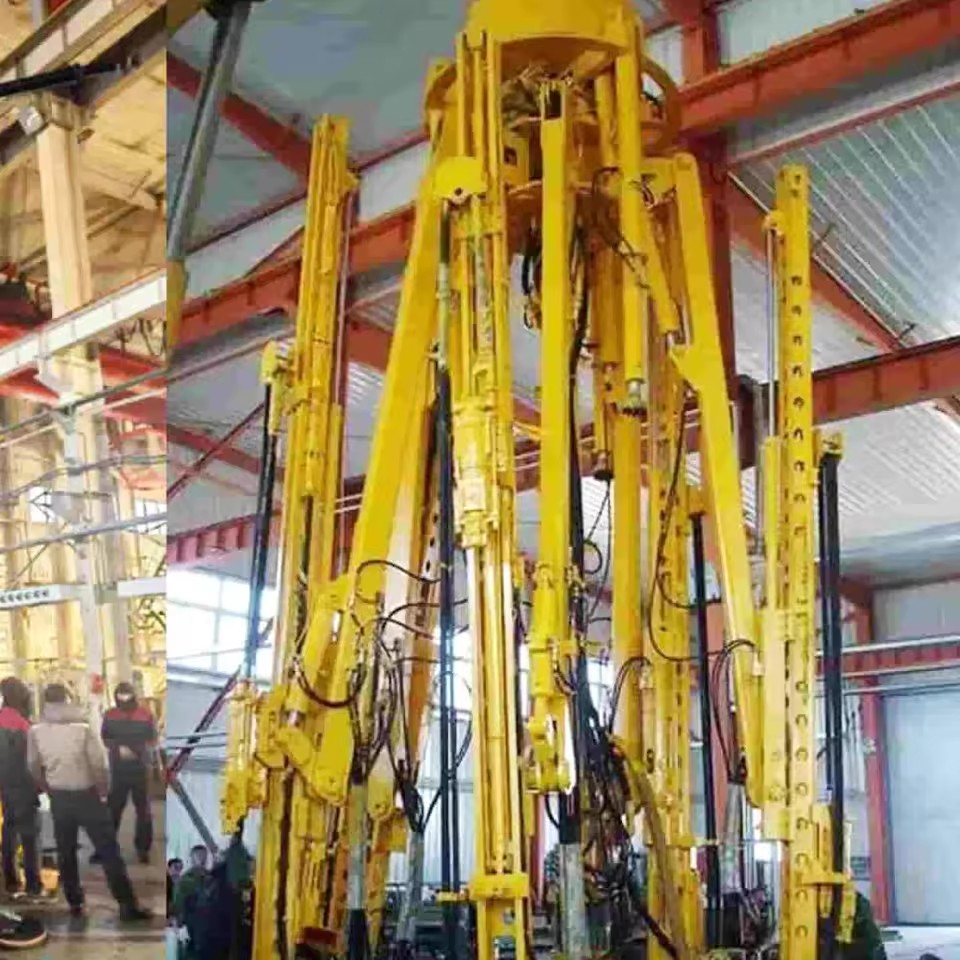

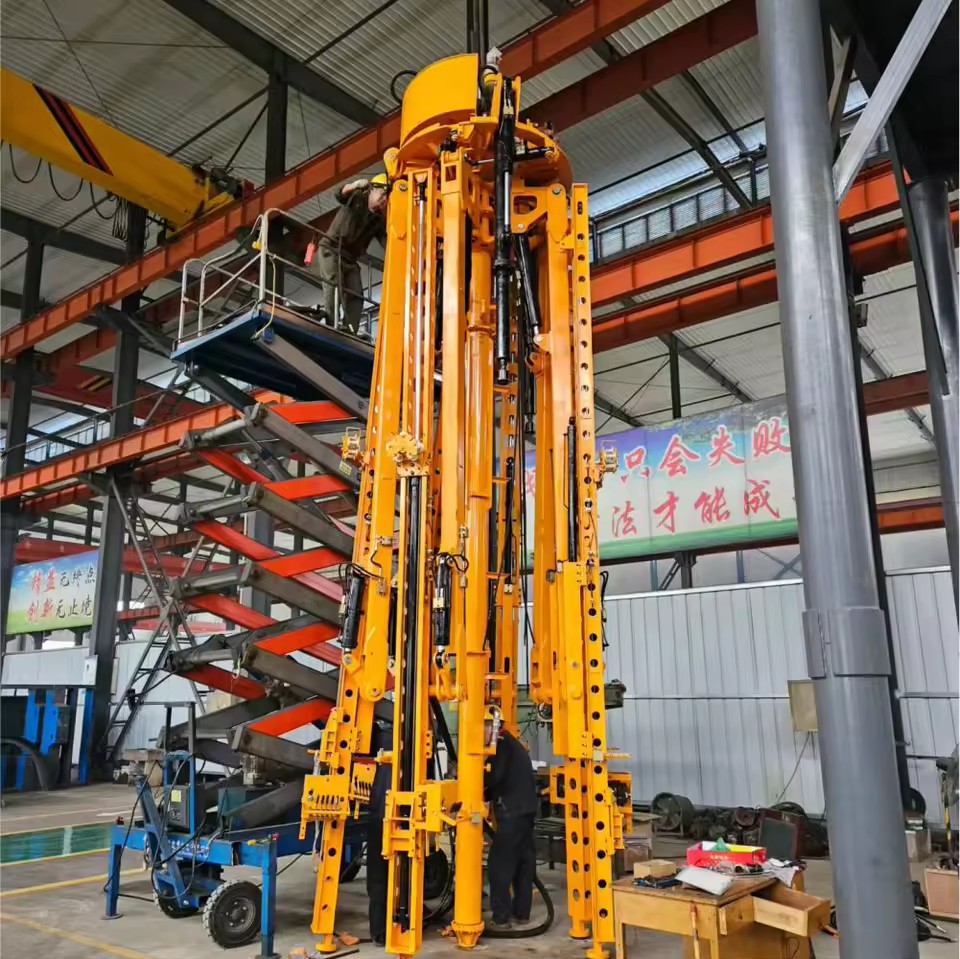

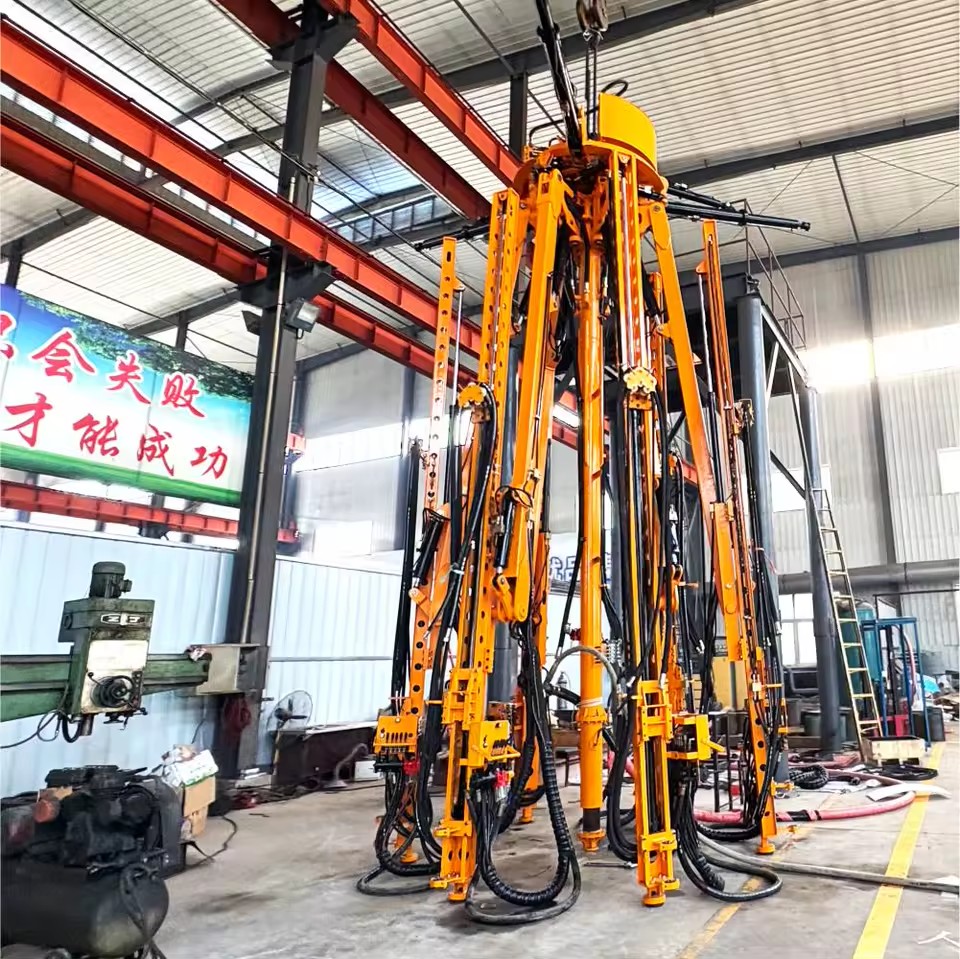

FJD Mine Shaft Drilling Rig with 5-12m Drilling Depth Hydraulic Rock Drill for Shaft Sinking

Available for enquiry 0.0 · 0 reviews
USD

$ 4,890.00 4890.0 USD $ 4,890.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Drill Blast Holes
Type
Shaft Drill Jumbo
Drilling Depth
Design Parameters
Drilling Diameter
Diameter1.9*7.2m
Power Type
Air Motor Oil Pump
Voltage
Rated Voltage 380V/50hz, customized according to local voltage
Product description

> Structural Features and Working Principle

FJD shaft boring machine Technical Parameters
Technical ParametersFJD6.7FJD6.7FJD6.7FJD6.7FJD6.7
Applicable wellbore diameter(m)6—88—98—109—1110-12
Folded size(m)φ1.9×7.2φ1.9×8φ1.9×8φ1.9×8φ2.25×8.1
Number of booms66666
Support rangeMade according to the agreement
Swing arm angle(°)120°120°120°120°96°
Swing modeHydraulic Cylinder
Drilling range(m)φ1.65-8.2φ1.65-9.5φ1.65-10.5φ1.7-11.5φ1.7-11.5 φ1.7-13.5
percussion rock drill quantity and model6/YGZ706/YGZ706/YGZ706/YGZ708/YGZ70
Power formAir motor + oil pump
Oil pump power(kw)5.85.85.85.85.8
Work Pressure(Mpa)10—1412—1412—1412—1412—14
Advancement(m)4.35.35.35.35.3
Working air pressure(Mpa)0.5-0.70.5-0.70.5-0.70.5-0.70.5-0.7
Air consumption(m²/min)68686868100
Drill rod length(m)4.75.75.75.75.7
Drill head diameter(mm)φ38-55φ38-55φ38-55φ38-55φ38-55
gross weight(kg)780082008700900012000
Working water pressure(Mpa)0.3—0.50.3—0.50.3—0.50.3—0.50.3—0.5
Shank tail specifications(mm)Hollow Hexagon25X159
Main pipe inlet gas inner diameterφ102
Main pipe inlet water inner diameterφ32
Certifications & compliance
CE
Complies with EU standards

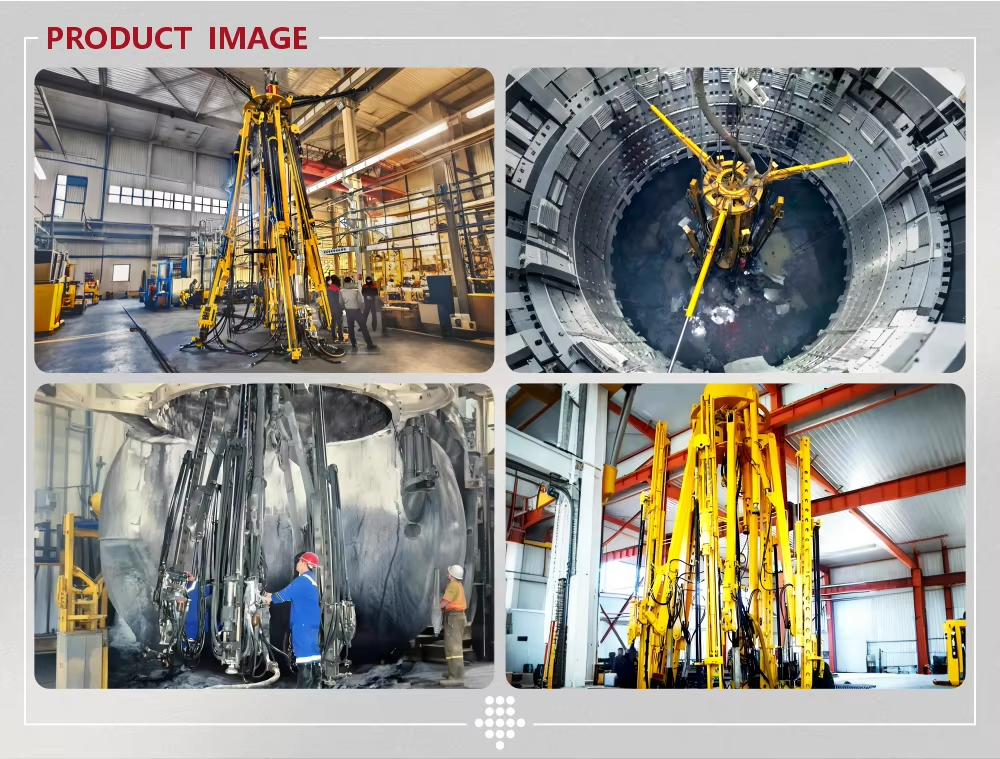

Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    5 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 31 fields
Usage
Drill Blast Holes
Type
Shaft Drill Jumbo
Drilling Depth
Design Parameters
Drilling Diameter
Diameter1.9*7.2m
Power Type
Air Motor Oil Pump
Voltage
Rated Voltage 380V/50hz, customized according to local voltage
Core components
Rock drill, Boom, Feeder, Hydraulic station, Control valve group, Support arm, Hydraulic lock
Warranty
18 Months
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
3-4 times manual efficiency
Place of origin
China, Henan
Weight
7800 KG(17196.06lb)
Dimension (L*W*H)
Retracted dimensions diameter 1.9*7.2m
Mobility
In-shaft Positioning/Transportation Between Shaft
Applicable Shaft Diameter
6-8 m
Number of Boom Arms
6
Swing angle
120°
Drilling range
Diameter 1.65-8.2m
Rock Drill Model
6/YGZ70
Oil Pump Power
5.8 KW
Working pressure
10-14 MPa
Feed stroke
4.3 m
Working Air Pressure
0.5-0.7 MPa
Air consumption
68 m3/min
Selling Units
Single item
Single package size
720X190X720 cm
Single gross weight
7800.0 kg
Model number
FJD6.7
Power (W) (Product option)
5.8KW(7.78hp)
Certifications & Compliance
CE
Lead time
5 days
Minimum order
1 Units
