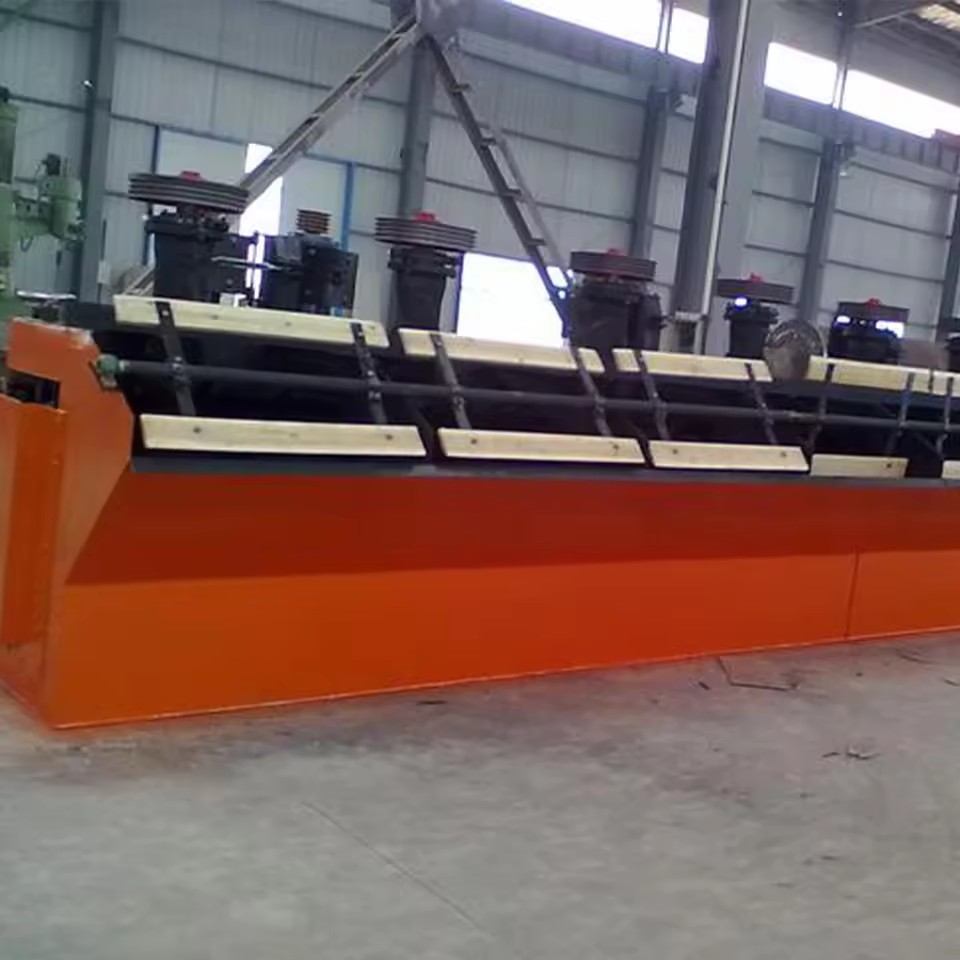

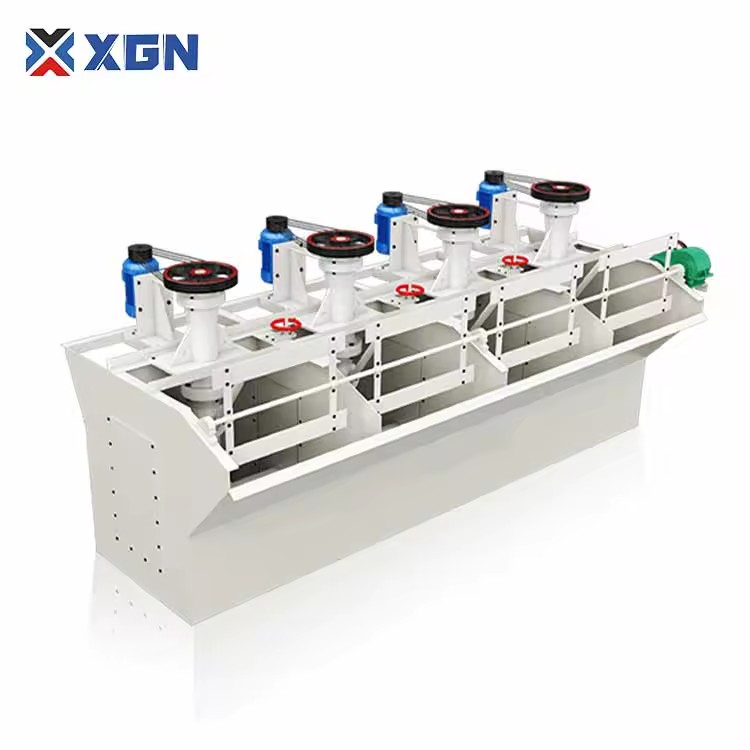

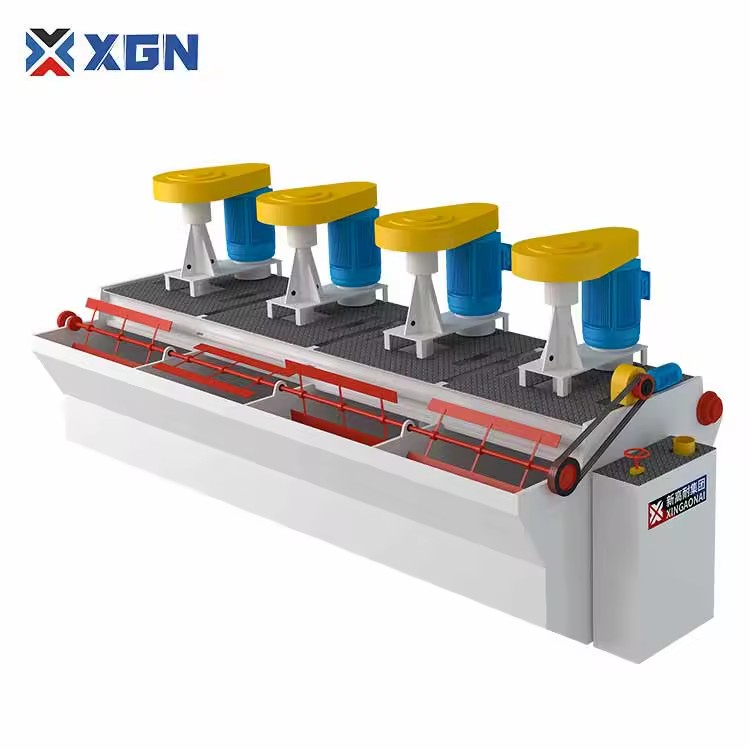

Name: Flotation
SKU: B2B-31463
Price: 6570.0 USD
Availability: PreOrder

Product description

Flotation Machine Performance

Country	Ore type	Grade of raw copper	Grade of copper concentration	Copper recovery rate(%)
Copper ore	1.77%	23.86%	95.24%
Tungsten ore	0.2%	21.20%	>65%
Copper-lead-zinc ore	85.2%	50.4%	87.3%

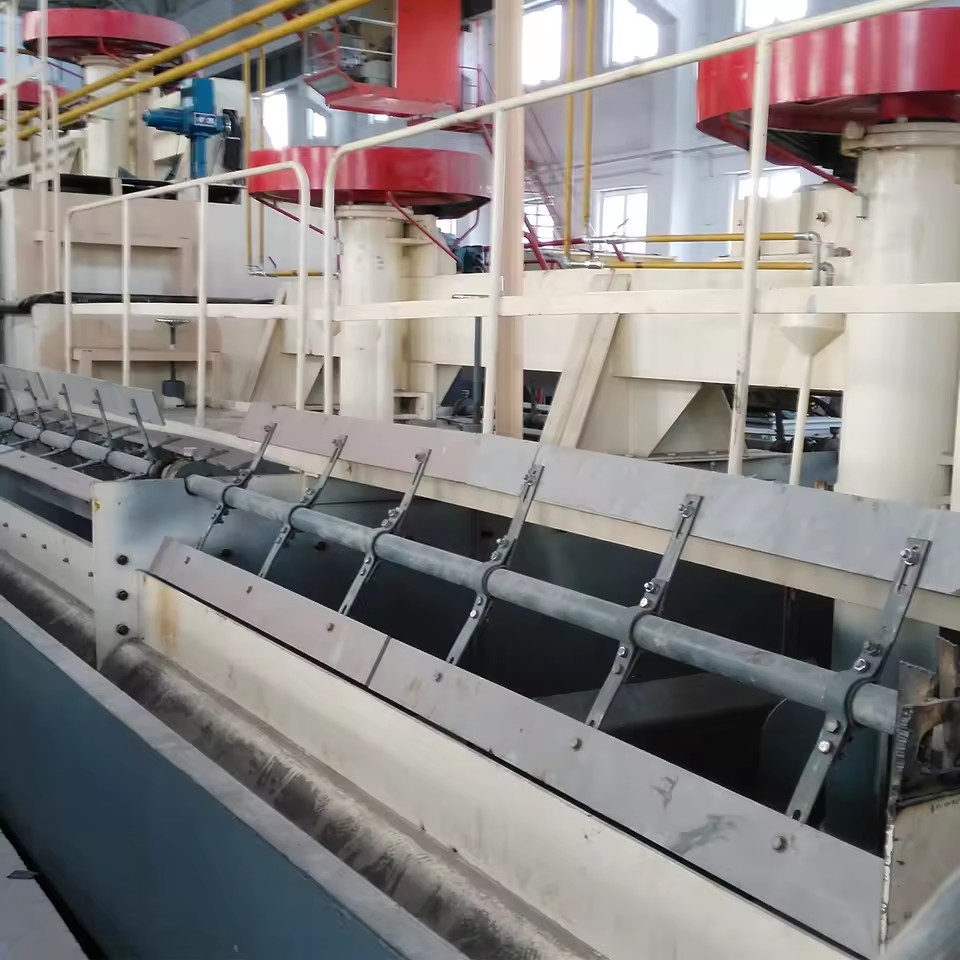

Mineralized foam discharging device

Model	Effective volume (m³)	Capacity (m³/min)	Diameter of impeller (mm)	Impeller revolutions (r/min)	Stir motor power (kw)	Scraper motor power (kw)	Single slot weight (kg)
SF-0.37	0.37	0.2-0.4	300	352-442	1.5	0.55	468
SF-0.7	0.7	0.3-1.0	350	336-384	3	1.1	629
SF-1.2	1.2	0.6-1.6	450	312	5.5	1.1	1373
SF-2	2	1.5-3	550	280	11	1.5	1879
SF-2.8	2.8	1.5-3.5	550	280	11	1.5	1902
SF-4	4	2.0-4	650	235	15	1.5	2582
SF-6	6	3-6	760	191	30	2.2	3540
SF-8	8	4.0-8	760	191	30	2.2	4129
SF-16	16	5.0-16	850	169-193	45	1.5	7415
SF-20	20	10-12	850	169-193	45	1.5	9828

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Multimodal transport · Approx. shipping fee: $ 85.09 for 1 unit · Estimated delivery in 32-43 business days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Flotation Separator

Voltage

Optional

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Key selling points

High Productivity

Production Capacity

1-100tph

Place of origin

China, Henan

Weight

1800 KG

Application

Powder separation and concentrate

Usage

Widely use for 70 kinds metals

Advantage

corrosion resistance long life

Recovery rate

85-98%

Feeding density

30-40%

Installation

Under Technical Guidance

After sale service

Life-long Service

Certification

ISO9001 CE BV

Function

for mineral rough, cleaning and reverse flotation

Selling Units

Single item

Single package size

50X50X50 cm

Single gross weight

50.0 kg

Power (W) (Product option)

1.5-45kw,0.55-1.5kw

Model number

SF-0.37, SF-0.7, SF-1.2, SF-2.8, SF-4, SF-8, SF-6, SF-20, SF-2, SF-16

Lead time

31 days

Minimum order

1 Units
