Product video

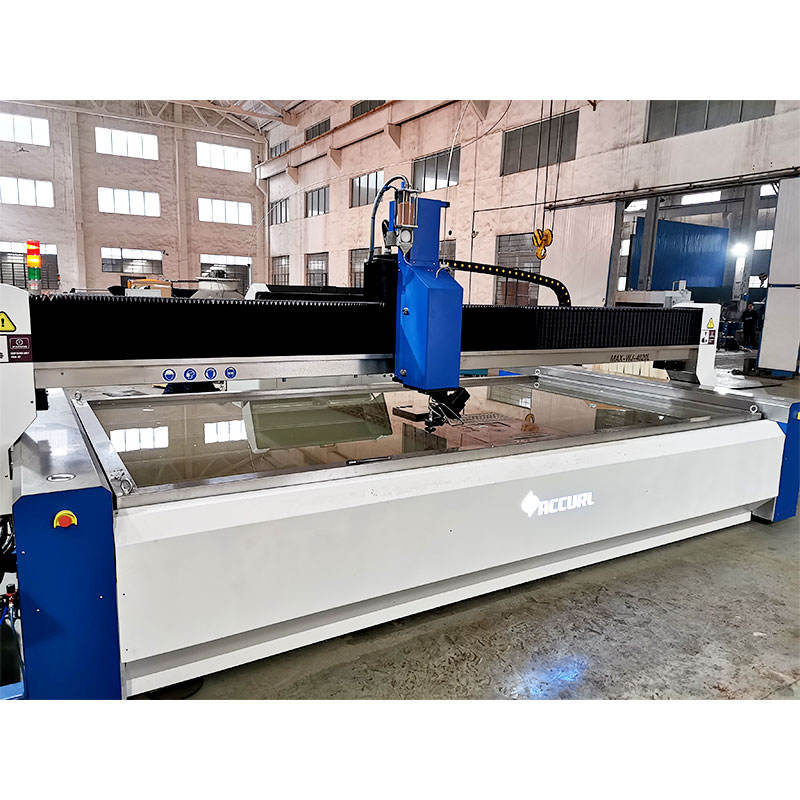

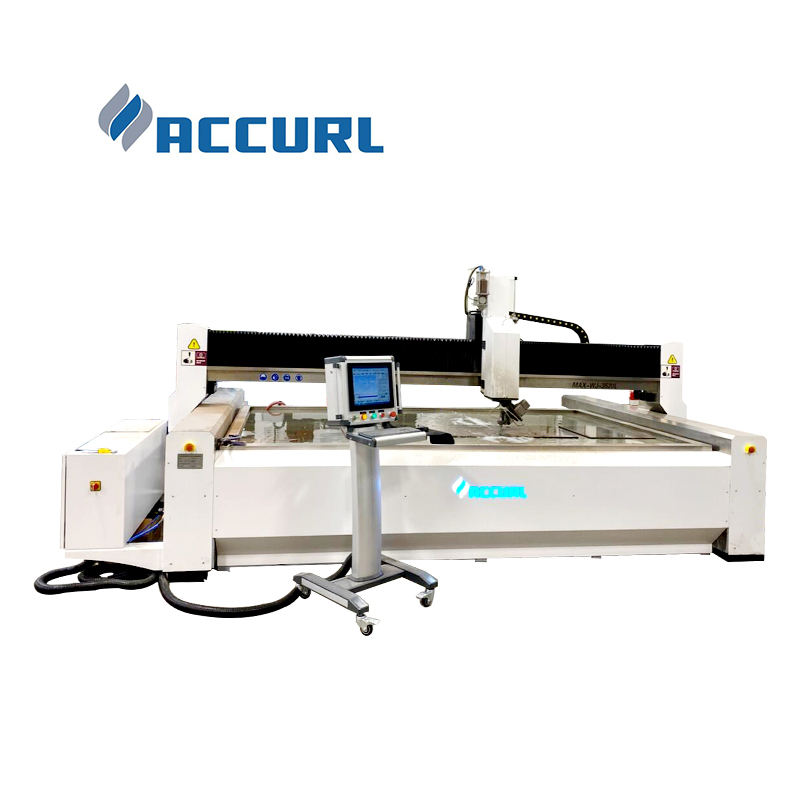

5 Axis Waterjet Machine 3015 Waterjet CNC Cutting Machines Prices for Metal, Glass, Stone Water Jet Cutter

Available for enquiry 0.0 · 0 reviews
USD

$ 59,160.00 59160.0 USD $ 59,160.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
220V~480V,50/60Hz,3-phase
Number of axes
5
Repeatability (x/y/z) (mm)
±0.02
Core components
Bearing, PLC, Motor, Engine, Gearbox
Machinery test report
Provided
Warranty
3 Years
Product description

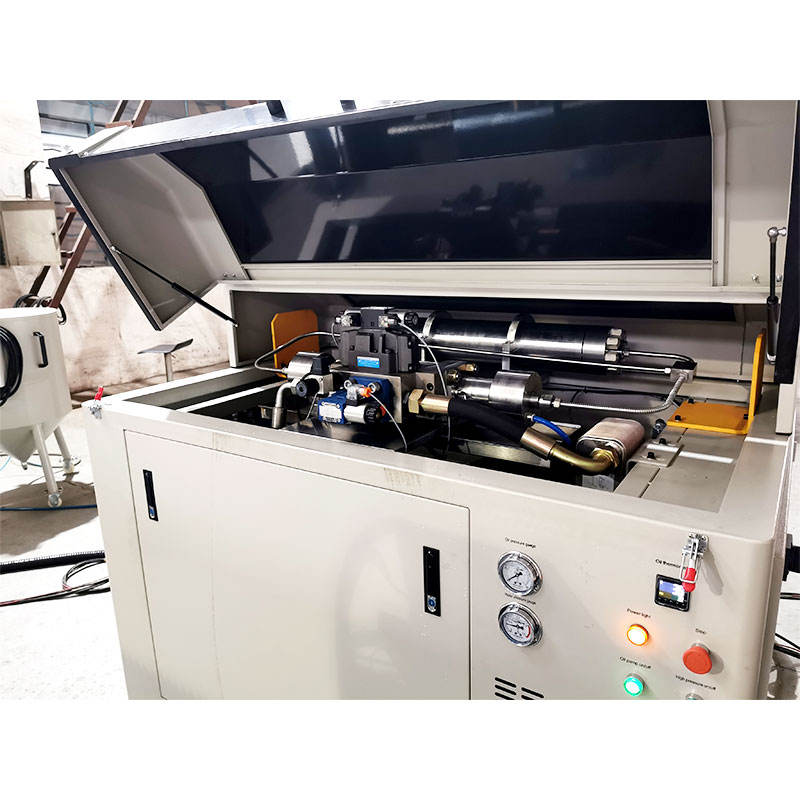

Technical specificationsThe high-pressure pump is characterized by
Nominal power37 kW / 50 HP•Hydraulic pump of variable flow and compensated pressure
Maximum working pressure4136 bar•High / low pressure selection that allows piercing
Maximum flow4.1 L/min•Electrical inversion of the cutting head
Hydraulic tank capacity211 L•Noise level below 80dB
Pressure accumulator volume1 L•Leakage detection in de high-pressure circuit
Water inlet pressure2.4 - 5.5 bar•Long lasting high pressure seals
Nominal current72 A•System to uninstall de piston without uninstalling the cylinder
Protection at 400 V / 50 Hz80 A•Air / oil heat exchanger
Noise level76 dB•Cost-effective Cutting System
Length x Width Height1689x1114x1508mm•Maintenance-free Operation
Weight1438 Kg•The sensors, located before and after the booster pump

AUTO SULLAGE REMOVAL SYSTEM 2.0

AUTONOMOUS ABRASIVE FEEDER-ABRALINE 3.0
Net weight80 kg
Length700 mm
Width700 mm
Height1400 mm
Storage deposit capacity200 l
Pressurized tank capacity24 l
Minimum working pressure5 bar
Maximum working pressure7 bar
Maximum compressed air consumption500 l/min
Maximum abrasive flow rate1.300 gr/min
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    45 days

  • Step 3

    Packaging and dispatch

    Ocean + Truck via Maersk · Approx. shipping fee: $ 3,253.44 for 1 set · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Key attributes 26 fields
Voltage
220V~480V,50/60Hz,3-phase
Number of axes
5
Repeatability (x/y/z) (mm)
±0.02
Core components
Bearing, PLC, Motor, Engine, Gearbox
Machinery test report
Provided
Warranty
3 Years
Video outgoing-inspection
Provided
Dimension(L*W*H)
3880*2150*2000mm(152.76*84.65*78.74in)
Key selling points
High Productivity
Rated power
7.5
Place of origin
China, Anhui
Weight (kg)
8500
Table travel (x) (mm)
2000
Table travel (y) (mm)
3000
Table travel (z) (mm)
180
Cutting accuracy(mm)
±0.1
Type
Water Jet Cutters
Name
Waterjet Cutting Machine
Keyword
Waterjet Cutting Machine

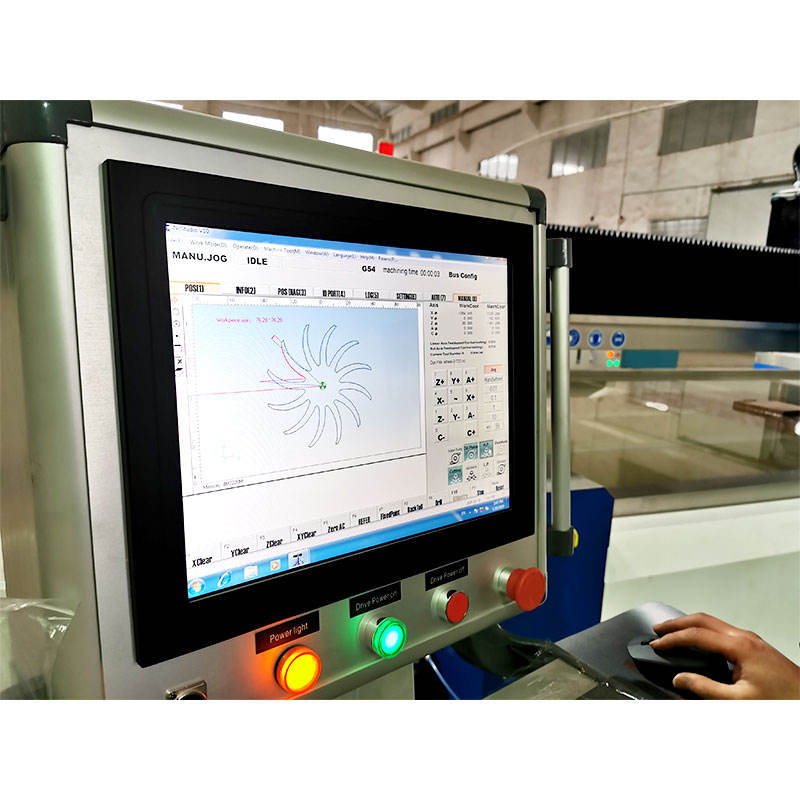

CNC System & Software
WEIHONG CNC
Ball screw & Linear guide
HIWIN from TAIWAN
Ball screw
REXROTH from Germany
Electric appliance
SCHNEIDER from France
Cutting thickness
0-200mm
Weight
8500Kgs
Application
Industrial Metal Cutting
Packaging and delivery 3 fields
Selling Units
Single item
Single package size
388X215X200 cm
Single gross weight
8500.0 kg
Product options 2 fields
Model number
MAX-WJ-3020L
Effective cutting range (mm)
3000×2000
Lead time
45 days
Minimum order
1 Units
