Name: Fiberglass Spiral Chute Gravity Separator Pump 100T/h Energy-Saving Alluvial Placer Tin Tungsten Ore Refining Mineral Processing
SKU: B2B-35951
Price: 2100.0 USD
Availability: PreOrder

Product description

Product Application

Suitable for diffferent kinds of alluvial ore benefication plant

Such as chrome, gold, chromite,Tin, Coltan,Gemstone,Tantalum,zircon,tungsten,sillca etc.

Can also work for clay minerals.

SPECIFICATIONS FOR ALLUVIAL ORE BENEFICATION PLANT
Capacity	Product name	Model	Power(Kw)
10-20tph	Trommel screen	GT1230	5.5
Spiral chute	5LL-1500
Jig machine	JT1-1	2.2
50tph	Trommel screen	GT1545	7.5
Spiral chute	5LL-1500
Jig machine	JT2-2	3.0
100tph	Trommel screen	GT1848	15
Spiral chute	5LL-1500
Jig machine	JT5-2	7.5

Main Features

1) Simple installation and operation 2) poterable with wheels 3) High recovery ratio 4) Low investment 5) Easy to maintain 6)Alluvial ore popular design flow

Machine parts

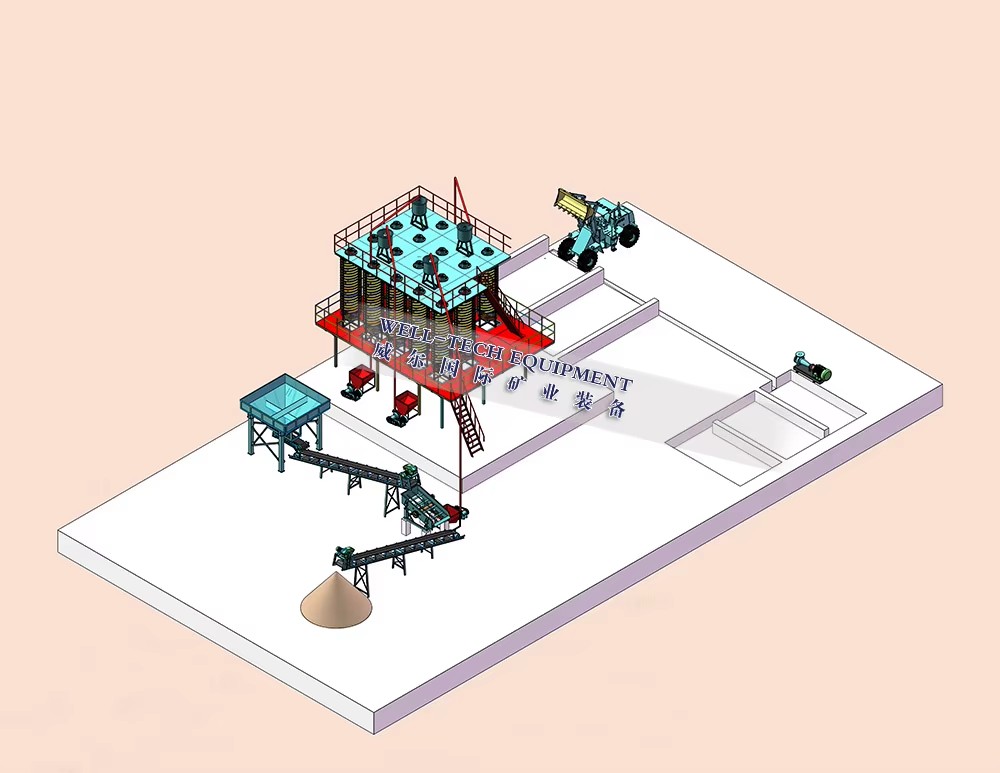

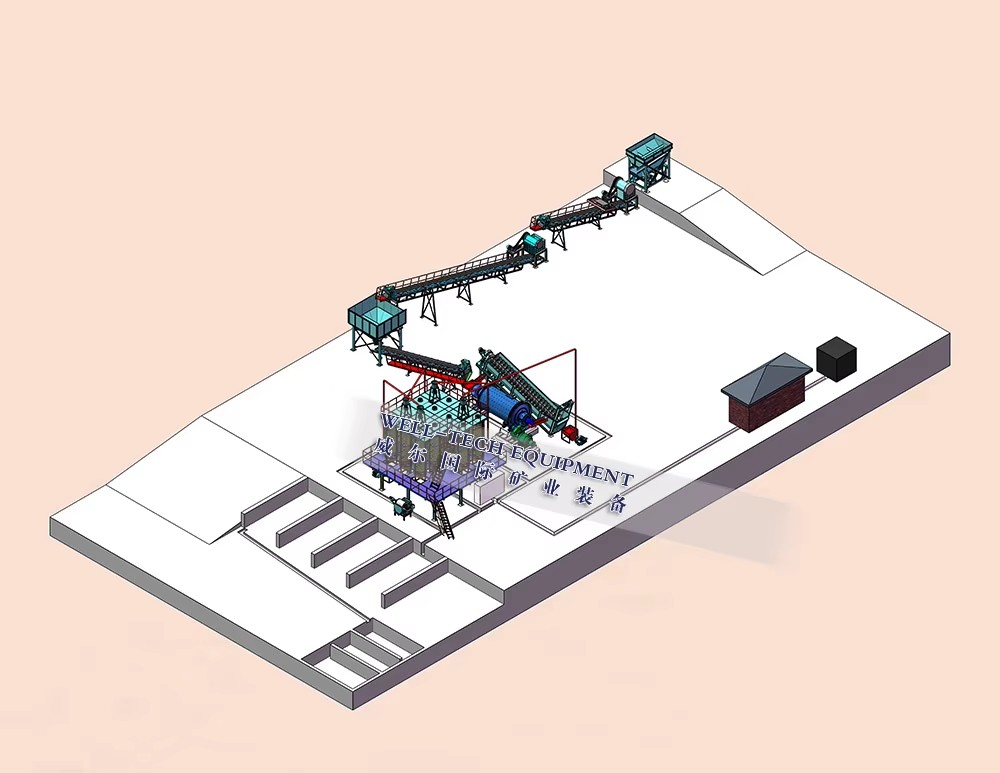

The alluvial ore benefication plant basicly have steps as flow

1.washing equipment-drum scrubber washer/rotary washer

2.screening equipment-trommel/vibrating screen

3.rougher concentration equipment-spiral chute/jig machine/centrifugal concentrator

4.reclean equipment-shaking table

5.drying equipment-rotary dryer

Main product

Name: Trommel screen Brand: GANDONG Original: 1. Configured for economical & efficient classification, Screening and grading 2. Heavy duty trommel drum with lifters at the front to facilitate material break up 3. Screen replaceable for different mesh sizes 4. Multiple screen size 5. Easily changed screen plates 6. Largest processing capacity in the industry 7. Unique screen design, result in higher capacities, longer screen life and no material clogging 8. Heavy duty feed hopper and extension 9. Discharge chute 10. Gear drive mechanism 11. Variable speed drive mechanism

Machine product

Original

Jig machines need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials of different densities and discharges both layers from up and down discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes, and there are screens in each chamber. Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate.

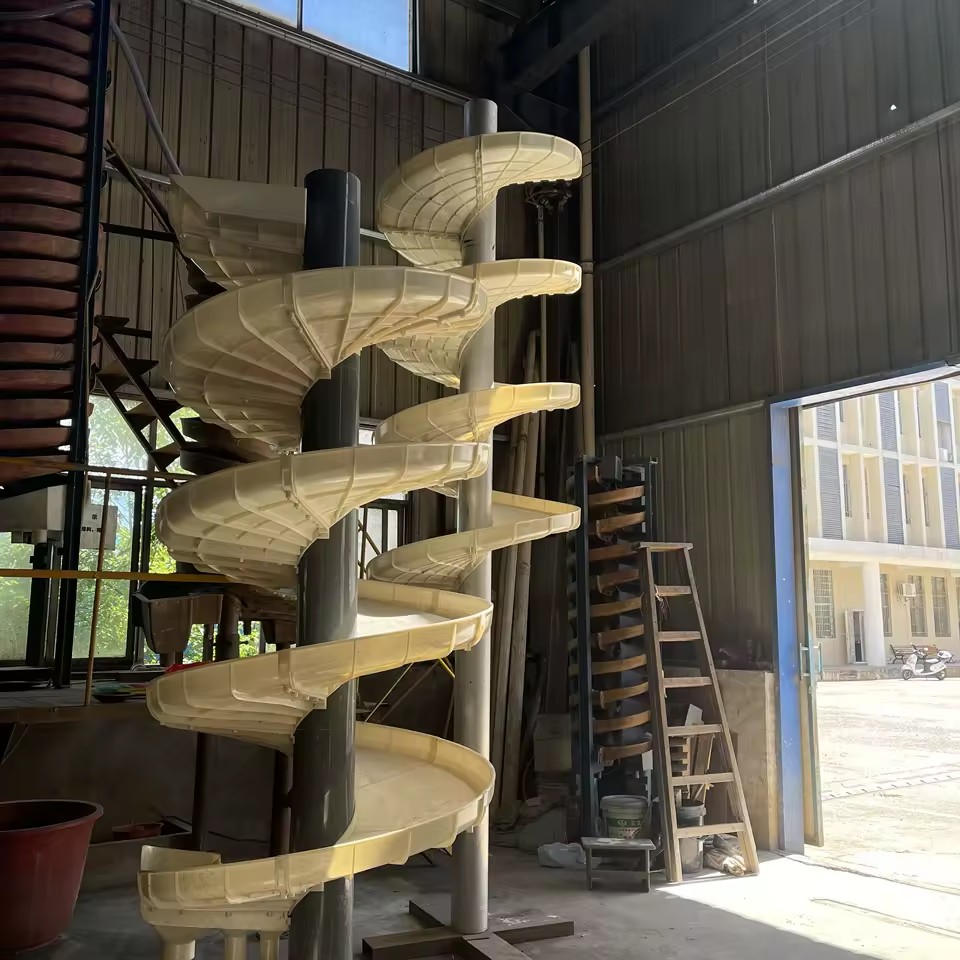

Name: Spiral concentrator Brand: GANDONG Original

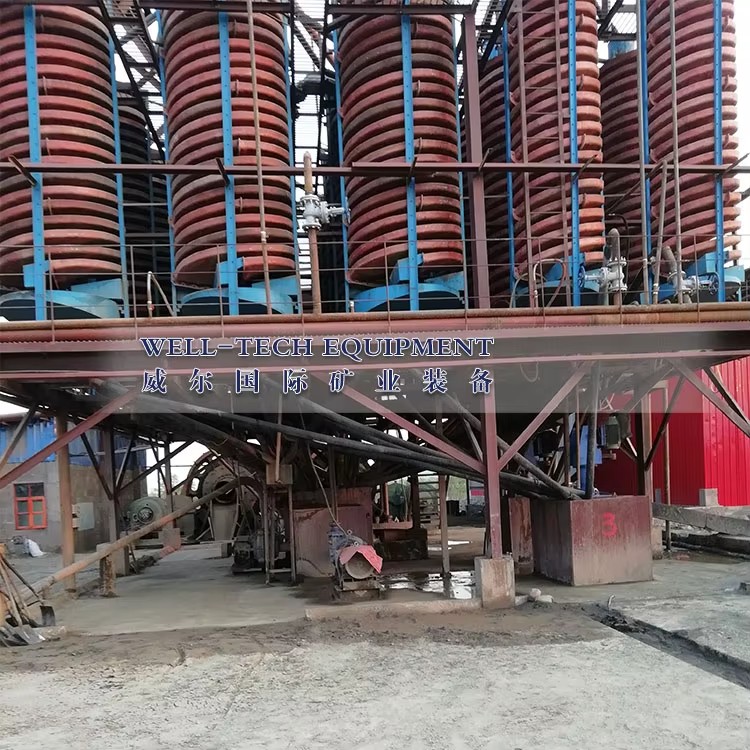

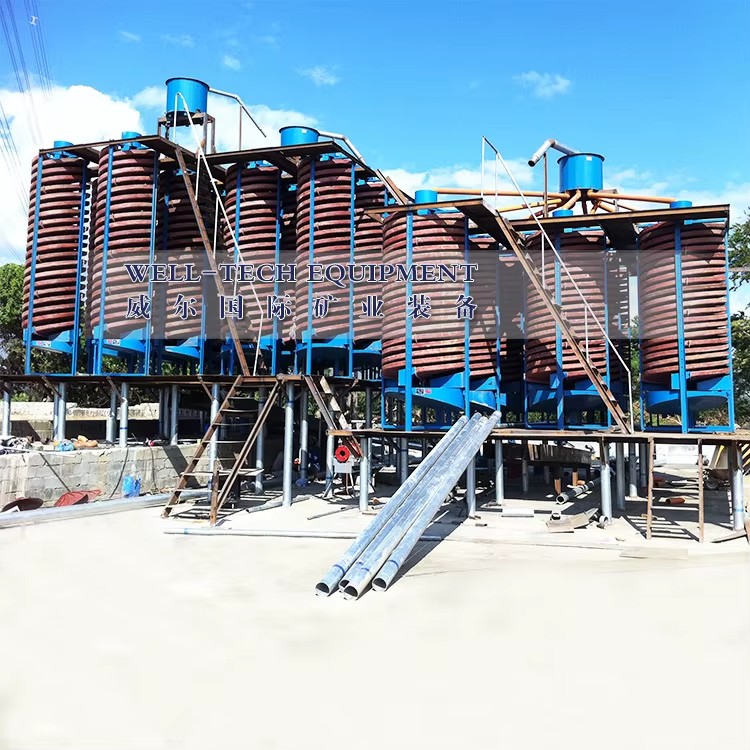

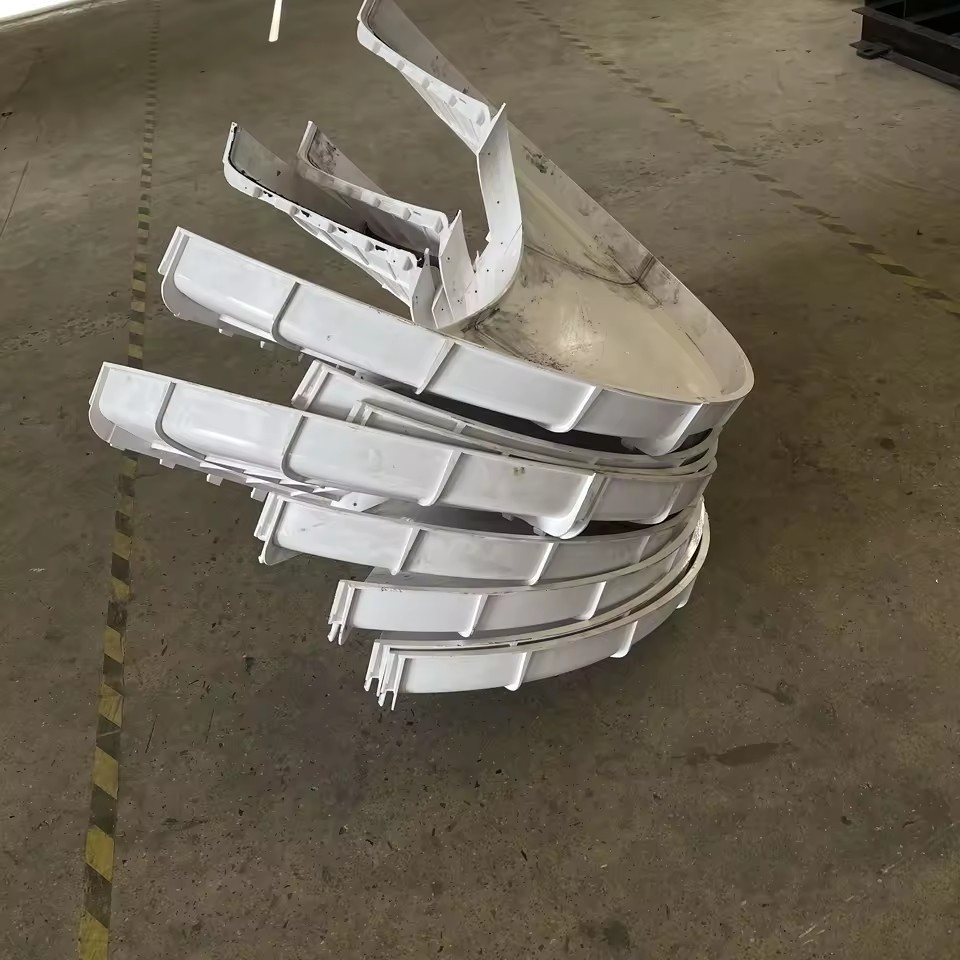

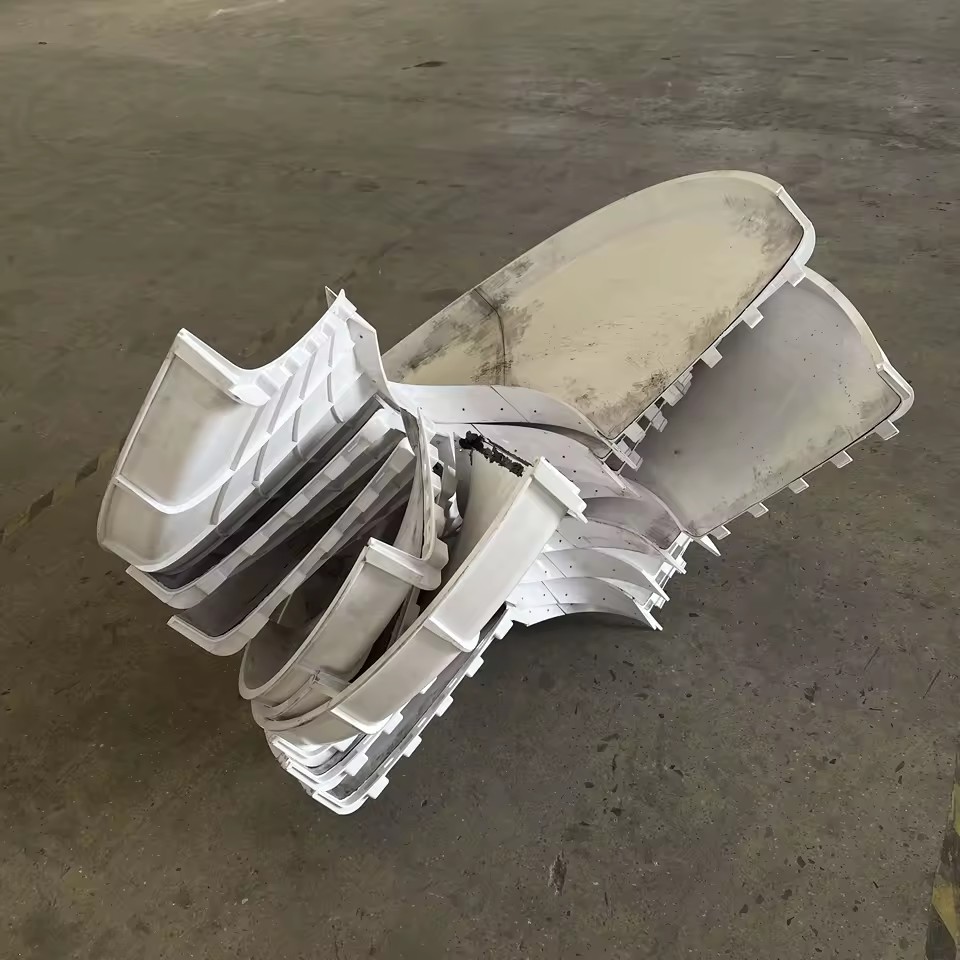

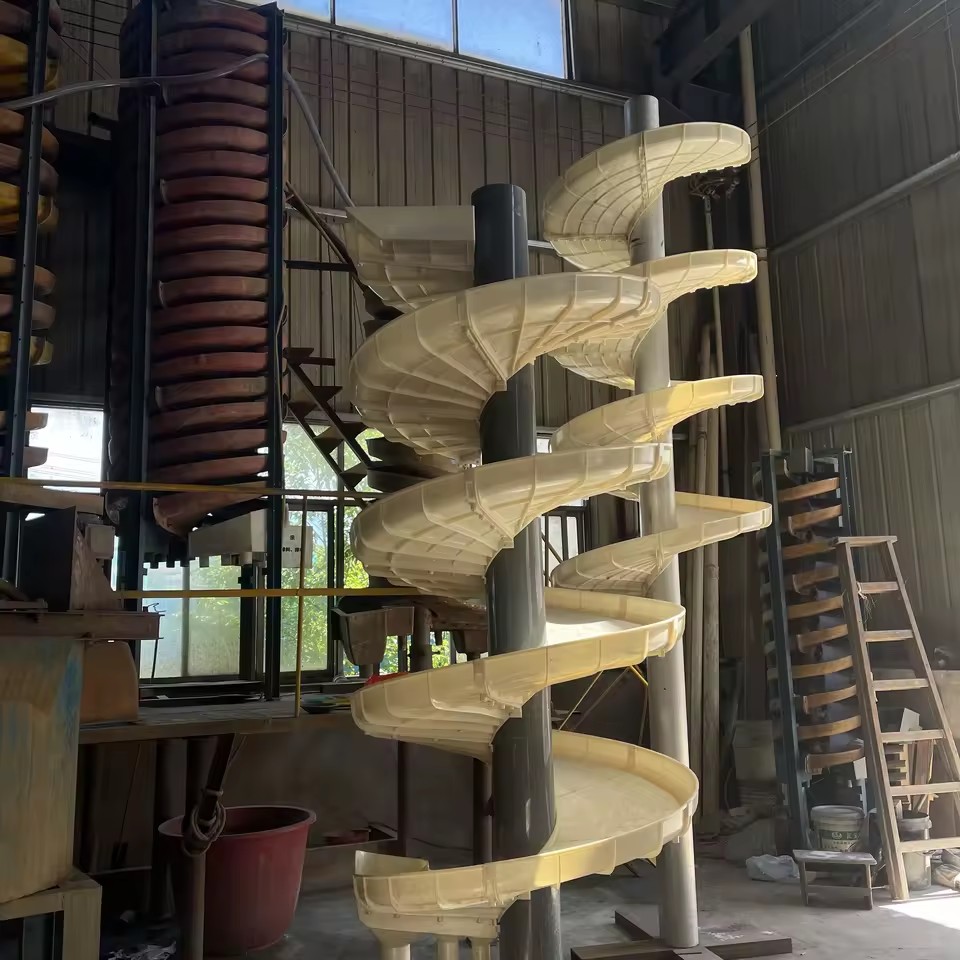

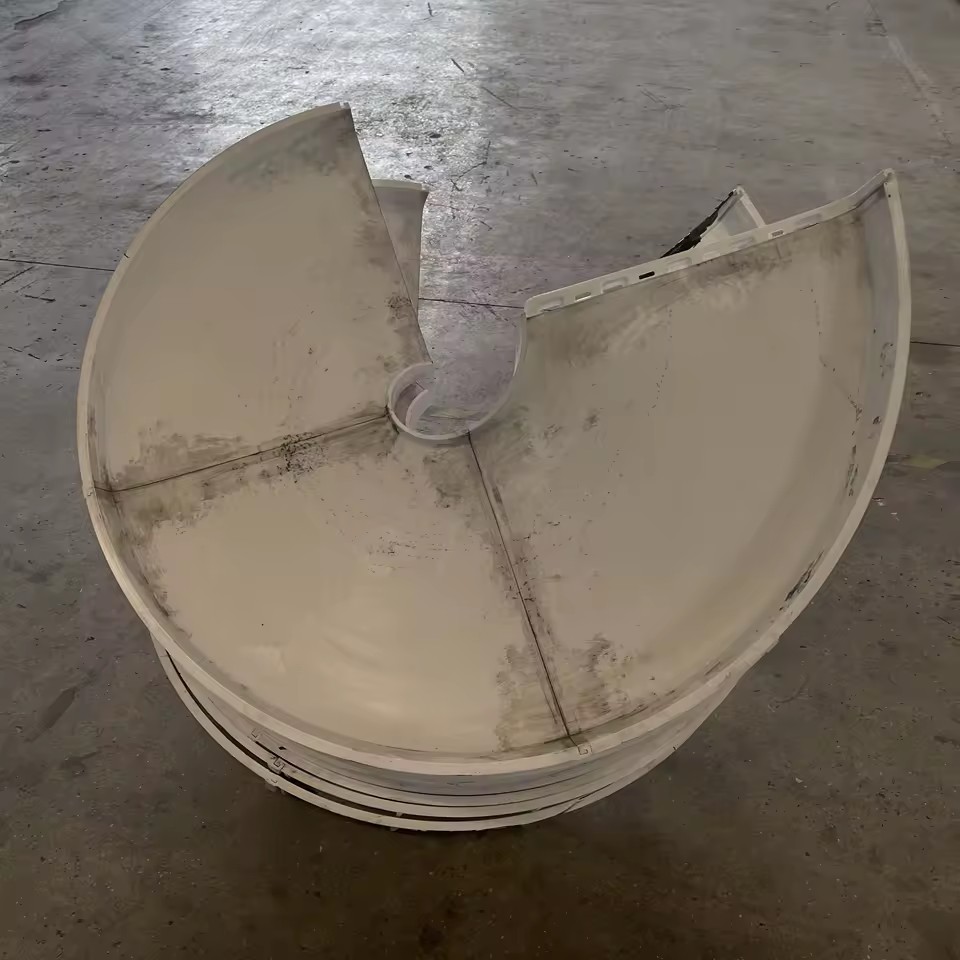

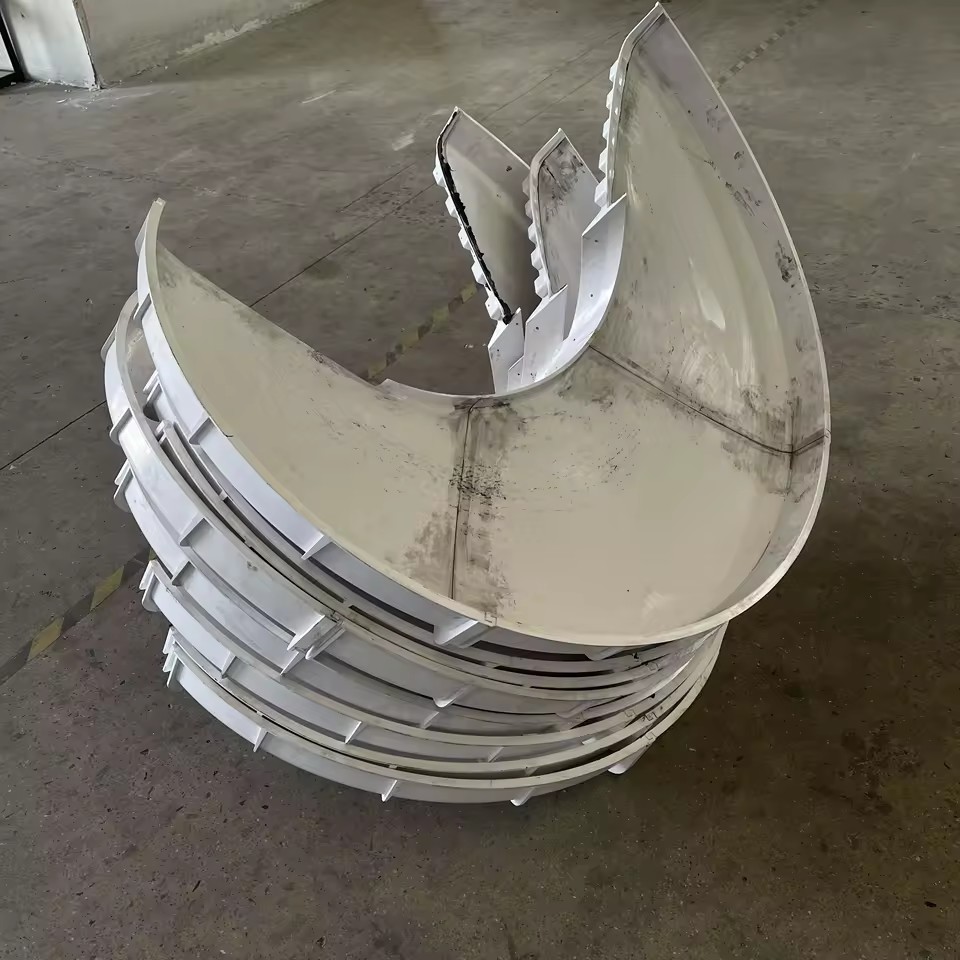

Spiral Chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral, and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles arecarried with the bulk of the water towards the outside of the spiral, while particles with the greatest density migrate towards the inside of the spiral.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packaging & Delivery
Container	40HQ/40GP/20GP
Load Port	Xiamen, Shenzhen,Shanghai
Trade term	FOB,EXW,CIF,CFR
Delivery time	Within 35 days after recieve 30% deposit,balance before loading

Welcome visit
Factory preview	link left picture,will turn to see
About	follow

Trommel screen

91.8% Response Rate

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Gravity Separator

Voltage

220V/380V

Core components

Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Key selling points

Save energy

Production Capacity

100t/h

Place of origin

China, Jiangxi

Weight

2000 kg(4409.25lb)

Dimension (L*W*H)

Diffrent Model

After-sales Service

Provided

Capacity

3-5tph

Feeding size

2mm

Installation

Engineer Guide

Do you Manufacturer

Yes, we are

Sample test

supply

Flowchart design

supply

Spare Parts

supply

Certification

ISO9001:2015

Selling Units

Single item

Single package size

150X150X50 cm

Single gross weight

1000.0 kg

Power (W) (Product option)

spiral concentrator without motor

Model number

5LL-900, 5LL-1200, 5LL-1500

Lead time

30 days

Minimum order

1 Units
