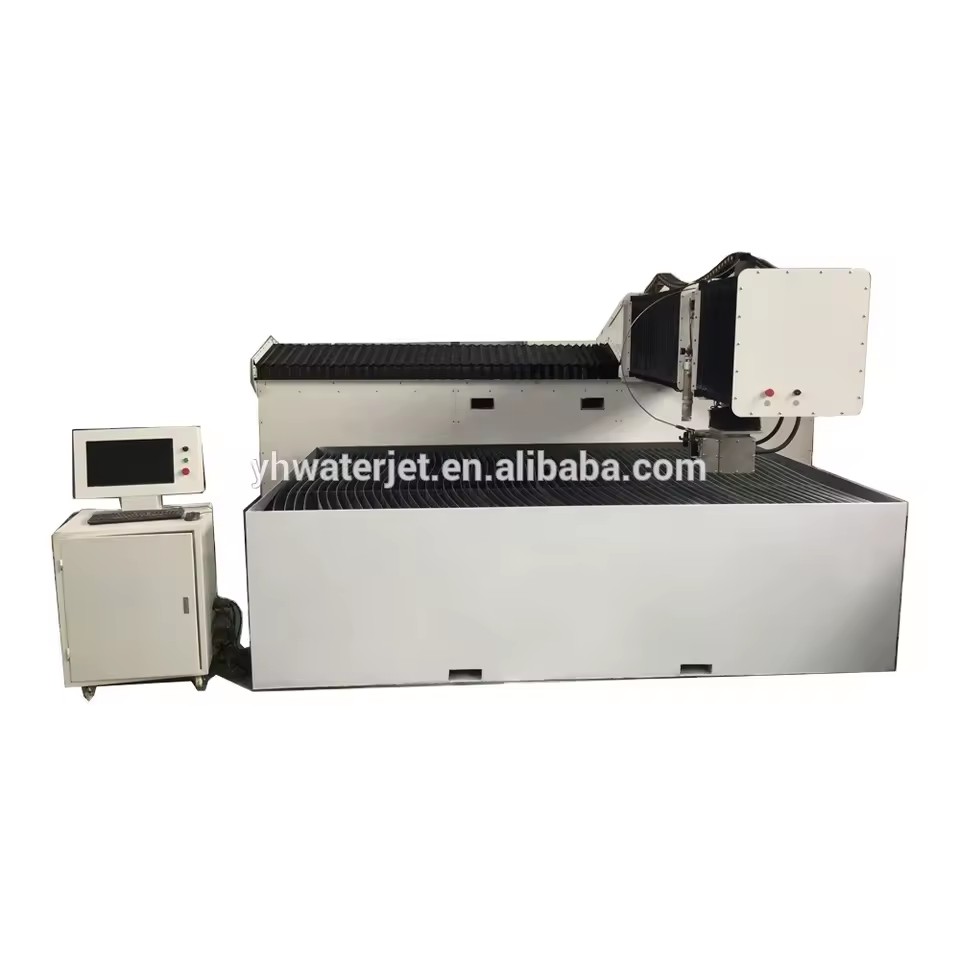

High Quality Abrasive Cutting Machine;Water Cutter in Factory Price Metal Cutting

Team: WE ARE A BIG FAMILY!

Waterjet cutting description

High quality abrasive cutting machine;abrasive water cutting nozzle in factory price

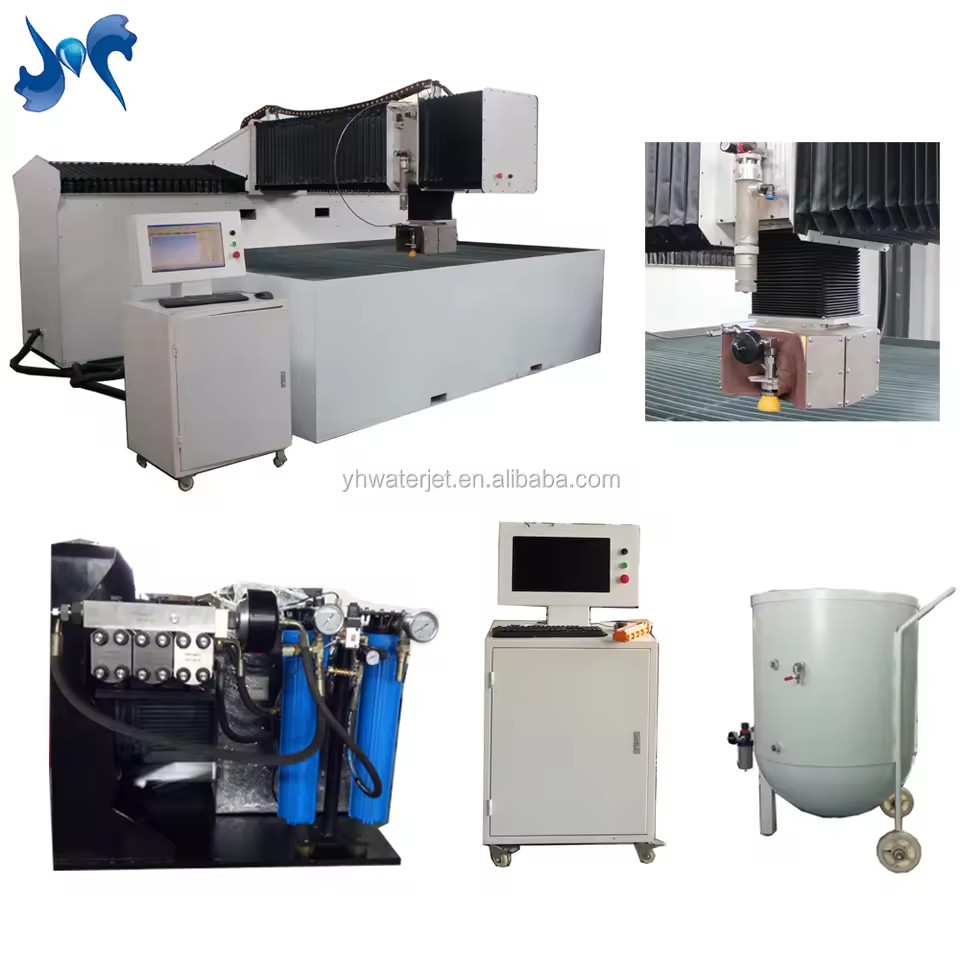

One full set of machine consists of cnc controller,worktable,pump,abrasive delivery system,cooler. other optionals: chiller sullage removal system, water soften unit.

The advantage of water jet cutting machine

1. Can be transfer the drawings to cutting quickly

2. Quick positioning & Quicker cutting speed

3. High accuracy and Cool cutting

4. No need fabrication for the working parts

5. Safer for the operator and circumstance osteam,dust and smog

6. Clear processing,no need chear the working parts again

7. Good cutting finishes Narrow cutting gap

8. Quick calibrationing and easier versatility way of cutting.

9. Fit for CAD/CAM software

10.Water jet cutting machine can cut almost all the materials

Material thickness cutting from 0 to 200mm

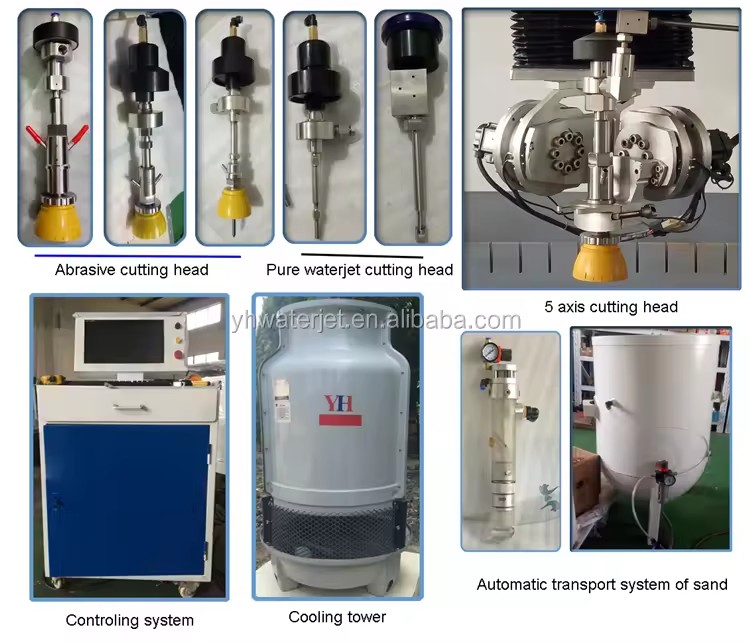

waterjet abrasive cutting head boom

YH-710875-1

Waterjet cutting head actuator

YH-002895-1 YHA-0792-1

YH-002895-1

YHA-0792-1

waterjet nozzle collar and adapter

YH-017257-1

waterjet nozzle body

YH-017364-1

waterjet abrasive mixing chamber

YH-711621-1 YH-711933-1

YH-711621-1

YH-711933-1

waterjet shiled and blast disk

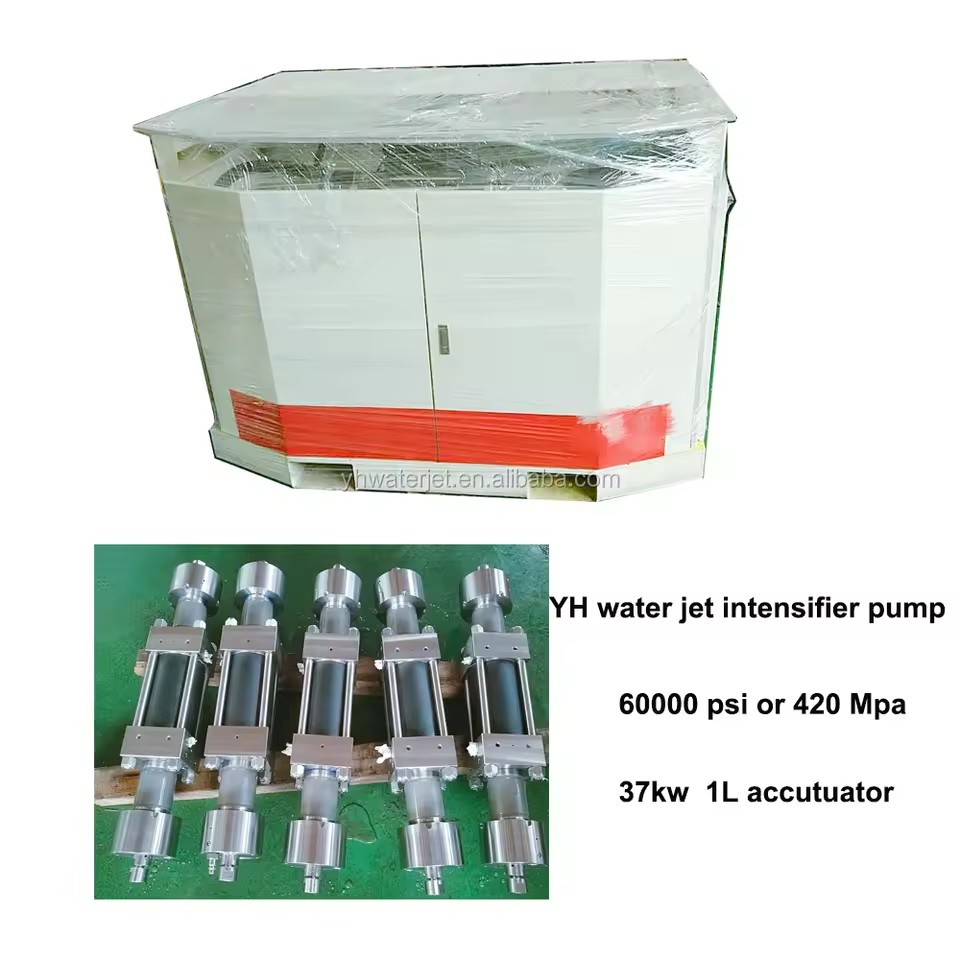

waterjet single intensfier pump

Maximum Pressure(PSI/BAR)

60000/4137

Output Flow(GPM/LPM)

1.24

Max. Nozzle Diameter(Inch)

0.015

Recommended Nozzle Diameter (Inch)

0.010*2

Controlling Type

Micro logix 1000

Double Pressure Transformation

Remote control by Table

Accumulator Size

125in³(2.2 Liter)

Minimum Cooling Water Flow Rate(GPM)

4

Environment Temperature

2 ℃ to 49 ℃

Relative Humidity

Up to 95%@ 49 ℃

External Dimension(L*W*H,Unit:mm)

1607*851*1484

Weight(Kg)

1100

Notice

Only one intensifier operates at a time

waterjet cutting table

Structural style

Cantilever style

Cutting area

3000*2000*1800

Max. moving speed for X/Y-axis

6000mm/min

Max. moving speed for Z axis

1000mm/min

Load bearing

500kg/squre meter

Control accuracy

0.01mm

Cutting accuracy

0.1mm

Power supply

220v

Way of drive

AC Servo

X/Y-axis structure

Aluminum structure

Factory &houseware

WaterJet specializes in custom cutting projects that may otherwise be impossible to do using conventional cutting methods. Our CNC waterjet cutting system allows us to handle intricate and unique jobs with exceptional quality done right, every time.

Team & Service&Customers

Our customers come in all different sizes. Though the specific needs and applications may be different, we are committed to providing every one of our customers the highest quality service and support!

Our factory is in charge of transport from Shanghai Port. Customer need to prepare the Lift hoisting for loading and unloading; After inspected the running of equipment at our factory. Then will be finished the installation and commission at customer’s factory, provide details of instruction book;Training course to operator and maintainer, including normal operating, maintenance, trouble shooting and so on.

A warranty of 24 months on “Insert Supplier Name” fabricated equipment components is included with the purchase of the equipment. Purchased components will be warranted per the manufacturer’s warranty. The warranty period starts after successful start-up in the Purchaser’s plant and after final acceptance has been signed off.

Certificate

Package & Delivery

Package:Industrial packing or single box +wooden box +pallent or as your requirement

Delivery time:10-15days after payment or as your requirement.

1.If you buy small waterjet spare parts,we will provide a soft package for your products.

2,If you buy large waterjet cutting equipment,we will provide wooden box for your products.

FAQ

The customers who like our stone cnc router often ask

Q1.how to get the most suitable cnc router and best price

please tell the material you want to working on?

How to working on it? Engraving? Cutting? Or other?

What’s the MAX size of these material?( length? Width? Thickness?)

Q2. Do you have the manual of cnc router.

Yes,we have

Q3. If we do not know how to use the cnc router,can you teach us?Yes,we will,if you come,we will offer you free training until you can use machine freely.And if you are busy,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal

Q4. How about your cnc router after-sales service?

we offer you 24 hours service

Q5. How about your cnc router guarantee period?

one year and during the time,if you have any questions,we will solve it for free..

Product Description

5.

Safer for the operator and circumstance osteam,dust and smog

7.

Good cutting finishes

Narrow cutting gap

Water jet machine

Company Information

Our Services

has an old saying,"Unity is strength",which means the importance of teamwork.

Packaging & Shipping

Q1

.how to get the most suitable cnc router and best price

Q2.

Do you have the manual of cnc router.

Q3.

If we do not know how to use the cnc router,can you teach us?Yes,we will,if you come,we will offer you free training until you can use machine freely.And if you are busy,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal

Q4.

How about your cnc router after-sales service?

Q5.

How about your cnc router guarantee period?

one year and during the time,if you have any questions,we will solve it for free.
