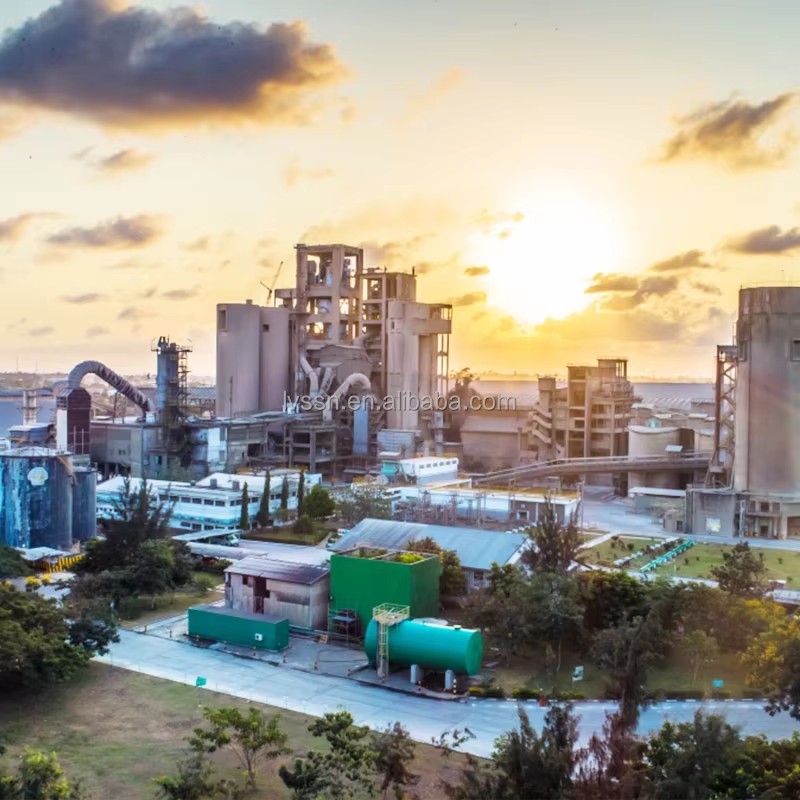

EPC/EP/Turnkey Portland 42.5 Cement Production Line 6000TPD Whole Production Line Cement Plant Cement Making Machinery

Product Importer Gallery 01 · 75c85bc2fb

Product Importer Gallery 02 · f5a43f7392

Product Importer Gallery 03 · 975b645416

Product Importer Gallery 04 · af91c862e6

Product video

Certifications CE(9)

EPC/EP/Turnkey Portland 42.5 Cement Production Line 6000TPD Whole Production Line Cement Plant Cement Making Machinery

Name: EPC/EP/Turnkey Portland 42.5 Cement Production Line 6000TPD Whole Production Line Cement Plant Cement Making Machinery
SKU: F7K3-MBSK-NRHF
Price: 97240020.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 97,240,020.00 97240020.0 USD $ 97,240,020.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

415V, 230v, 6.6kv, 10kv

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Gearbox

Machinery test report

Provided

Warranty

1 Year

Key selling points

Energy Saving

Video outgoing-inspection

Provided

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Capacity （t/d）	Cyclone preheater ：5000(matched with Φ4.8m rotary kiln)
Level /Name	C1(4pcs.)	C2(2 pcs.)	C3 (2pcs.)	C4 (2cs.)	C5 (2pcs.)
Cyclone	Inside diameter (mm)	Ф4700	Φ6800	Φ6800	Φ6800	Φ6800
Height of cylinder (mm)	9000	5800	6300	6300	9600
Height of cone (mm)	5500	9000	9000	7800	9000
ID of internal cylinder (mm)	Φ2235	Ф3410	Ф3700	Ф3700	Ф3700
Air pipe	Level	C2-C1	C3-C2	C4-C3	C5-C4	C5-TTF
Inside diameter (mm)	Ф3450	Ф3750	Ф3850	Ф3950	Φ5800
Blanking pipe of Cyclone( mm)	Ф700	Ф850	Ф850	Ф850	Ф850
Decompos ing furnace	Inside diameter (mm)	Ф7600 (Φ8000)
Height (mm)	59750

rotary dryer Specifivations (m)	Cylinder volume (m³)	Production capacity (t/h)	Installation slope (%)	Maximum intake temperature (°c)	Main motor (kw)	Total weight
Φ1.5×14	24.7	5.3-6.6	3-5	700-800	15	19.7
Φ1.5×15	26.5	5.7-7.1	3-5	700-800	15	20.5
Φ1.8×12	30.5	6.5-8.1	3-5	700-800	18.5	21.5
Φ1.8×14	35.6	7.6-9.5	3-5	700-800	18.5	23
Φ2.2×12	45.6	9.7-12.2	3-5	700-800	22	33.5
Φ2.2×14	53.2	11.4-14.2	3-5	700-800	22	36
Φ2.2×16	60.8	13.0-16.2	3-5	700-800	22	38
Φ2.4×14	63.3	13.5-16.9	3-5	700-800	37	45
Φ2.4×18	81.4	17.4-21.7	3-5	700-800	37	49
Φ2.4×20	90.4	19.3-24.1	3-5	700-800	45	54
Φ2.4×22	99.5	21.2-26.5	3-5	700-800	45	58
Φ2.6×24	127.4	27.2-34.0	3-5	700-800	55	73
Φ3.0×20	141.3	30.1-37.7	3-5	700-800	75	85
Φ3.0×25	176.6	37.7-47.1	3-5	700-800	75	95
Φ3.2×25	201	42.9-53.6	3-5	700-800	90	110
Φ3.6×28	285	60.8-76.0	3-5	700-800	160	135

Certifications & compliance

CE(9)

Complies with EU standards

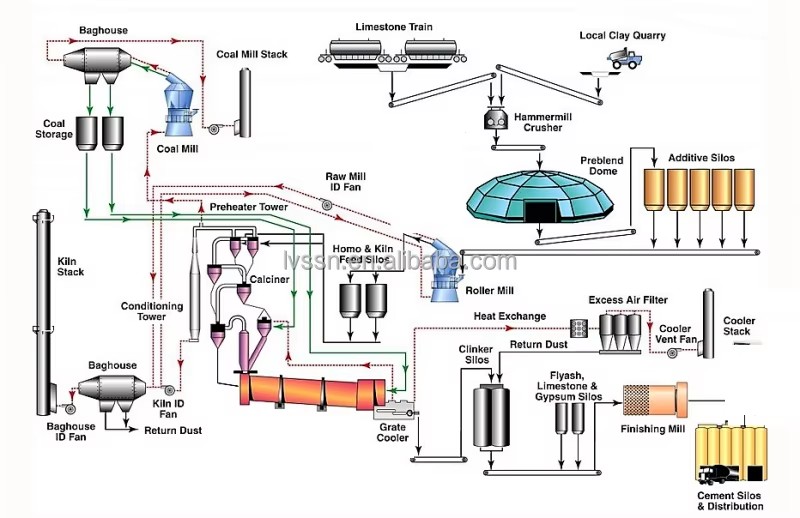

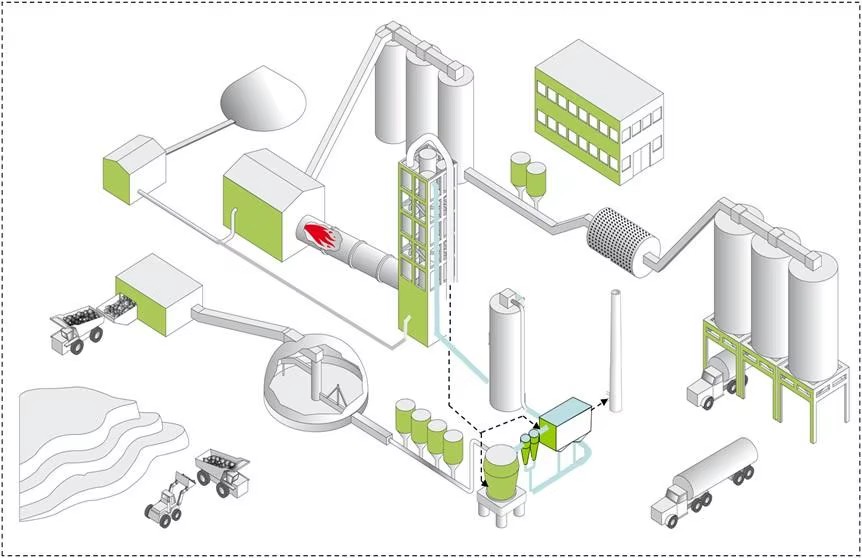

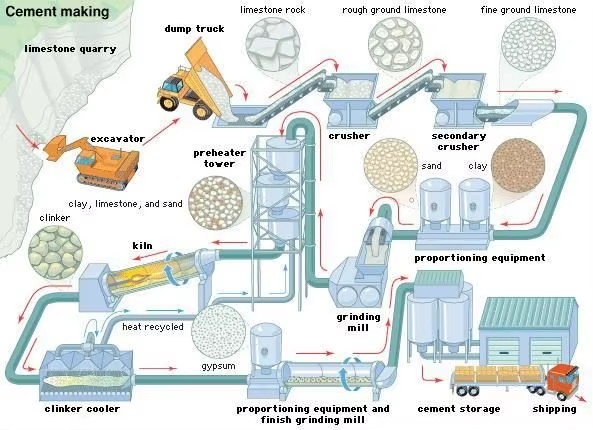

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

75 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Voltage

415V, 230v, 6.6kv, 10kv

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Gearbox

Machinery test report

Provided

Warranty

1 Year

Key selling points

Energy Saving

Video outgoing-inspection

Provided

Power (W)

Customized

Place of origin

China, Jiangsu

Weight

500000 KG(1102311.31lb)

Dimension (L*W*H)

Customized

Main Equipment1

Crusher, roller mill, Preheater, Decomposition Furnace, Rotary Kiln

Main Equipment2

Stepping Grate Cooler, ball mill, Vertical Mill, rotary packaging

Main Equipment3

kiln exhaust fan, bucket elevator, belt conveyor, bag dust collector

Kiln Type

Horizontal Rotary Kiln

Process type

dry process

Raw material

Gypsum, clay, limestone, iron ore

Cooling Method

fourth generation grate cooler

Capacity

100-8000 t/d

After sale service

Engineer Overseas

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Production Capacity (Product option)

6000T/D

Model number

LS-cp200

Certifications & Compliance

CE(9)

Lead time

75 days

Minimum order

1 Units
