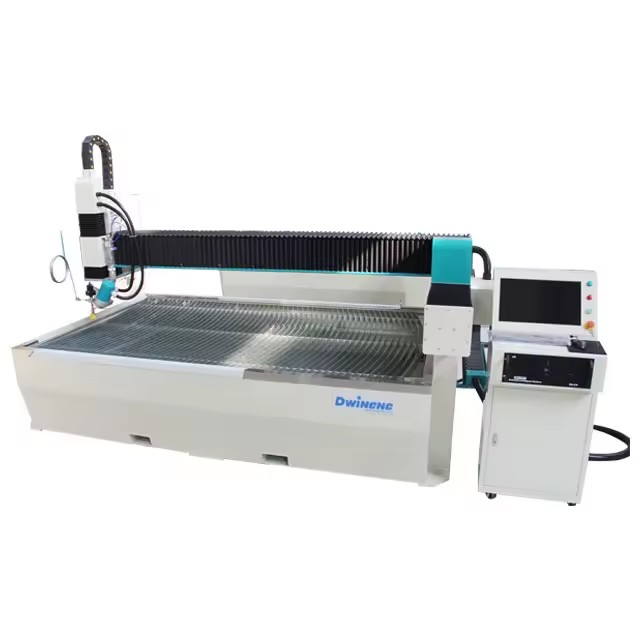

Automatic 5 Axis CNC Machine Stone Bridge Saw and Water Jet Waterjet Sawjet Saw Jet

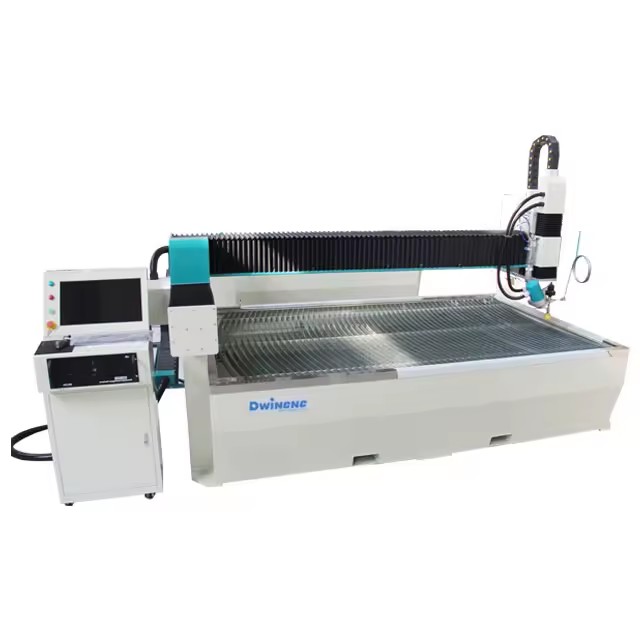

What's Water Jet Cutting Machine?

Model

1010

1212

1325

1525

1530

2030

2040

Effective Cutting Range(mm)

X axis

1000

1200

2500

3000

4000

Y axis

1500

2000

Z axis

150

Water Tank Capacity(m³）

1

2.2

4.8

5.9

9.2

Cutting Accuracy

±0.1mm/min

X/Y-axis Running Speed

50m/min

Z-axis Running Speed

5m/min

Continuous output pressure

50000Psi-55000Psi

General Cutting Thickness

Marble 0-120m; Granite 0-110mm; Tile 0-40mm; Glass and Mosaic 0-80mm; Steel,Stainless Steel,Copper 0-60mm; Aluminum 0-80mm; Plastic, Acrylic, Foam 0-200mm. (high

Machine can be customized

Water Jet C

utting Machine

00:00

Water jet cutting machine is a high-pressure water jet cutting machine that utilizes straight pure water cutting or abrasive waterjet cutting to cut several types of material.

Softer materials can be cut with water pressure. Harder materials require the use of an abrasive feed system, such as metal cutting.

why choose us？

1.

Source factory

lower price, higher quality.

2.

Industry-leading technology

servo booster pump, power consumption saving at least 50%-60% (especially electricity costs).

3.

Rich industry experience

professional pre-sales and after-sales teams can provide the most cost-effective product solutions!

4.

Customization capability

try our best to meet your needs.

Specification

Marble 0-120m; Granite 0-110mm; Tile 0-40mm; Glass and Mosaic 0-80mm; Steel,Stainless Steel,Copper 0-60mm; Aluminum 0-80mm; Plastic, Acrylic, Foam 0-200mm.

(high

Machine Details

Cutting Platform

1. X/Y axis adopts 's high-quality guide rail and ball screw.

2.Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use.

WEIHONG CNC Controller

1. Easy draw with point, arc, polyline, shapes, ellipse, polygon, text.

2.Equipped with WEIHONG system as standard, providing

professional and higher control. 3. Support multi-language operation environment, even customized service.

Abrasive Delivery System

1. Provide abrasives for water jet cutting machine.

2. It can improve the automation of the machine and reduce the labor intensity

of the operator.

3. High-precision sensor reminds the operator when to replenish the abrasive material.

4. No need for electric control, simple, reliable and maintenance-free operation.

Schneider PLC

Water Filter

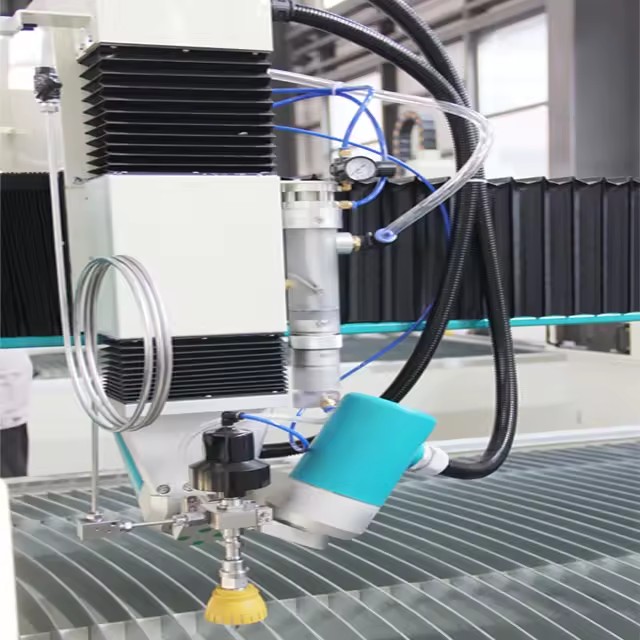

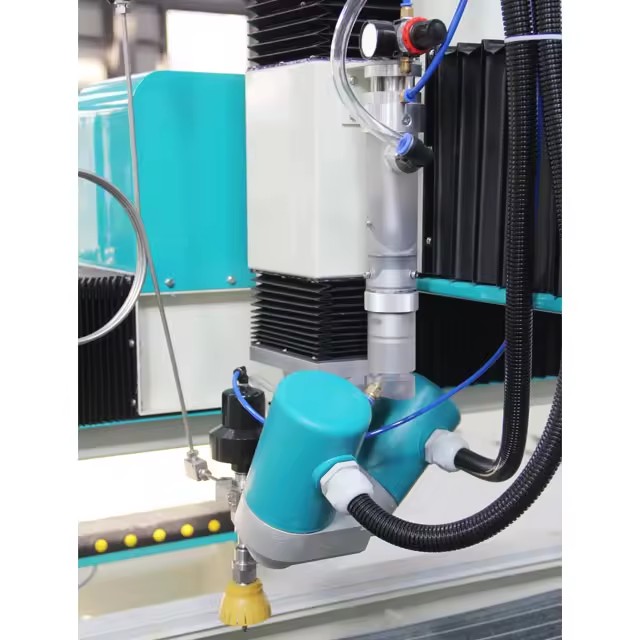

Optional Waterjet Cutting Head

High efficiency cutting head

15% faster cutting

Compensation angle of cutting head is ±10 degree，suitable for fine cutting of tile mosaics and marble mosaics.

Compensation angle of cutting head is ±60 degree， high precision and large angle，suitable for bevel cutting of rock slabs and metal plates.

Optional Intensifier Pump

Cheap price.

2. Mature and stable market technology.

3. Easy to operate.

Low cost

The main motor uses a 15KW servo motor instead of a 37KW asynchronous motor, which directly saves 60%-70% of power consumption

about $3 per hour.

Environmental protection

It adopts a servo direct drive method with self-cooling function.

No hydraulic oil is required, clean and pollution-free.

High efficiency

Using a direct drive pump, the cutting speed is 20%-50% faster. 4. Lower noise and higher safety. 5. Light weight, small size, and beautiful design.

Sample & Application

Cutting Materials

Metals, Composites, Stone&Tile, Foods, Glass, Marble, Granite, Soft material (Foam, Rubber, Plastic, Carbon Fiber, Blanket and so on).

Applicable Industries

1.Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics. 2.Glass industry, such as bathroom glass, shop window glass, automotive glass and appliance glass. tal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting,Cutting of metal parts. 4.Gasket Cutting. 5.Foam Product Cutting.

Packing & Shipping

1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.

2.Fumigation wooden box: Saving the transport time.

3.Whole film packaging machine: The outermost is a wooden box with a fixed template.

4.Wooden box at the bottom of a solid iron socket for easy handling.

We choose famous export and transport company, making shipment more convenient and safer.
