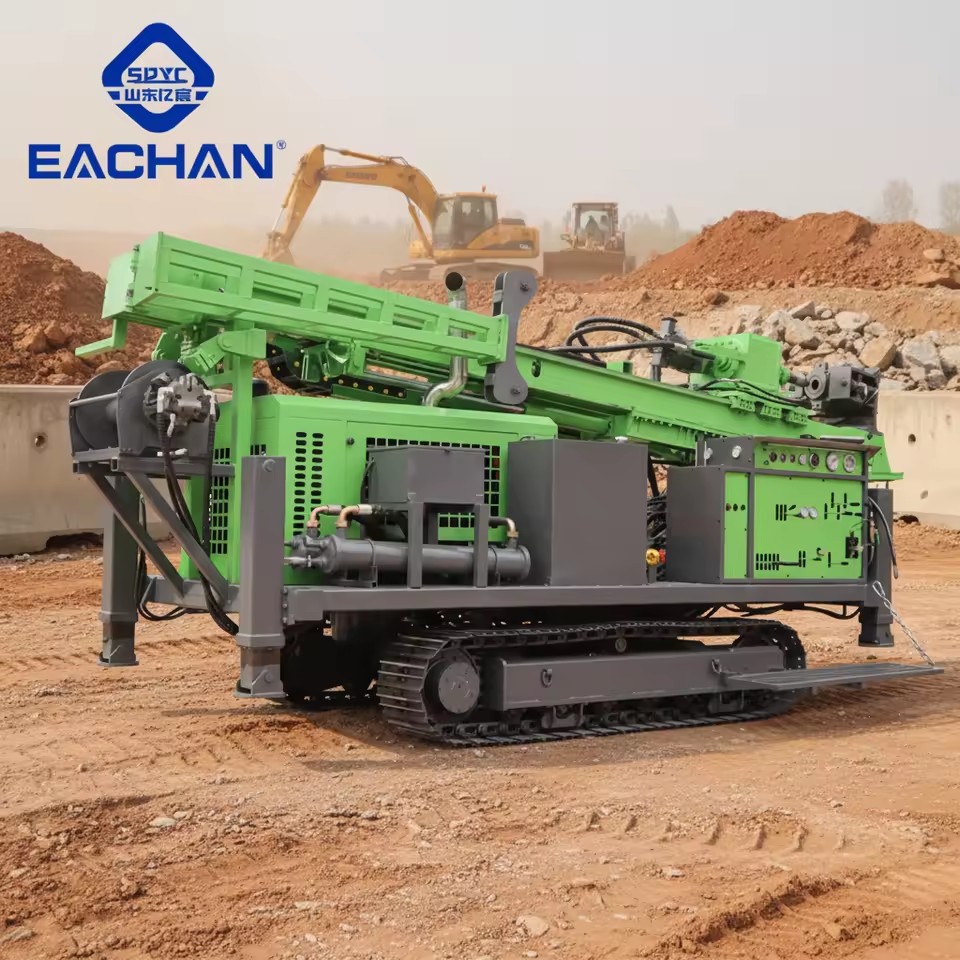

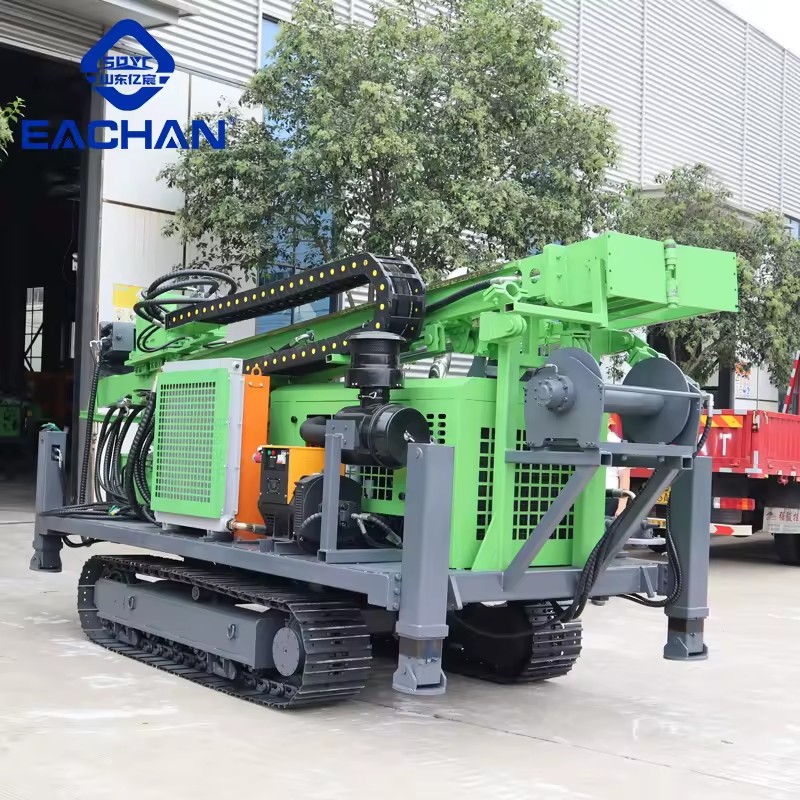

1600m Deep Hydraulic Well Drill Mining Rock Borehole Drilling Rig Portable Diesel Borehole Core Drilling Rig Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 10,780.00 10780.0 USD $ 10,780.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
1600m(5249.34ft)
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in), 350mm(13.78in), 95mm(3.74in)
Power Type
Diesel
Voltage
Diesel
Product description
Hydraulic Core Drilling Rig ModelYC-600YC-1000AYC-1000BYC-1600
Rated power Kw92129129129/154（option）
Torque N.m1400260026003500
Journey m1.81.8/2(option)3.53.5
Mast height m6.16.68.58.5
Mast slip stroke mm800120012001200
L * W * H mm4500*1900*23005000*2050*26005600*2100*26005900*2200*2800
Weight (T)4.67.88.810
Mechanized operation Drilling Rig ModelYC-280YC-350YC-350 straight/diagonal
Drilling depth for water well280m350m200m
Lifting capacity100kN120kN75KN
Thrusting capacity50kN85kN65KN
Drill pipe length2000mm3000mm3000mm
Climbing angleMax. 25°~30°Max. 25°~30°Max. 25°~30°
Size（mm）4600*1900*25406300*2000*26006300*2000*2500
Weight3500kg6500kg7500kg
Automatic Mechanics Drilling RigYC-350BYC-400B
Drilling depth (m)5301200
Lifting capacity （Ton）1224
Thrusting capacity（Ton）8.518
Rotary speed（ r/min）55/93/192/263/384/441/905/1030110/308/518/900
Max. Torque（N.m）950012000
Size（mm）5200*1575*23006300*200*2650
Weight （kg）63009000

What benefits can we bring to you

View MoreBack To Homepage
Description images

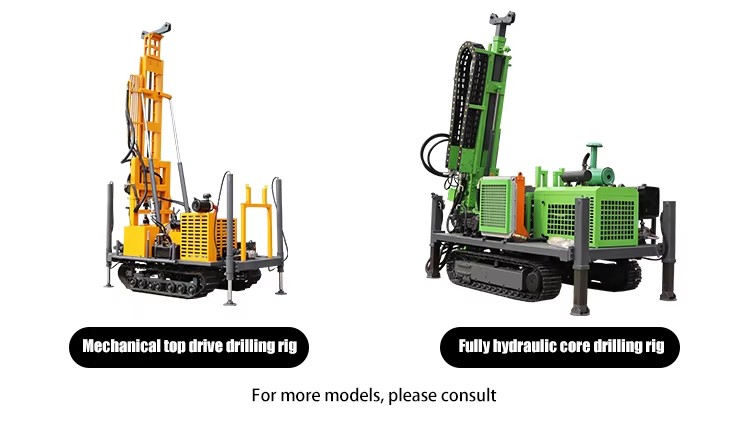

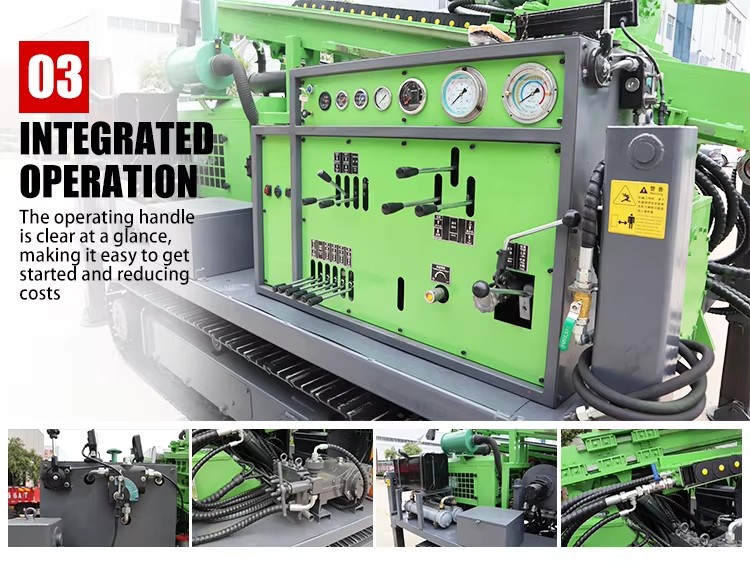

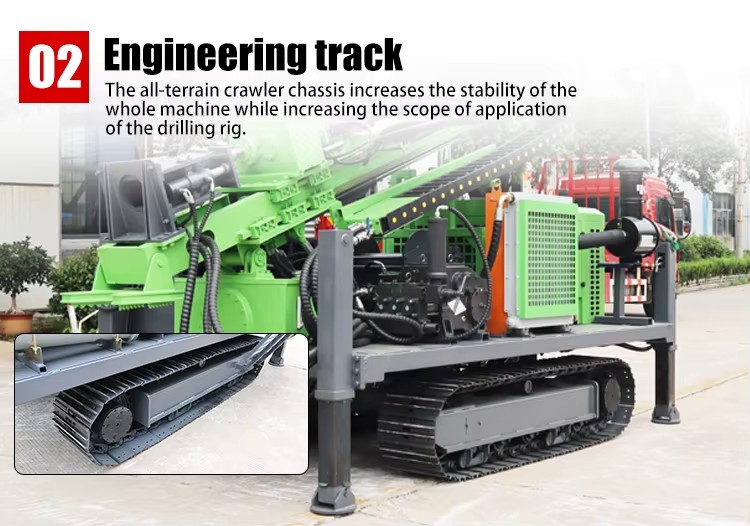

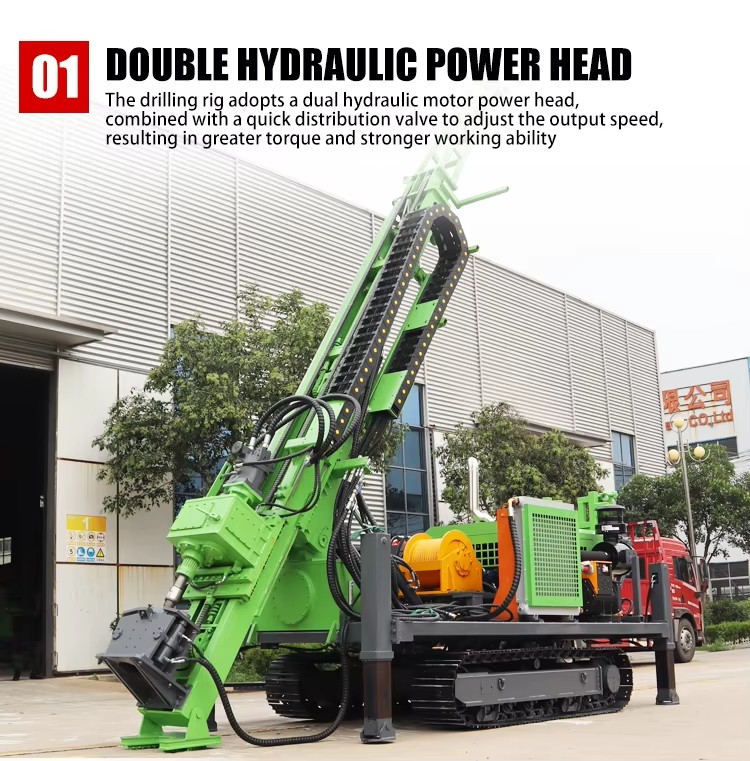

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
1600m(5249.34ft)
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in), 350mm(13.78in), 95mm(3.74in)
Power Type
Diesel
Voltage
Diesel
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
China, Shandong
Weight
10000 kg(22046.23lb)
Dimension (L*W*H)
5900*2200*2800mm(232.28*86.61*110.24in)
Mobility
0~2 km/h
Product Style
Mechanical Top Drive Drilling Rig
Rated power
42-130kw
Maximum speed
1400rpm
Engine model
customized
Climbing angle
Max. 25°~30°
Drilling Angle
45-90°
Air consumption
16~35m3/min
Drill pipe length
3000-12000mm
After-sale Service
24-hour online guidance
Feature
Hydraulic transmission
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
YC-1600
Power (W) (Product option)
129kw(172.99hp)
Lead time
31 days
Minimum order
1 Units
