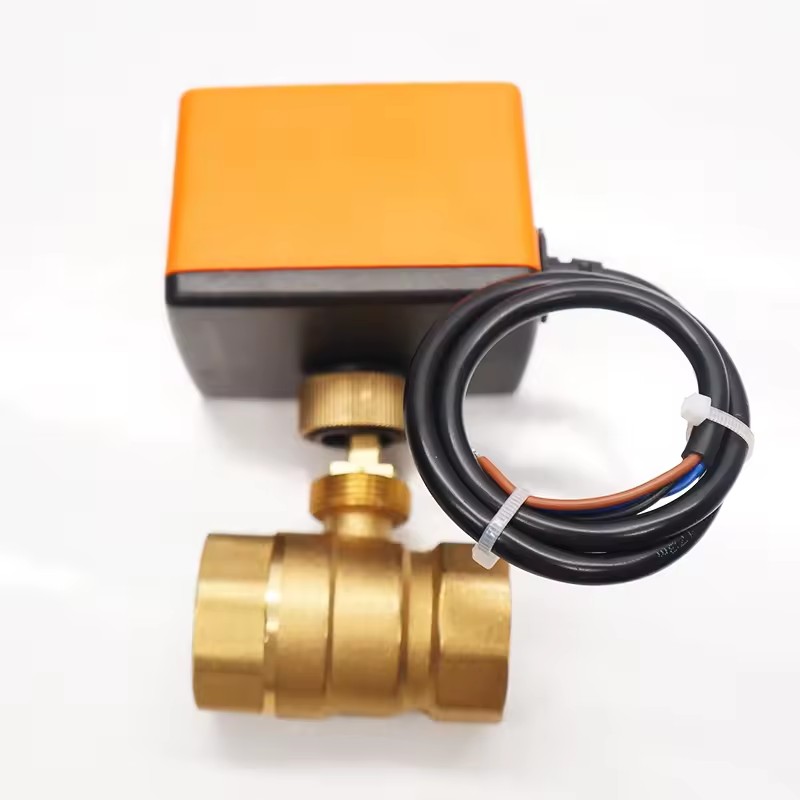

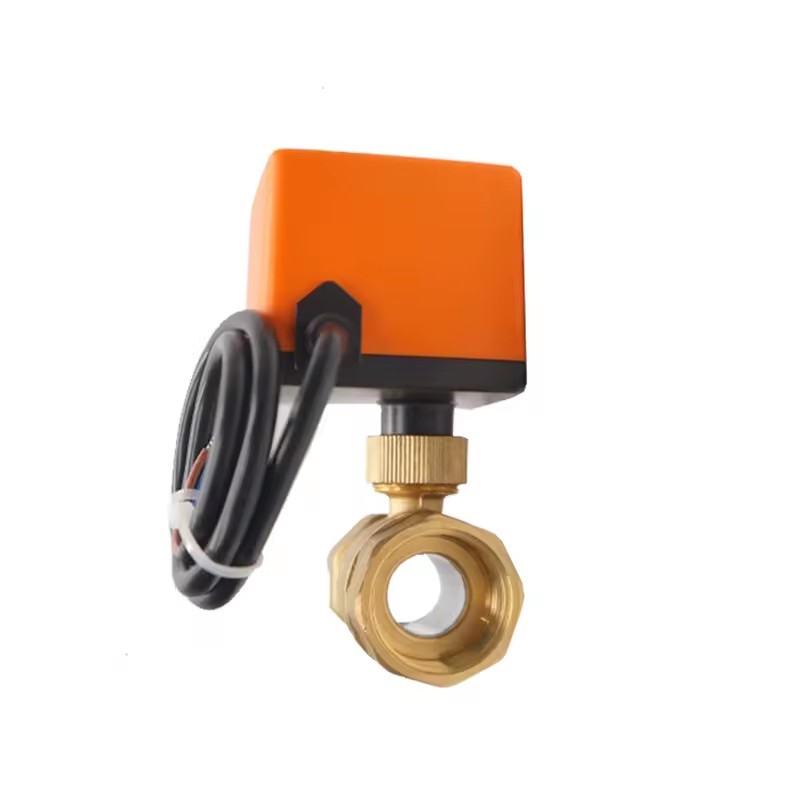

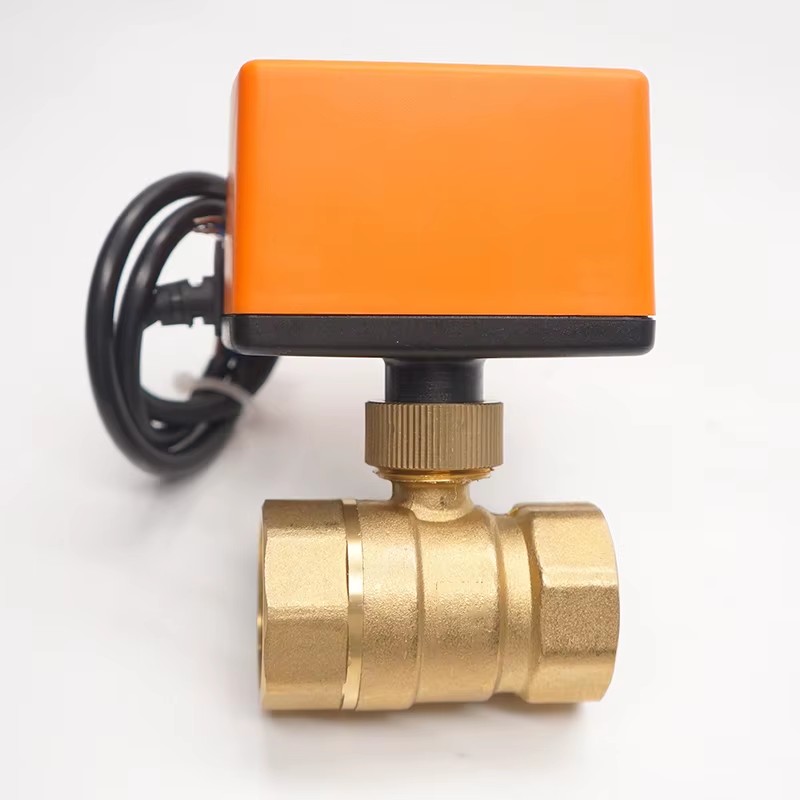

Winvall ISO9001 HVAC System 230VAC DN20 Electric Motor Control Valve Actuator 2way Mini Motorized Ball Valve

Available for enquiry 0.0 · 0 reviews
USD

$ 30.00 30.0 USD $ 30.00

Not Available For Sale

Minimum order quantity: 10 Units

Key attributes

View all
Productivity
100L/Hour
Core components
PLC
Machinery test report
Not Available
Warranty
1 Year
Video outgoing-inspection
Not Available
Weight (kg)
1.25 kg
Product description

Description

m otorized ball valve consists of on/off type or 3-point type of WRA-5320, and WRA-5320A actuator and W 6 BV… series ball valve,which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.

Application

HVAC system, heating system, Water treatment system, Industrial equipment

Technical data

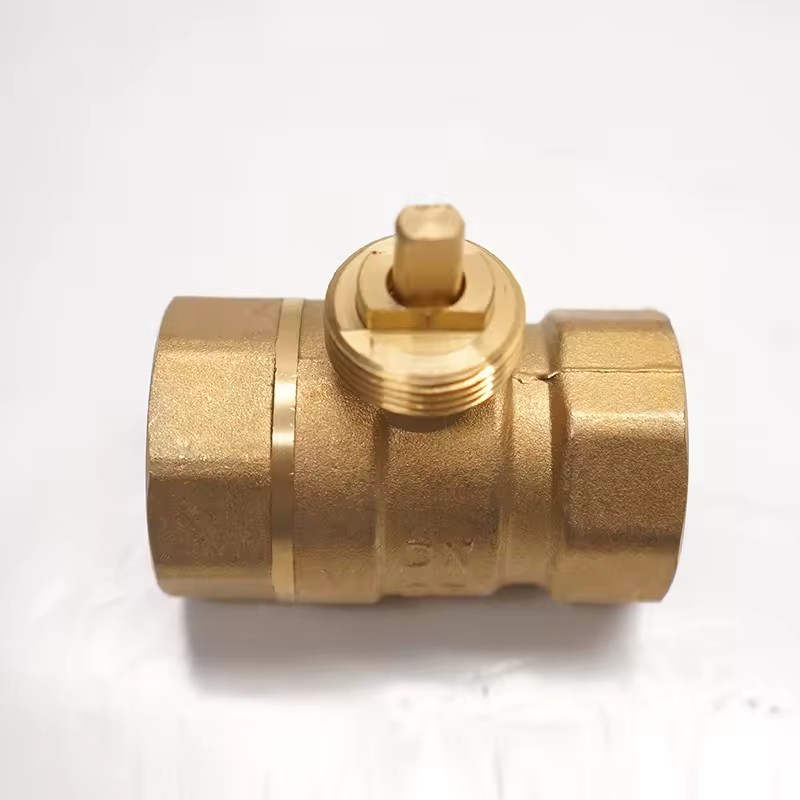

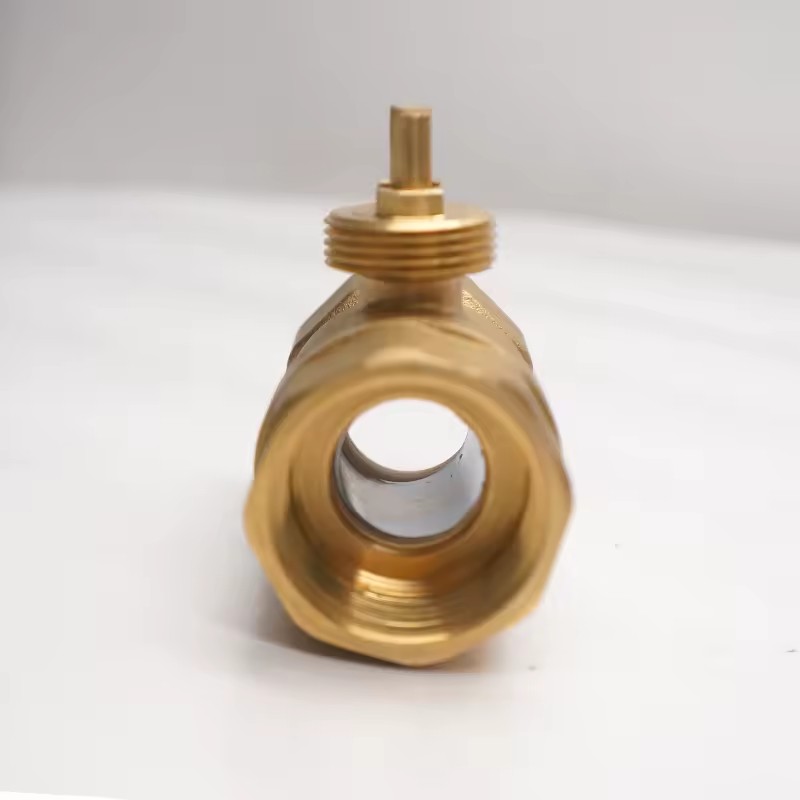

Valve body

Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C

Rated pressure: PN16 Pipe connector: internal thread

Ambient temp. range: −5…+60°C;0…90%RH Size: 1/2’’, 3/4’’ and 1’’

Material

Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: chrome-plated brass Stem: EPDM O-rings

Valve

Model No.Inner Dia.InchKvs(m 3 /h)Pvmax(KPa)Ps(KPa)
W6BV2152-way12mm1/2”8.6600900
W6BV22015mm3/4”21600900
W6BV22520mm1”26600900

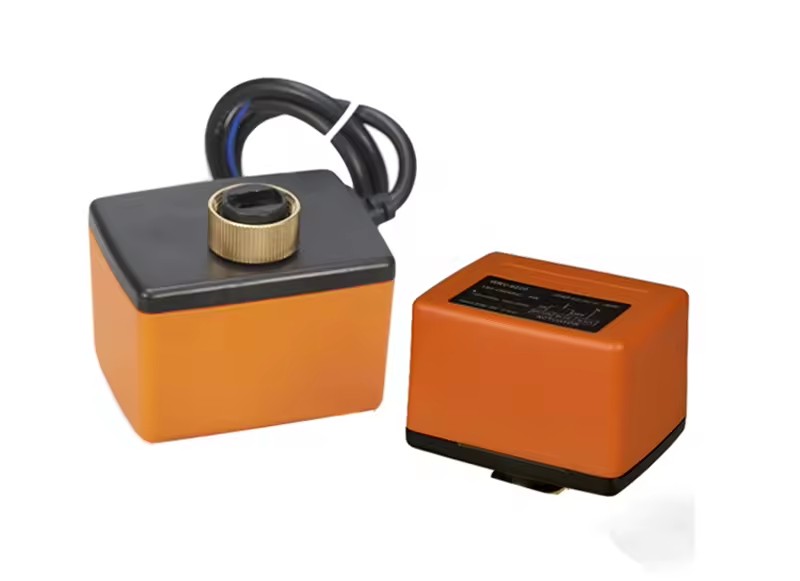

Actuator

Model No.Working VoltageActuator typeOutput torqueC onsumptionOn/off timeValve body
WRA-5320230VAC±15% 50/60Hz3-point or on/off2.5N.m6W50Hz:19S 60Hz:15SW6BV215 W6BV220 W6BV225
WRA-5320AOn/off

I nstallation

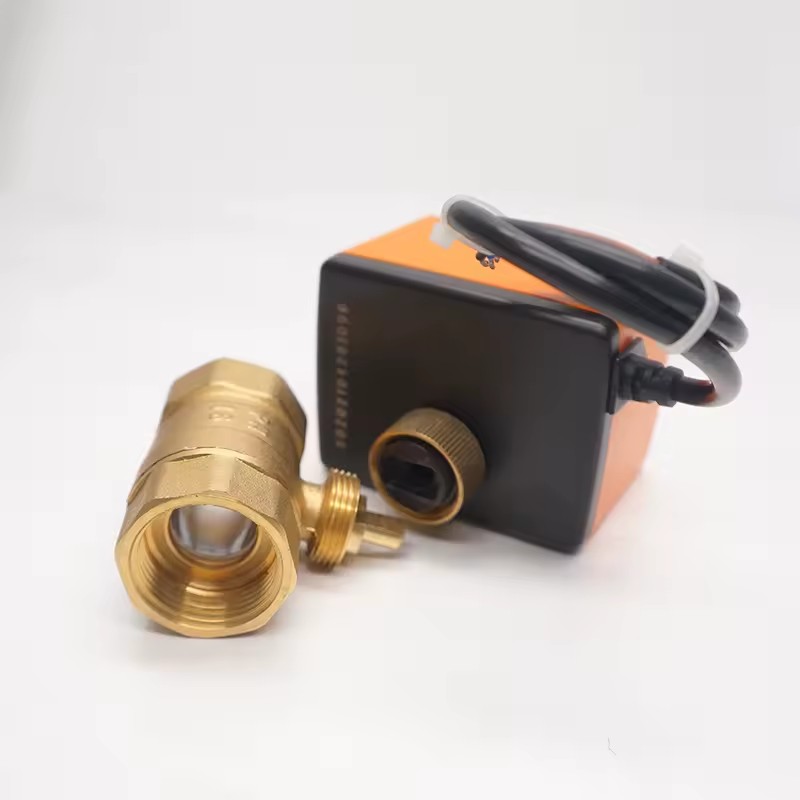

IInsert the valve stem to the bottom of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve’s mounting hole. Then screw down the brass cap nut

WRA-53 Series220v ON/OFF, 3-Point
WRA-63 Series220V/110V/24V ON/OFF, 3-Point
WVA4-.. Series220V/24V ON/OFF, Proportional
WRA3-.. AC Series220V/110V/24V ON/OFF, 3-Point
WRA-42 DC Series24V/12V/3V ON/OFF, 3-Point
WRA3-.. DC Series24V/12V/3V, ON/OFF, Proportional
Certifications & compliance
CE
Complies with EU standards
Description images
Winvall ISO9001 HVAC System 230VAC DN20 Electric Motor Control Valve Actuator 2way Mini Motorized Ball Valve
Winvall ISO9001 HVAC System 230VAC DN20 Electric Motor Control Valve Actuator 2way Mini Motorized Ball Valve
Winvall ISO9001 HVAC System 230VAC DN20 Electric Motor Control Valve Actuator 2way Mini Motorized Ball Valve
Winvall ISO9001 HVAC System 230VAC DN20 Electric Motor Control Valve Actuator 2way Mini Motorized Ball Valve
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 10 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    Lead time will be confirmed with your quotation.

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 22 fields
Productivity
100L/Hour
Core components
PLC
Machinery test report
Not Available
Warranty
1 Year
Video outgoing-inspection
Not Available
Weight (kg)
1.25 kg
Place of origin
China, Hunan
Certificate
CE, RoHS, ISO9001
Color
various
Main client
Daikin, Hitachi, Sauter
Used for
HVAC, Solar power, Water treatment
Life time
more than 5 years
Size
1/2', 3/4'', 1''
Working voltage
220v
Packaging Details
21 units per carton,0.05CBM/CTN
Port of dispatch
Changsha
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Supply Ability
1500 pieces per Week
Model number
WRA-5320
