Geophysical Water Well Logging Equipment Gamma Ray Logger Caliper Well Logging Tool

Geological Water Well Logging Equipment Gamma Ray Logger Caliper Well Logging Tool

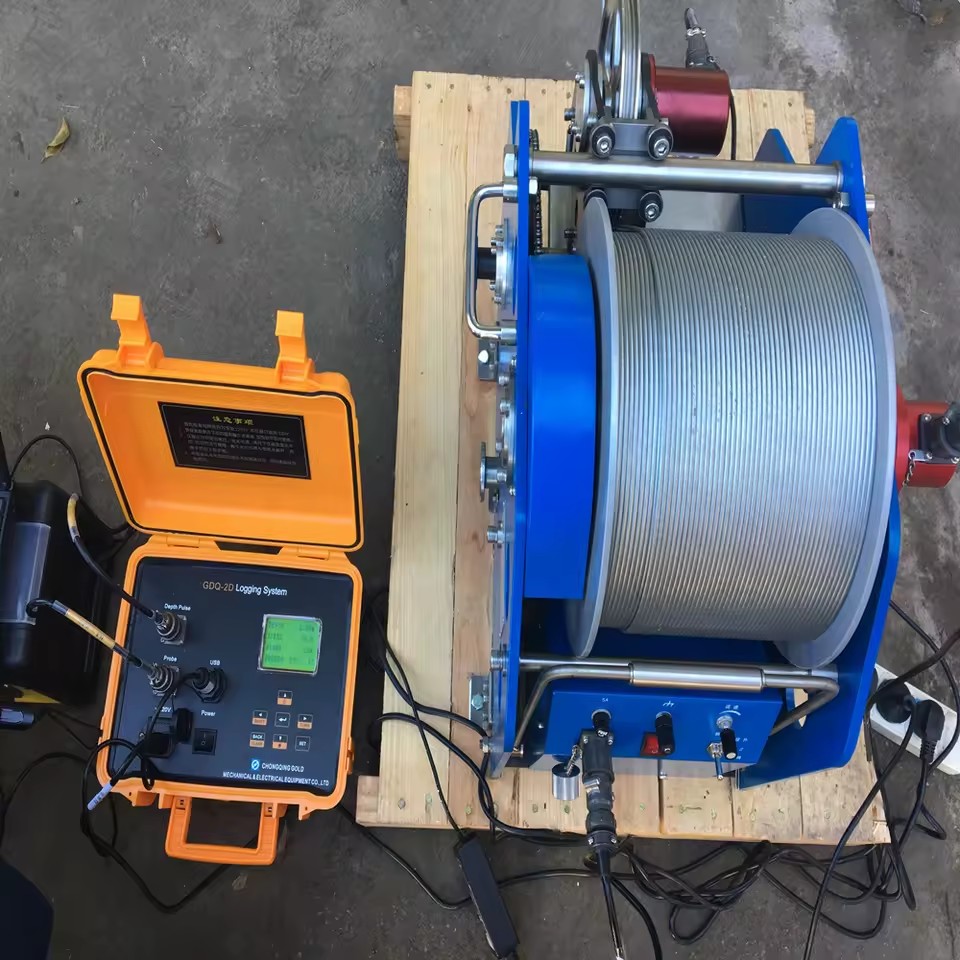

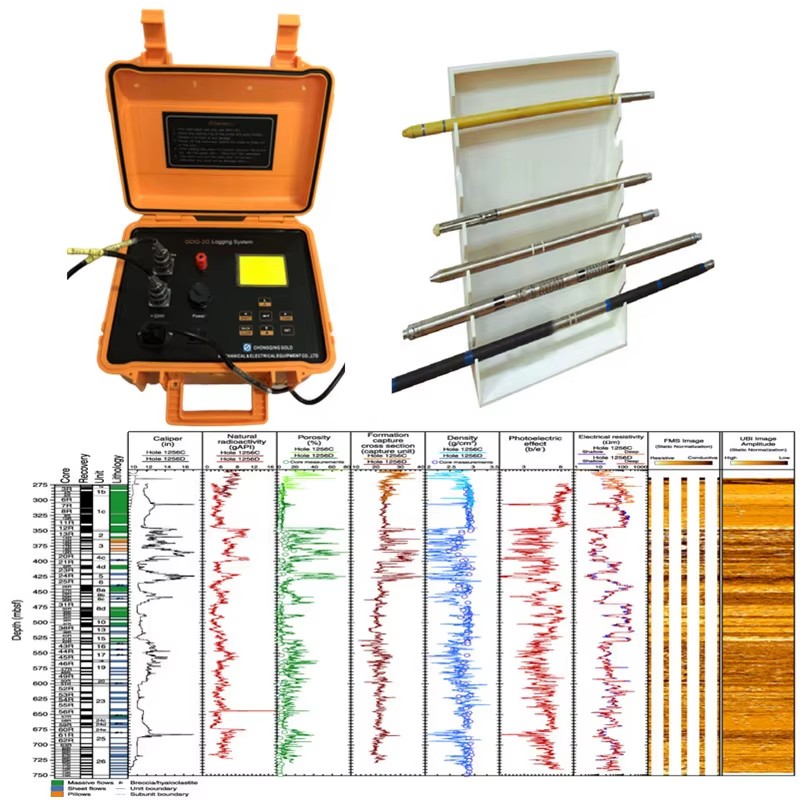

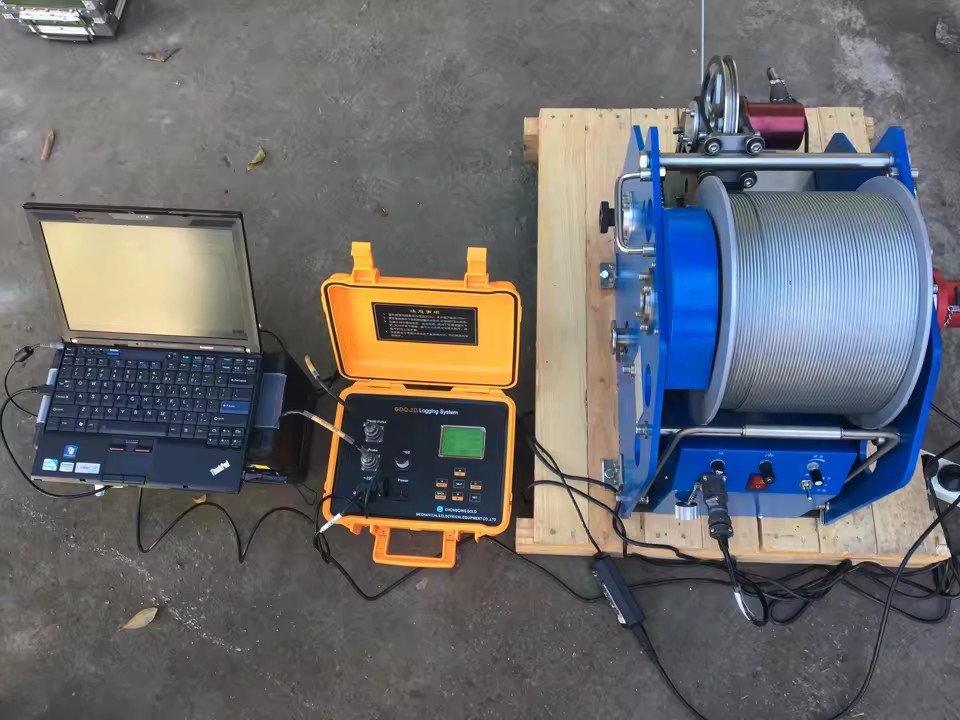

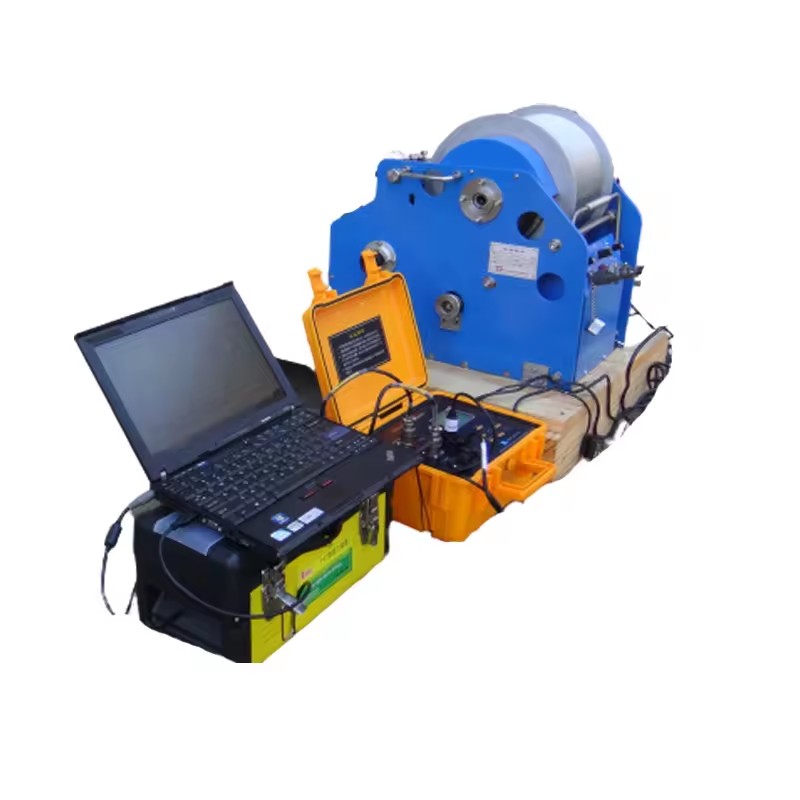

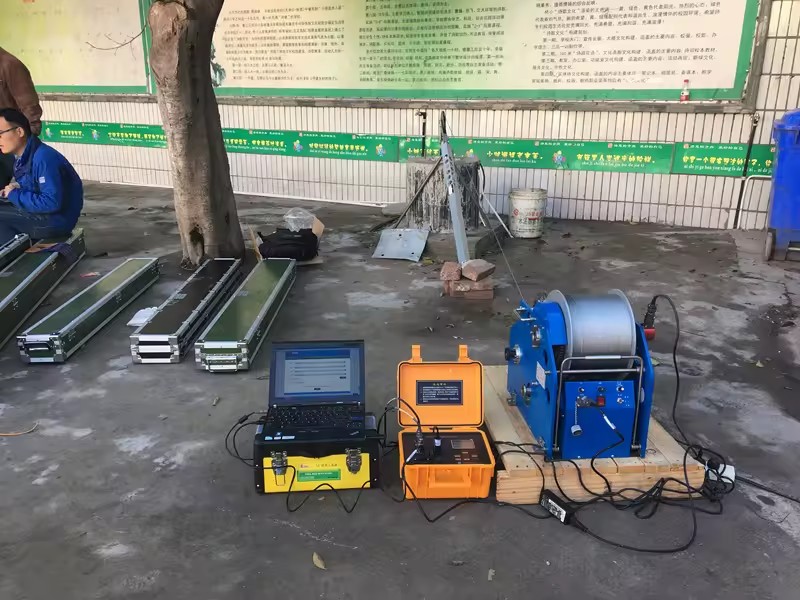

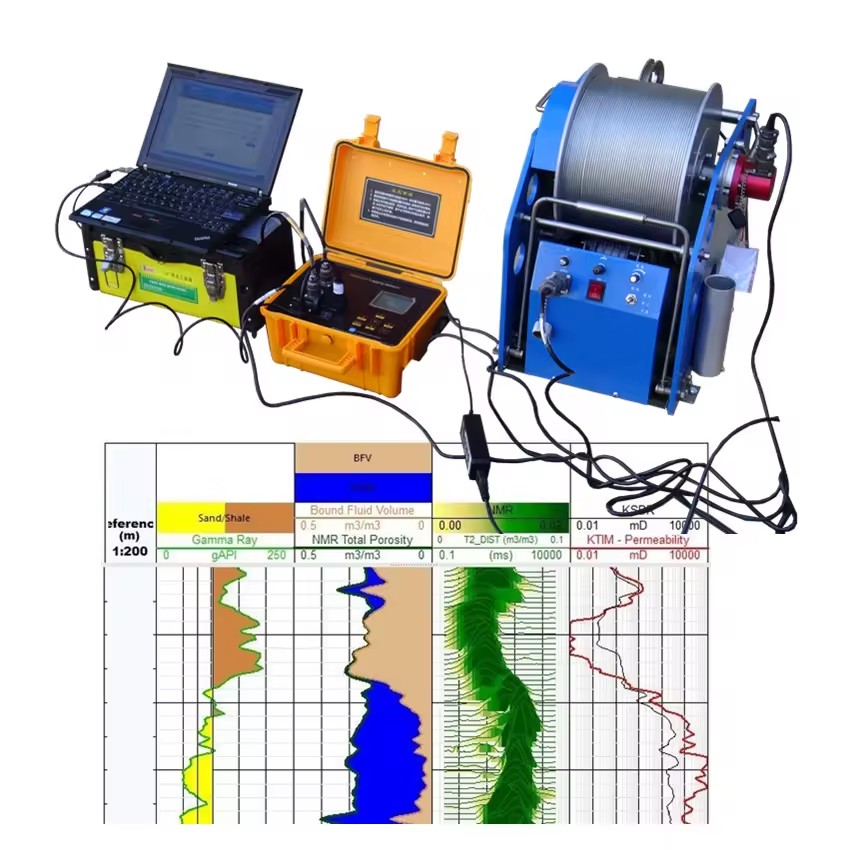

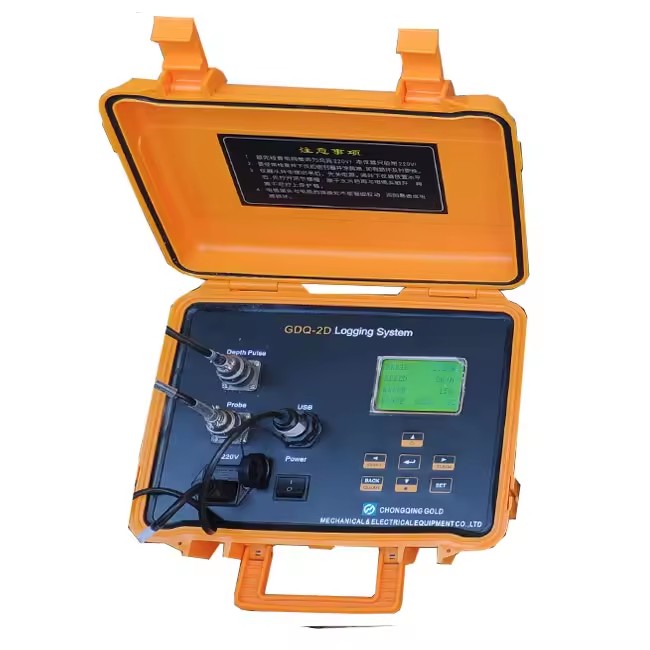

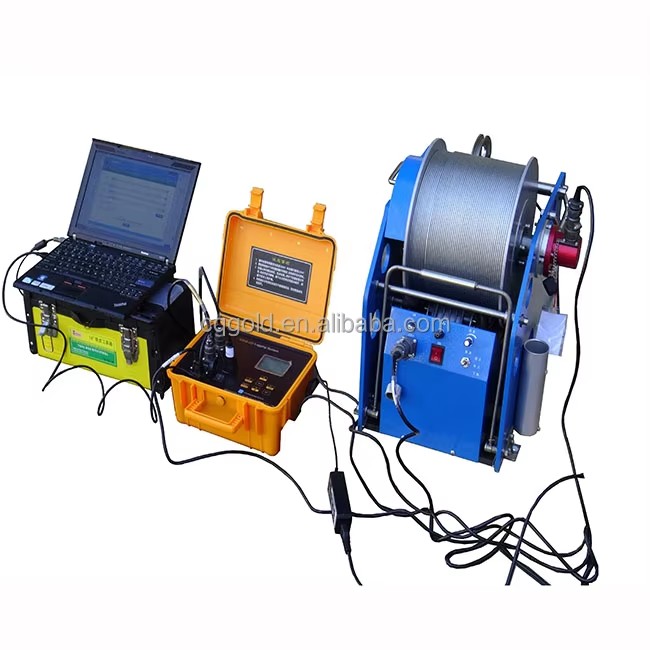

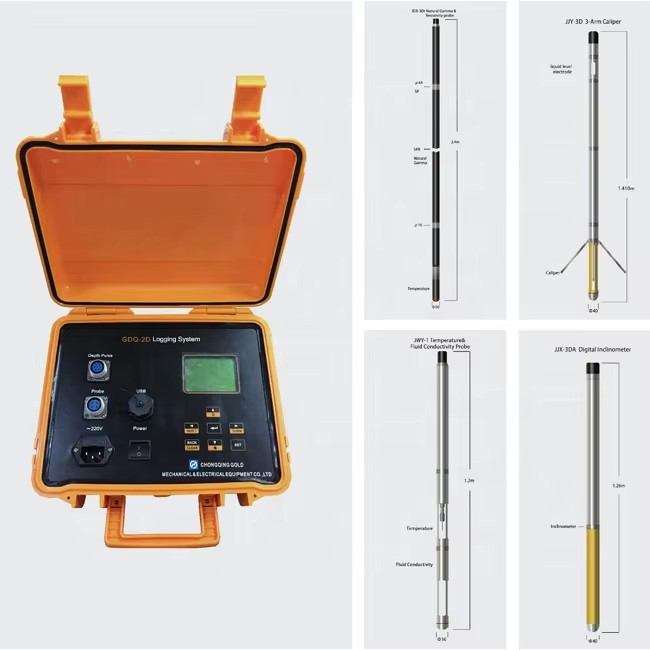

GDQ-2D Water Well Logging Equipment is a digital logging system specially designed for the convenience of field work, which can connect with various kinds of pipe and log.

GDQ-2D well logging tool integrated digital control logging system is a new generation of digital logging equipment., which based on summarizing more than 20 years in production and successful experience of digital logging equipment's research and development, following the international new trend of development of the small digital logging technology, and combining with 's national conditions.

Parameter

1. The use of the environment

Power supply: 220 V, 50 H z

Using the environment temperature: -20℃ ~ 45℃

Using the environment humidity: 90% or less (45℃)

2.The depth measurement system

Depth measurement range: 0 ~ 9999.99 m

Depth resolution: 0.28 mm

Speed measurement range: 0 ~ 9999m/h

Deep optical pulse signal: 3600 pulses per meter

3.Signal transmission system

Bottom hole output signal: bipolar coding

Communication with the computer: RS232 or USB

The underground signal detection level: plus or minus 0.5 V ~ plus or minus 12V

4. Figure out the depth of the graph; 1: 1 0; 1:50. 1:100. 1:0; 1, 50, 0, etc.

5. The drawing accuracy: 8 points per millimeter (curve); 64 pixels per square millimeter (image method)
