Product video
Certifications 2006/42/EC(2)

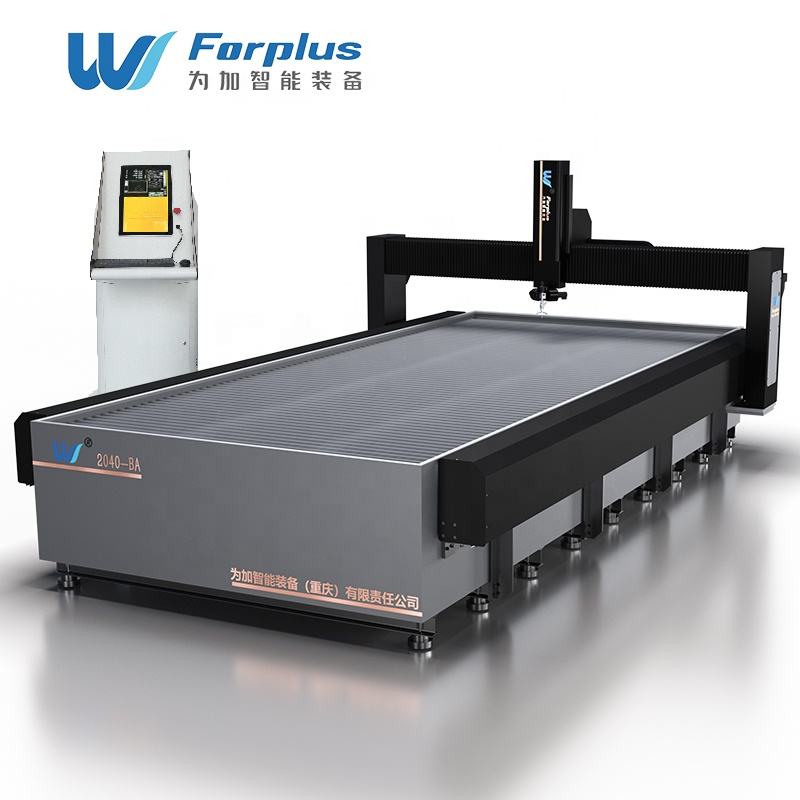

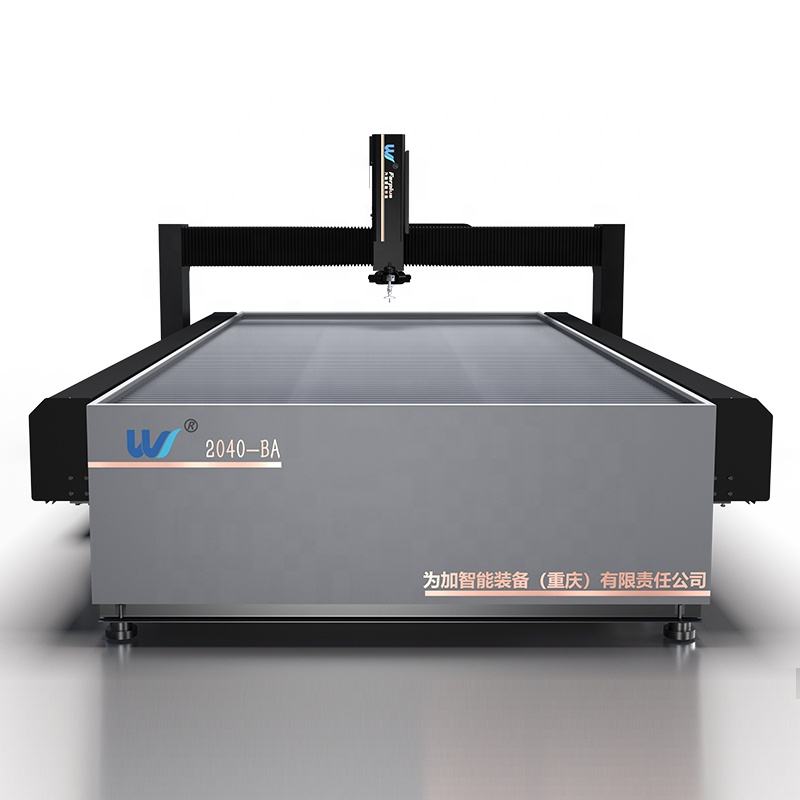

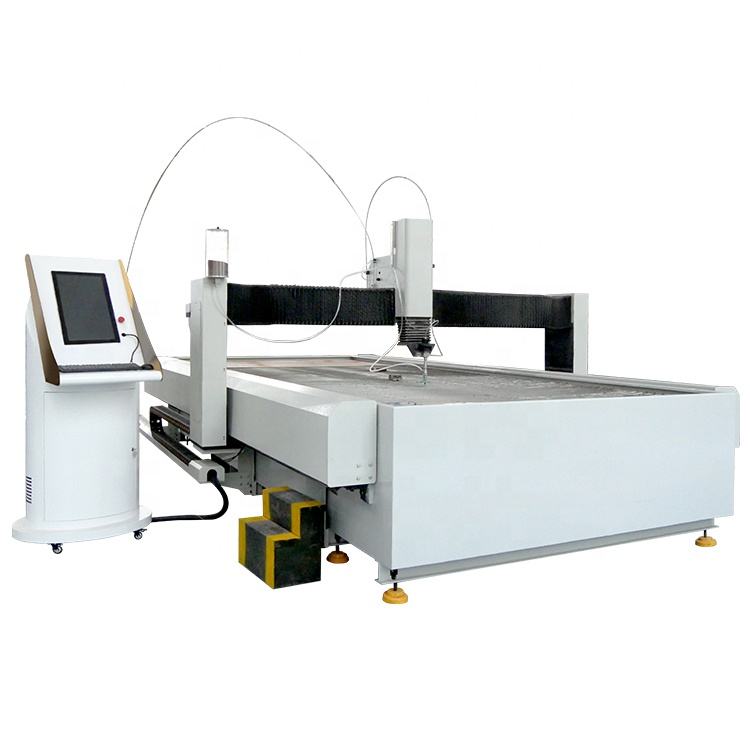

Forplus High Precision AC 5 Axis Waterjet Cutting Machine CNC Water Jet Cutter for Composite Material

Available for enquiry 0.0 · 0 reviews
USD

$ 48,110.00 48110.0 USD $ 48,110.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
220V50HZ
Number of axes
5
Repeatability (x/y/z) (mm)
±0.05
Core components

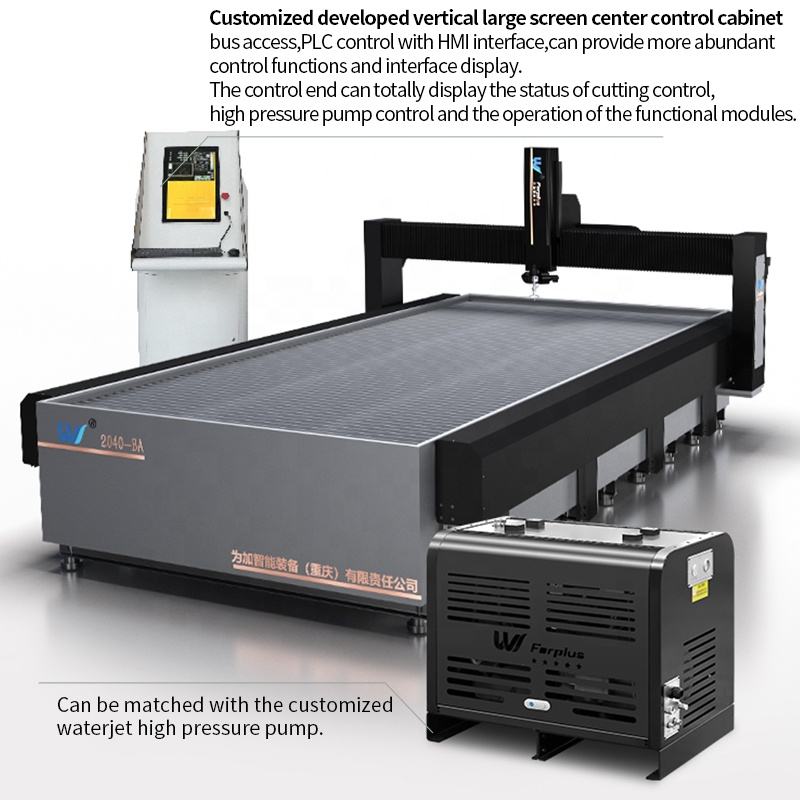

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Gearbox, cutting table, vertical large screen center control cabinet
Machinery test report
Provided
Warranty
1 Year
Product description

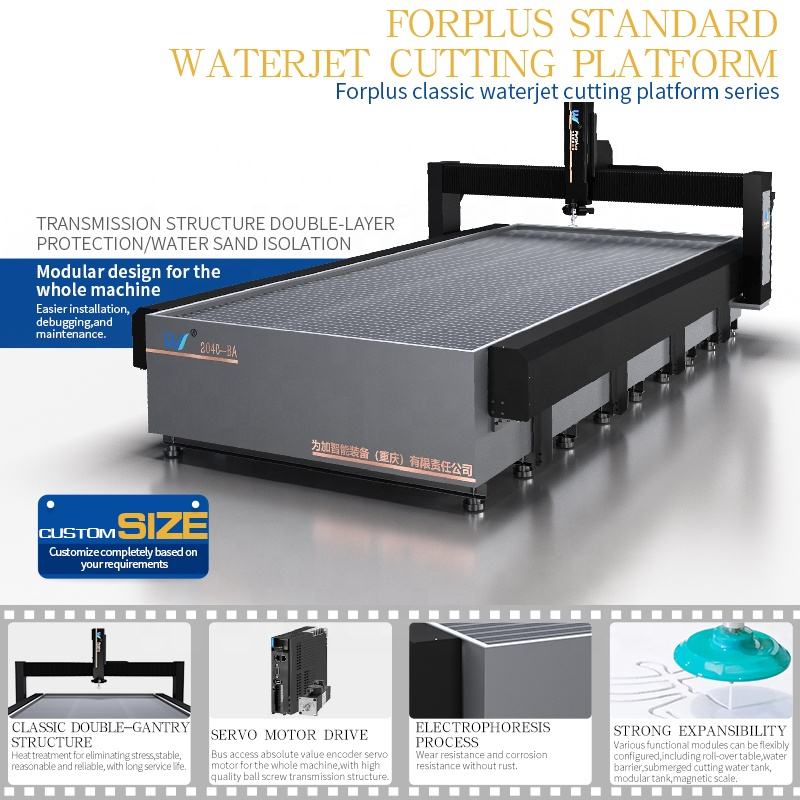

Forplus standard waterjet cutting platform
ModelForplus-U2030-Z150
X、Y、Z travel2000mm、3000mm、150mm
Machine structuregantry structure
Transmission modeball screw,linear guide rail
Positioning accuracy±0.05mm
Re-positioning accuracy±0.05mm
Max no-load speed10M/min
Abrasive feeding systemcontinuous abrasive feeding module
Abrasive removal systemspiral-flow type auto abrasive removal system
Cutting head assemblystandard 3-axis,AC centring 5-axis,AC standard 5 axis (optional)
Water tank platformlinear grid,corrugated grid,honeycomb (optional)
Height measurementlaser-measurement
Power requirement of electric cabinetsingle phase 220V 50HZ
Compressed air pressure≥5bar
Compressed air caliberφ12mm
Certifications & compliance
2006/42/EC(2)
EU Machinery Compliance
Description images
Product detail
Product detail
Product detail
Product detail
2006/42/EC(2)
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    90 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Key attributes 24 fields
Voltage
220V50HZ
Number of axes
5
Repeatability (x/y/z) (mm)
±0.05
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Gearbox, cutting table, vertical large screen center control cabinet
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
height:1810mm
Key selling points
Long Service Life
Rated power
12KW(16.09hp)
Place of origin
China, Chongqing
Weight (kg)
3000
Table travel (x) (mm)
2000
Table travel (y) (mm)
3000
Table travel (z) (mm)
150
Cutting accuracy(mm)
±0.05
Transmission mode
ball screw, linear guide rail
Positioning accuracy
±0.05mm
Re-positioning accuracy
±0.05mm
Max no-load speed
10M/min
Application
Waterjet Cutting Service
Type
Water Cutting Machine
Function
High Pressure Water Cutting
Control system
CNC Controller
Packaging and delivery 3 fields
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Product options 2 fields
Model number
Forplus-U2030-Z150 AC5axis
Effective cutting range (mm)
2000x3000
Other details 1 field
Certifications & Compliance
2006/42/EC(2)
Lead time
90 days
Minimum order
1 Units
