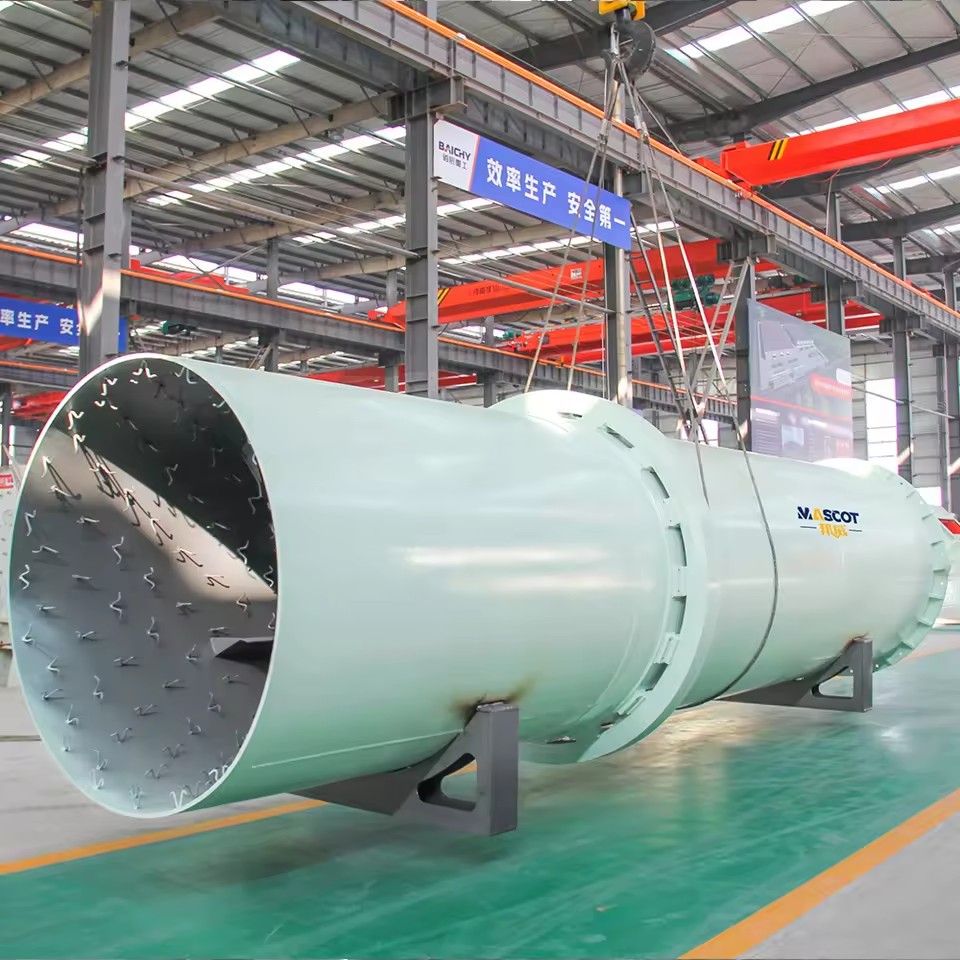

Name: Energy Saving Single Cylinder Rotary Dryer Industrial Drying Equipment Low Noise Gas Heating Pump CE Certified for Chemicals
SKU: B2B-33325
Price: 8600.0 USD
Availability: PreOrder

Product description

Energy Saving Single Cylinder Dryer Industrial Rotary Drum Drying Equipment Low Noise for Coal Biomass Sand Drying Rotary Dryer

Features of S ingle-cylinder Dryer

1. High Thermal Efficiency: Uniform heat distribution with minimized energy loss reduces operational costs.

2. Compact & Robust Design: Space-saving structure built with durable materials for long service life and stability.

3. User-Friendly Operation: Simple control interface and low maintenance requirements ensure smooth workflow.

4. Adjustable Parameters: Flexible rotation speed and temperature control to accommodate different material characteristics.

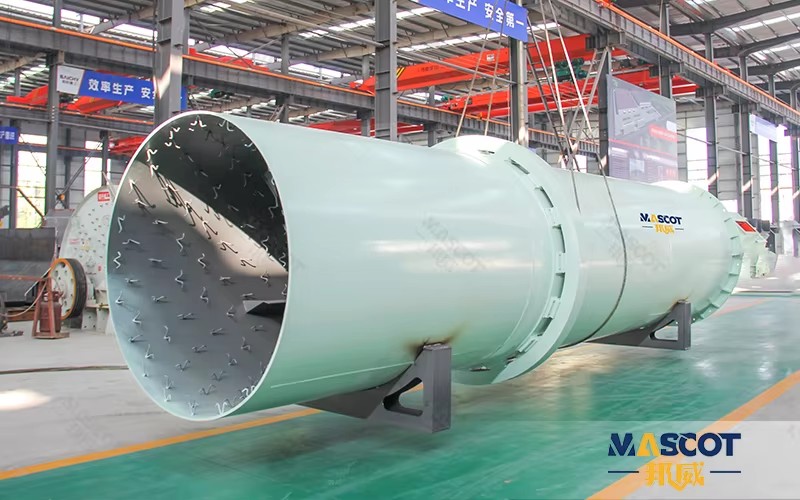

5. Even Drying Performance: Specially designed internal lifting plates promote continuous turning and consistent drying results.

6. Excellent Sealing System: Effectively prevents heat leakage and improves safety during operation.

Application Materials

1.Building Materials Industry: Clay, sand, gravel, limestone, gypsum, and various aggregates.

tallurgical Industry: Iron ore concentrate, metal slag, mill scale, and non-ferrous metal powders.

3.Chemical Industry: Mineral powders, synthetic filter cakes, certain salts, and chemical raw materials.

4.Cement Industry: Granulated blast furnace slag, raw meal, pulverized coal, and fly ash.

Technical Parameters

Spec. (Dia.x Length mm)	Volume(m³)	Capacity (t/h)	Gradient(%)	Highest Inlet Air Temperature(℃)	Rotate Speed(r/min)	Main Motor(kw)
Φ600x6000	1.7	0.5-1.5	3~5	700~800	3~8	3
Φ800x8000	4.1	0.8-2.0	3~5	700~800	3~8	4
Φ800x10000	5.1	0.8-2.5	3~5	700~800	3~8	4
Φ1000x10000	7.9	1.0-3.0	3~5	700~800	3~8	7.5
Φ1000x12000	9.4	1.2-3.2	3~5	700~800	3~8	11
Φ1200x8000	9	1.9-2.4	3~5	700~800	3~8	7.5
Φ1200x10000	11.3	2.2-3.0	3~5	700~800	3~8	7.5
Φ1200x12000	13.6	2.4-3.2	3~5	700~800	3~8	7.5
Φ1500x12000	21.2	4.5-5.7	3~5	700~800	2~6	15
Φ1500x14000	24.7	5.3-6.6	3~5	700~800	2~6	15
Φ1500x16000	26.5	5.7-7.1	3~5	700~800	2~6	15
Φ1800x12000	30.5	6.5-8.1	3~5	700~800	2~6	18.5
Φ1800x14000	35.6	7.6-9.5	3~5	700~800	2~6	18.5
Φ1800x16000	40.7	7.8-10.2	3~5	700~800	2~6	18.5
Φ2000x18000	56.5	8.4-12.3	3~5	700~800	1.5~6	22
Φ2000x20000	62.8	9.0-13.6	3~5	700~800	1.5~6	22
Φ2200x16000	60.8	11.4-15.8	3~5	700~800	1.5~6	22
Φ2200x18000	68.3	12.8-16.2	3~5	700~800	1.5~6	22
Φ2200x20000	75.9	13.0-16.5	3~5	700~800	1.5~6	30
Φ2400x16000	72.3	13.5-16.9	3~5	700~800	1.5~5	37
Φ2400x18000	81.4	17.4-21.7	3~5	700~800	1.5~5	45
Φ2400x20000	90.4	19.3-24.1	3~5	700~800	1.5~5	55
Φ2600x24000	127.4	27.2-34.0	3~5	700~800	1.5~5	75
Φ2600x28000	148.6	28.6-36.2	3~5	700~800	1.5~5	75
Φ3000x20000	141.3	30.1-37.7	3~5	700~800	1.5~5	85
Φ3000x25000	176.6	37.7-47.1	3~5	700~800	1.5~5	90
Φ3200x25000	201	42.9-53.6	3~5	700~800	1.5~5	110

Working Principle of S ingle-cylinder Dryer

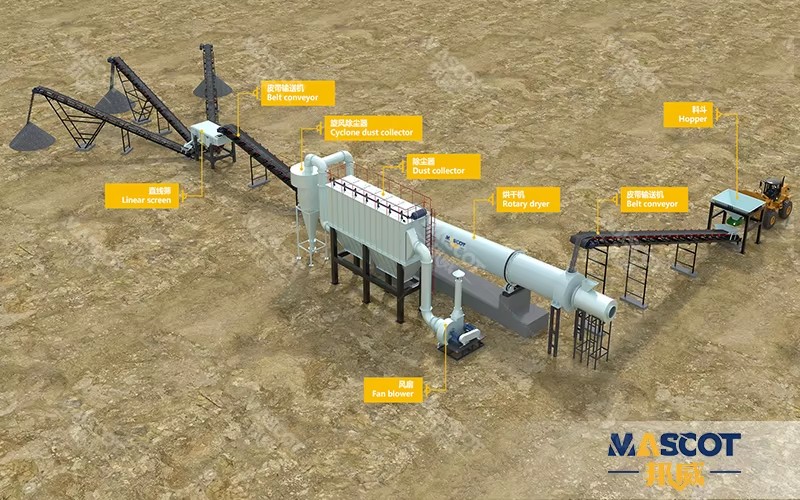

The material is evenly fed into the rotating cylinder. As the cylinder rotates, the internally mounted lifting plates continuously lift and scatter the material, forming a uniform curtain. Heated air (or other hot medium) flows through the cylinder, either co-currently or counter-currently, conducting full heat and mass exchange with the falling material. This process rapidly evaporates moisture. The dried material is then discharged at the opposite end, while the moist exhaust gas is treated and released through a dust removal system, completing a continuous and efficient drying cycle.

The Customer Site

1.Proven Reliability & Durability: Our machines are built for 24/7 operation in the toughest environments.

2.Professional Technical Support: From plant design to installation and maintenance, we are with you every step of the way.

3.Quality You Can Trust: We use premium materials and strict QC to ensure every machine performs as promised.

's Service

We offer a 12-month warranty for the whole machine and also a 12-month warranty for core components such as rollers, rings, and classifiers, along with 24/7 online consultation via

Description images

Energy Saving Single Cylinder Rotary Dryer Industrial Drying Equipment Low Noise Gas Heating Pump CE Certified for Chemicals

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Rotary Drying Equipment

Voltage

220V/380V/UPON

Heating method

Gas Heating

Material

Other

Power(w)

Accroding to model

Application

Chemicals Processing

Core components

Motor, Gear, Pump

Key selling points

Competitive Price

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight (kg)

2900

Dimension(L*W*H)

Accroding to model

Feature

High Efficiency Drying Machine

Function

Drying and dehumidifying the materials

Weight

2900-104900kg

Color

Customer's Request

Certification

After-sales Service Provided

Provided 1 year

MOQ

1 Set

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

600x6000, 800x8000, 800x 10000, 1800x12000, 2200x20000, 10000x10000, 10000 x 12000, 1200 x8000, 1200x10000, 1200x12000, 1500 x 12000, 1500x 14000, 1500x16000, 1800x14000, 1800x16000, 2000x18000, 2600x28000, 3200x25000

Lead time

15 days

Minimum order

1 Units
