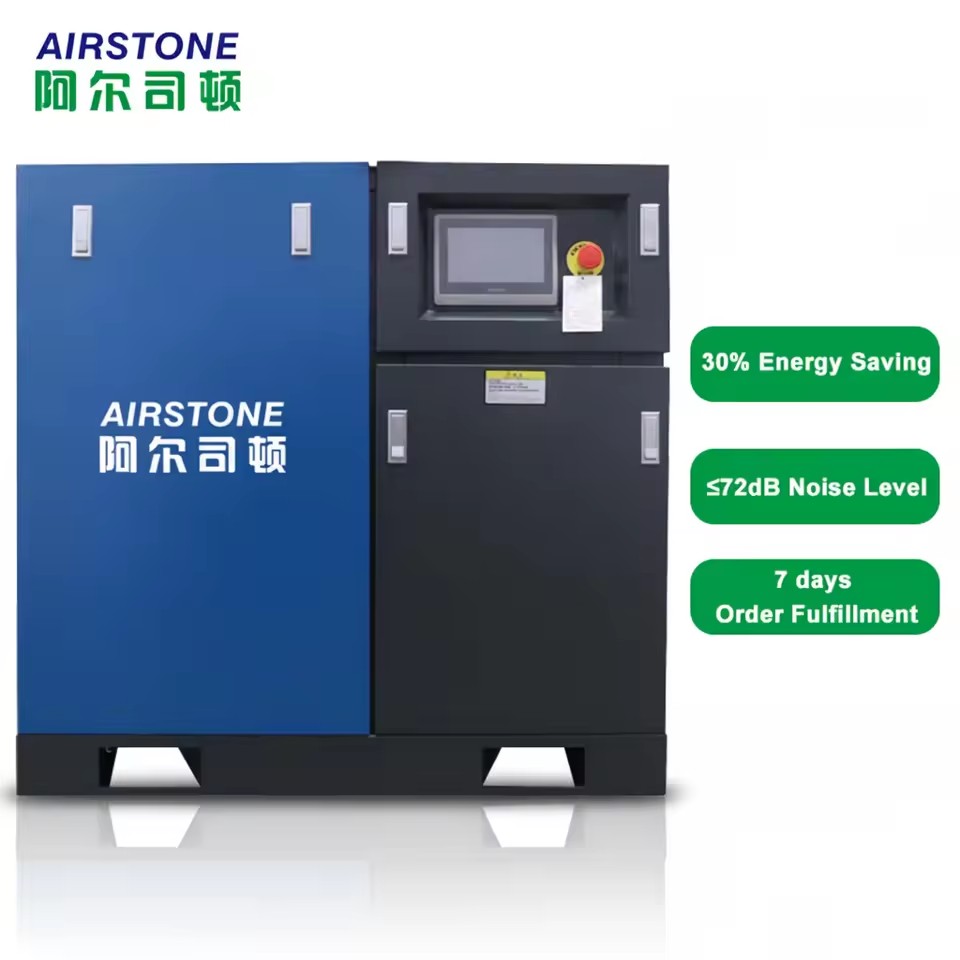

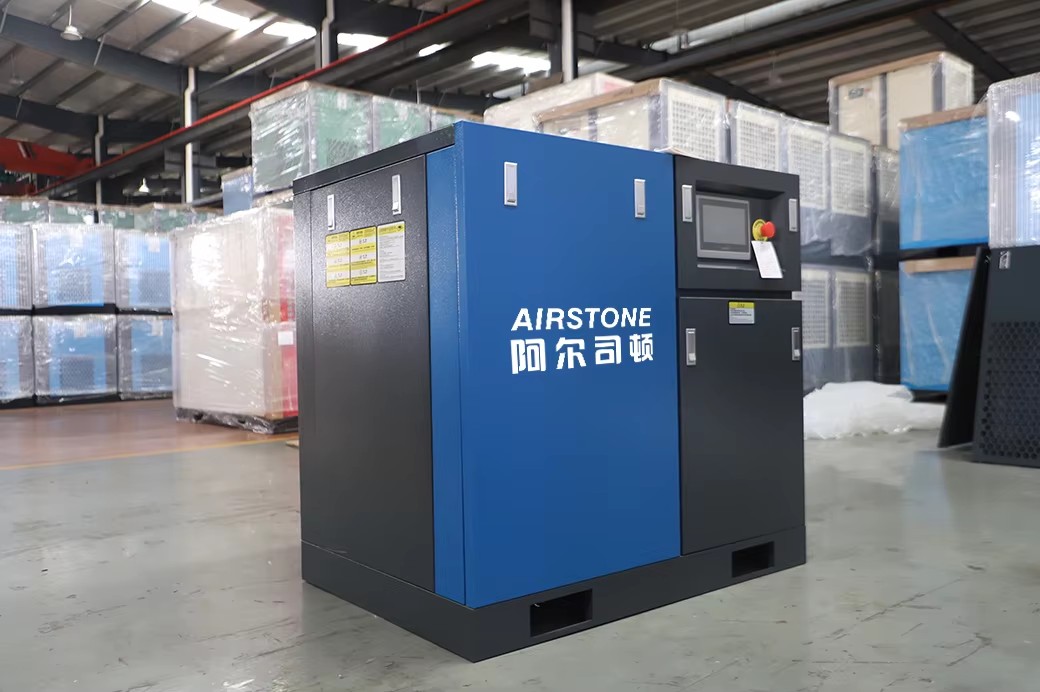

Name: Energy Saving 7.5kw 11kw 15kw Inverter Oil Injected Rotary Screw air Compressor for Factory Direct
SKU: B2B-32261
Price: 1000.0 USD
Availability: PreOrder

Product description

Model number	AS-20PMC	Voltage and frequency	380V 50HZ 3PH
Capacity	0.66-2.2m3/min@8Bar	Driven method	Direct driven
Power	AC Power	Noise	65dB
Pressure	7 bar 8 bar 10 bar	Connection size	G 3/4
Horsepower	15kw/20hp	Equipment size	12008001100mm
Motor protectiom level	IP23/IP54	Weight	315kg

Model	Max Working Pressure	Air Flow	Motor Power	Connection	Weight	Dimensnion
(LWH)
Bar	Psi	m3/min	CFM	HP	kw	kgs	mm
AS-10PMC	7	102	0.36-1.3	13-46	10	7.5	G 3/4	190	890650830
8	116	0.33-1.1	12-39
10	145	0.28-0.95	10-34
AS-15PMC	7	102	0.51-1.7	18-60	15	11	G 3/4	280	10007001000
8	116	0.48-1.6	17-57
10	145	0.42-1.4	15-50
AS-20PMC	7	102	0.72-2.4	25-89	20	15	G 3/4	315	12008001100
8	116	0.66-2.2	23-78
10	145	0.62-2.0	22-71
AS-30PMC	7	102	1.41-3.8	50-134	30	22	G 1	360	11508001100
8	116	1.1-3.6	39-127
10	145	1.96-3.2	69-113
AS-40PMC	7	102	1.59-5.6	56-198	40	30	G 1	780	11508801360
8	116	1.5-5.0	53-177
10	145	1.35-4.5	48-159
AS-50PMC	7	102	2.04-6.8	72-240	50	37	G 1-1/2	605	13009301250
8	116	1.86-6.2	66-219
10	145	1.68-5.6	59-198
AS-60PMC	7	102	2.22-7.4	78-261	60	45	G 1-1/2	623	150010001300
8	116	2.16-7.2	76-254
10	145	2.04-6.8	72-240
AS-75PMC	7	102	3.15-10.5	113-371	75	55	G 2	980	180012001540
8	116	2.88-9.6	102-339
10	145	2.79-9.3	99-329
AS-100PMC	7	102	4.18-13.8	148-488	100	75	G 2	1050	180012001540
8	116	4.05-13.5	143-477
10	145	3.78-12.5	134-442
AS-120PMC	7	102	4.95-16.5	174-583	120	90	G 2	1350	180014001540
8	116	4.59-15.3	162-541
10	145	1.17-13.9	41-491
AS-150PMC	7	102	6.36-21.2	225-749	150	110	DN65	1380	180014001540
8	116	5.94-19.8	210-700
10	145	5.58-18.6	197-657
AS-175PMC	7	102	7.29-24.3	258-859	175	132	DN65	2580	250014701840
8	116	7.14-23.8	252-841
10	145	6.63-22.1	234-781
AS-200PMC	7	102	8.61-28.7	304-1014	200	160	DN80	2800	250014701840
8	116	8.28-27.6	293-975
10	145	7.38-24.6	260-869
AS-250PMC	7	102	9.6-32	339-1131	250	185	DN100	4200	280019001950
8	116	9.15-30.5	323-1078
10	145	7.25-27.5	256-972
AS-300PMC	7	102	11-36.7	389-1297	300	220	DN100	4600	280019001950
8	116	10.3-34.5	364-1219
10	145	9.06-30.2	320-1067
AS-350PMC	7	102	12.6-42	445-1484	350	250	DN100	5000	330019001950
8	116	12.1-40.5	428-1431

Certifications & compliance

Complies with EU standards

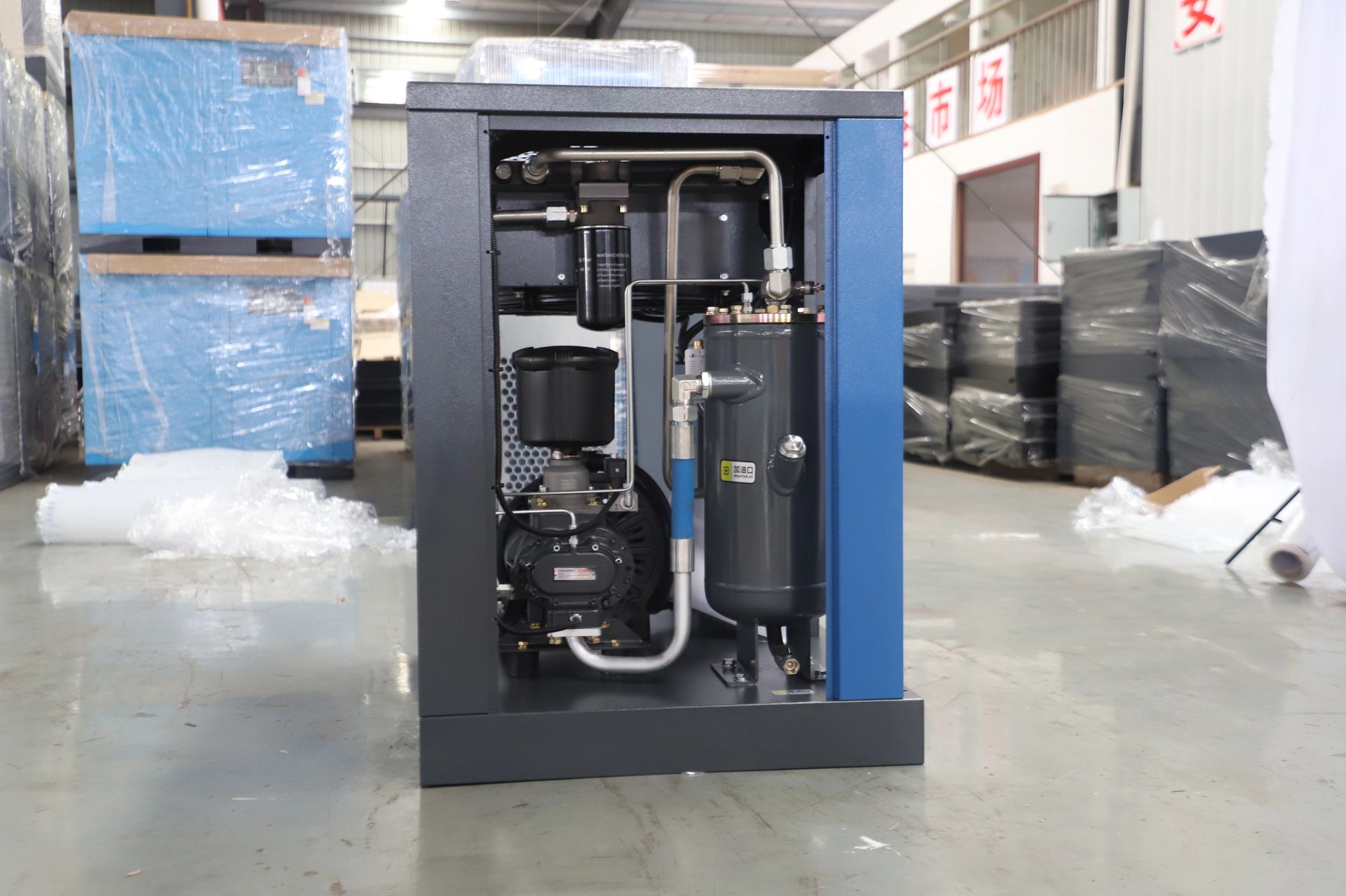

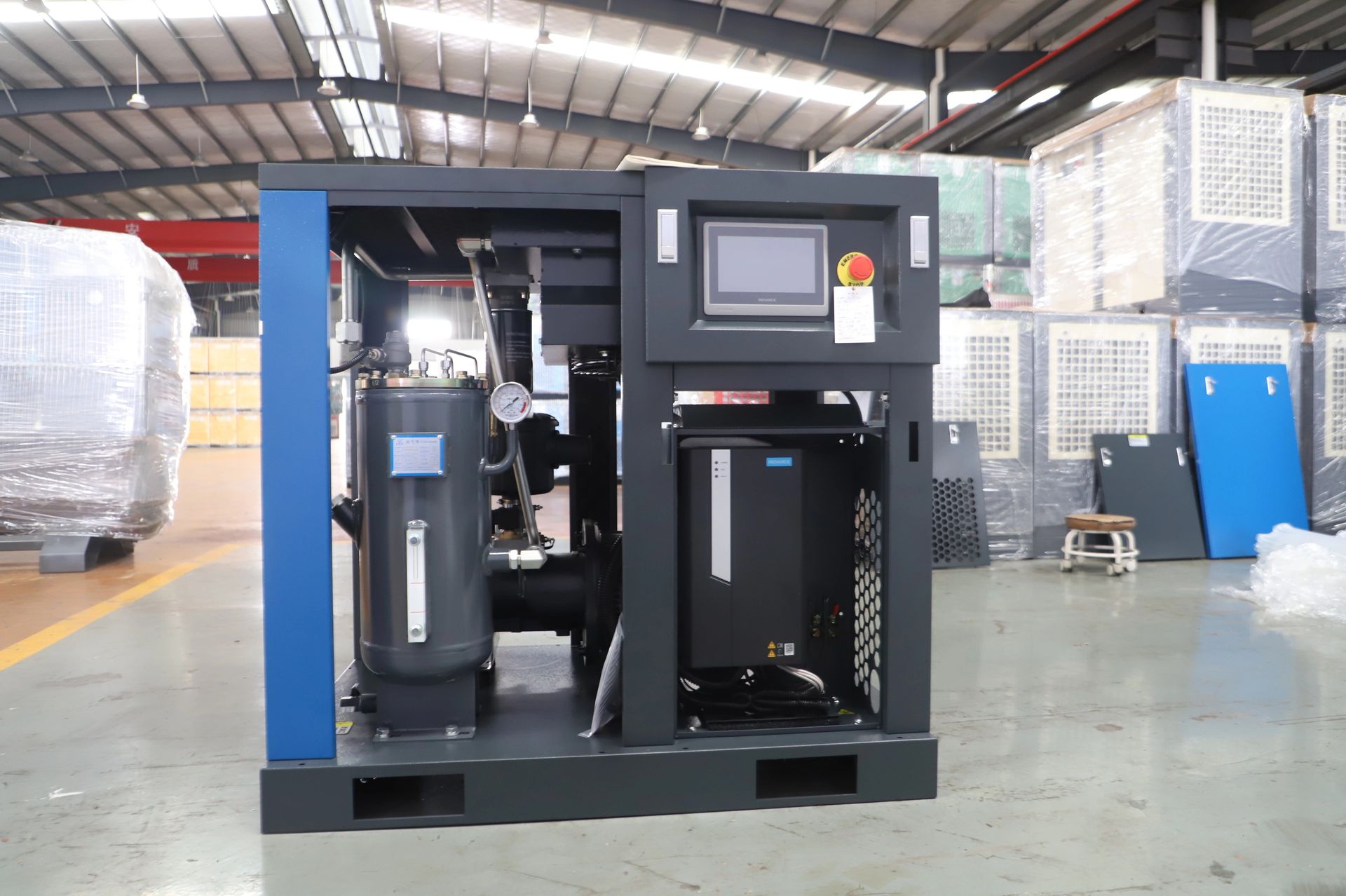

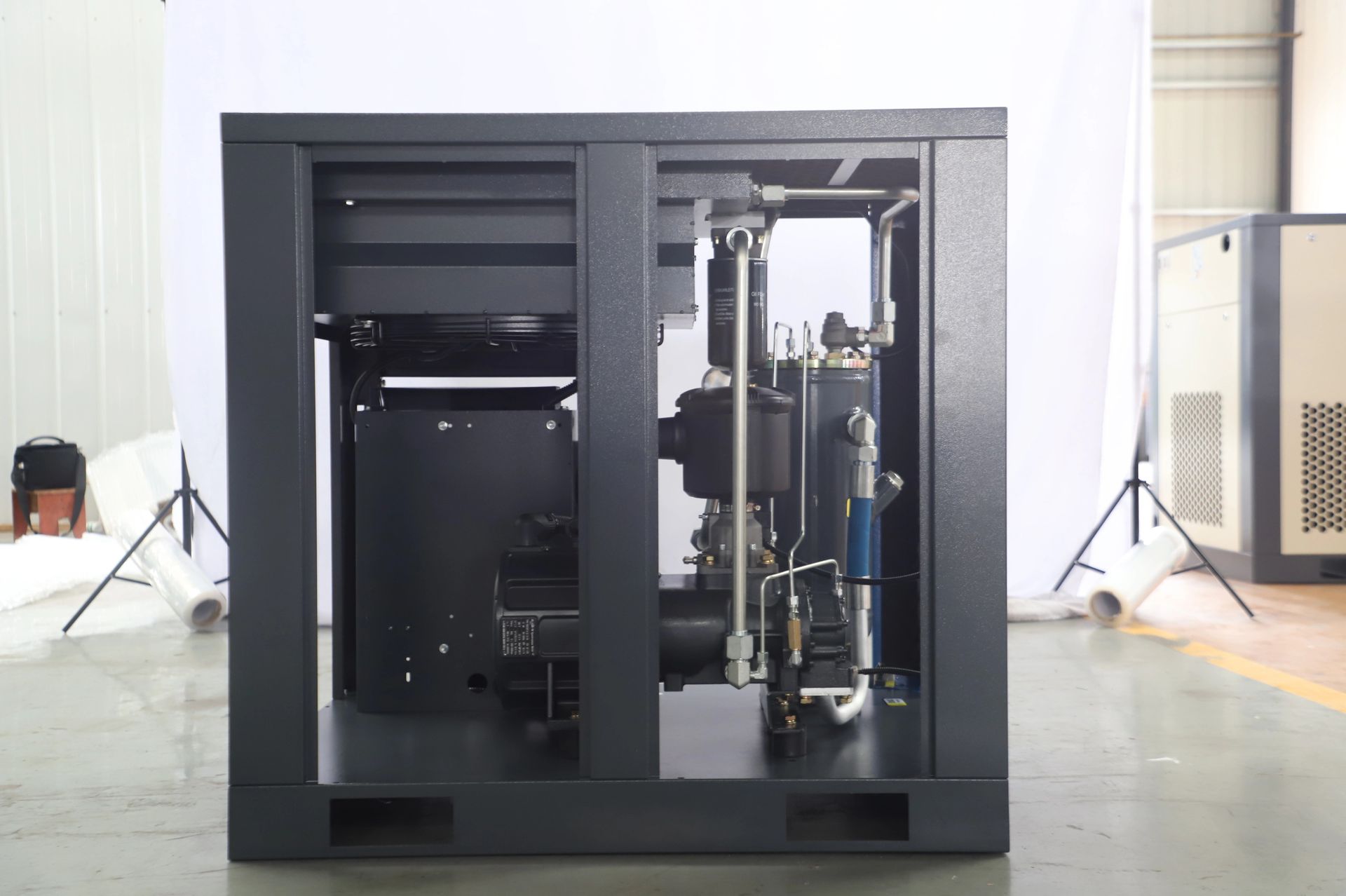

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Ocean + Truck via Maersk · Approx. shipping fee: $ 235.20 for 1 set · Transit time: Est. 20-27 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Type

Screw

Gas type

Air

Power source

AC Power

Lubrication style

Lubricated

Cooling Method

AIR COOLING, Air Cooled

Configuration

Portable

Voltage

380 V

Machinery test report

Provided

Video outgoing-inspection

Provided

Mute

Warranty

2 Years

Core components

PLC, Motor, Pump

Weight (kg)

315

Place of origin

China, Guangdong

Model number (Specification)

AS-10PMC, AS-15PMC, AS-20PMC

Dimension(L*W*H)

1200*800*1100

Air capacity

0.66-2.2m3/min(23.31-77.69ft3/min)

Motor power

7.5KW 11KW 15KW

Capacity

0.66-2.2m3/min 15KW

Motor

IP23 IE4 motor

MOQ

1 PC

Drive method

Direct Drive

Noise

65dB

Selling Units

Single item

Single package size

130X90X120 cm

Single gross weight

350.0 kg

Working pressure (Product option)

7 bar(101.53psi), 8 bar(116.03psi), 10 Bar(145.04psi)

Power(W) (Product option)

7.5 KW(10.06hp), 15 kw(20.12hp), 11 kw(14.75hp)
