Product video
Certifications CE

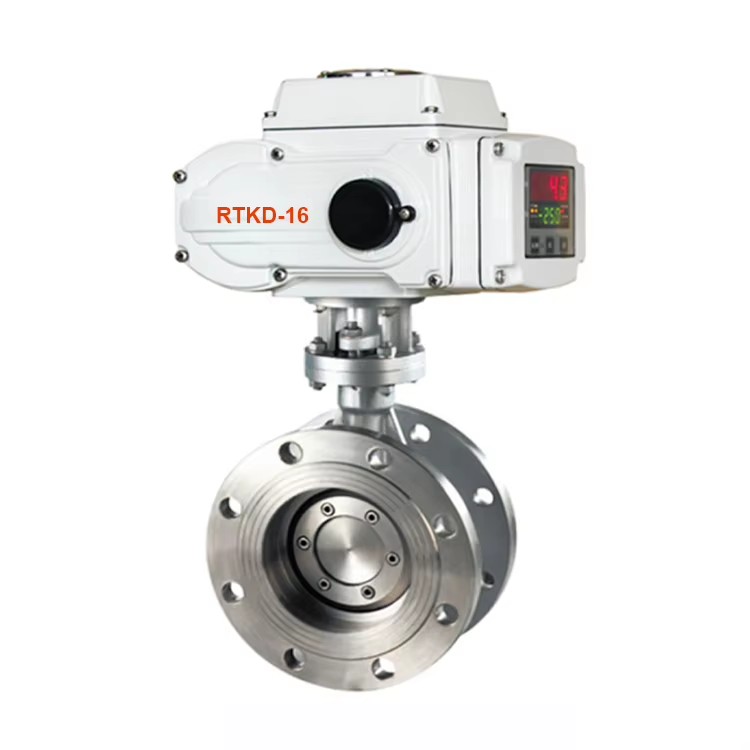

Electric Motorized 4-20mA Modulating Valve Stainless Steel butterfly Valve Electric

Available for enquiry 0.0 · 0 reviews
USD

$ 110.00 110.0 USD $ 110.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Port Size
  • Applicable medium
  • Temperature of media
  • Power
  • Structure
  • Media
  • Warranty
  • Customized support
  • Application
  • Model number (Specification)
  • Place of origin
  • Rated travel time
  • Rotation angle
  • Power voltage
  • Control Mode
  • Certificate
  • Selling Units
  • Single package size
  • Single gross weight
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Port Size
2"~12", DN50~DN400, DN50-DN400
Applicable medium
Water, gas, oil, Air
Temperature of media
Low Temperature, High Temperature
Power
electric, Motorized, Motor Butterfly Valve
Structure
Butterfly
Media
Water, Oil, Gas, air, Liquid
Product description

Our Advantages

Electric actuatorsType: 1.on/off type 2. 4-20MA
VoltageAC220V AC110V AC380V DC12V DC24V DC110V
Nominal diameterDN50-DN600
Nominal pressure1.0-1.6MPa
Applicable temperatureStainless steel: -30~425°C
ConnectionFlange
Body materialStainless steel, cast steel
Disc material304, 316, 316L, nylon, cast steel, Ductile iron
Seat liningStainless steel
Applicable mediumSuitable medium: water, sea, water, food, natural gas, alcohols, salts, acids
alkalis, oil, steam, air, etc.
TypeControl typeFunction
Electric actuator (optional)ON-OFF typeFeedback: the active signal, passive contact signal, resistance, 4-20mA
Regulation typeInput and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
Filed operationThe field, remote control switch regulation and MODBUS, PROFIBUS field bus

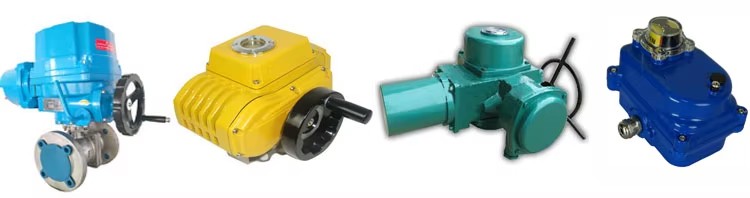

Specification of Electric Actuator
Items ParameterRTKD-05RTKD-10RTKD-16RTKD-30RTKD-60RTKD-125RTKD-250RTKD-400
Output torque50Nm100Nm160Nm300Nm600Nm1250Nm2500Nm4000Nm
Rated travel time5S/10S/20S15S/30S30S/60S100S100S100S
Rotation angle0°-90°0°-90°0°-90°0°-90°0°-90°0°-90°0°-90°0°-90°
Working current0.25A0.48A0.68A0.8A1.2A2A2A2.7A
Starting power0.25A0.48A0.72A0.86A1.38A2.3A2.3A3A
Motor power10W/F25W/F30W/F40W/F90W/F100W/F120W/F140W/F
Weight3kg5kg5.5kg8kg8.5kg15kg15.5kg16kg
PowerAC220V, AC24V, AC110V, AC220, AC380, DC24V (choose options)
Input signal4-20mA ( Modulating type )
Output signal4-20mA ( Modulating type )
Insulation resistance100M/500VDC
Pressure withstanding1500 VAC, one minutes
Inbreaking protectionIP65/IP67
Installation angle360° any angle
Electrical Interperationone G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity30°C to +60°C
Pilot circuit optionsA:with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C:with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G:Three-phase current 380V control circuits style
H:Three-phase current 380V, both neutral position switch and potentiometer style
Certifications & compliance
CE
Complies with EU standards
Description images

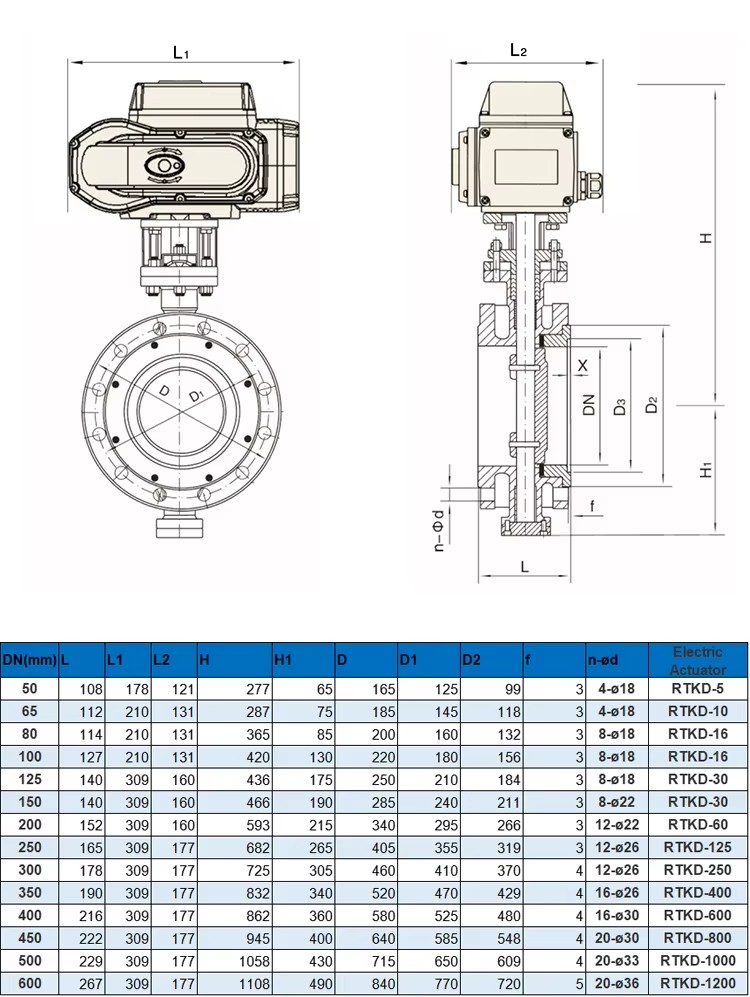

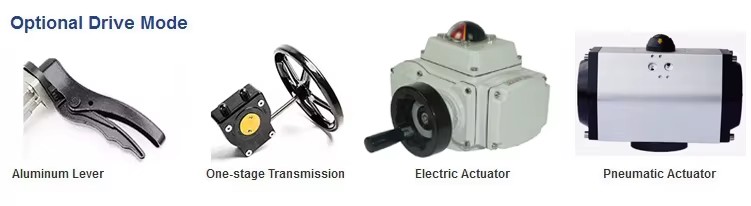

Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 23 fields
Port Size
2"~12", DN50~DN400, DN50-DN400
Applicable medium
Water, gas, oil, Air
Temperature of media
Low Temperature, High Temperature
Power
electric, Motorized, Motor Butterfly Valve
Structure
Butterfly
Media
Water, Oil, Gas, air, Liquid
Warranty
1 years
Customized support
OEM, OBM
Application
General

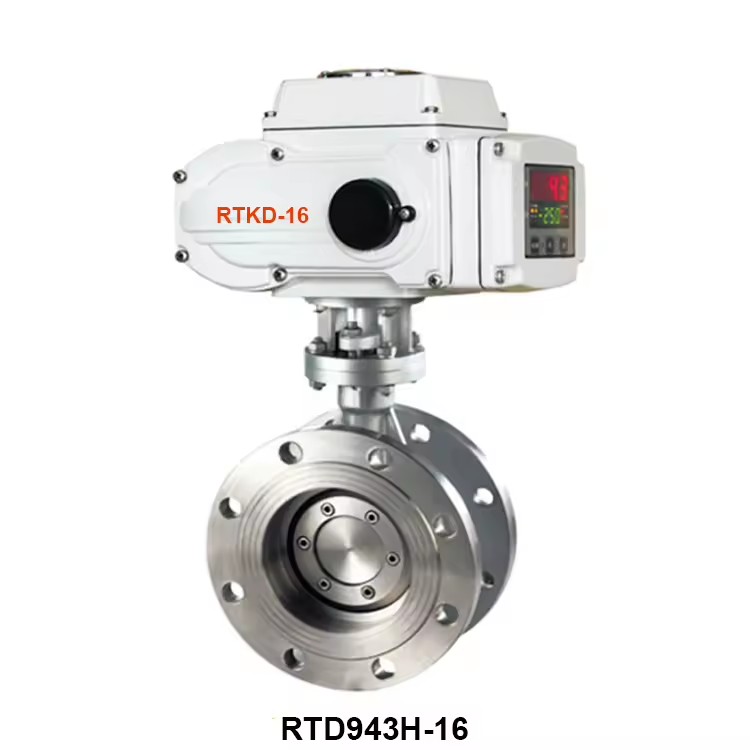

Model number (Specification)
RTD943H-16
Place of origin
China, Guangdong
Rated travel time
15S/30S
Rotation angle
0-90 degree
Power voltage
AC100V AC220V AC380V DC24V DC12V AC24V
Control Mode
On Off Type or Regulation Type
Certificate
CE Certification
Selling Units
Single item
Single package size
XX cm
Single gross weight
0.0 kg
Material (Product option)
Stainless Steel 304, Stainless Steel 316, WCB
Pressure (Product option)
Low Pressure, Medium Pressure
Size (Product option)
2 in, 2 1/2 in, 3in, 4in, 6in, 5in, 8in, 10in, 12in
Certifications & Compliance
CE
Lead time
7 days
Minimum order
1 Units
