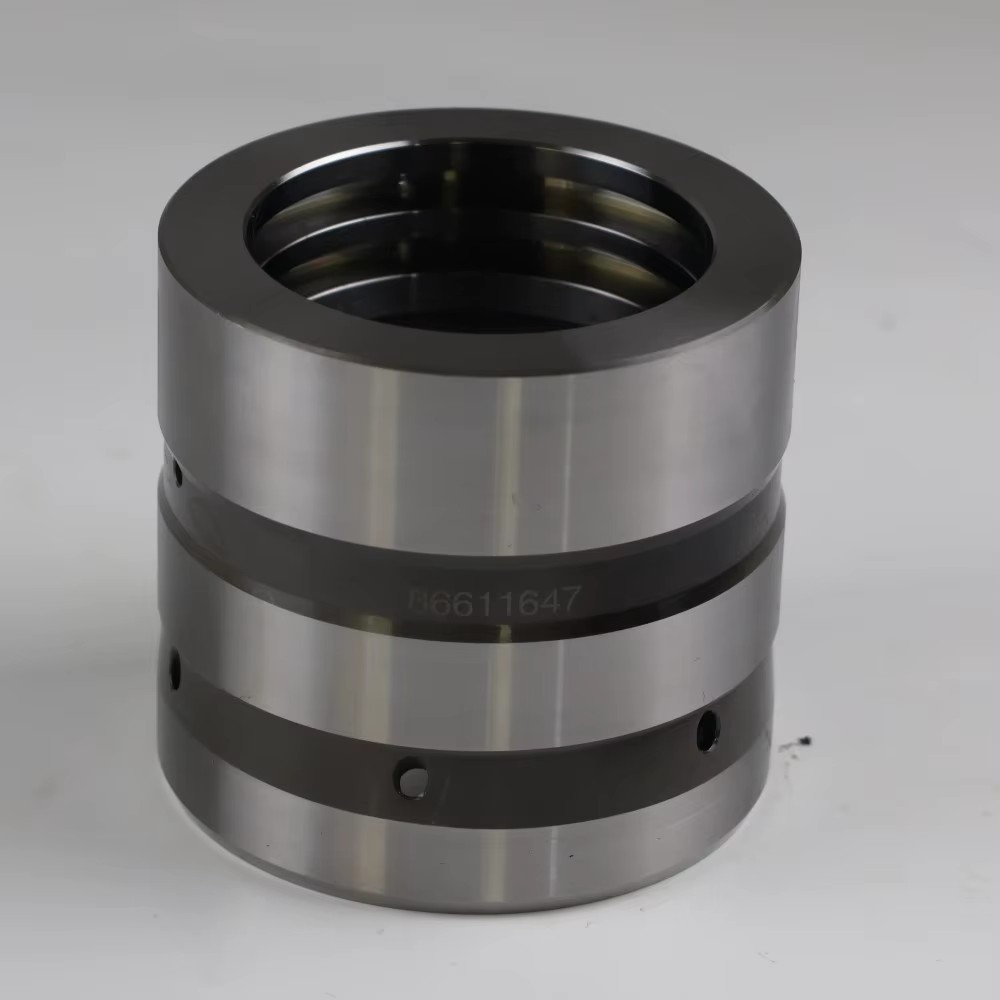

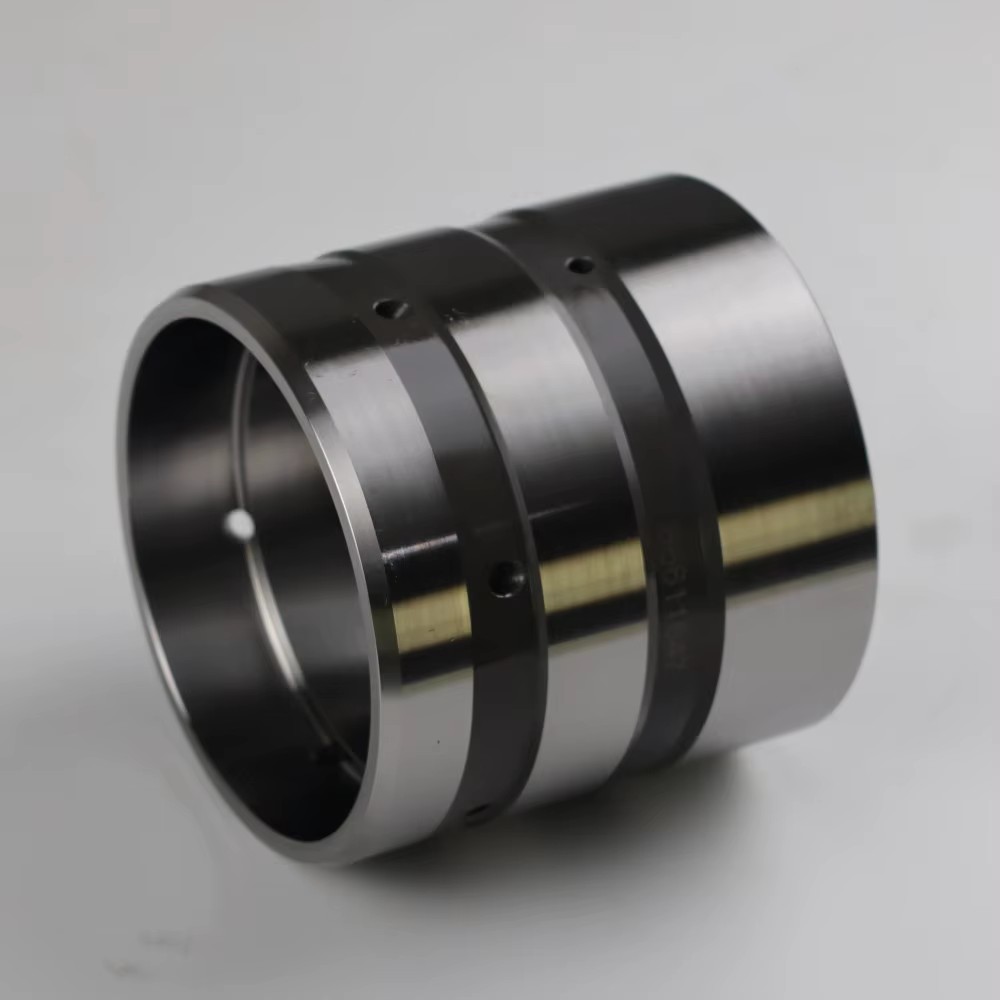

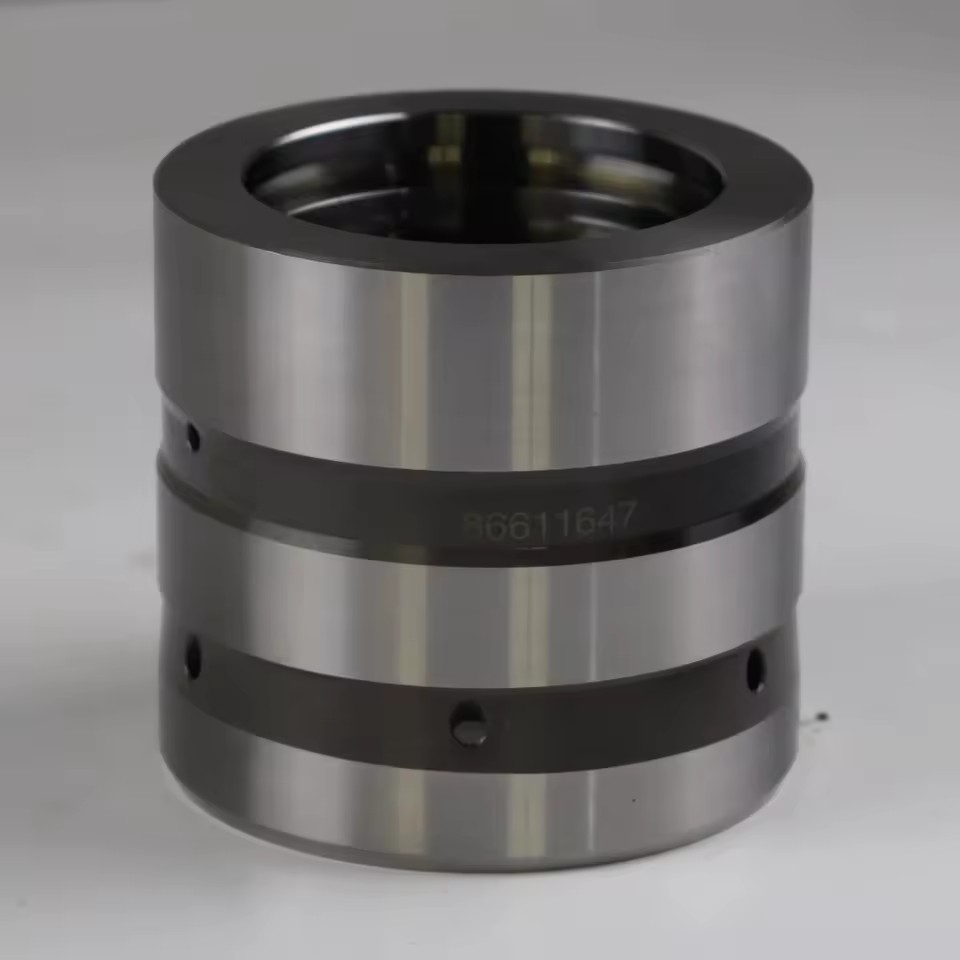

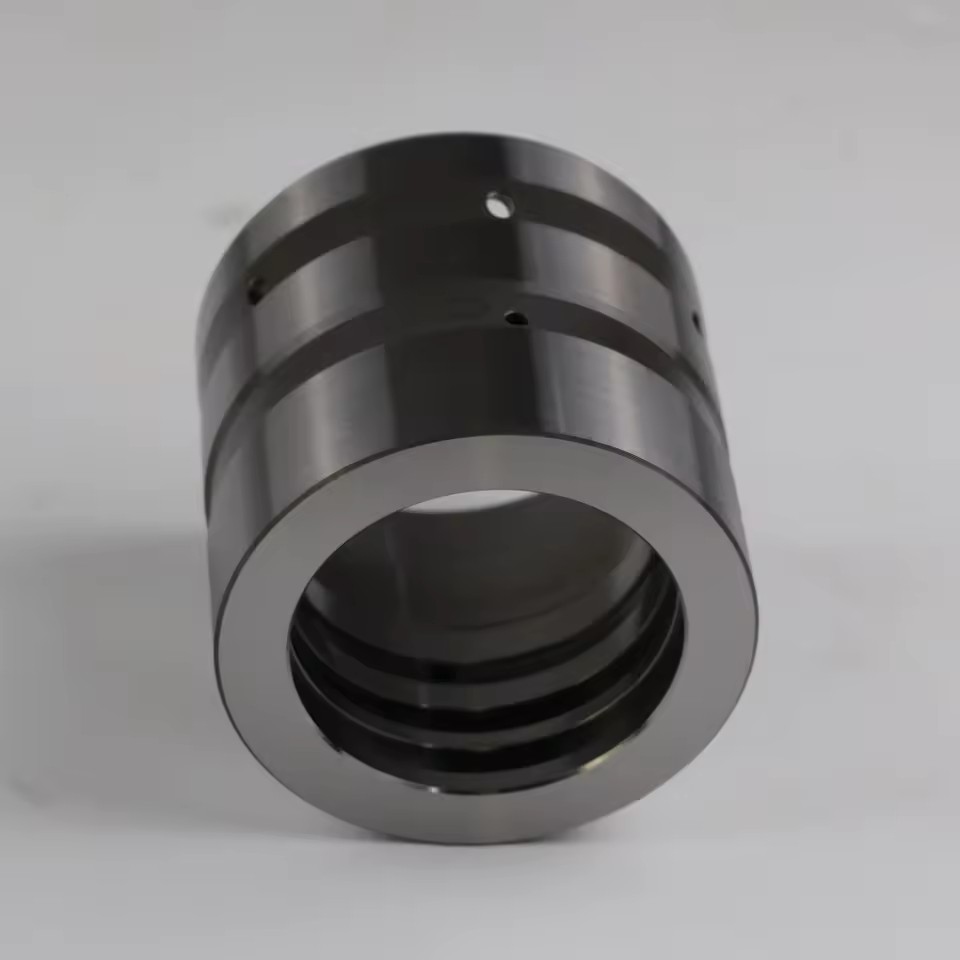

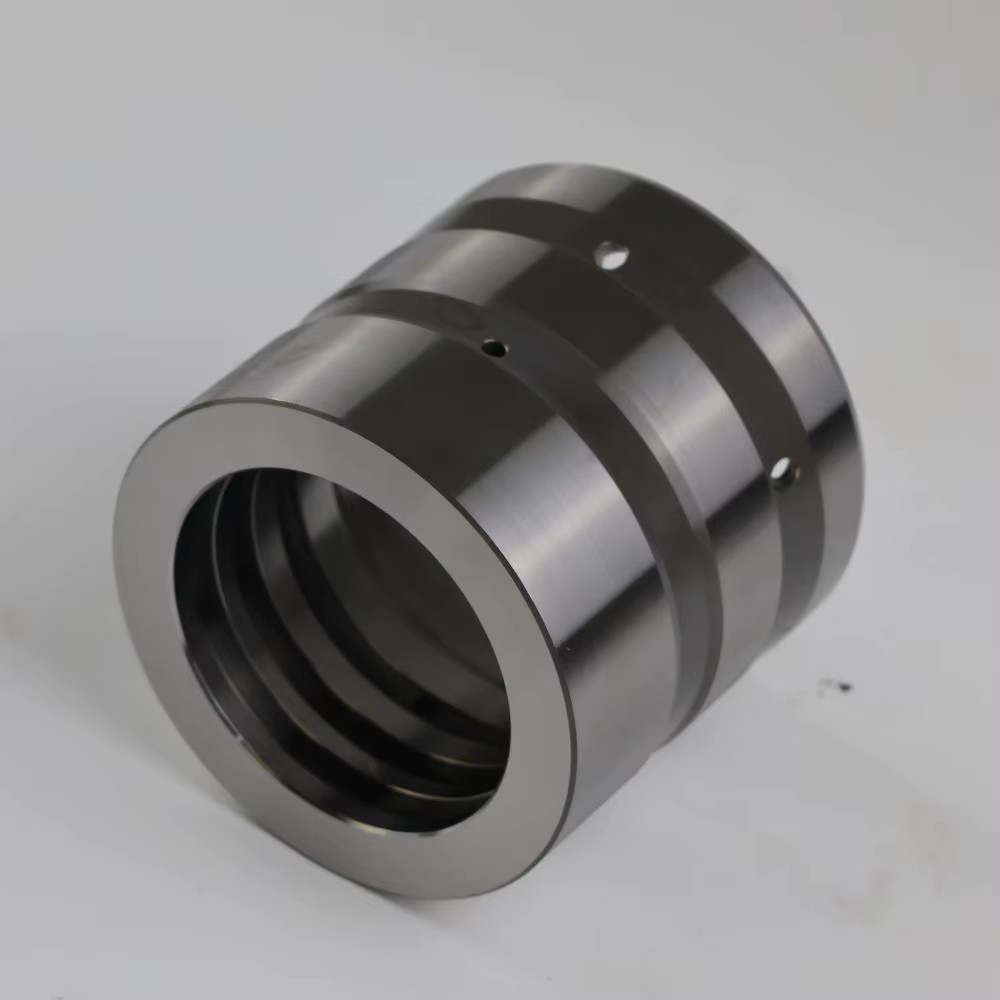

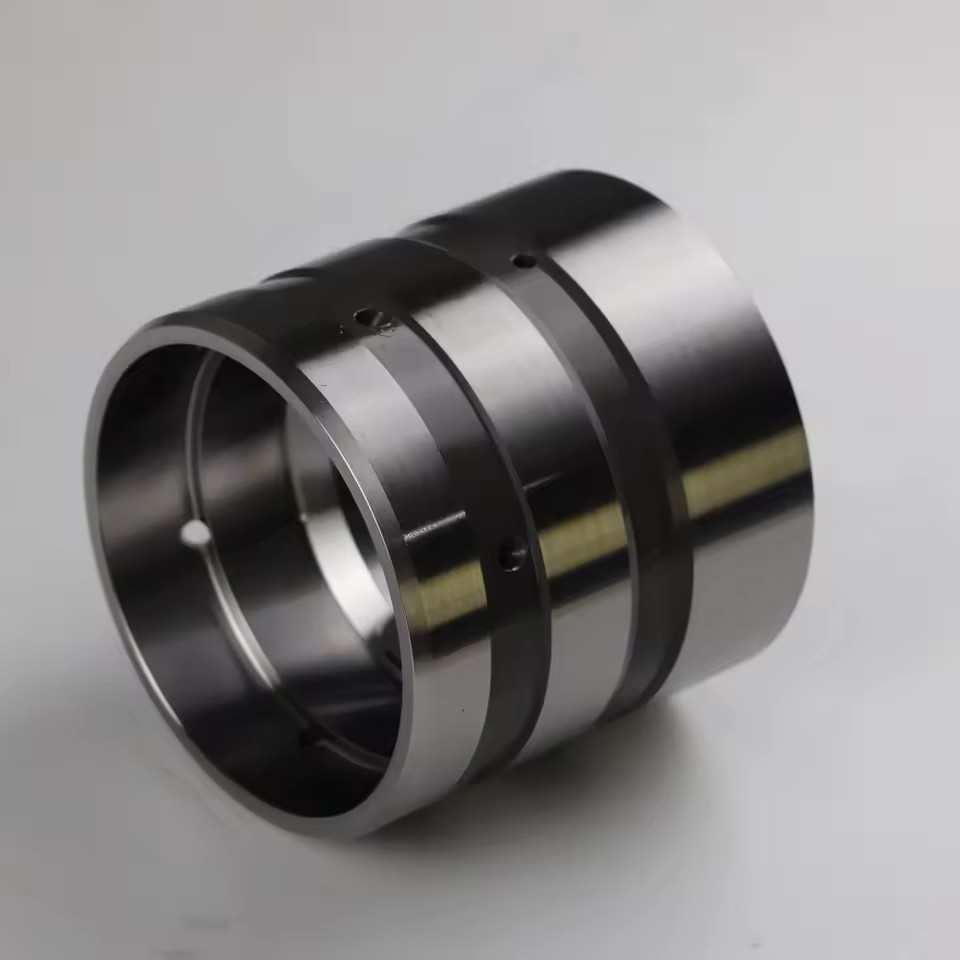

Montabert HC109 HC150 Stop Piston Front Sleeve 86611647 Hydraulic Rock Drill Spare Part Mining Tunneling OEM Supply

Available for enquiry 0.0 · 0 reviews
USD

$ 970.00 970.0 USD $ 970.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Stop piston front sleeve 86611647
Material
Rubber
Use
Ore Mining
Processing Type
Forging
Machinery test report
Provided
Machine type
Drilling Tool
Product description

Highlights at a glance

  • Core Product Advantage: The Montabert HC109 HC150 Stop Piston Front Sleeve with part number 86611647 is a precision steel component for the stop piston sub-system of Montabert hydraulic rock drills. Designed to withstand high-pressure hydraulic impact loads, this front sleeve maintains positional control of the stop piston during percussive drilling, supporting stable drifter performance in tunneling and mining operations.
  • Practical Function Design: This front sleeve acts as the leading guide structure for the stop piston assembly within the hydraulic drifter. It absorbs axial loading during piston deceleration cycles and ensures controlled piston movement, reducing impact shock to the surrounding housing and extending the operational life of adjacent drifter components during continuous hard-rock drilling shifts.
  • Material And Specification Details: Manufactured from alloy steel with CNC turning, inner bore grinding, and surface treatment for wear resistance under cyclic hydraulic loading. Part number: 86611647. Compatible models: Montabert HC 109 and HC 150 hydraulic rock drills. Outer diameter, bore diameter, wall thickness, and material grade are available upon OEM drawing confirmation.
  • Application Scenarios: Used as a replacement spare part for hydraulic drifters in underground tunnel boring, mine development headings, subsurface roadway excavation, shaft sinking, and construction rock drilling. Suitable for equipment repair workshops, mining contractors, tunnel boring teams, spare parts importers, and MRO buyers managing Montabert drifter fleets.
  • Packaging And Supply Support: Each sleeve is individually packaged with rust-inhibiting protective wrapping for safe transit. OEM-equivalent manufacturing and custom specifications are available upon drawing review. Bulk orders are supported with confirmed lead times. Dimension verification and material data are provided before production. Importers, wholesalers, and fleet maintenance teams are welcome to inquire.
    • Frequently asked questions

    Normally, the product takes 7 days to produce, and if there is inventory, it takes 3 days.

    Fast delivery time, High quality products, Best customer service, Adopting the latest production technology.

    We can provide components from different brands of hydraulic rock drills. Please let us know your model and we will match you with the most suitable product.

    Standard export package, wood cases, or as customers' demands.

    Once any quality or quantity issues are confirmed, we will compensate you with the same amount. If you have any questions or concerns, we will reply to you within 24 hours.
    Description images
    Product detail
    Product detail
    Product detail
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      7 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 19 fields
    Type
    Stop piston front sleeve 86611647
    Material
    Rubber
    Use
    Ore Mining
    Processing Type
    Forging
    Machinery test report
    Provided
    Machine type
    Drilling Tool
    Warranty
    3 Months
    Video outgoing-inspection
    Provided
    Color
    Carbon Steel
    Weight (kg)
    1.613
    Place of origin
    Ching
    Applicable Industries
    Mining, Tunneling, Rig Manufacturers
    Application
    Precise Fit, Durable Construction, OEM Quality
    Advantage
    High quality, 30Y Source Plant, Wear-Proof
    Fit for
    HC109 HC150
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Model number
    Stop piston front sleeve 86611647
    Lead time
    7 days
    Minimum order
    1 Units
