Efficient FY70 Mining Hydraulic DTH Hammer Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 1,460.00 1460.0 USD $ 1,460.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Drill pipe
  • The length of one-time propulsion
  • Rotary Speed
  • Air consumption
  • Operating air pressure
  • Cylinder Diameter
  • Motor power
  • Maximum Lifting Force
  • Maximum propelling force
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Usage
Ore
Type
Drilling Rig
Drilling Depth
Max.15m
Drilling Diameter
50-80mm
Core components
Motor
Warranty
1 Year
Product description
Product NameMW-70DMW-100DMW-120D
Applicable rocksF=6-20F=6-20F=6-20
Drilling diameter50-80mm80-130mm80-200mm
Drilling depth15M20M20-50M
Drill pipe426060
The length of one-time propulsion1000mm1000mm1000mm
Rotary speed90r/min90r/min90r/min
Air consumption3.5-5㎡3.5-7㎡3.5-7㎡
Operating air pressure0.5-0.8mpa0.5-0.8mpa0.5-0.8mpa
Cylinder diameter90mm140mm160mm
Motor power3kw4kw7.5kw
Maximum lifting force4200N9000N9000N
Maximum propelling force3500N6000N9000N
The weight of the main machine280KG450KG580KG

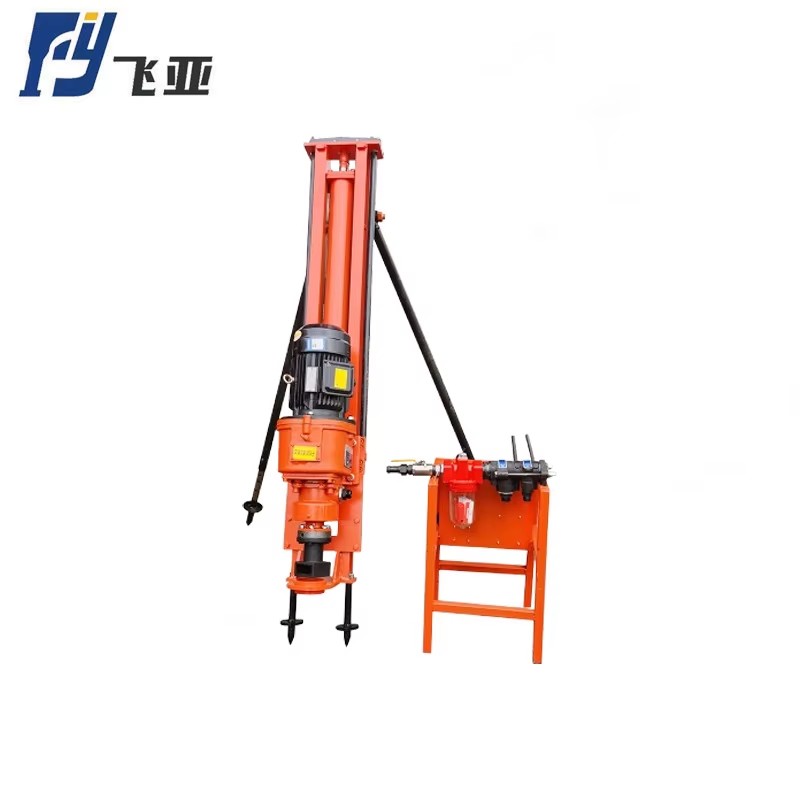

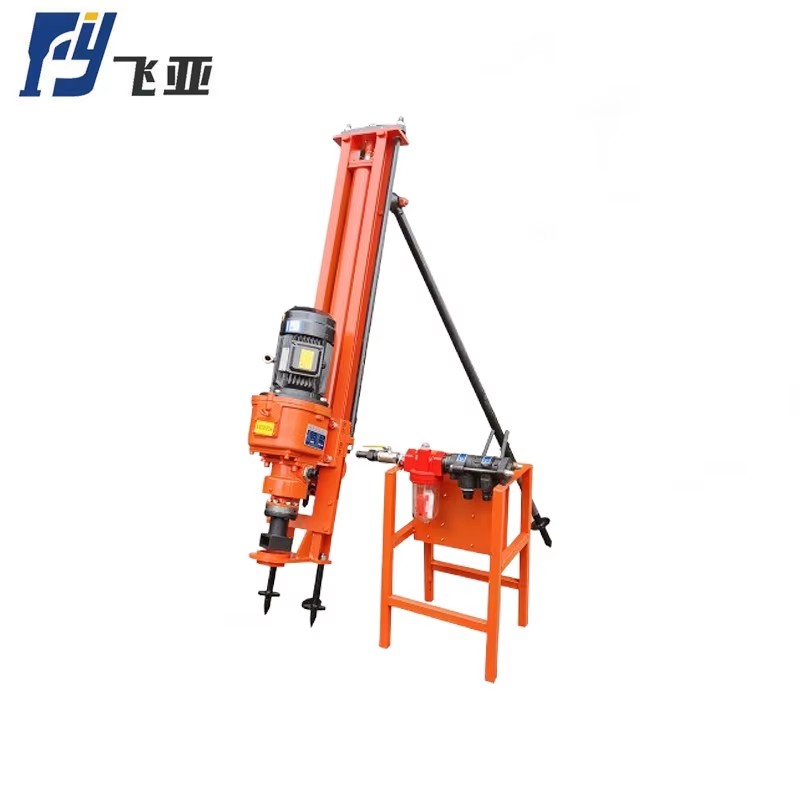

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    10 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Usage
Ore
Type
Drilling Rig
Drilling Depth
Max.15m
Drilling Diameter
50-80mm
Core components
Motor
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Hunan
Weight
280 KG
Drill pipe
42/60/60
The length of one-time propulsion
1000mm
Rotary Speed
90r/min
Air consumption
3.5-5m2/3.5-7m2
Operating air pressure
0.5-0.8mpa
Cylinder Diameter
90mm/140mm/160mm
Motor power
3kw/4kw/7.5kw
Maximum Lifting Force
4200N/9000N
Maximum propelling force
3500N/6000N/90000N
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
FY70, FY100, FY120
Power (W) (Product option)
7.5kw, 3kw, 4kw
Lead time
10 days
