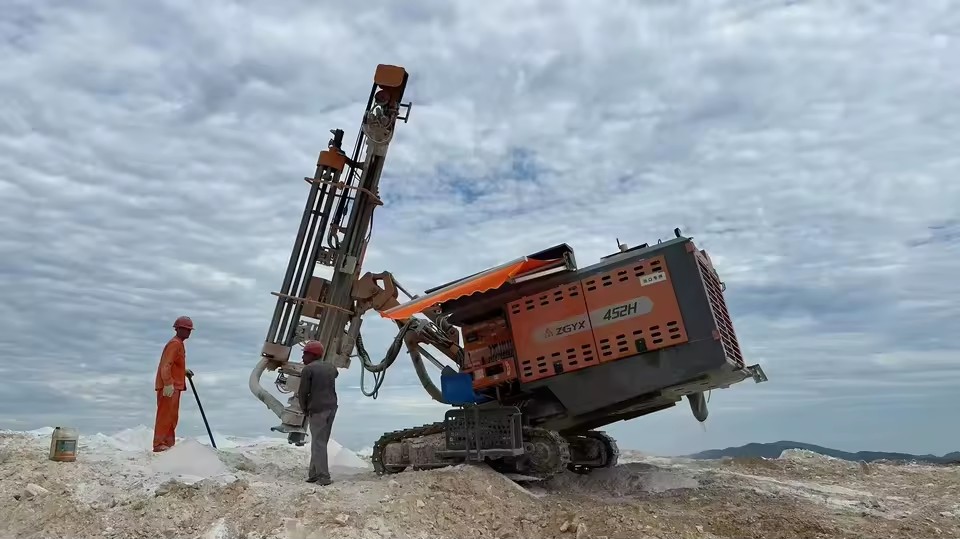

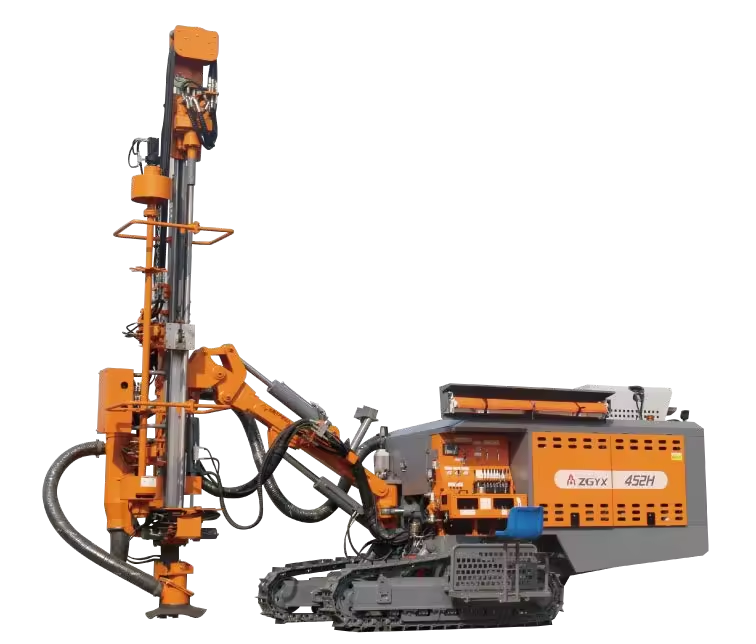

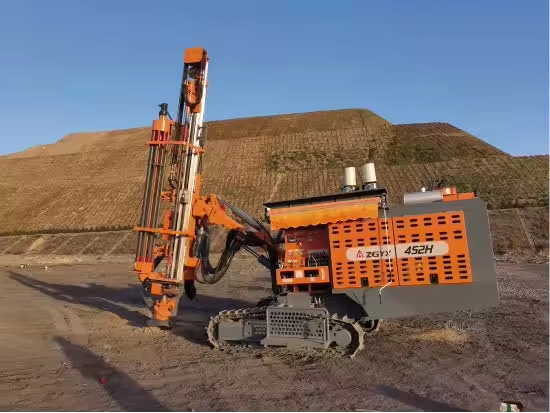

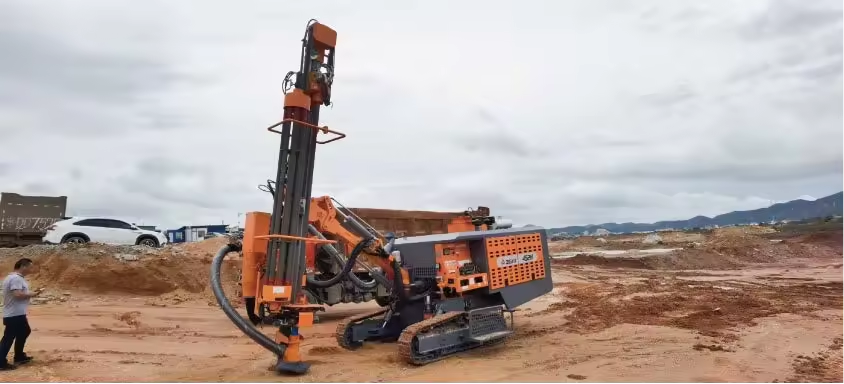

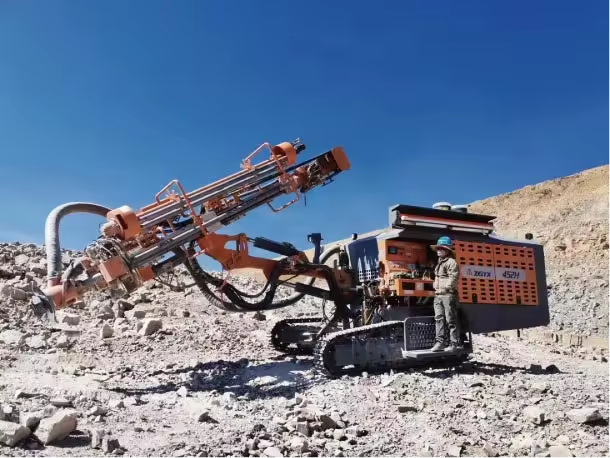

Portable Diesel Drilling Rig Mine Max 21m Depth 90-138mm Drilling Diameter PLC Pressure Vessel Motor High ProductivityZGYX 452H

Available for enquiry 0.0 · 0 reviews
USD

$ 20.00 20.0 USD $ 20.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.24m
Drilling Diameter
90-130mm
Power Type
Diesel
Voltage
24 V
Product description

Features of this model: While maintaining high efficiency and low consumption, it meets the rock drilling needs of hole diameters of 115mm and 138mm, showing a high cost performance; In soft rock operations such as coal mining, there are high-speed rotary feed solutions, with the configuration of two-stage air compressor, achieving a rock drilling speed of 3m/min in coal mining operations in Inner. Rod Changing and loT System as standard.

Technical Specifications

Engine
ManufacturerYuchaiYuchaiYuchai
Mode lYC6A260L-T20YCA07260-T301YCA07P260-T400
Emission standardsⅡⅢIV
Rated power191kW(260hp)2,000rpm191kW(260hp)2,100rpm191kW(260hp)2,200rpm
Screw Compressor
ManufacturerZEGAModelZGCA138Ⅱ 1J2-H
nominal pressure,max20 barAir flow FAD17 m³ / min
Boom & Feed
Feed type: Hydraulic cylinder+ Chain
Feed length6,100 mmFeed force max.13 kN
Feed extension1,200 mmFeed rate max.0.88 m/s
Feed travel length3,400 mmPull up force max.16.5kN
Functional Specifications
Drill pipe handling capacity: 8
Hole rangeΦ90 - 130 mmDTH hammer3.5″/4″
Drill pipe diameterΦ68/ Φ 76 mmRotation torque1,900 Nm
Drill pipe length3,000 mmRotation rpm0-115 rpm
Hole depth.Max24 mFuel tank capacity300 L
Chassis
Tramming speed.Max3.3 km/hMax Gradeability25°
Carrier ground clearance340 mmTrack frame oscillation angle±10°
Traction force.Max119kN
Weight & Dimensions
Length9,000 mmWidth2,360 mm
Height3,000 mmWeight(w/o option)8,900 kg

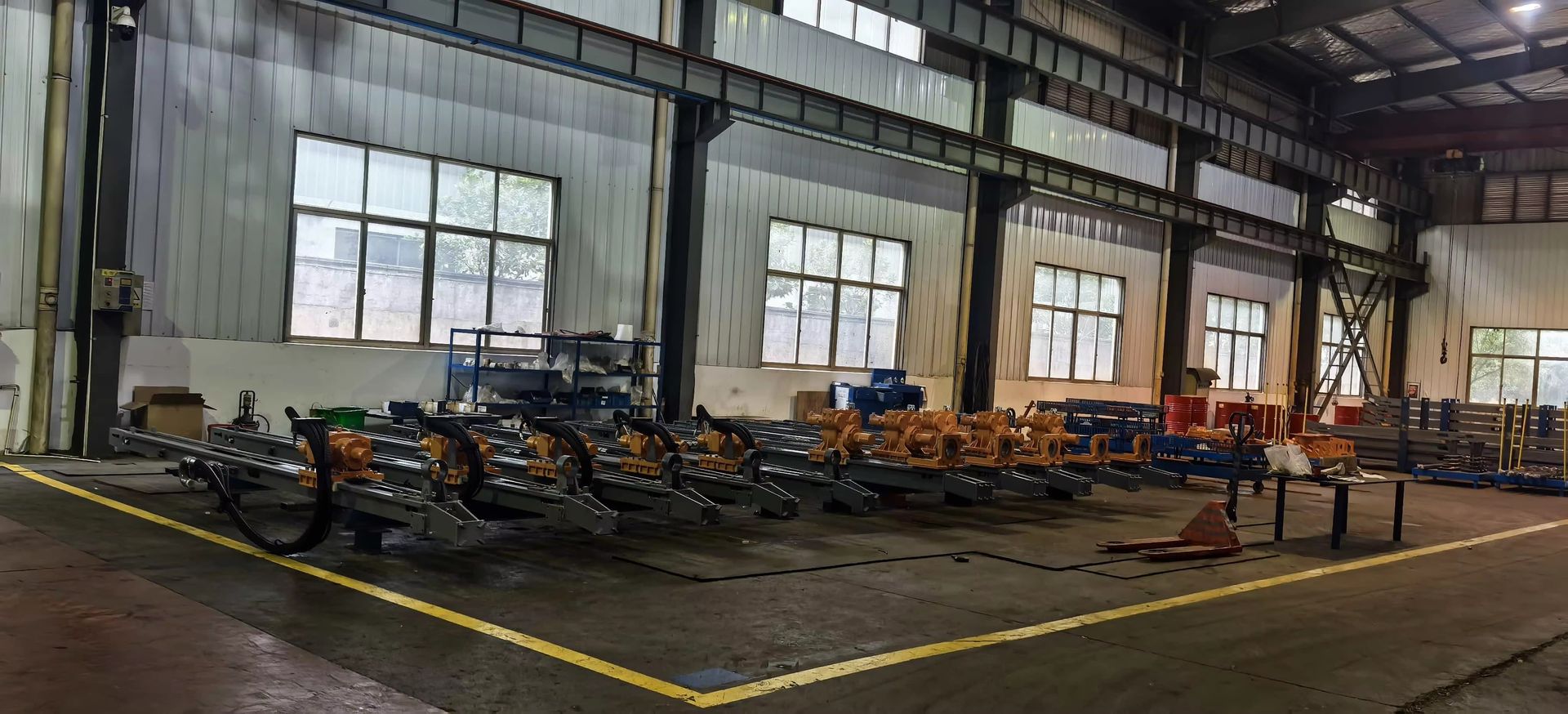

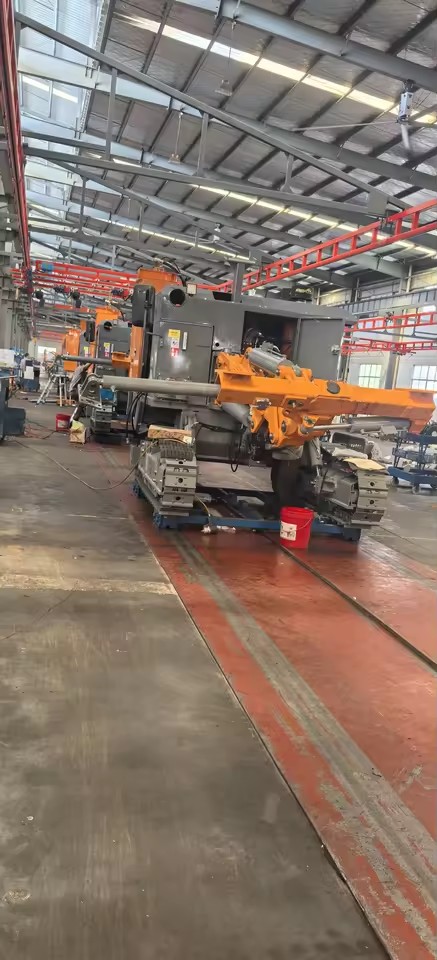

Description images
Portable Diesel Drilling Rig Mine Max 21m Depth 90-138mm Drilling Diameter PLC Pressure Vessel Motor High ProductivityZGYX 452H
Portable Diesel Drilling Rig Mine Max 21m Depth 90-138mm Drilling Diameter PLC Pressure Vessel Motor High ProductivityZGYX 452H
Portable Diesel Drilling Rig Mine Max 21m Depth 90-138mm Drilling Diameter PLC Pressure Vessel Motor High ProductivityZGYX 452H
Portable Diesel Drilling Rig Mine Max 21m Depth 90-138mm Drilling Diameter PLC Pressure Vessel Motor High ProductivityZGYX 452H
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 20 fields
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.24m
Drilling Diameter
90-130mm
Power Type
Diesel
Voltage
24 V
Core components
PLC, Motor, Pressure Vessel
Warranty
2 Years
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
High Productivity
Place of origin
Zhejiang, China
Weight
10000 kg
Dimension (L*W*H)
9000X2360X3000mm
Mobility
YES
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
ZGYX452H
Power (W) (Product option)
191000
Lead time
7 days
Minimum order
1 Units
