APW41037Z-A15-3020BB Product Description

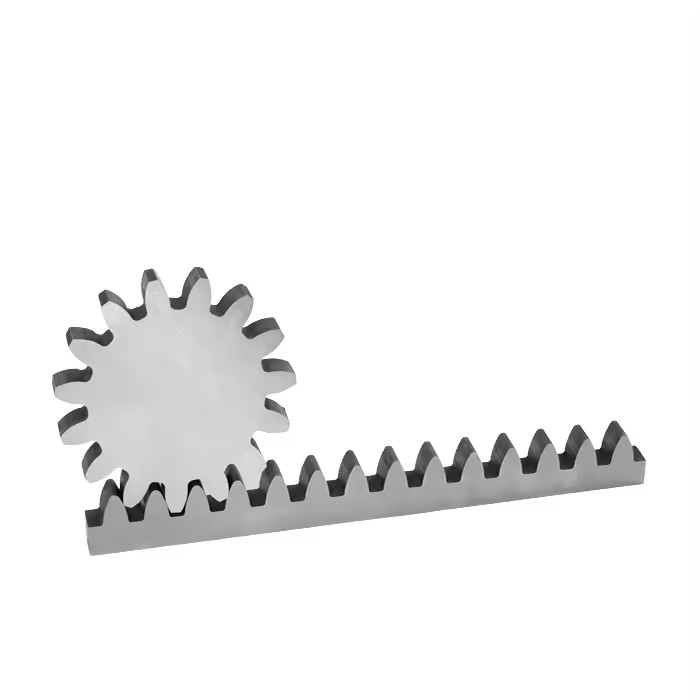

Waterjet cutter for metal is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. With the benefits of low noise, no pollution, high precision, and good reliability, our water jet cutting machine has found many applications in a variety of industries from mining, automobile, paper, and food, to art and architecture, where it is used to cut rubber, foam, plastic, composite, stone, tile, metal, marble, glass, etc.
APW41037Z-A15-3020BB

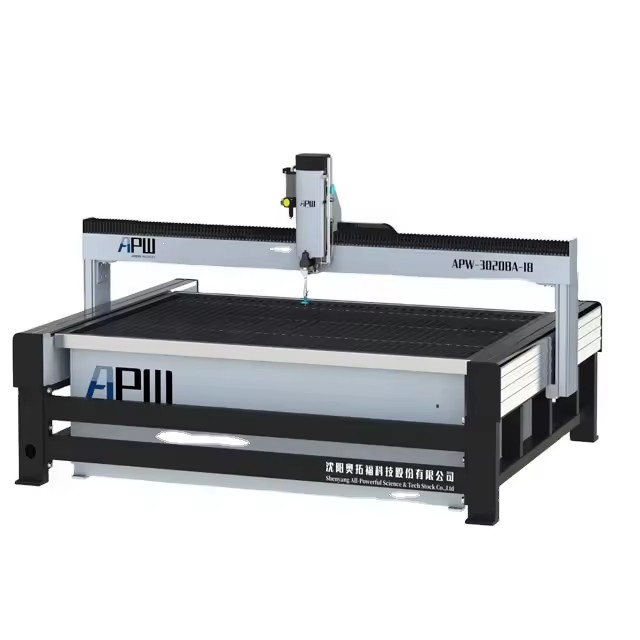

APW41037Z-A15-3020BB includes 5 main parts: 1. 3000mm × 2000mm working area cutting table; 2. one set of 3-Axis cutting head; 3. 410Mpa intensifier pump; 4. CNC control System (Auto Saving); 5. a New Auto Abrasive Delivery System.
Cantilever Style Cutting Machine is one of the two traditional styles. It has 3 sides open. As this mechanical structure, it is easy to load/unload material. Although, it doesn't like Bridge Style Cutting Machine have two support points on each side, Cantilever Style Cutting Machine still very stable. It is because it uses the ball screw unit and flexible coupling to reduce vibration influence, which ensures its accurate machining the even under the high-speed processing.
APW3020BB Cutting Table Details
X and Y axis Travel
3000mm × 2000mm
Z-axis Travel
300mm
Control Accuracy
+/- 0.01mm
Cutting Accuracy
+/- 0.1mm
Servo Motor Specification
0.75KW 1.0KM 1.5KW
X-axis and Y-axis Max.moving speed
6000mm/min
Z-axis Max.moving speed
1000mm/min
Specification
Cutting Head
3-Axis
Way of Drive
AC Servo
Servo System
Yaskawa Servo Motor
Linear guide
SKF(America)
Ball Screw
TBI()
Nozzle and Orifice
America
Atmosphere Pressure
86Kpa ~ 106Kpa
Dust Concentration
Not More than 10mg/m3
X, Y-Axis Structure
Aluminium Structure
Water Tank
Stainless Steel

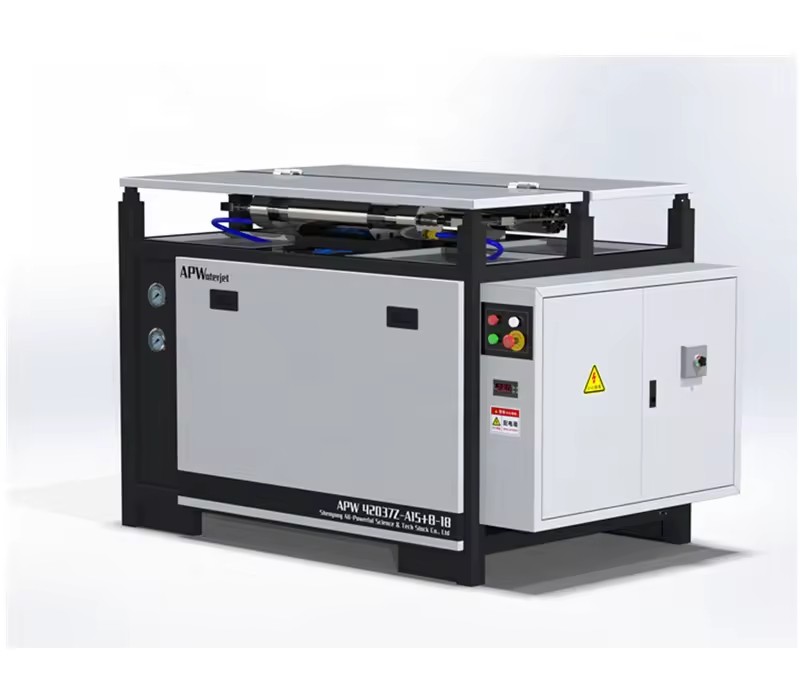

Intensifier is the heart of waterjet. It gives waterjet cutting machine life. APW A15 41Mpa intensifier pump is a miracle and it realizes the dream of every waterjet users whoever used, maintained or researched waterjet machine. APW waterjet integrated SIEMENS motor, imports REXROTH hydraulic Pump and hydraulic valves assembly, American A&V Intensifier, American high pressure tube and stainless steel water tank.
Intensifier
A&V()
Main Motor
Siemens
Hydraulic pump
Jinda Hydraulic
PLC
Omron
Heat Exchanger
Water/Oil panel cooler

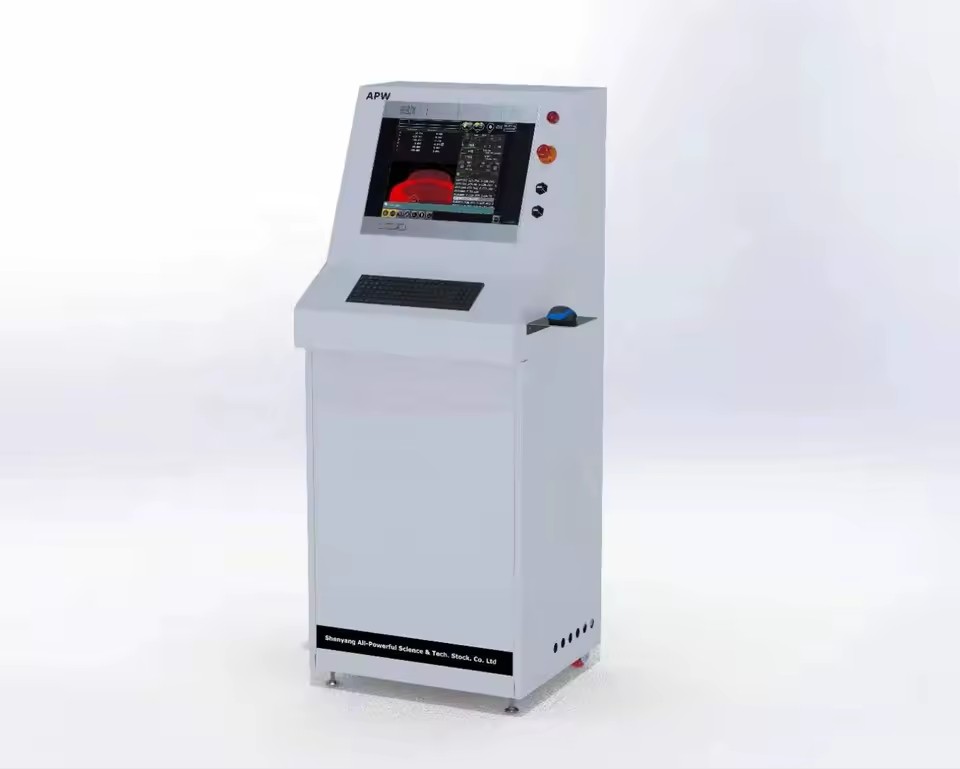

Control System
LP/HP auto control
Temperature Display
Digital Temperature Display
Shock Absorber
Four corners of the motor
Directional Valve
YUKEN
Accumulator Volume
1L
Oil level and oil temperature sensor
Standard Components
High Pressure Outlet Connections
M16 × 1.5
Cooling Water Inlet Pressure
0.3Mpa
Cutting Water Inlet Pressure
Low Pressure Filter
10um
Our company's waterjet using our own waterjet software to control 3-axis, 4-axis, 5-axis waterjet cutting machine for metal. PC requirement: Support Windows 2000, Windows XP, Win 7; CPU: above 1.5GHz; Memory capacity: above 256M; Hard disk: above 80G
With the new design, the new auto abrasive delivery system allows operator to add abrasive even during the machine working. It avoids to stop working for adding abrasive, which largely increases the working efficiency and reduces the energy consumption during operation.

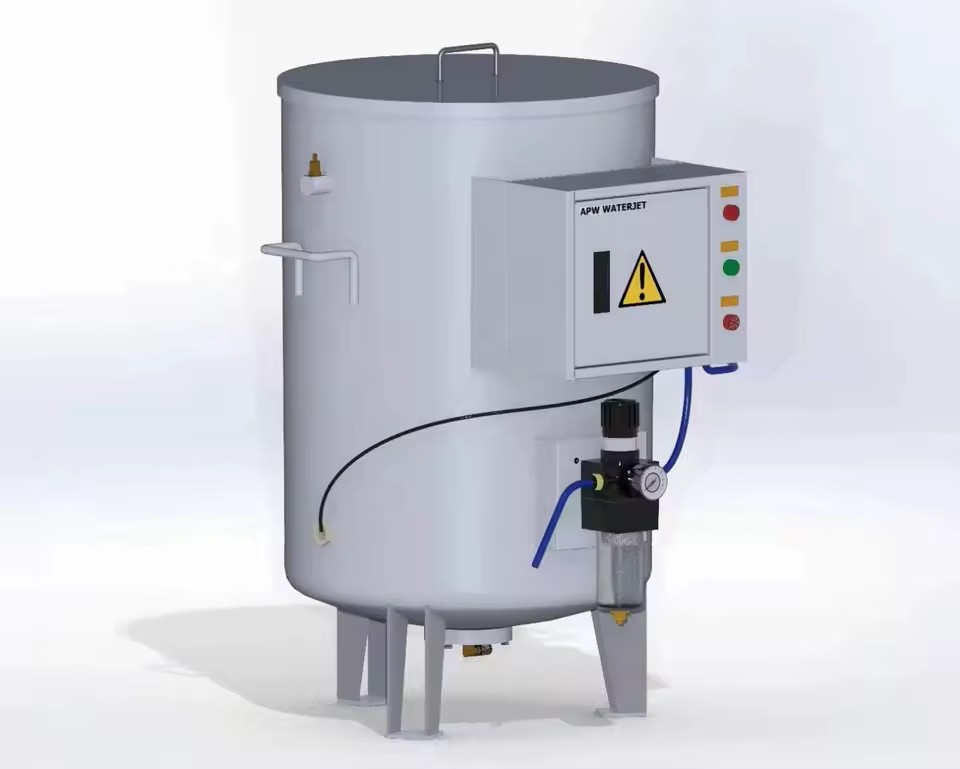

New Auto Abrasive Delivery System
let Air Pressure
0.6Mpa
let Air Pressure
0.2Mpa
Abrasive Capacity
250Kg
let Air Flow
0.028 m3/min
Operating Air Flow
0.005 m3/min
Self-feeding Control
Air Valve to prevent jams and breakages
Self sealing
No need to stop the machine during abrasive filling
Certifications
Customize & Service
APW leading waterjet cutting machine manufacturer of waterjet cutting machine owns an important and the largest manufacturing base of ultra-high pressure waterjet industry. We provide high quality products and service. Custom waterjet cutting machin e for metal service at APW will help you rather than let you fit them.
High-Tech Options
AC 5-Axis
A axis Max.Cutting Angle
+/-45°
C axis Max.Cutting Angle
Auto 360°
Control Software
Lantek 3D Software as post processor
+/-0.1mm ~ +/-0.2mm
A/C 5-axis 3D cutting head: X, Y, Z, A, C. A-axis is the tilting axis; C-axis is the rotation axis.A/C 5-axis 3D cutting head is designed for 3-D cutting application. The cutting head is able to cut 3-D drawings with max. cutting angle upto ±45 degrees.The machine integreted Lantek 3-D software as post processor.
Packing & Delivery
Waterjet cutting machine for metal will be packed by Soft package in container by FCL. Packaging Details: waterjet is soft packing; Delivery Detail: time of delivery is 20 working days after receipt of deposit.
1. Are there special considerations for making glass parts?
Dual pressure piercing allows for piercing of glass with minimal risk of cracking. APW cnc water jet mirror cutting machine could work with low-pressure piercing to slowly raise the pump pressure during the pierce to avoid a sudden shock to the material by a rapid change in pressure. Using these techniques reduces the risk of cracking, making glass cutting into a very profitable venture.
2. What kind of glass does your cnc water jet mirror cutting machine can cut?
There are plenty glass our cnc water jet mirror cutting machine can cut, such as laminated glass,bullet-proof glass, stained glass, polished glass, wired glassect.
3. What your cnc water jet mirror cutting machine 's Max. cutting thickness for glass?
In theory, the thickness is up to the Z-axis travel, for APW common style, it is 150mm, but in practical it is better to cut 120mm glass with good quantity and speed.
4. What are the different between water-only water jet and abrasive water jet?
"Water jet" is commonly used to reference both water-only water jet and abrasive water jet cutting. Water-only water jets cut with ultra-high pressure water alone. Abrasive water jets cut with an abrasive material (usually garnet) that has been added to the water stream. Water-only water jets can cut through softer materials such as rubber and foam. Abrasive water jets are used to cut through harder materials such as plastic, composites, stone, glass and metal.
5, How much training is required to learn how to run a cnc water jet mirror cutting machine system?
An operator with no experience should be able to learn how to operate and maintain a cnc water jet mirror cutting machine with as little as one week of training. New CAD/CAM nesting software offered by APW make it possible for an operator with no programming experience to program the machine with only a few hours of training.
More information about APW water jet mirror cutting machine prices pls
Waterjet cutter for metal
is a tool which slices into
metal
and other materials, using a jet of water at high velocity and pressure. With the benefits of low noise, no pollution, high precision, and good reliability, our
water jet cutting machine
has found many applications in a variety of industries from mining, automobile, paper, and food, to art and architecture, where it is used to cut rubber, foam, plastic, composite, stone, tile
marble, glass, etc.
APW41037Z-A15-3020BB includes 5 main parts
1. 3000mm × 2000mm working area cutting table
2. one set of 3-Axis cutting head
3. 410Mpa intensifier pump
4. CNC control System (Auto Saving)
5. a New Auto Abrasive Delivery System.
We also will send one set of tool and spare parts kit for free.
Intensifier is the heart of waterjet. It gives
waterjet cutting machine
life. APW A15 41Mpa intensifier pump is a miracle and it realizes the dream of every waterjet users whoever used, maintained or researched
waterjet machine
. APW waterjet integrated SIEMENS motor, imports REXROTH hydraulic Pump and hydraulic valves assembly, American A&V Intensifier, American high pressure tube and stainless steel water tank.
Our company's waterjet using our own
waterjet
software to control 3-axis, 4-axis, 5-axis
waterjet cutting machine for metal
PC requirement
Support Windows 2000, Windows XP, Win 7
CPU: above 1.5GHz
Memory capacity: above 256M
Hard disk: above 80G
APW leading
manufacturer of waterjet cutting machine owns an important and the largest manufacturing base of ultra-high pressure waterjet industry. We provide high quality products and service.
Custom waterjet cutting machin
e for metal
service at APW will help you rather than let you fit them.
will be packed by Soft package in container by FCL.
Packaging Details: waterjet is soft packing
Delivery Detail: time of delivery is 20 working days after receipt of deposit.
FAQ
Dual pressure piercing allows for piercing of glass with minimal risk of cracking. APW cnc
water jet mirror cutting machine
could work with low-pressure piercing to slowly raise the pump pressure during the pierce to avoid a sudden shock to the material by a rapid change in pressure. Using these techniques reduces the risk of cracking, making glass cutting into a very profitable venture.
2. What kind of glass does your cnc
can cut?
There are plenty glass our cnc
can cut, such as laminated glass,bullet-proof glass, stained glass, polished glass, wired glassect.
3. What your cnc
's Max. cutting thickness for glass?
5, How much training is required to learn how to run a cnc
system?
An operator with no experience should be able to learn how to operate and maintain a cnc
with as little as one week of training. New CAD/CAM nesting software offered by APW make it possible for an operator with no programming experience to program the machine with only a few hours of training.
Certifications & compliance
CE
Complies with EU standards
