High pressure water jet cutting machine for cutting tile waterjet cutter
Description
1.The water jet has omnipotent cutting is used for any plane curve cutting.
2.Reinforce machine tool assures the cutting head not vibrate during fast moving.The operation is steady,with fast cutting speed and high precision.
3,The screws and guide rails are provided by renowned manufacturers.The X and Y axis apply unique oil dip lubrication,together with water—proof and dirt—proof structures.So as to assure the processing of the machine and prolong the life of the screws and guide rails furthest.
4.The cutting head is equipped with reliable pneumatic high pressure water switch,which enhances the efficiency.
5.The unique sand valve design enables smoother flow of the sand,more convenient cleaning and the prevention of the water leakage.
6.The stainless steel protection cover is dirt-proof,water-proof,rust—proof,erosion—proof,and convenient for cleaning,keeping the work table bright all year.
7.There is Flying-arm or Bridge type of structure for working table,Step System or AC Servo System for CNC controller.
Features
1. The full electronic commutation and Wye-Dolta startup stabilize the pressure of the supercharger.
2. The security device has the functions of pressure detection, limit alarm, automatic protection etc.
3. Continuous hyperpressure boosts the speed and maintains the cutting quality.
4. Precise filter equipments in oil inlet and oil back-flow of the hydraulic pressure system, assure the oil route clean and fluent.
5. The precise fourfold water filter series connection is applied. The precision of the filter core can reach 0.45UM, so that the water purification is improved, and the life of every part of the pressure booster system is largely prolonged.
6. High pressure sealing washer is precisely made from imported compounded materials, hence the sealing performance and life are largely improved.
7. All the high-pressure parts are processed by the advanced CNC digital control cutting machine tool which strictly according to the special processing technique,assuring higher precision and better commutability of the hyperpressure parts.
8. Advanced pressure self-adjustment pump assures the continuous and stable pressure of the inlet water.
Parameters
| Item | Waterjet cutting machine | |
| Model | YL2515 | |
| Structure | Gantry | |
| Cutting table size | 2600*1600mm | |
| Stroke | X-axis | 2500mm |
| Y-axis | 1500mm | |
| Z-axis | 150mm | |
| CNC Controller | Step System / AC Servo System | |
| Accuracy | ±0.1mm | |
| Cutting | Repeatability | ±0.05mm |
| Traverse speed | 6500/15000 mm/min | |
| Power supply | 220V/380V/415V AC,50Hz | |
| Turbocharger parameters | ||
| Item | Waterjet cutting machine | |
| Model | ||
| Maximum pressure | 450Mpa | |
| Normal operating pressure | 350-380Mpa | |
| Main motor power | 37KW /30KW | |
| Gantry | Variable | |
| Cooling | Wind/Oil/Water | |
| High-pressure cylinder | Imported | |
| Inlet valve | Imported | |
| Ceramic rod | Imported | |
| Accumulator | Single taper | |
| Power supply | 415/380/220V AC 3P |
After-Sale Services
1. Installation and training: we can send technician to your place for the complete installation and training. The b uyer should paid in advance for all the expense include travelling, visa, hotel, and meals etc.
YUANLI is a comprehensive industrial Manufacturer Group. We are specialized in Waterjet cutting machine.

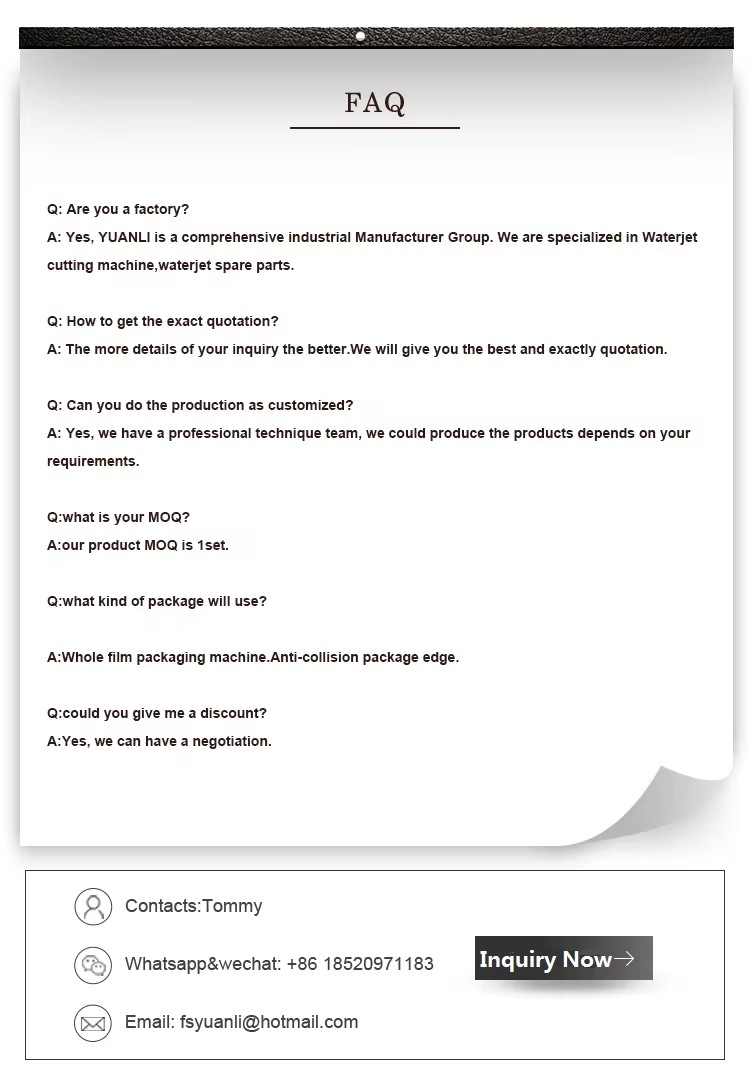

Q:What kind of package will use? A:Whole film packaging machine.Anti-collision package edge.
Q:What kind of package will use?
A:Whole film packaging machine.Anti-collision package edge.
Q: How to get the exact quotation? A:We offer you suitable solutions and configurations according to your cutting workpieces.The best and exactly quotation.
Q: How to get the exact quotation?
A:We offer you suitable solutions and configurations according to your cutting workpieces.The best and exactly quotation.
Q:Could you give me a discount? A:Yes, we can have a negotiation.
Q:Could you give me a discount?
A:Yes, we can have a negotiation.
Q:Do you have other support? A:Sure,we offer vulnerable accessories.
Q:Do you have other support?
A:Sure,we offer vulnerable accessories.
Q:How about your aftersale service? A:We offer training and lifetime after-sales system.
Q:How about your aftersale service?
A:We offer training and lifetime after-sales system.
Minimum order: 1 Units
Payment terms, specifications, and order details are confirmed before preparation begins.
Lead time will be confirmed with your quotation.
Packaging details are available on request.
Final packing, freight, and delivery dates are confirmed before dispatch.
