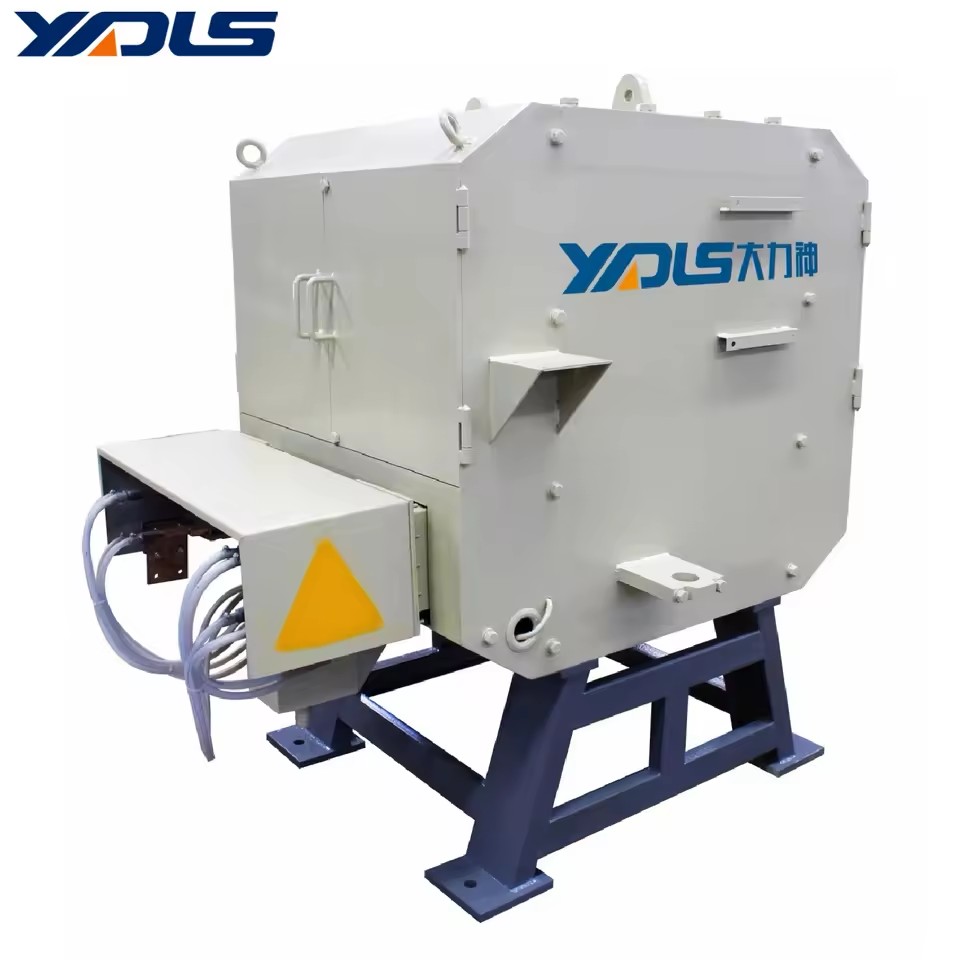

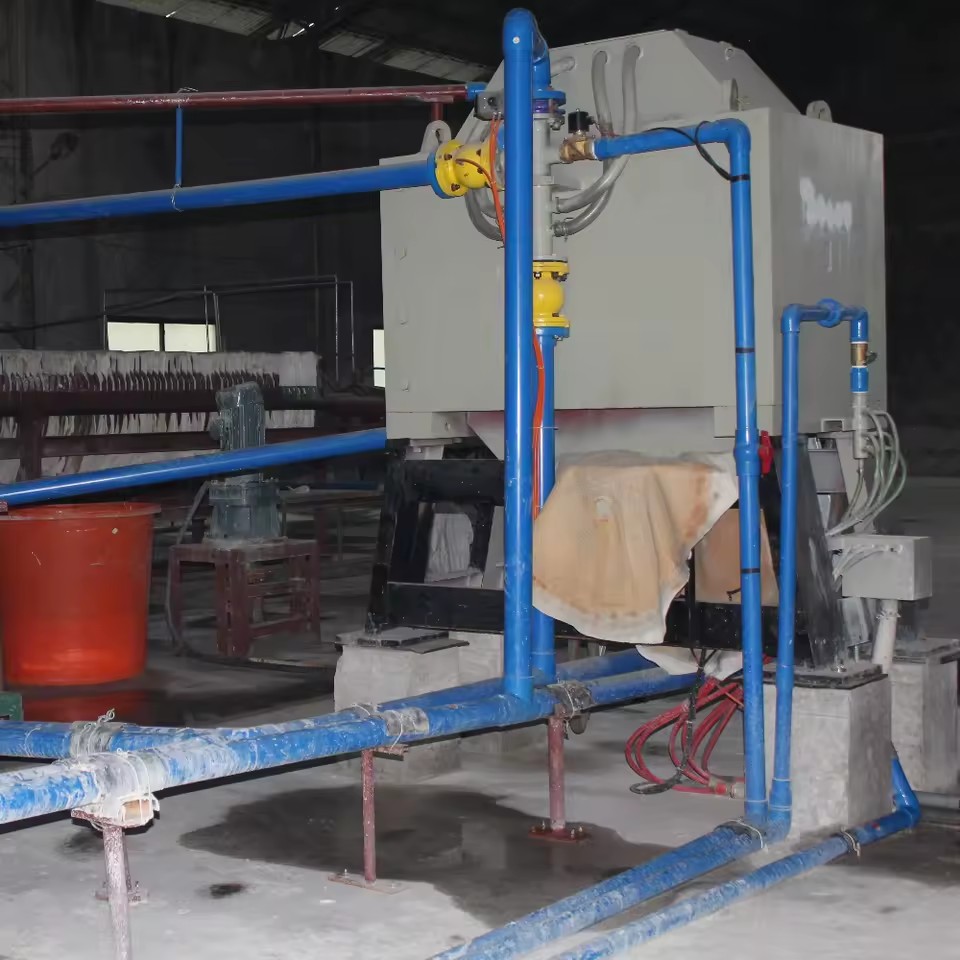

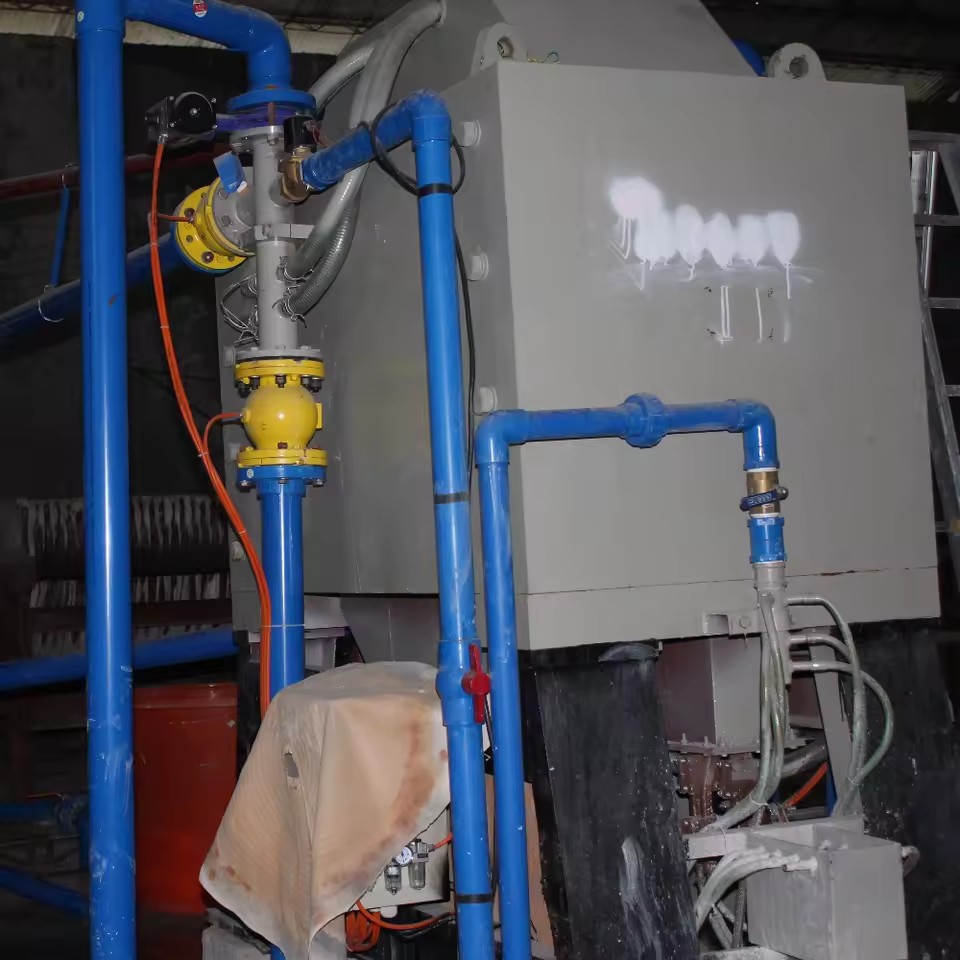

High Gradient Magnetic Separator for Non-metal Minerals

Available for enquiry 0.0 · 0 reviews
USD

$ 29,920.00 29920.0 USD $ 29,920.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Magnetic Separator
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Key selling points
High Productivity
Product description

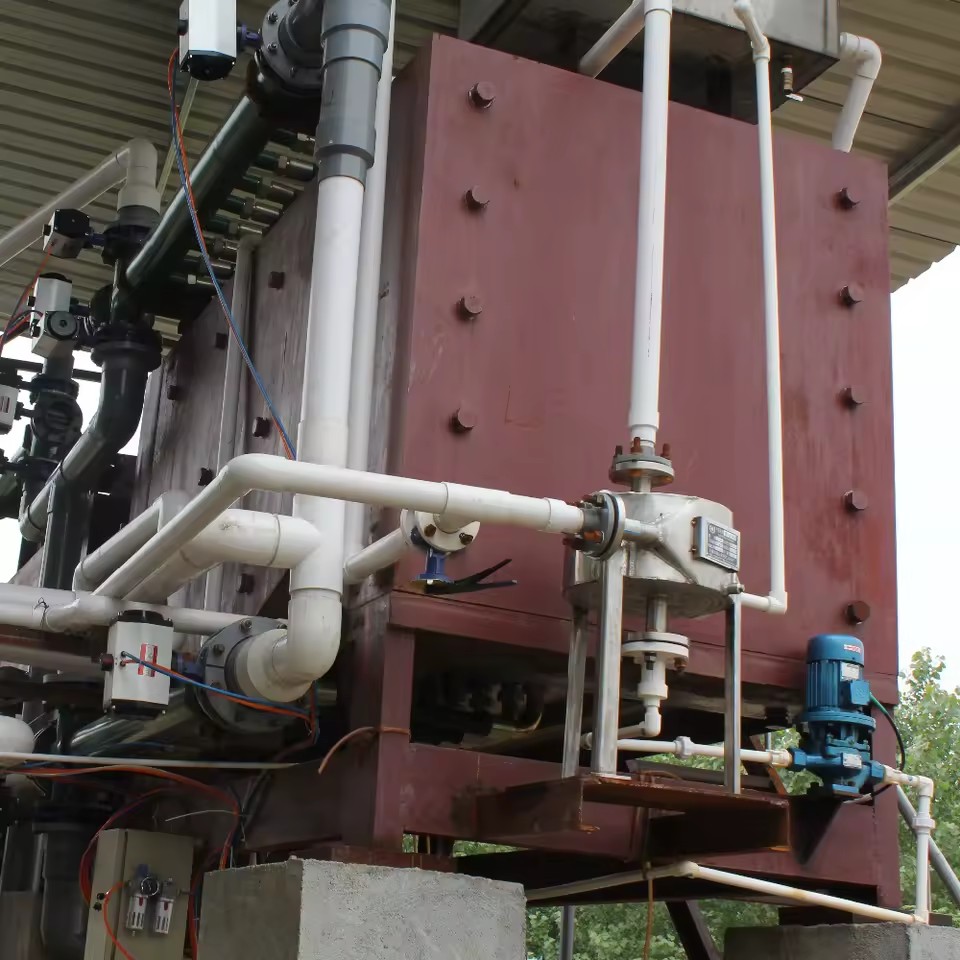

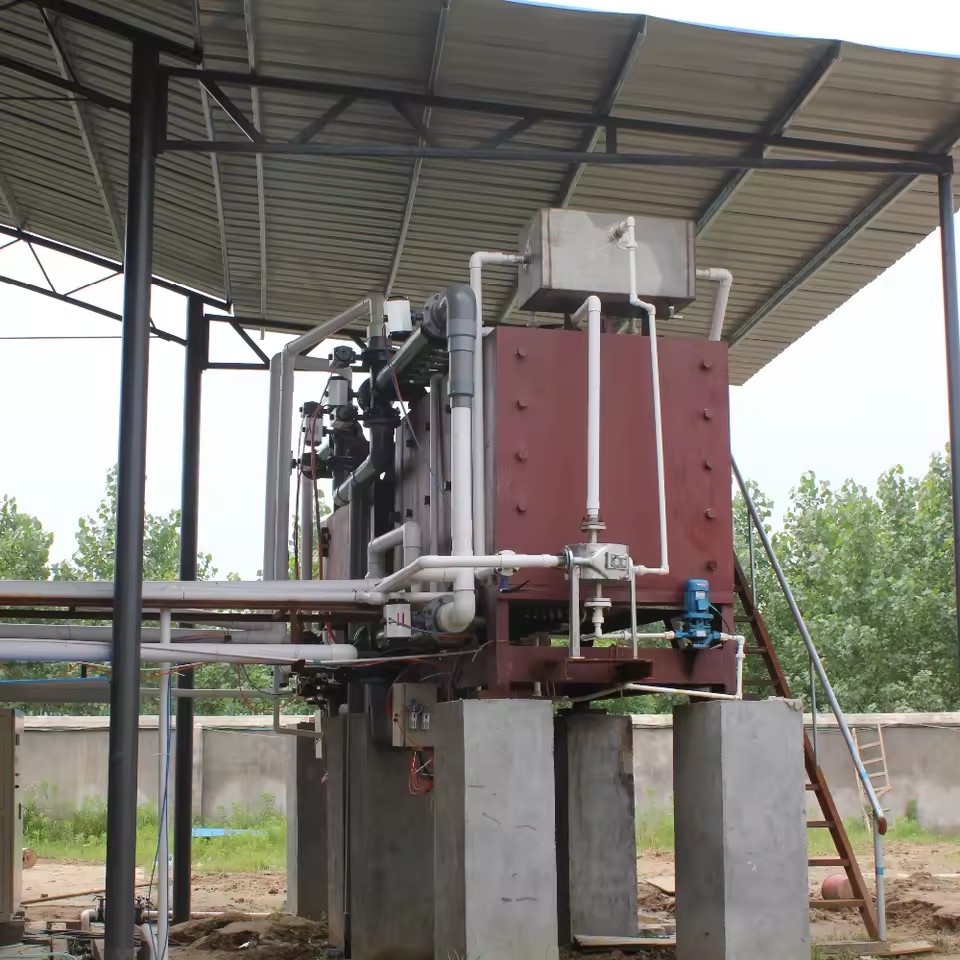

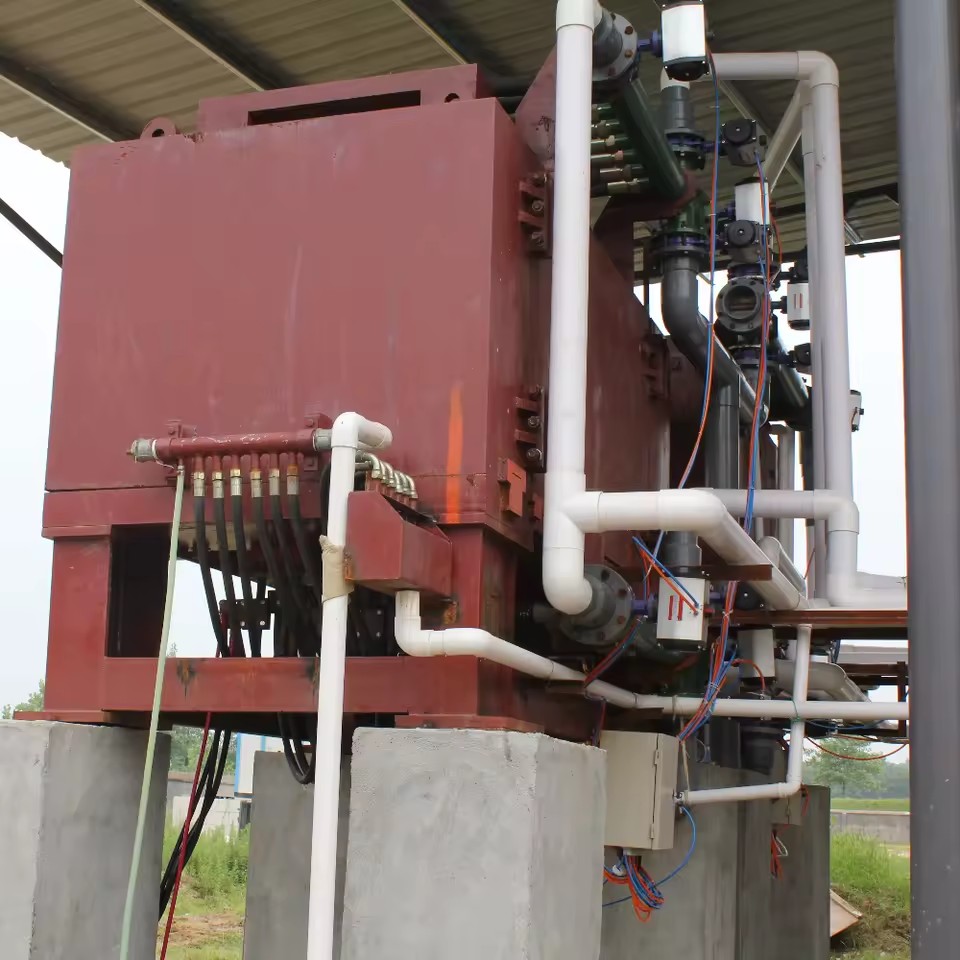

High Gradient Magnetic Separator

l Profile

High Gradient Magnetic Separator DLSD series is a new deironing product developed independently by

l Application

For purifying (iron and titanium removal) nonmetallic minerals such as quartz, feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, etc. Also for low-intensity magnetic separation.

l Working principle

Electromagnetic coil is electrified with direct current and thus forms magnetic field. Magnetic line of force goes through magnetic medium producing high gradient magnetic field. When slurry containing magnetic materials flows through magnetic medium from the button to the top, magnetic granule is absorbed by the giant magnetic field on the surface of magnetic medium. Under the control of PLC, each valve and electric element operates automatically. As a result, the iron is removed from mineral.

l Main characteristics

1. Background field is 16000 Gauss, and the surface of magnetic medium intensity is 31800 Gauss.

2. Raw ore enters the magnetic medium from down to up and the pressing rinsewater pulsates tailings from up to down. DLSD series magnetic separator uses pressing water to pulsate tailings. The supply direction of minerals is opposite to the direction of minerals, so the coarse granular can be washed away easily, and the magnetic medium jam is effectively prevented. This product solves the magnetic medium jam problem in other high intensity magnetic separator.

3. Other high gradient magnetic separator in the world imposes strict limitation on the fineness of the mineral. We research the unique structure and optimized combination of magnetic medium(the box of magnetic medium has obtained the national patent. Patent No:ZL200920306697.x), and make the upper limit of the DLSD series magnetic separator for mineral fineness 2.0mm, simplify the work for grade of mineral on site, and it has more adaptability.

l Technical Data

model itemDLSD-1DLSD-2DLSD-5DLSD-10DLSD-15DLSD-20
Ore–feeding size (mesh)40~30040~30040~30040~30040~30040~300
Ore-feeding concentration (%)10~3010~3010~3010~3010~3010~30
Slurry put through (m³/h)0~55~1010~3030~5050~8080~100
Capacity (t/h)0~11~22~55~1010~1515~20
Background field (T)0~1.60~1.60~1.60~1.60~1.60~1.6
Energizing current (A)110011001400140014001700
Energizing voltage (V)18294062.276.878.5
Energizing power (kw)19.8325687107133
Ore-feeding pressure (MPa)0.05~0.150.05~0.150.05~0.150.05~0.150.05~0.150.05~0.15
Cooling water pressure (MPa)0.1~0.20.1~0.20.2~0.30.2~0.30.2~0.30.2~0.3
Deironing separator water pressure (MPa)0.2~0.40.2~0.40.2~0.40.2~0.40.2~0.40.2~0.4
Washing middling water pressure (MPa)0.1~0.30.1~0.30.1~0.30.1~0.30.1~0.30.1~0.3
Water consumption (m³/h)0.75~1.51.5~3.05~1012~2530~4030~50
Cooling water capacity (m³/h)2~33~44~55~66~88~10
Machine weight (t)61425396578
Dimension (mm)1550×950×16501850×800×16002200×1600×27002900×2200×27003550×2250×29504000×2300×2950
