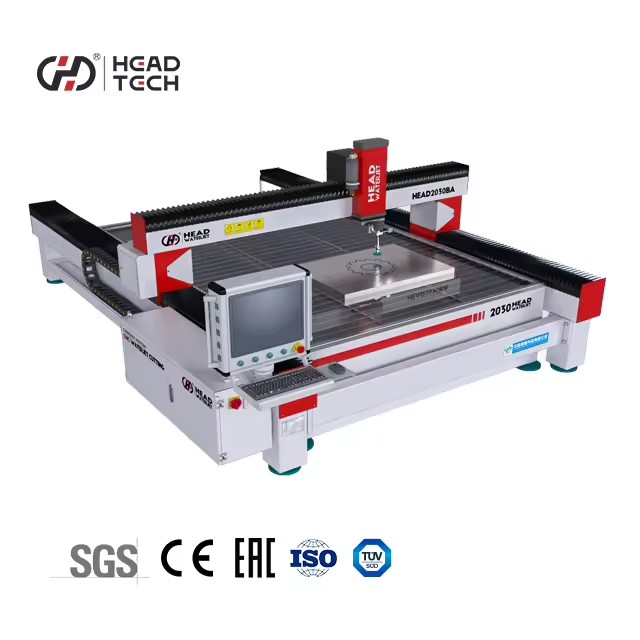

water jet cutting machine for metal price
Keeping track of latest market development we are actively engaged in offering CNC Water Jet Cutting Machine. Widely used for cutting soft & hard materials, the offered jet cutting machine is good demand in the market for its high performance. In order to assure the quality, the complete range of jet cutting machine is checked on numerous parameters before the final delivery at the customer’s end. The offered jet cutting machine is provided with different specifications at affordable price
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed. • Main heart of Supercharger, "Intensifier" is "". • User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts. • All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts. • Only Water Jet Cutting Machine comes with Ball Screw and rail slider of X, Y axis is designed as oil immersion type which reduces friction, wear and prevents metal corrosion, gives you zero maintenance & very long life of Ball Screw & Rails.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)

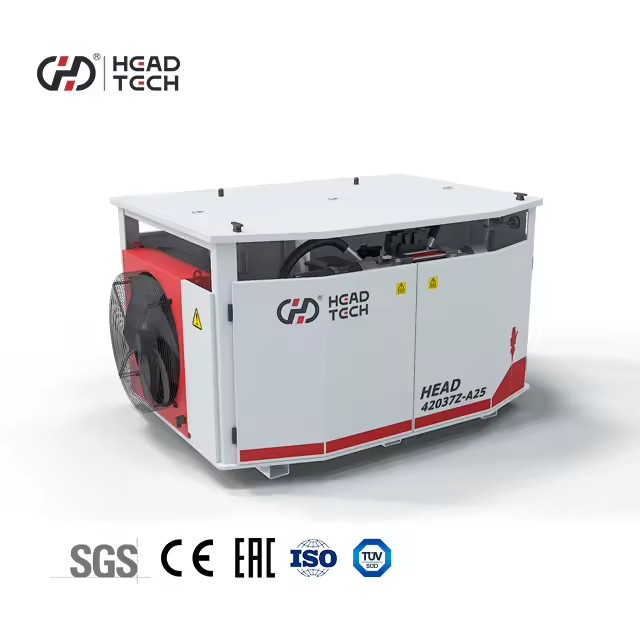

* Accustream Brand High pressure Source * Stable Running Performance * High Efficiency cutting effect
* To produce high pressure water
* Stable Running Performance
* Main parts import, Accustream
*Double linear guides and screw rods ensure stable and non-dithering of the cutting and long service life
water jet use metal hardness tester to keep every parts of the intensifer including the high pressure parts and low pressure parts working in it's best situation for the safe reason.
water jet use precision meter to guarantee the ball screw and guiding rail installed parallel and flat on the main beam for the long time running and keep the high precision as well
Name: laser caliberation
uses laser caliberation to check and guid rail straightness and parallelism
Anneraling treatment for 's waterjet each parts to ensure it's machine bed strong and non deformation
Annealing treatment Anneraling treatment for waterjet each parts to ensure it's machine bed strong and non deformation
Put waterjet cutting systems to the test, to guarantee the quality of the part during the assembly line.
Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.
>>>Brief Introduction Of waterjet company
Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
>>View of Company honor
Part of Workshop
Office
>>>Try to Read This · Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This · FAQ Q1: Does This Machine Pass CE Certificate? A2: Yes, this machine passed European CE certificate and meet Safety Standard. Q2: How much of cutting thickness? A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials. Q3: How fast of speed? A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Product Description
Features
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "".
• User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.
• Only Water Jet Cutting Machine comes with Ball Screw and rail slider of X, Y axis is designed as oil immersion type which reduces friction, wear and prevents metal corrosion, gives you zero maintenance & very long life of Ball Screw & Rails.
Machine parts show
* Accustream Brand High pressure Source
* High Efficiency cutting effect
* Indicate and change Advantage
* Yuken
* To produce motion energy through electrical energy
* Three-phase AC asynchronous motor
Detailed Images
Annealing treatment
Anneraling treatment for waterjet each parts to ensure it's machine bed strong and non deformation
(To move marble or glass up and down easily)
MAX series 5 axis waterjet cutting machine
(bevel cutting 0-±45°)
About our company
water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, aerospace, and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning, with more than 15 years full experience and a professional sales team.
water jet, so cutting is no longer a problem!
Service & FAQ
1. Maintenance free of charge for 12 months.
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This · FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed
European CE
certificate and meet
Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of
speed
?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
