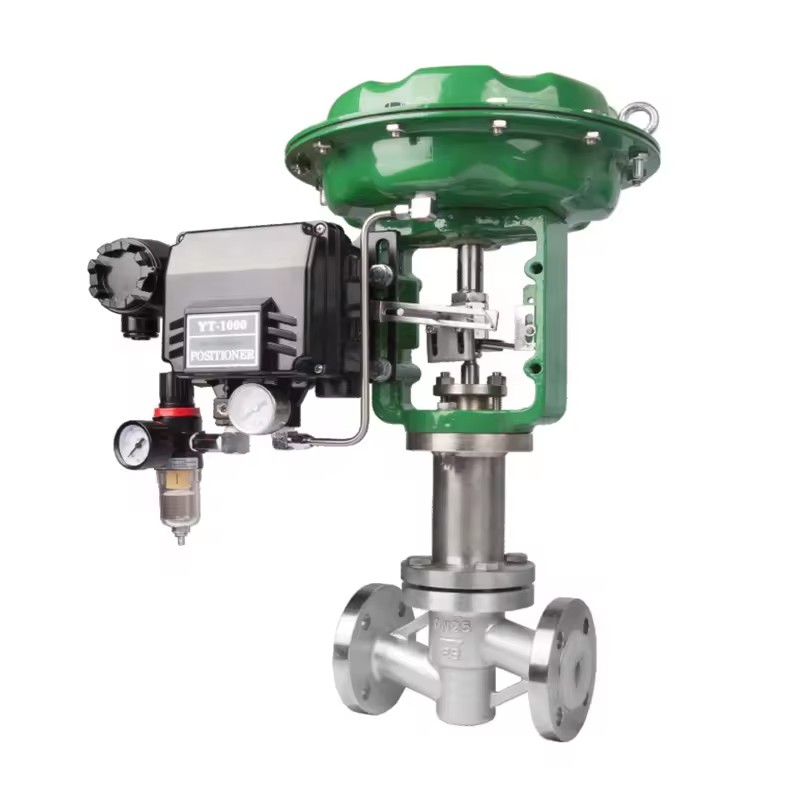

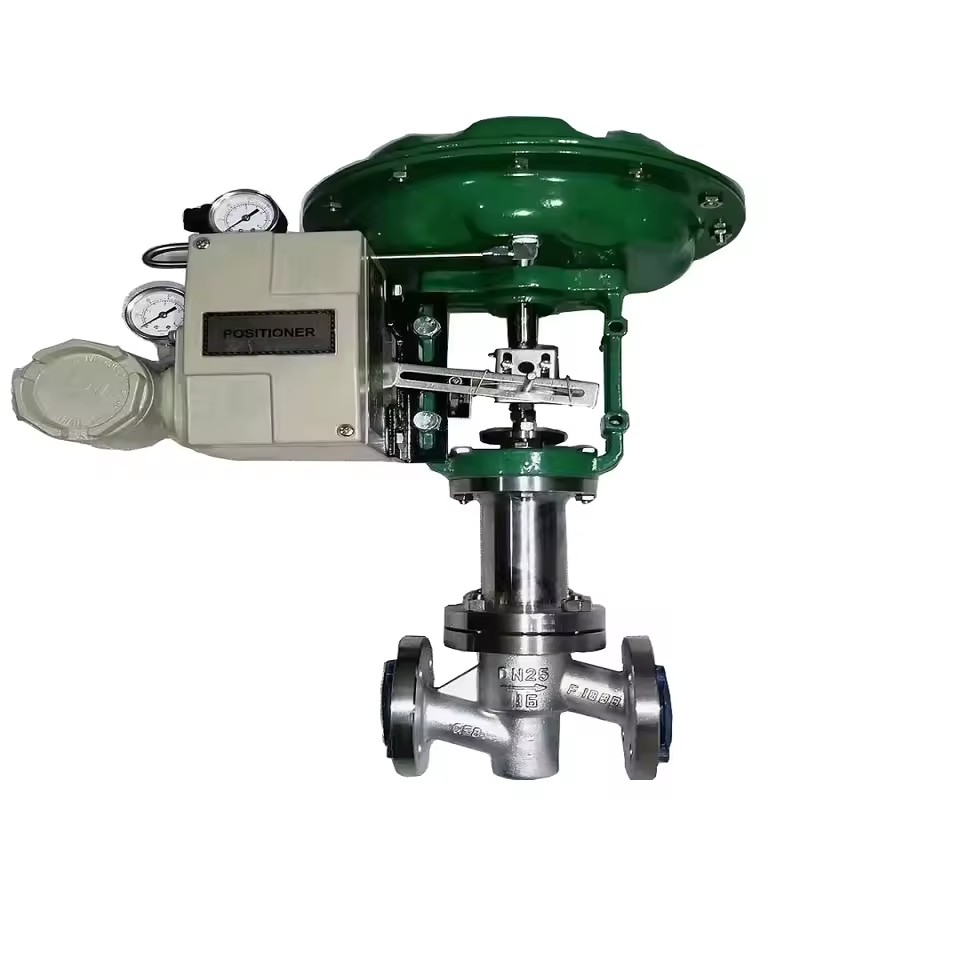

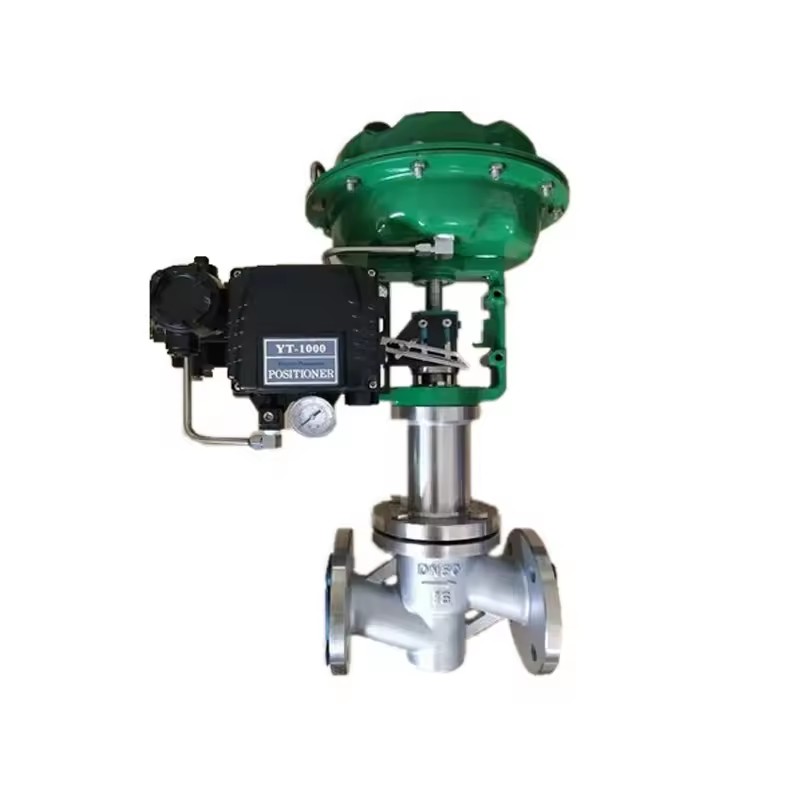

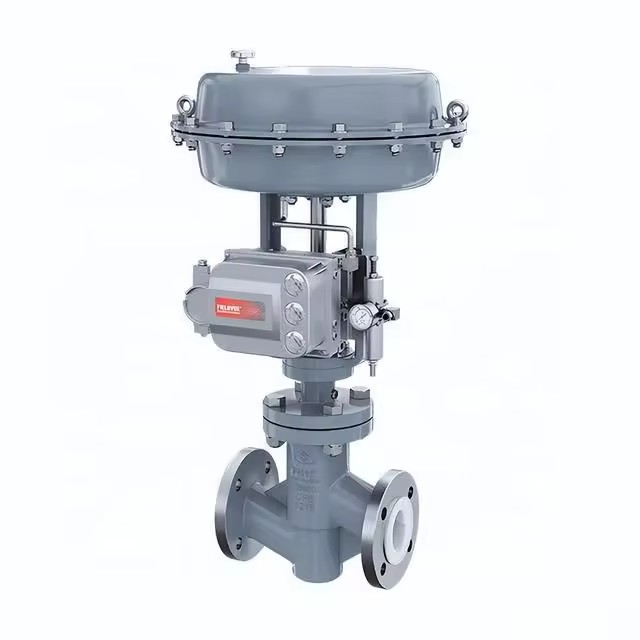

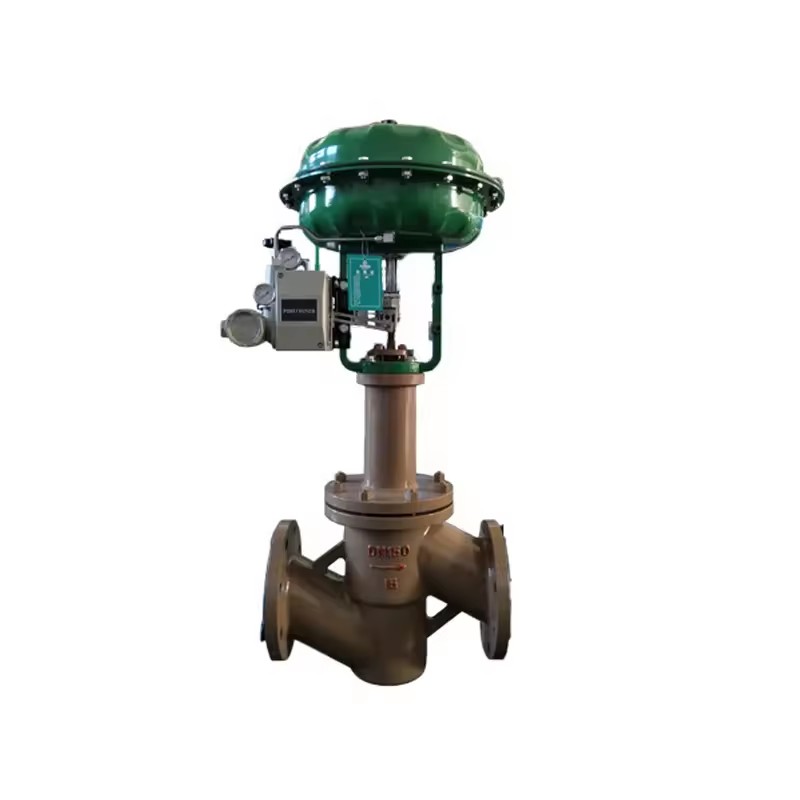

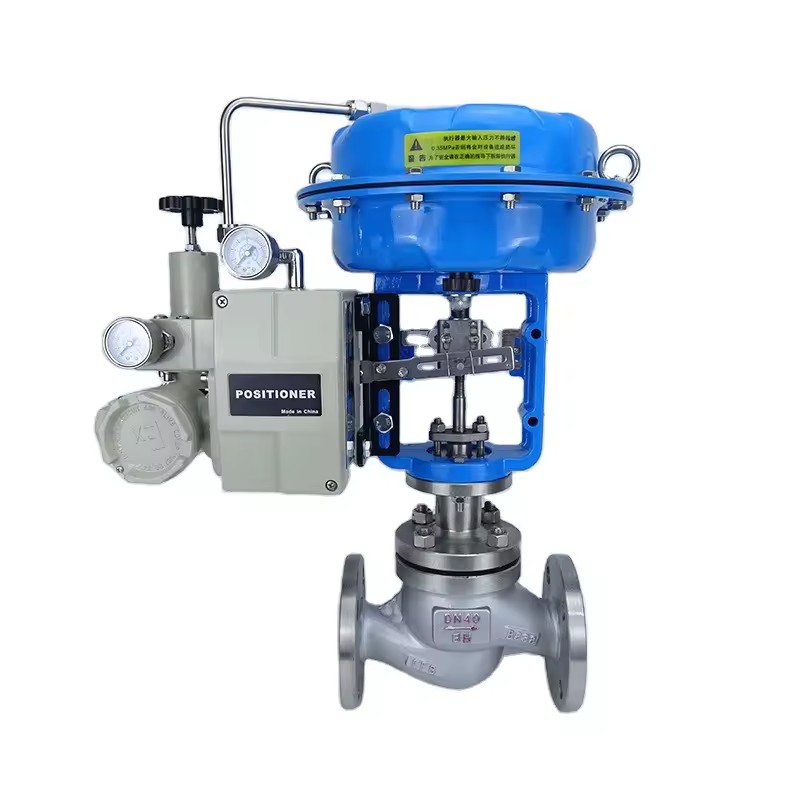

Name: DN50 WCB SS304 Pneumatic Diaphragm Control Flange Golobe Valve Pneumatic Control Valve With Positioner
SKU: B2B-11486
Price: 620.0 USD
Availability: PreOrder

Product description

DN50 WCB SS304 Pneumatic Diaphragm Control Flange Golobe Valve Pneumatic Control Valve With Positioner

Advantages

• aims to provide

• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.

• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.

• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.

• OEM / ODM service available.

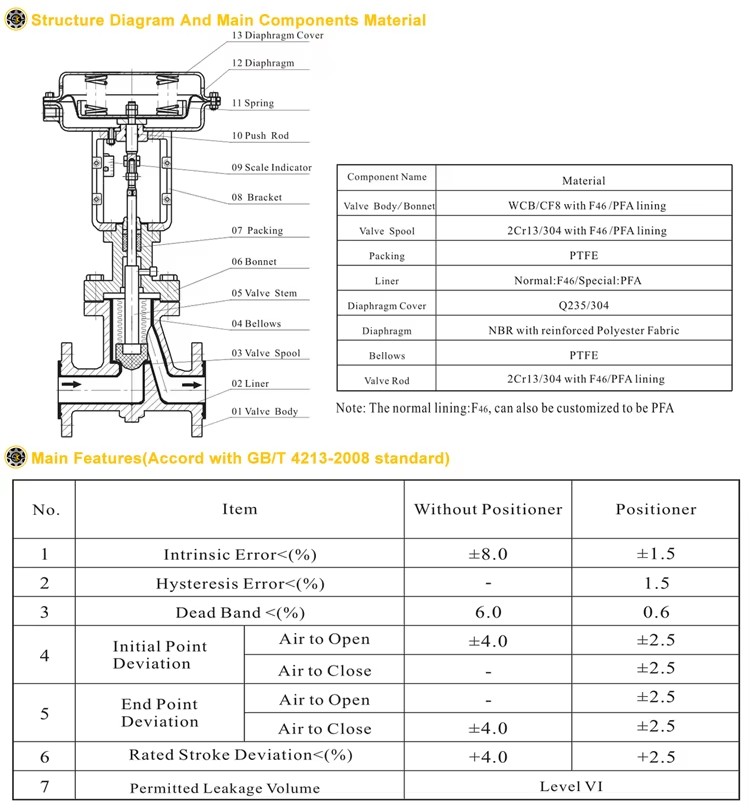

Pneumatic Single Seat Control Valve

ZJHP fine small pneumatic film single seat regulating valve adopts top guide structure, with multiple spring actuator. It has the advantages of compact structure, light weight, sensitive action, s-streamline fluid channel, small pressure drop loss, large valve capacity, accurate flow characteristics, convenient disassembly and assembly. Widely used in precise control of gas, liquid and other medium process parameters such as pressure, flow, liquid level to maintain a given value. It is especially suitable for small leakage and small pressure difference before and after the valve. The nominal pressure levels of products are PN16,40,64;Nominal diameter range DN20~400. Suitable for liquid temperature from-200℃to +560℃ range of various grades. The leakage standards are grade iv or vi, and the flow characteristics are linear or equal percentage. A variety of character specifications to choose from.

Pneumatic Sleeve Control Valve

ZJHM fine small pneumatic film sleeve regulating valve adopts top guide structure, with multi spring actuator. It has the advantages of compact structure, light weight, sensitive action, s-streamline fluid channel, small pressure drop loss,large valve capacity, accurate flow characteristics, convenient disassembly and assembly. Widely used in precise control of gas, liquid and other medium process parameters such as pressure, flow, liquid level to maintain a given value. It is especially suitable for small leakage and small pressure difference before and after the valve. The nominal pressure levels of products are PN16,40,64;Nominal diameter range DN20~400. Suitable for liquid temperature from -200℃ to +560℃ range of various grades. The leakage standards are grade iv or vi,and the flow characteristics are linear or equal percentage. A variety of character specifications to choose from.

Advantage of Pneumatic Control Valve: 1. It is cost-effective and safe to be used,which can help you save cost of the whole system COVNA Single Seat Pneumatic Globe Control Valve maintenance. 2. It has a simple structure and a big torque, explosion-proof with short actuating times,optimized actuating forces and reliable tight sealing. 3. It can perfectly avoid problems of friction, corrosion, and emissions. 4. It is of low center of gravity, high vibration resistance and easy to install. 5. Simple to control, rapid response, and intrinsic safety, no need to take additional explosion-proof measures. 6. Fluid channels in a s- shaped streamline, small pressure drop loss large flow, wide adjustment range, high precision flow

Pneumatic Actuator

Multi-spring diaphragm actuator in direct action & reverse action. NBR rubber reinforcing polyester fabric diaphragm material. Spring range 20~100KPa, 40~200KPa, 80~240KPa. Supply pressure from 0.4MPa to 0.5MPa.

Control Valve Type\ Method	Pneumatic diaphragm actuator
ZJHP~ZJHM
Multi-spring type
Usage	Regulating type, ON-OFF type
Air supply pressure or Power supply voltage	Air supply pressure (Spring range) 140(20~100)Kpa G 240 (40~200) Kpa G 280 (80~240) Kpa G
Connector	Air pipe connector: RC1/4
Direct action	Pressure increase, stem descend, valve close.
Reaction	Pressure increase, stem ascend, valve open.
Input signal	40~20mA.DC(with positioner)
Lag	≤1%FS(with positioner)
Linear type	2%FS(with positioner)
Environmental temperature	10℃~+70℃
Pneumatic control valve Accessories	E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, switch Non-standard accessories, need special customized notes.

Explosion-proof With handwheel Multiturn IP68 Water-proof

ISO 5211 Mounting

Q: How long is your delivery time? A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Can I have a sample order? A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.

A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.

Q: Do you test all your goods before delivery? A: Yes, all products are fully inspected before delivery.

A: Yes, all products are fully inspected before delivery.

Q: What are your payment term and delivery time? A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.

A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.

Q. What is the warranty? A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.

A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

5 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Structure

Control

Media

Water, Oil, Gas, air, water gas oil etc., Liquid

Power

pneumatic

Voltage

AC 230 V, AC 220 V, Dc 24V, AC 110 V, AC 240V, Dc 12V

Port Size

DN15~DN200, 1/2"~8"

Customized support

OEM, ODM, OBM

Warranty

1 Year

Temperature of media

Medium Temperature, Normal Temperature, Low Temperature, High Temperature

Application

General

Model number (Specification)

ZJHP-16P

Place of origin

China

Temp. of Media

Range from 0 to +450°C

Color

Customer's Request

Flow characteristics

linear, quick-opening, Equal percentage

Valve type

globe valve

Sealing surface

PN16 convex surface, PN40 concave surface

Selling Units

Single item

Single package size

XX cm

Single gross weight

0.0 kg

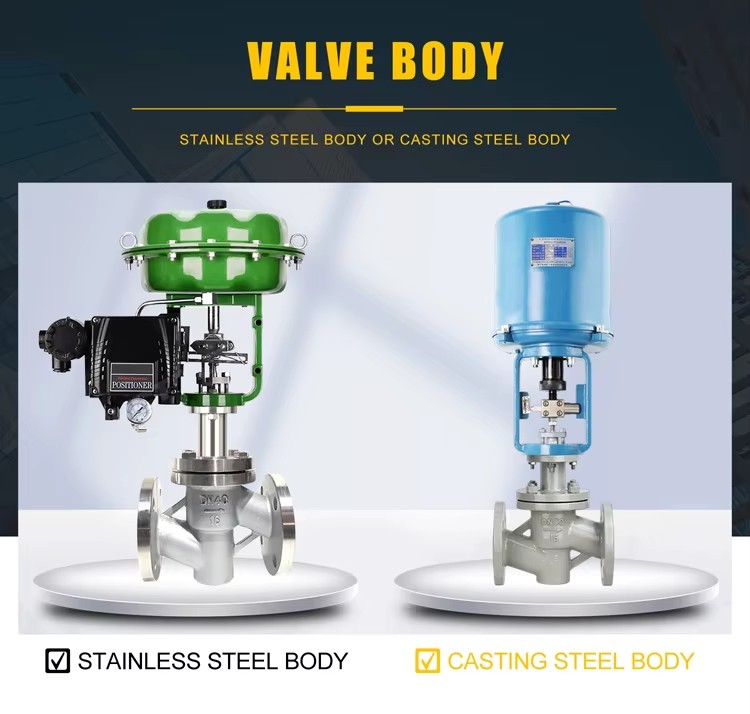

Material (Product option)

Stainless Steel, cast steel

Pressure (Product option)

High Pressure, Low Pressure, Medium Pressure

Size (Product option)

1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in, 2 1/2 in, 3in, 4in, 6in, 5in, 8in, 7in, 9in

Lead time

5 days

Minimum order

1 Units
