Brief Introduction

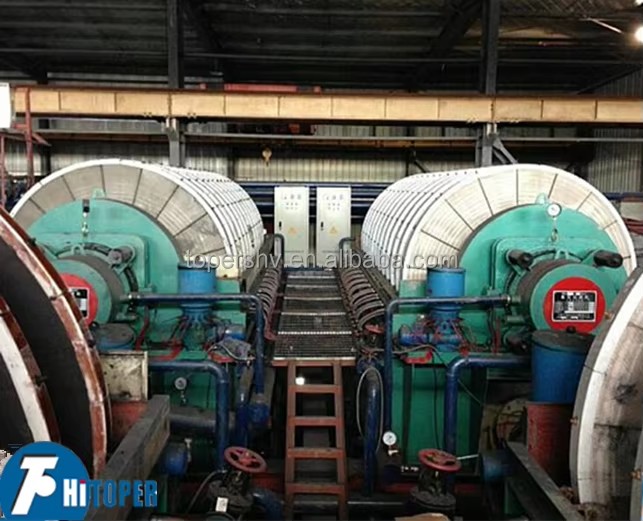

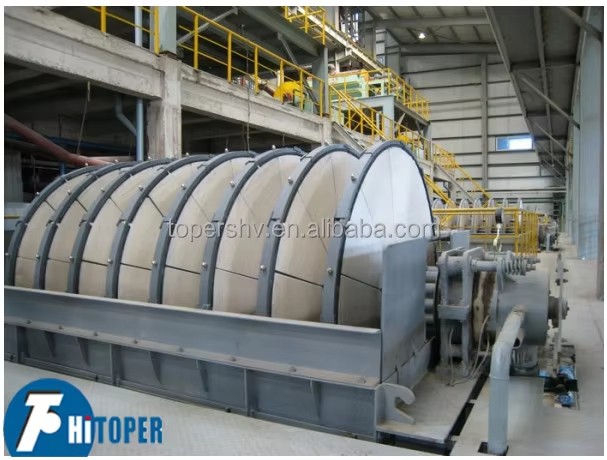

Vacuum disc filter is a solid-liquid separation equipment, filtered power vacuum as the slurry liquid separation. The machine uses a filter plate guide frame-oriented, variable speed agitation, anti-hair unloading, automatic centralized lubrication advanced technology, is an excellent use of reliable dewatering equipment.

This machine is a new type of disc vacuum filter, designed especially for iron ore concentrate, non-ferrous metal concentrate dewatering is also suitable for beneficiation in the coal washing, non-metallic minerals, chemicals used in the environmental effects.

Structure And Components

Disc vacuum filter tank, filter shaft, main drive, filter plate, separated valve, slurry agitator, unloading equipment, filter cloth washing, centralized lubrication systems and electronic control systems and other components.

Feature

1.The aircraft sector plate with ultra high strength polypropylene molded, high strength, not easily deformed life increased by several times than fiberglass; the sector plate openings up to 30%, so it does not affect the filtering effect of clogging, and conducive to further increase production and reduce the cake moisture.

2. Each filter disc 20 fan-shaped plate, the strengthening of the control of the filtering process, the filter cake is relatively uniform.

3. The filtrate tube section the distribution head cavity volume, help to improve the ventilation rate and the filtrate emissions.

4. The use of anti-hair plus scraper discharge, in order to ensure the expulsion rate of cake.

5. Gear, inverter speed control, speed range, reliable operation.

6. Optimized design of the structure of the filtrate tube completely ruled out the original flange joints due to aging rubber air leaks. The filtrate pipe wall thickness also increased to 6mm and lined with ceramic tile.

7. Using dry oil pump centralized oil lubrication to ensure the normal operation of the equipment.

8. The characteristics of the cement industry, the use of pneumatic mixing system.

9. Siemens PLC and Mitsubishi inverter control system, and can be provided in the control and accept the various control signals.

Technical data

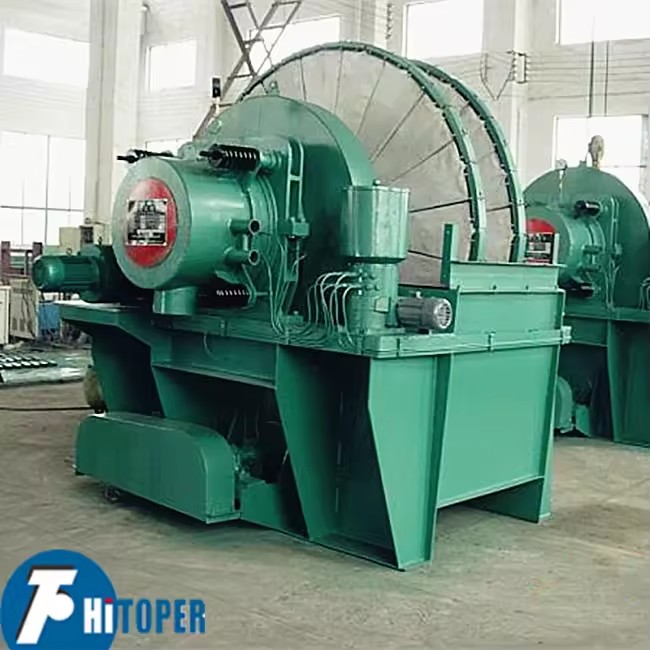

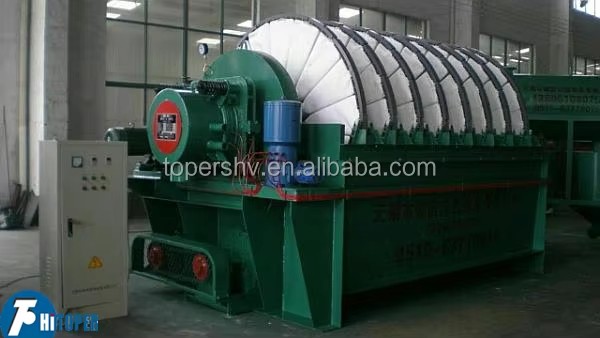

Different type of 's Vacuum power drive disc fan type filter machine

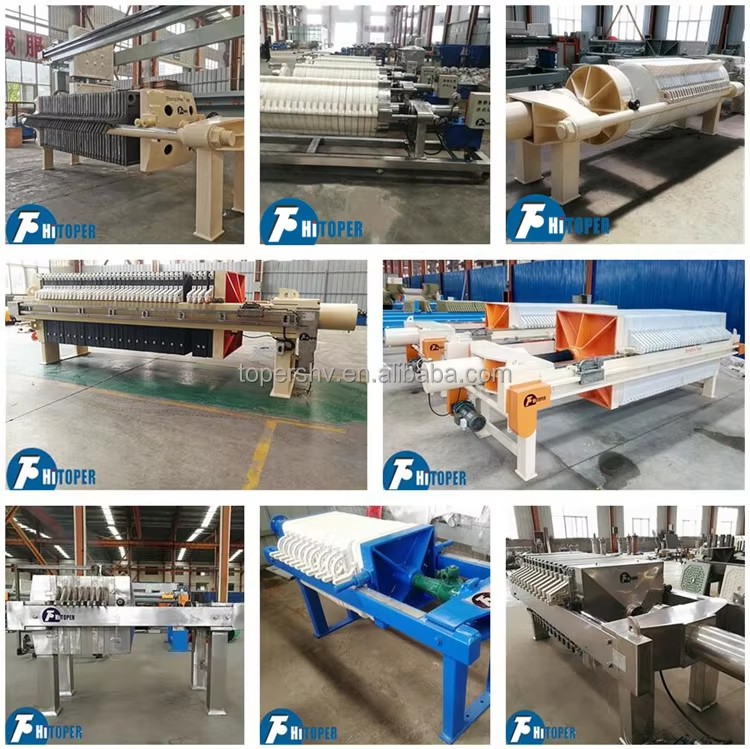

Other type of 's filter and separation equipment
