Heavy Load 4140 Spline Shaft Stress Relief Annealing Deep Hole Boring for Large Mine Rotary Drilling Rig Spline Gear Shaft

Available for enquiry 0.0 · 0 reviews
USD

$ 590.00 590.0 USD $ 590.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Material
Q235, 40Cr, AL, 42CrMo, Ti, AISI 4140,AISI 5150,A36,AISI 8620,AL, TI,302, 20CrNiMo, 12Cr18Ni9
Structure
Spline
Machinery test report
Provided
Warranty
3 Months
Video outgoing-inspection
Provided
Core components
Gear
Product description

Product details

Custom processing:Support customized drawings and non-standard customization.

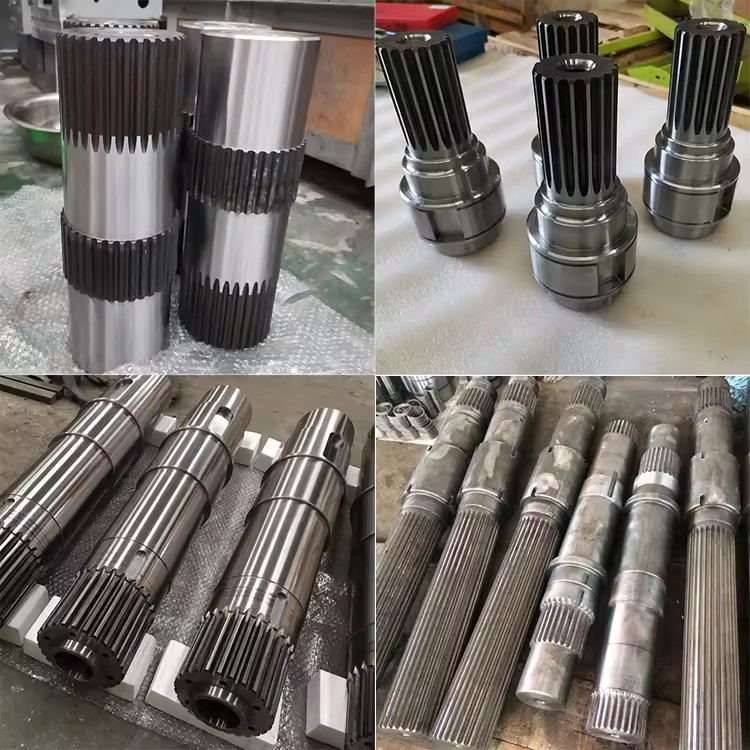

High Precision CNC Milled and Quenched Tempered 42CrMo Spline Shaft: Ensures durability and accuracy for heavy-duty applications.

Large Module Involute Spline Gear Shaft: Suitable for mining card equipment, offering robust performance.

AISI 4140, AISI 5150, and other high-quality materials: Ensures longevity and reliability.

Heavy Duty Design: Suitable for demanding industrial machinery, providing stability and efficiency.

Frequently asked questions

We have a comprehensive process system, strictly following the drawings to process and produce products. Before packaging and shipping, we provide video inspection, inspection reports, heat treatment reports, material reports, flaw detection reports, and other inspection reports.

With over 20 years of experience in the field of mechanical processing, we are capable of meeting various customized needs of our customers. Most of our cooperative clients are well-known domestic manufacturers, state-owned enterprises, and listed companies.

Accept delivery terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, express delivery, DAF, DES; Payment currency accepted: USD, EUR, RMB; Accept payment Types: Telegraphic transfer, letter of credit, D/P D/A, Western Union

Mechanical processing, casting, forging, heat treatment, assembly, and non-standard customization. Mechanical parts: determined based on part size, weight, and technical requirements.

Mechanical parts: determined based on part size, weight, and technical requirements.
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Ocean + Express via FLY Logistics · Approx. shipping fee: $ 119.60 for 1 kilogram · Transit time: Est. 16-23 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Material
Q235, 40Cr, AL, 42CrMo, Ti, AISI 4140,AISI 5150,A36,AISI 8620,AL, TI,302, 20CrNiMo, 12Cr18Ni9
Structure
Spline
Machinery test report
Provided
Warranty
3 Months
Video outgoing-inspection
Provided
Core components
Gear
Weight (kg)
60
Place of origin
China, Henan
Torque capacity
Customers Requirements
Model number (Specification)
Support customization

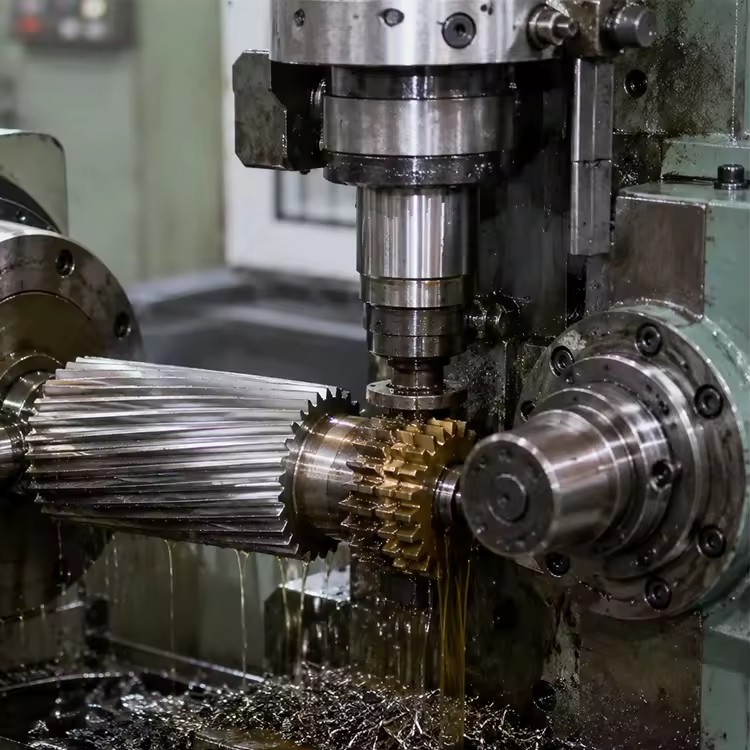

Process
etc, Rough and fine machining/quenching/milling and drilling

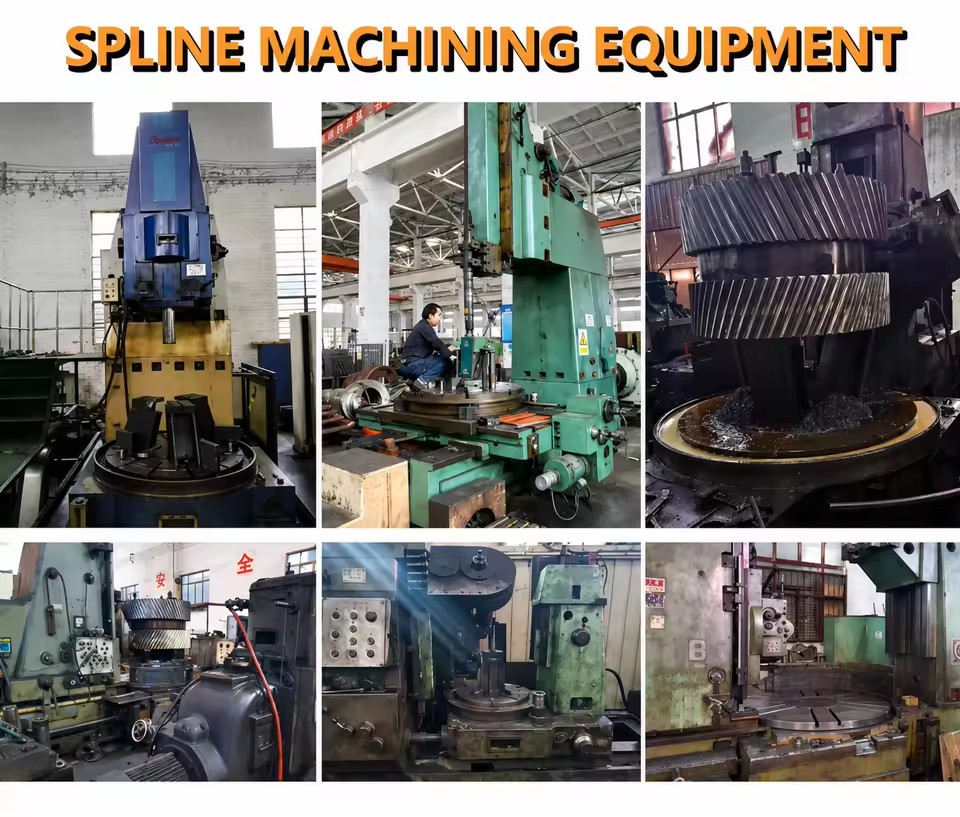

Machining equipment
Lathe, grinder, gantry milling, etc
Processable modulus range
≥2
Tooth Surface Accuracy
6H-8H
Tolerance
±0.01
Surface roughness
0.8
Maximum length
≤5000
Surface Treatment
Polishing/Grinding/ Painting/Anti Rust Oil
Acceptance Technical Standards
Process and accept according to the drawing
Delivery Time
Mass Production: 25~45 Days
Selling Units
Single item
Single package size
100X110X50 cm
Single gross weight
70.0 kg
Length (Product option)
≤5000
Diameter (Product option)
≤700
Lead time
30 days
Minimum order
1 Units
