Brief Introduction

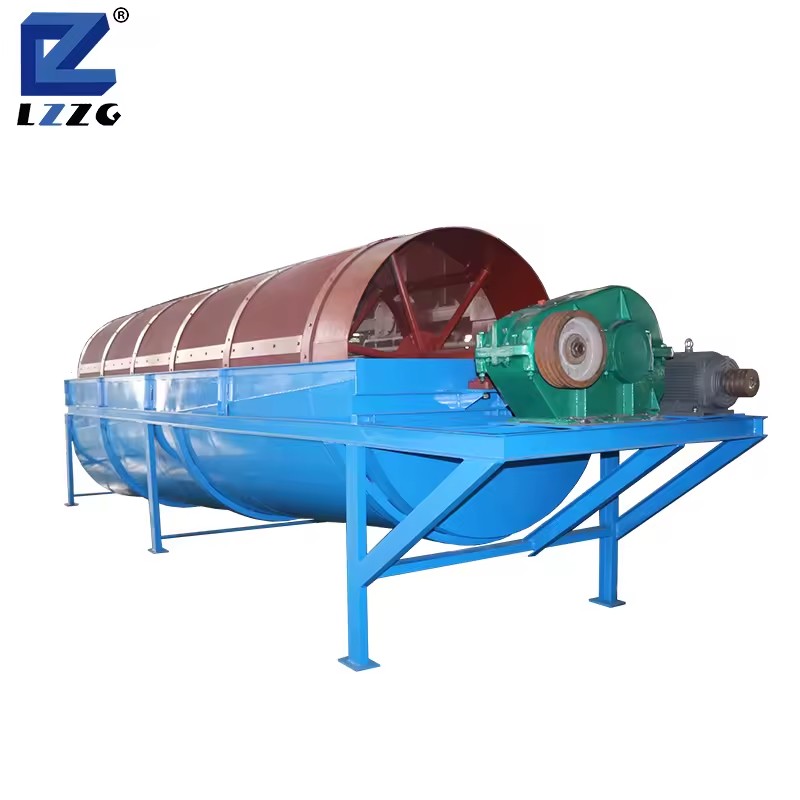

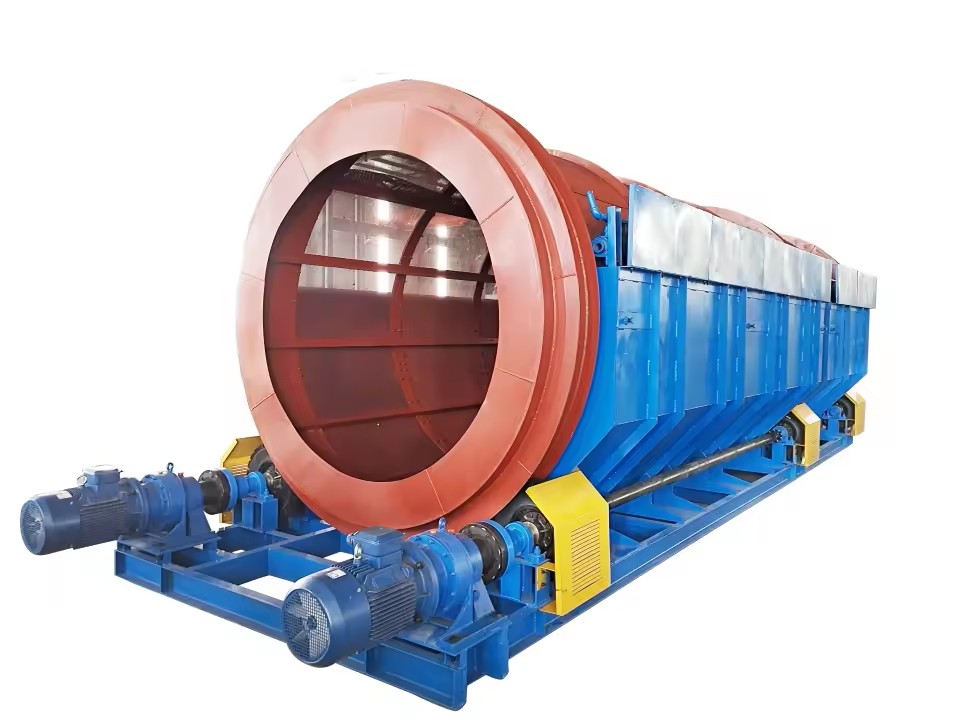

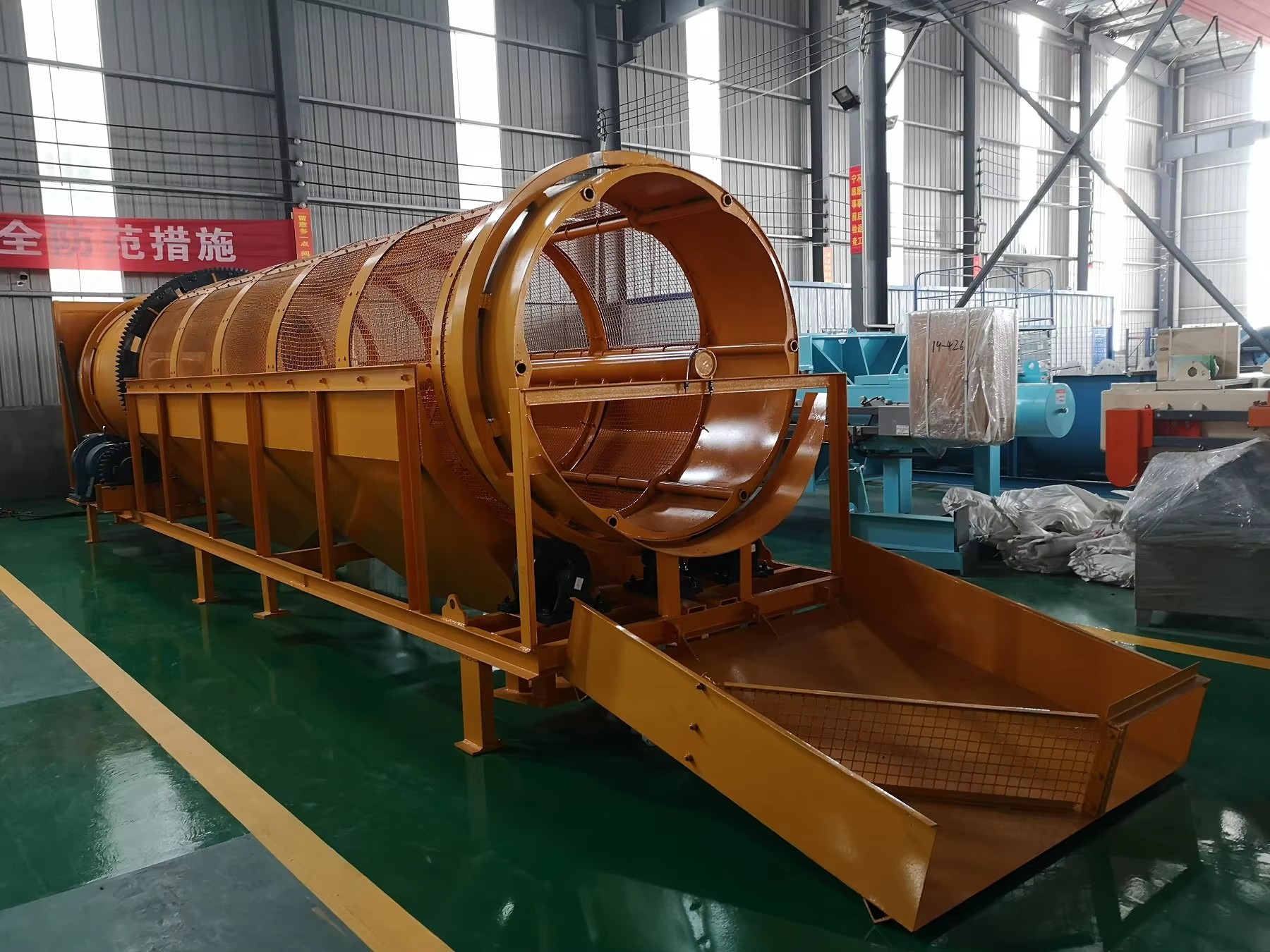

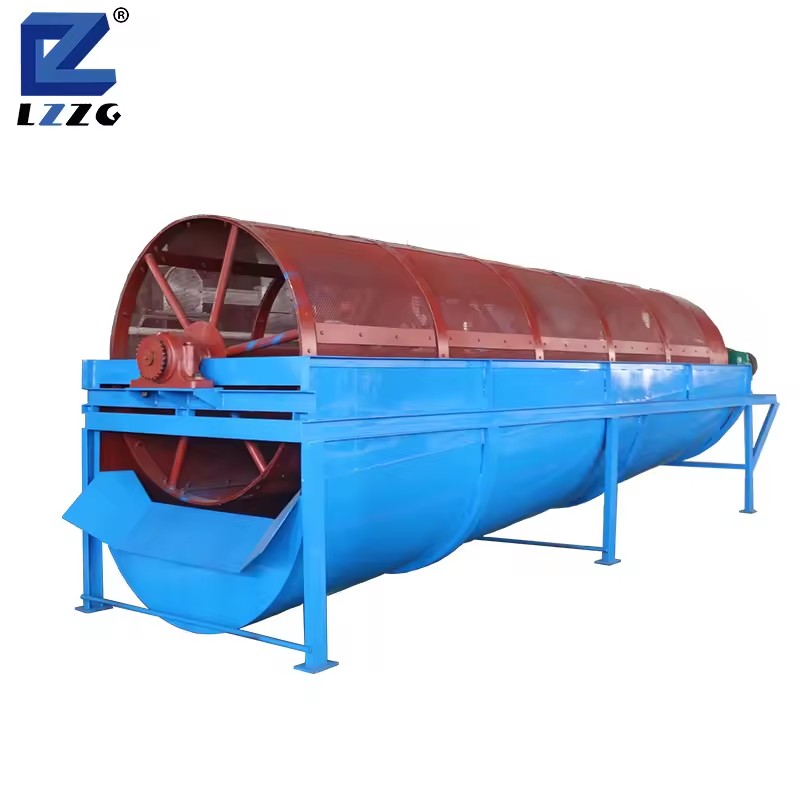

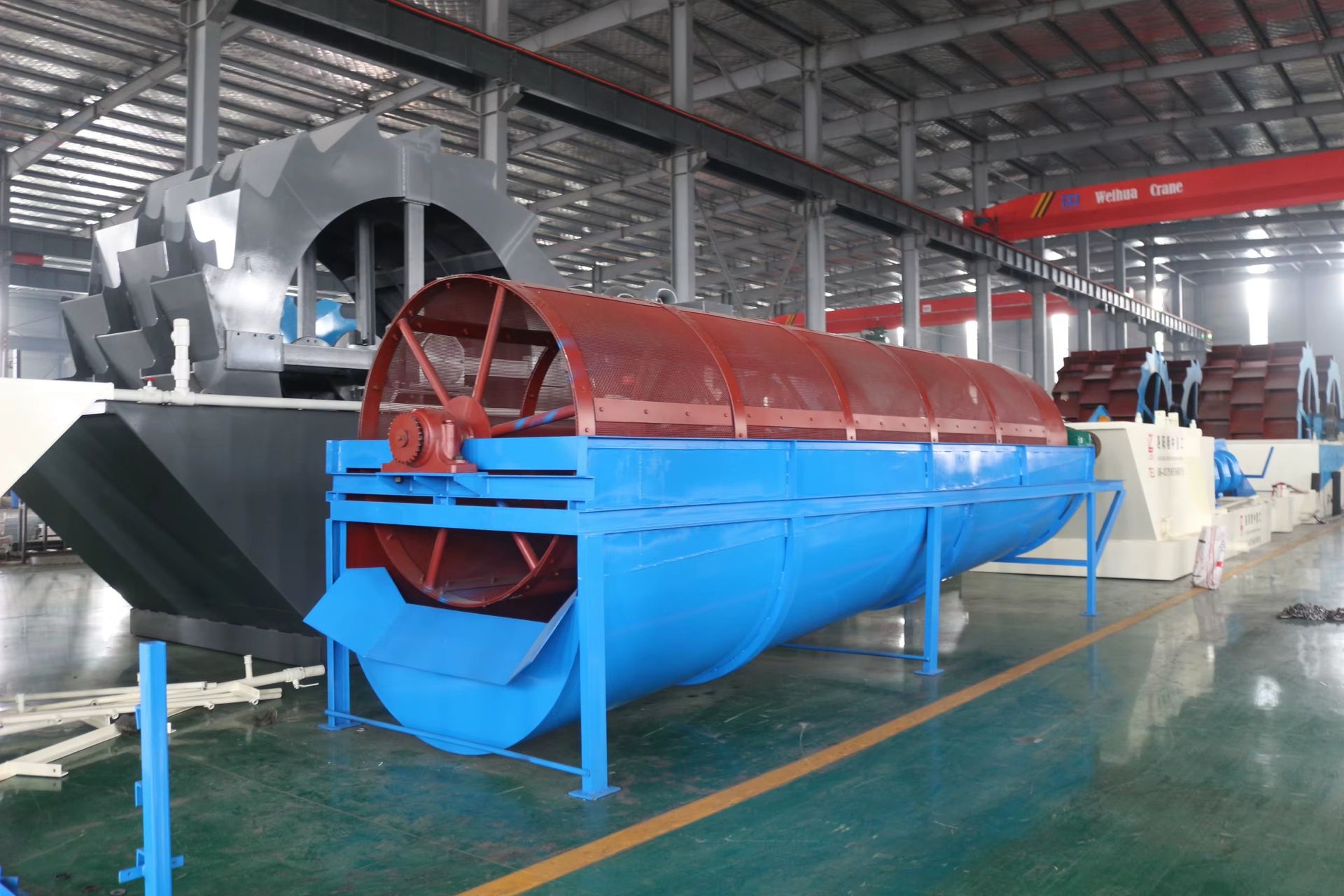

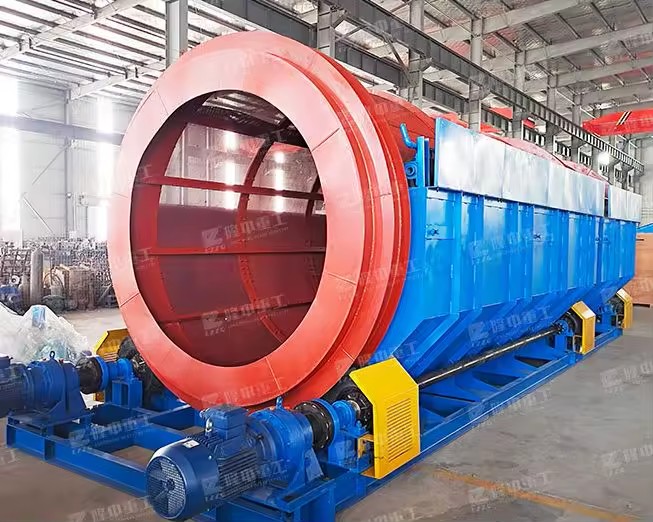

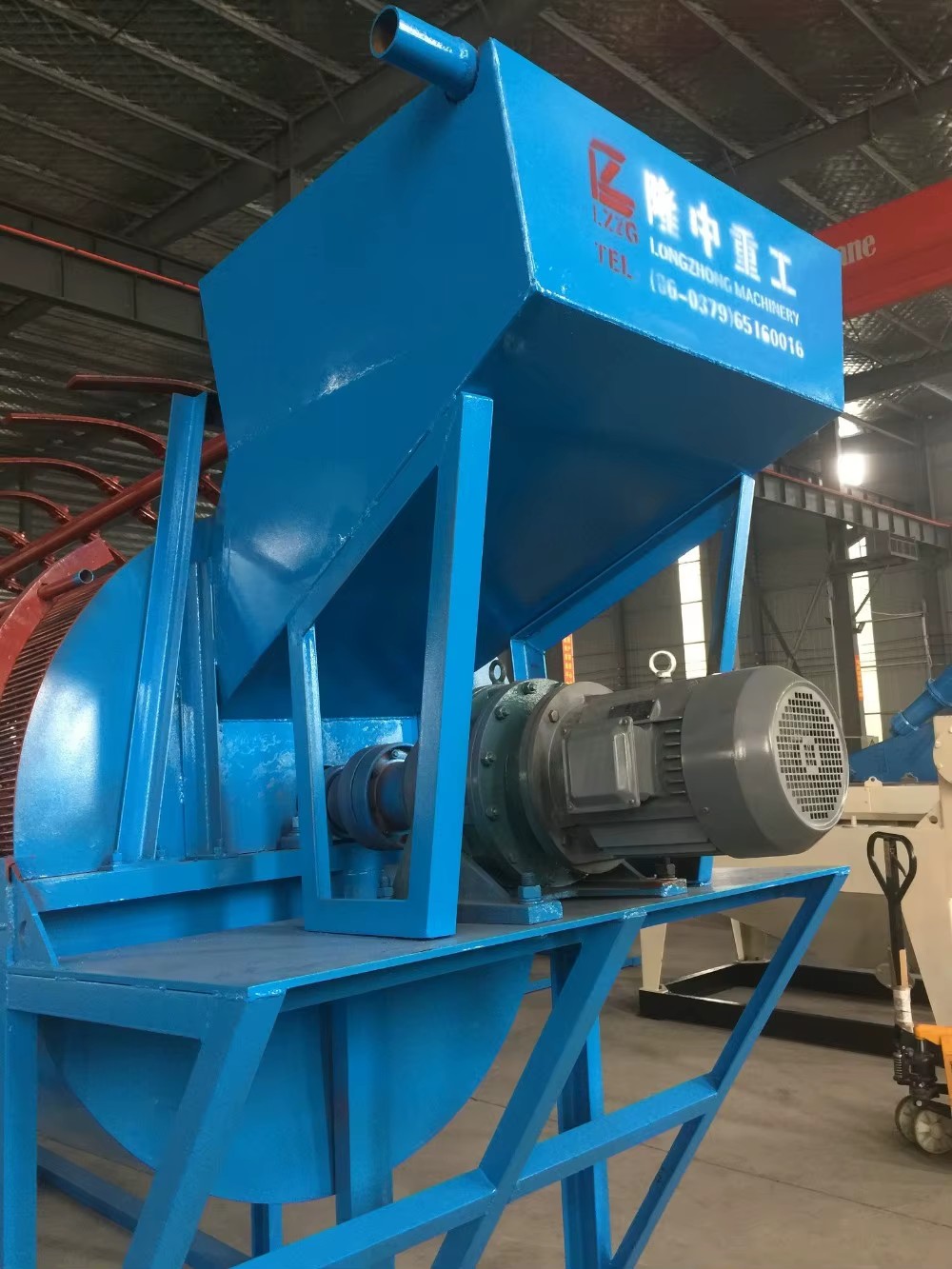

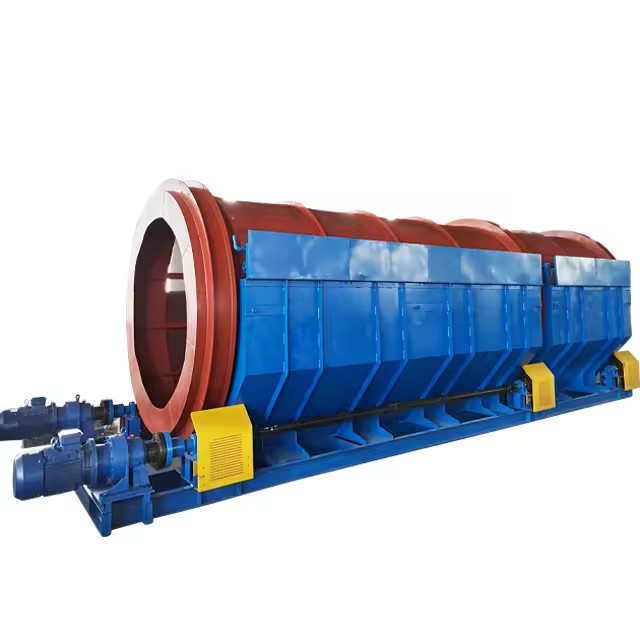

S mall trommel screen also known as rotary screen, which is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries. LZZG trommel screens are designed to minimize setup time and be easy and convenient to service.We have perfected the ability to size and customise trommel screens with different materials to suit the application,such as the updated product compact sand washer.
| Tech Specifications | ||||||||
| Model | Sceen size (m) | Angle (°) | Mesh Size (mm) | Feeding size (mm) | Capacity (t/h) | Power (kw) | Weight (kg) | Dimension (mm) |
| GT1030 | φ1.0*3.0 | 6 | 5 · 15 | ≤40 | 30-100 | 4 | 1300 | 4500*1358*2336 |
| GT1040 | φ1.0*4.0 | 6 | 5 · 15 | ≤40 | 30-100 | 4 | 1500 | 5500*1458*2336 |
| GT1230 | φ1.2*3.0 | 6 | 5 · 15 | ≤40 | 30-150 | 5.5 | 1500 | 4500*1585*2478 |
| GT1240 | φ1.2*4.0 | 6 | 5 · 15 | ≤40 | 30-150 | 5.5 | 1700 | 5500*1685*2478 |
| GT1540 | φ1.5*4.0 | 6 | 5 · 15 | ≤40 | 30-200 | 7.5 | 2500 | 5800*2100*4400 |
| GT1560 | φ1.5*6.0 | 6 | 5 · 15 | ≤40 | 30-200 | 11 | 2700 | 6800*2200*4400 |
| GT1860 | φ1.8*6.0 | 6 | 5 · 15 | ≤40 | 30-250 | 18.5 | 5010 | 8486*2100*4673 |
| GT2160 | φ2.1*6.0 | 6 | 5 · 15 | ≤40 | 30-250 | 22 | 6360 | 8486*2500*5000 |
| GT2460 | φ2.4*6.0 | 6 | 5 · 15 | ≤40 | 30-300 | 22 | 7000 | 8486*2860*5200 |
| GT2480 | φ2.4*8.0 | 6 | 5 · 15 | ≤40 | 30-300 | 22 | 7500 | 8700*2860*5700 |
Features 1. The screen hole is not easy to block. 2. Running smoothly and the noise is low. 3. The structure is simple and the maintenance is convenient. 4. The trommel drum cylinder can be closed, and easy to collect dust. 5. Various plate and mesh sizes. 6. Screen drums made to customer specification.
| Packaging & Delivery | |
| Weight | 1.3-7.5T |
| Delivery | Sea Transportation |
| Packaging Details | Waterproof cloth package for main body of GT series drum screen; Wooden package for electric motor and parts of GT series drum screen; When arrive at the port, will all be loaded with containers. |
LZZG is a professional company that committed to the research, design, manufacture and service of washing mechanism sand and gravel, tailings treatment, piling mud purification and waste incinerator slag treatment process. We have a group of senior scientific researchers and engineers, including mechanical design, mechanical manufacturing, electrical control, environmental protection and other professionals. Besides the professional equipment manufacturing plant, LZZG established a professional team in design, quality inspection and control, installation and commissioning, and after-sales service. Our products are exported,, America,,,,, and more countries, and are highly praised by customers.




-
Step 1
Payment and order readiness
Minimum order: 1 Units
Payment terms, specifications, and order details are confirmed before preparation begins.
-
Step 2
Preparation
10 days
-
Step 3
Packaging and dispatch
Packaging details are available on request.
Final packing, freight, and delivery dates are confirmed before dispatch.
