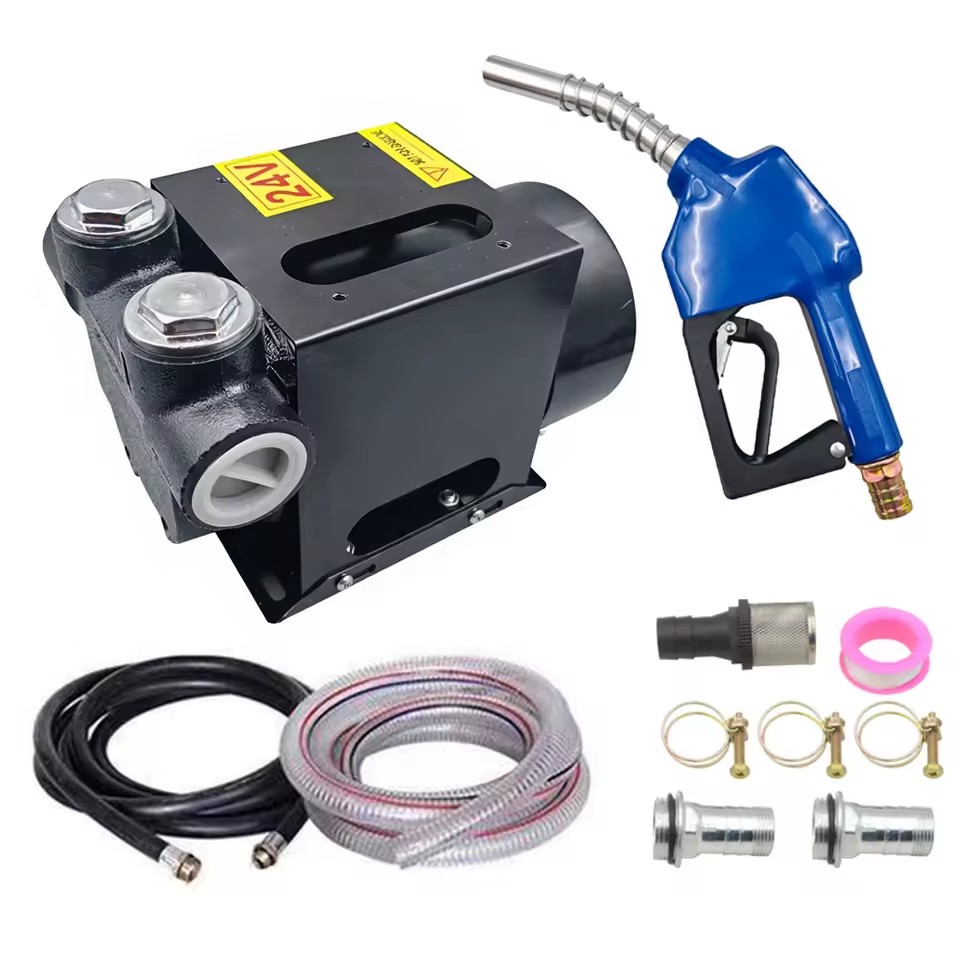

Diesel Fuel Dispenser 550W 60L/min 12V 24V Electric for Oil Drum Transfer Auto Shut-off OEM

• Application
  • Automotive Industry
• Structure
  • Other
• Max flow rate
  • 60L/min(15.85gpm)
• Max pressure
  • 0.1 -10 Bar(1.45-145.04psi)
• Power source
  • Electric

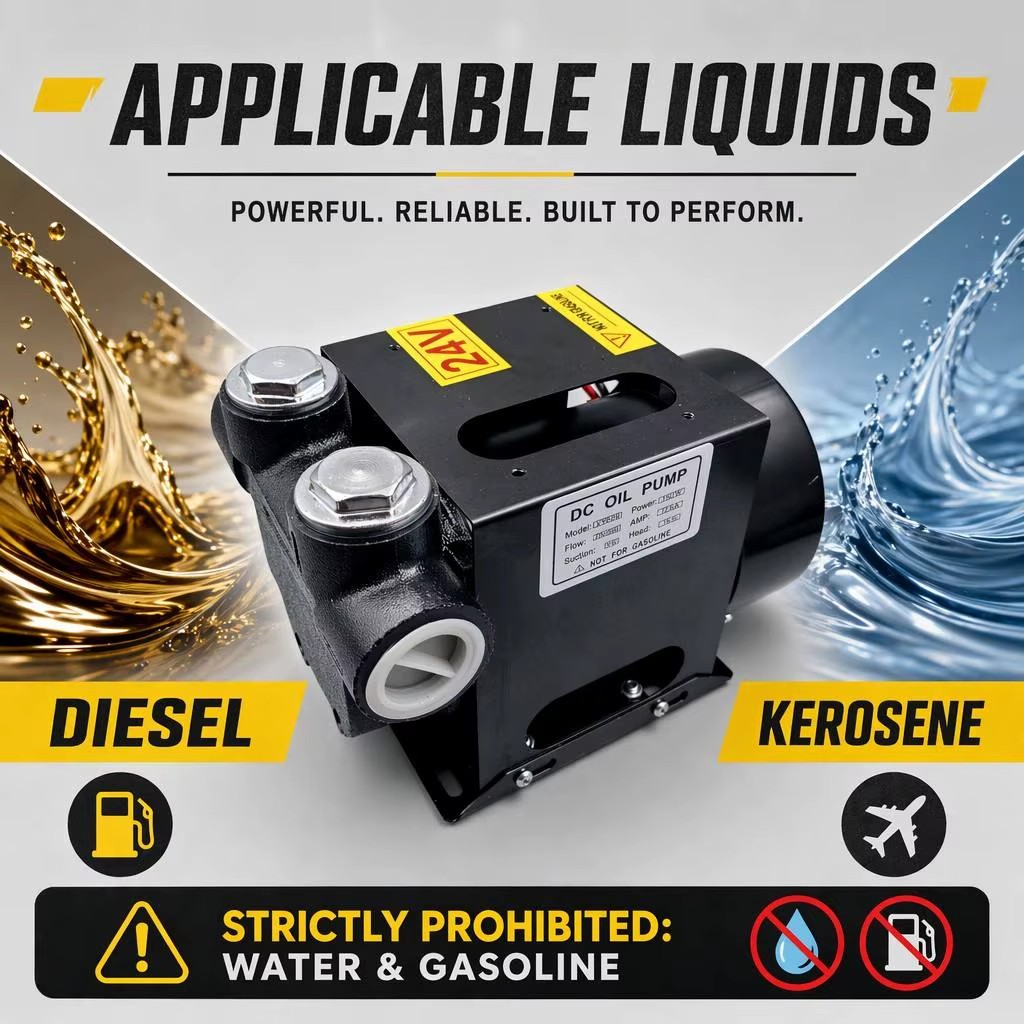

• Chemical Compatibility
  • Diesel
  • Kerosene
• Sealing Material
  • PTFE
• Impeller Material
  • Ductile Iron
• Applicable temperature
  • 5-80°C
• Outlet size
  • Φ25 mm
• Import Size
  • no
• Connection Type
  • Direct Coupling
• Suction head
  • no
• Outlet Type
  • Universal Style
• Discharge Pipe Size
  • 1 in
• Displacement
  • no
• Material
  • Iron
• Control Method
  • Manual Control
• Motor
  • DC Motor
• Surface Treatment
  • Spraying
• Membrane material
  • no
• Warranty
  • 1 Year
• Customized support
  • OEM
  • ODM
• Cable length
  • 2 meters(6.56ft)
• Pressure
  • Low Pressure
• Dwell time
  • 1 hour
• Hardness
  • no
• Flow Meter Specification
  • no
• Filter material
  • no
• Outlet Water Oil Content
  • no
• Model number (Specification)
  • 550w
• Place of origin
  • Zhejiang
  • China
• Selling Units
  • Single item
• Single package size
  • 31X23X22 cm
• Single gross weight
  • 8.0 kg
• Voltage (Product option)
  • 12 V
  • 24 V
• Flow Rate (Product option)
  • 60L/min(15.85gpm)
• Maximum head
  • 15m(49.21ft)
• Type (Product option)
  • Fuel & Oil Transfer Pumps
• Certifications & Compliance
  • CE
