Name: Desma Rubber Injection Moulding Machine Price
SKU: B2B-27178
Price: 53840.0 USD
Availability: PreOrder

Product description

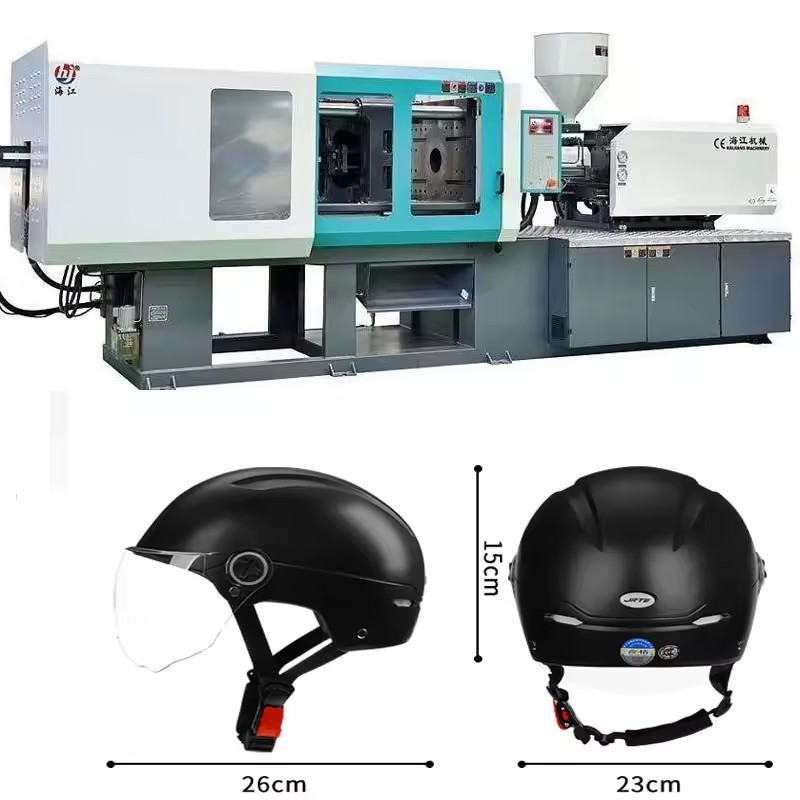

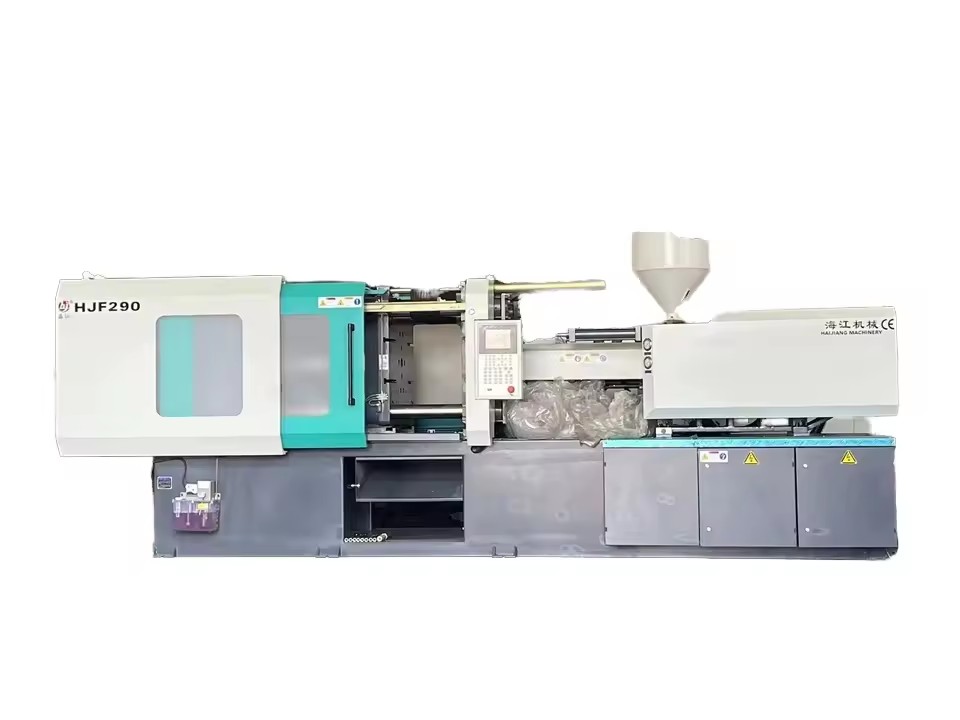

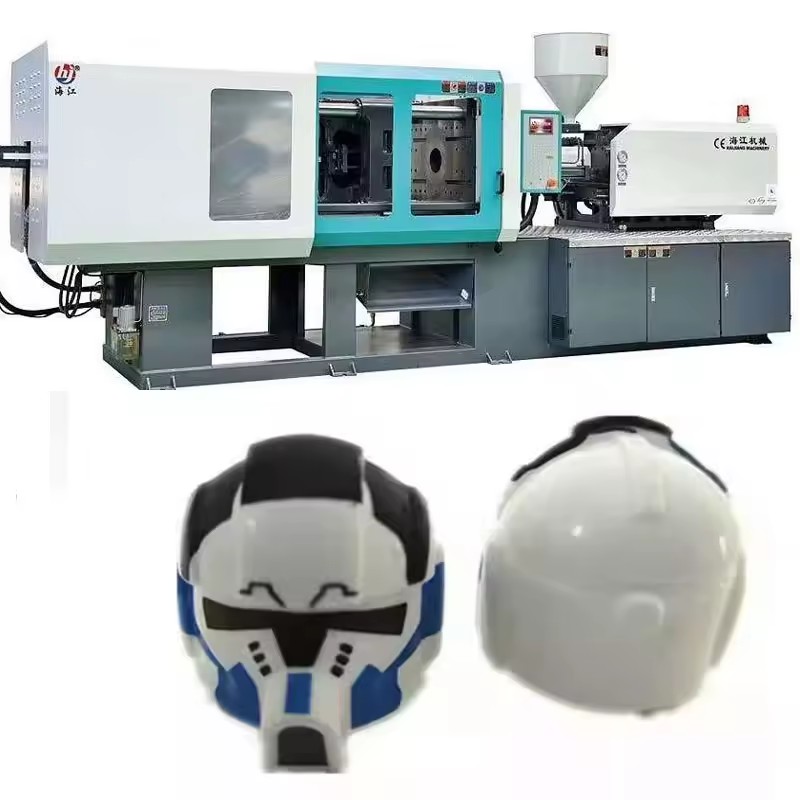

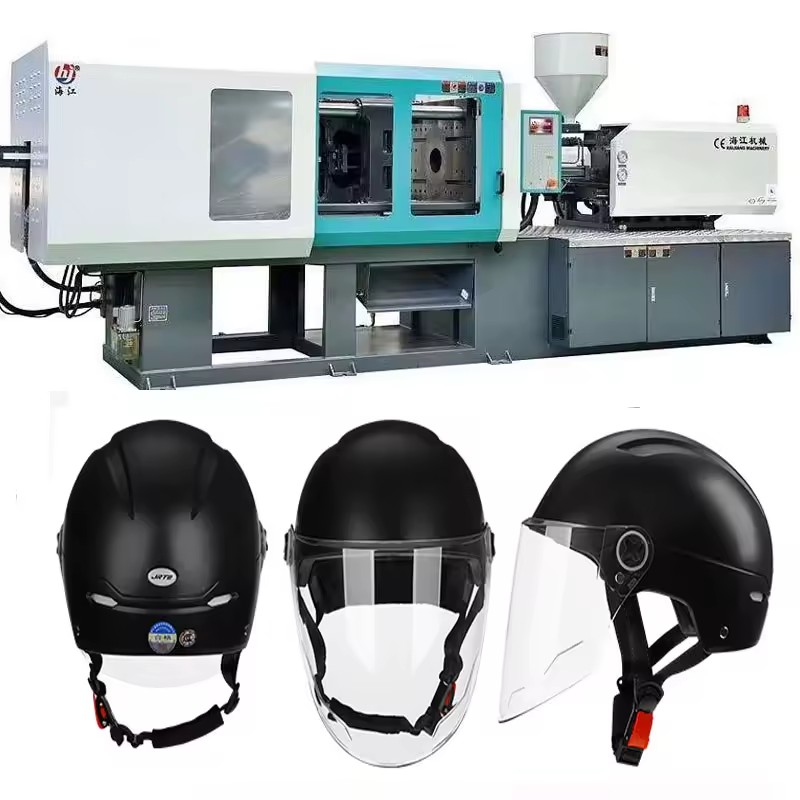

HJF360 Injection Molding Machine

Adjustment Unit Automatic Mold Height Adjustment Saves the time and cost during the mold changing. Clamping Unit The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects. Hydraulic Unit The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine. Injection Unit Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection. Specific screw and barrel designs are available for processing different material requirements. Electronically Controlled Unit 1.CPU controller and display are independent and reliable. 2.A larger color LCD screen enhances clear display and supports multi-language compatibility. 3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance. 4.A screen saver function extends the LCD life. 5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine ’ s operation and machine service 6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance. 7.Closed Loop PID barrel temperature control.

8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.

SPECIFICATION	HJF360
Screw Type	A	B	C	D
Screw Diameter	Mm	60	65	70	75
Screw L/D Ration	L/D	22.6	21.2	19.4	18.5
Shot Size(Theoretical)	cm3	960	1128	1306	1480
Injection Weight(PS)	g	873	1026	1180	1346
Injection Rate	g/s	239	275	328	420
Injection Pressure	MPa	213	183	160	146
Screw Speed	rpm	0~180
Clamp ing Force	KN	3600
Opening stroke	Mm	700
Space Between Tie Bars	mm	680*680
Max.Mold Height	mm	670
Min.Mold Height	mm	240
Ejector Stroke	mm	160
Ejector Tonnage	KN	62
Max.Pump Pressure	MPa	16
Pump Motor Power	KW	37
Heater power	KW	17.25
Machine Dimension(LWH)	M	6.31.92.4
Machine weight	T	12
Oil Tank Capacity	L	620

The Machine Introduction

The machine use the high-performance servo dynamic control system,the oil pump as the power source,having the characteristics as follow:high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

Some of the important features

Clamping system: Faster response, steable and high rigidity.

Injection system: Accurate and flexible, lower rejection rate.

Control system: omputer and simple operation,molding data memory system.

Power system: Energy saving, high efficient and precise.

Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.

Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.

Oil treasure: Filter of hydraulic oil, good for pump and valves.

Long working life: Imported spare parts and updated version.

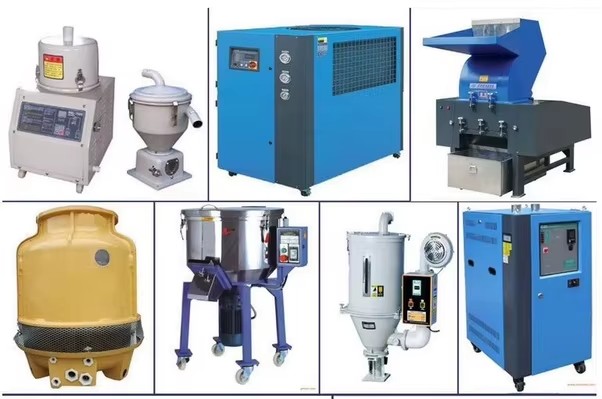

Auxiliary Equipment for Injection Molding Machines

Auto loader,Chiller,Crusher,Cooling Tower,Mixer,Hopper Dryer,water pump,robot, dehumidifier etc.if you need any other equipment,please feel freely contact with us.Thanks very much.

Q1. What is the warranty for the injection molding machine A1:Total 18 month,Included machine platen,base,injection unit,clamping unit. Q2:Can you sending engineer to oversea install machine and trainning customer's workers. A2: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free. After one week, 50$ per day Q3:How Many spare parts you will prepare for customer? A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual Tool box,Lubricate Oil,Sealing,Filter etc. Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian. A4:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea. Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ A5: When you place order,please write clearly.Then we will change the electric system for you. Q6:If i Need Green Color machine,can you do it for us? Q6: Yes,please give us the color sample.So we can do it for you.

Description images

Desma Rubber Injection Moulding Machine Price

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 103.20 for 1 set · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 38 fields

Machine type

Hydraulic

Distance between tie bars

725*725

Plastic processed

PE, HDPE, LDPE, PP, PC, ABS, PET, PVC, FRPP/PVC, EVA, PE/PP

Style

Horizontal

Key selling points

Easy To Operate

Ejector number

Core components

PLC, Motor, Pressure Vessel, Engine, Pump

Warranty

1.5 year

Machinery test report

Provided

Video outgoing-inspection

Provided

Plasticizing capacity(g/s)

438

Injection weight (g)

1430

Injection rate (g/s)

438

Weight (kg)

14500

Place of origin

Zhejiang, China

Power (kW)

Mold height(mm)

280 - 810 mm

Ejector stroke(mm)

170

Ejector force(kn)

110

Theoretical shot volume(cm3)

1589

Screw Speed (rpm)

1 - 160 rpm

Screw diameter (mm)

Screw L/D Ratio

20.5

Open stroke(mm)

745

Model number (Specification)

HJF400

Structure

Horizontal Injection Molding Machine

MACHINE WEIGHT

14500T

Clamping force

3600 kN, 3600KN

Space Between Tie Bar

725mm*725mm

Pump Motor Power

37KW

Oil tank capacity

950L

Machiner Dimensions(mm)

7m*1.9m*2.4m

Injection Rate

438g/s

Injection Weight

1026g

Plastic Type

Thermoplastic

Selling Units

Single item

Single package size

60X60X60 cm

Single gross weight

60.0 kg

Lead time

35 days

Minimum order

1 Units
