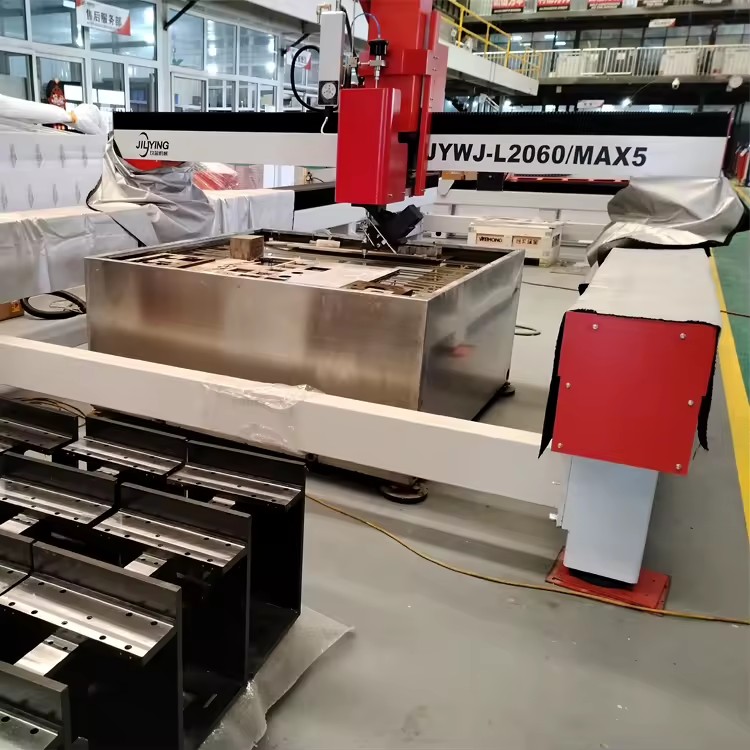

desktop New Design 5 Axis 4000x2000mm Water Jet Cutting Machine Waterjet Cutter

Available for enquiry 0.0 · 0 reviews
USD

$ 38,200.00 38200.0 USD $ 38,200.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Voltage
  • Number of axes
  • Repeatability (x/y/z) (mm)
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Dimension(L*W*H)
  • Key selling points
  • Rated power
  • Place of origin
  • Weight (kg)
  • Table travel (x) (mm)
  • Table travel (y) (mm)
  • Table travel (z) (mm)
  • Cutting accuracy(mm)
  • After-sales Service Provided
  • Name
  • Application
  • Type
  • Cutting material
  • Cutting mode
  • Function
  • Control system
  • Item
  • Model
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number
  • Effective cutting range (mm)

This combination is unavailable.

Key attributes

View all
Voltage
380V/220V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.001
Core components
PLC, Engine, Pump
Machinery test report
Provided
Warranty
1 Year
Product description

Maximum cutting range(mm)

3000x2000

2500x1500

2000x1500

1500x1500

1500x1000

800*800

Tool holder stroke (mm)

0-200

Driving speed servo motor (mm/min)

0-10000

Cutting precision (mm)

0.2

Control precision (mm)

0.05

Worktable motor

Fuji

Air compressor pressure (MPa)

0.6-0.8

Abrasive

Garnet

Grit size

600-100

Software

CNC

Contacts: Belinda

Mob/

Product description

Waterjet cutting machine

Characteristics of waterjet cutting platform

* Cantilever structure occupy less area and easy to use.

* The structure is strong and stable.

* The cutting platform uses high-quality liner guiding rail and rolling lead screw.

* Adopt servo-control system which makes the operation more stable.

* Centralized automatic lubrication system, humanization design, automatic equipment maintenance.

Pump

Simple, efficient, energy-saving.

The high pressure system is equipped with high pressure safety valve,which helps to achieve the infinitely adjustment in high and low pressure condition and the overload protection. It is also equippedwith frequency changer which makes the perforating in the low pressure condition and cutting in the high pressure condition possible.

Automatic cooling system, which is no need extra energy, can keep the machine working in 24 hours.

The temperature controlling system helps to check the operation condition of the machine.

Hydraulic oil pump drive

Delivery pressure: 60.000psi.

Cooling system:automatic circulating cooling system.

Hydraulic pump: It uses the international high-end variable displacement plunger pump.

Water filter: three-layer filtering system.

Safety protection system:protection system of oil temperature, water pressure and oil pressure.

Booster pump: It has the 60.000psi supercharger, powerful accumulator, high pressure water switch and pipeline system.

PRODUCT SPECIFICATIONS

PRODUCT CONFIGURATION

Waterjet cutting machine software

International advanced level water jet cutting dedicated software. Processing program synchronizes with graphics simulation which can help to avoid processing error. Automatically display cutting length of each part to make calculation convenient for customers. It can set X,Yaxis stroke soft limit to prevent the cutting head from going beyond the limit. Combine with graph of AUTO CAD drawing software. Automatically generate the NC programming.

Auto abrasive delivery System

n supply the cutting sand quantity according to the adjustable sand level location tube. 2.No need electronic control, simple operation, reliable, maintenance-free. 3.200liters capacity can provide enough sand for 8 hours. 4. Continuous cutting. 5.Need less than 0.2Mpa compressed gas pressure,sand amount evenly, delivery smooth. is the standard components of HEAD water jet.

Deionization system

1.Professional deionization system for water jet use. 2.Remove the calcium and magnesium ion, can improve the useful life of HP seals, orifice. 3.The outlet water amount can be 2ton/hour, can supply more than one machine. 4.Simple structure and reliable sealing, reasonable design of the flow passage. 5.Single tank control valve,no water pass the valve in washing.

Roll-over worktable

The roll-over table can turn over 85 degree angles. It makes the material getting on and off the worktable more convenient and reliable. Adopt high-power hydraulic station which can bear 600kg materials. Customers can handle the operation directly on the worktable.

Working Environment

The working conditions and environments used are: 1. Input power: 380V ± 5% / 50Hz ± 1, three-phase five-wire (according to customer requirements). Or Input power: 220V ± 5% / 60Hz± 1, three-phase. 2. Ambient temperature: 0℃-45℃. 3. At 40 ℃: relative humidity≤50%; At 20℃: relative humidity≤85%; 4. The use of occasions should not seriously affect the use of welding gas, steam, chemical deposition, dust, mold and other easy fuel and corrosive substances, and does not allow severe vibration and bumps. The equipment should be placed in a dry and ventilated place and prevent sunlight, direct and rain.

Company Profile

Company Information

Our Services

1. Installation

Free installation and commissioning, travel expense is on foreign customer.

(Including round ticket and accommodation cost)

2. Personnel training

Free training for about one week.

3. After-sale service

One year warranty. During warranty period, free maintenance service can be provided.

(except man-made faults or damages arising from irresistible natural factors)

Our Certificate

Packaging & Shipping

FAQ

Q1.What is our main product?

Q2.When can I get the price?

A2:We usually offer the quotation within 8hours, For urgent offer, please

Q3.What is the Trade Term?

A3: We accept Ex-work factory, FOB Dalian, CNF or CIF, as your requirement.

Q4.How long is our Production leading time?

A4: It depends on type of equipment. We often deliver the goods within 35days.

Q5.What is the Payment term?

A5: By T/T before shipment or By L/C at sight.

Q6. During shipping, if there is a damage to products, how do you get replacement?

A6: Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer. Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.

Q7. What are your terms of packing?

A7: Packing: export worthy package suitable for container transportation. Wooden case, iron pallet, plastic film ect.

Q8. Do you test all your goods before delivery?

A8: Yes, we have 100% test before delivery.

Q9: Where is your factory located?

A9: Our factory is located in Dalian, Liaoning province.

Q10: What is your warranty?

A10: Warranty: 24 months after commercial running or 18months from the date of shipment, subject to the earlier expiry.

Q11: Can you arrange thirty party pre-shipment inspection?

A11: Pre-shipment inspection: Supplier’s pre-shipment inspection is Final; pre-shipment inspection by third Party on buyers cost.

Q12:Can we do our OEM logo?

A12:Yes, for the products with drawing supplied by you, we of course apply your logo

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Ocean + Truck via Maersk · Approx. shipping fee: $ 1,582.00 for 1 set · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 31 fields
Voltage
380V/220V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.001
Core components
PLC, Engine, Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
3000x2000x2000
Key selling points
Competitive Price
Rated power
37KW
Place of origin
China, Liaoning
Weight (kg)
4400
Table travel (x) (mm)
3000
Table travel (y) (mm)
2000
Table travel (z) (mm)
200
Cutting accuracy(mm)
0.02
After-sales Service Provided
Engineers
Name
CNC Water Jet Cutting Machine
Application
Industrial Metal Cutting
Type
Water Cutting
Cutting material
Stone.etc
Cutting mode
Water Cold Cutting
Function
High Pressure Water Cutting
Control system
CNC Controller
Item
Water Jet Cutting Machine-001
Model
JYWJ-2060
Selling Units
Single item
Single package size
300X200X200 cm
Single gross weight
3000.0 kg
Model number
2015
Effective cutting range (mm)
4000×2000, 2500×1500, 1000×1000, 1300x2500, 1200×1200, 1300×1300, 1500×1500, 1500×3000, 2000×1500, 2000x3000, 2000×6000, 3000×1500, 3000×2000, 6000×2000, 6000*2000
Lead time
31 days
Minimum order
1 Units
