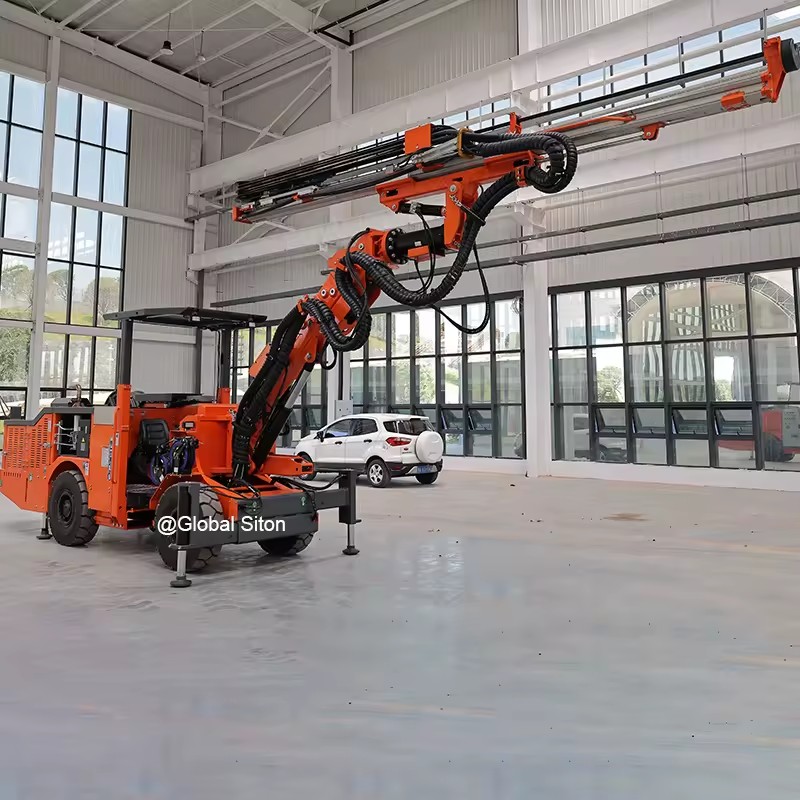

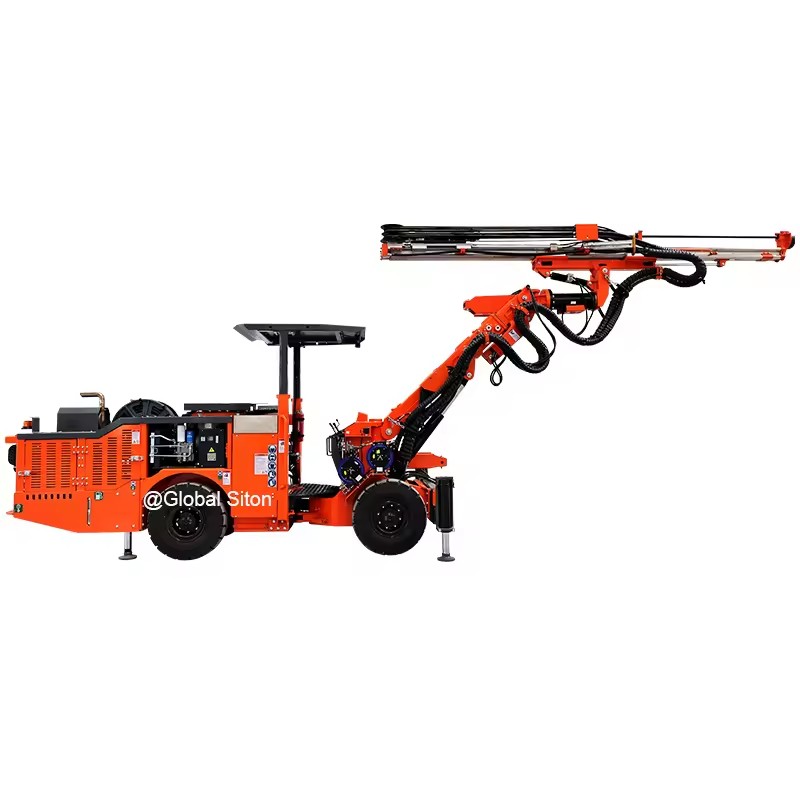

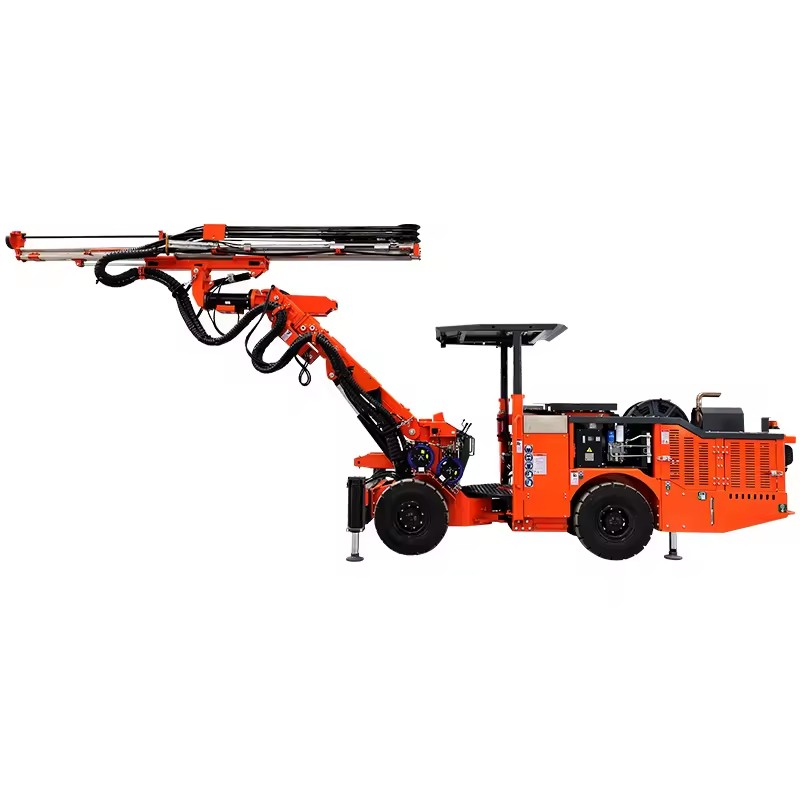

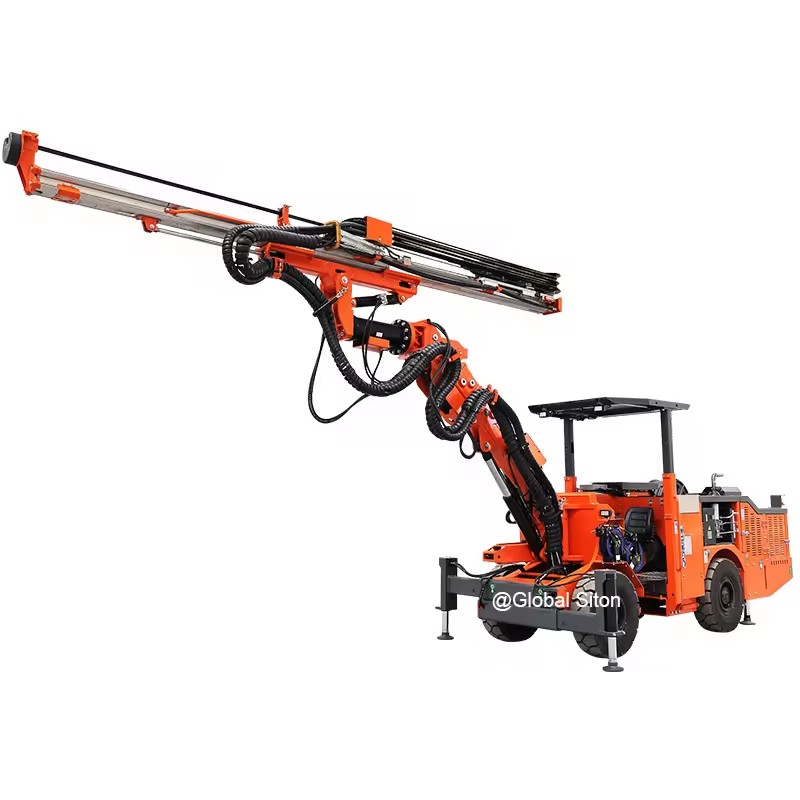

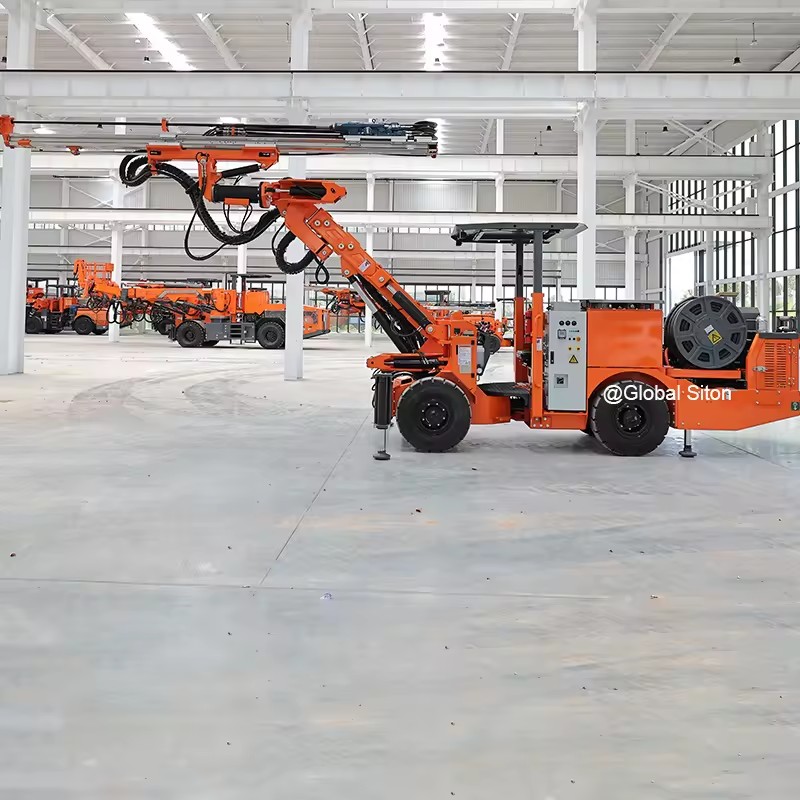

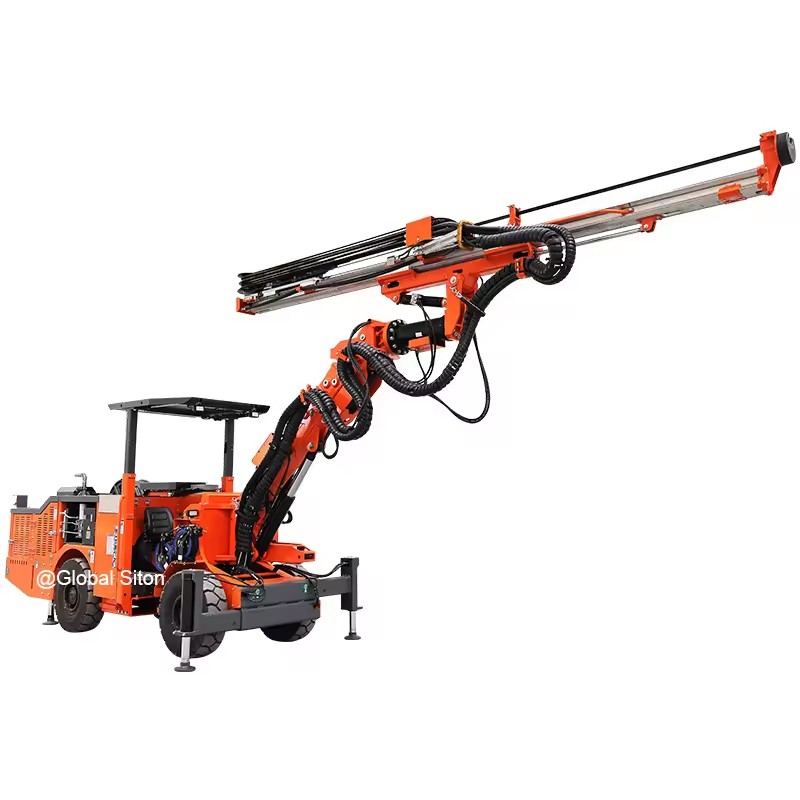

DD2 Precision Drill Rig for Underground Metal Mine Development Drilling

Available for enquiry 0.0 · 0 reviews
USD

$ 384,830.00 384830.0 USD $ 384,830.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Model
  • Dimension
  • Working area (Specification)
  • Application
  • Usual Trading Ports
  • Payment terms
  • Packaging Details
  • Production Ability
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Usage
Ore
Type
Face Drilling Rig
Drilling Depth
3400mm/4000mm
Drilling Diameter
102mm(4.02in), 76mm(2.99in), 33mm(1.30in)
Power Type
Diesel
Voltage
380 V
Product description

Note

Model No.DD1DD2DD2-N
Main Information
Dimension (mm*mm*mm)9664X1250X (1842/2542)10375X1600X (2080/2780)9860X1390X1880/2580
Weight (KG)8600115008600
Turning Radius (mm)2809/45002400/52002400/4800

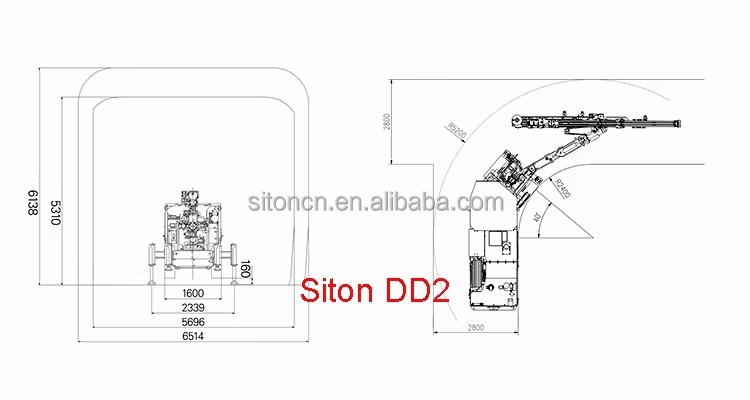

Working Area (m*m)2X2-5 X4.52.8X2.8-6X62.3X2.3-5.5 X4.5
Feed
Drill Rod Length (mm)30903700/43053090/1830
Hole Depth (mm)27003400/40002750/1550
Propelling Force (KN)121515
Electrical System
Main Motors Power (KW)555555
Voltage (V)Customized
Hydraulic System
Max. System Pressure (Bar)230230230
Filtration Accuracy (μm）101010
Chassis
Engine Rated Power (KW)35.95350
Walking Speed (Km/h)8.51010
Climbing Ability (degree °）14
All models are equipped with an 18kW rock drill as standard. The following are optional rock drills.
Rock Drill
ModelUnitA18D/L (standard)S20D/LA22L/D
ShankT38T38T38
Drilling Diametermm64-7643-6464-102
Max. Impact powerkW182022
Impact FrequencyHZ606753
Description images

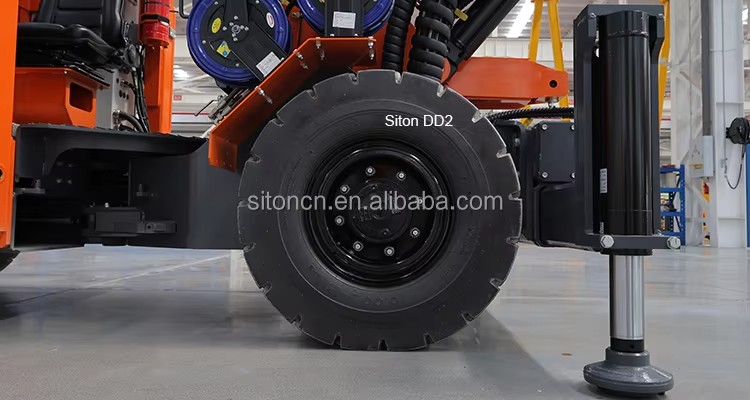

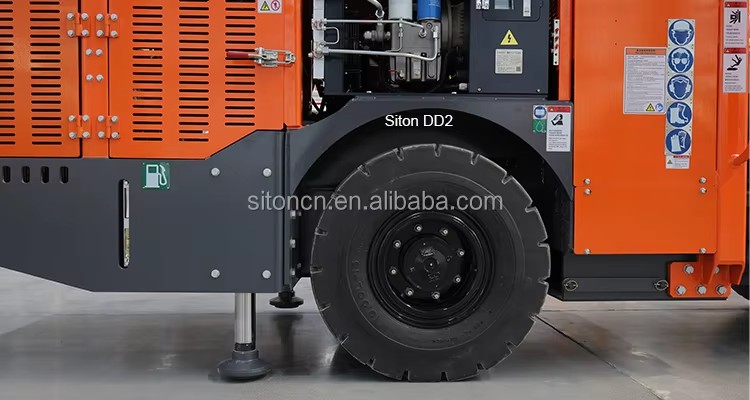

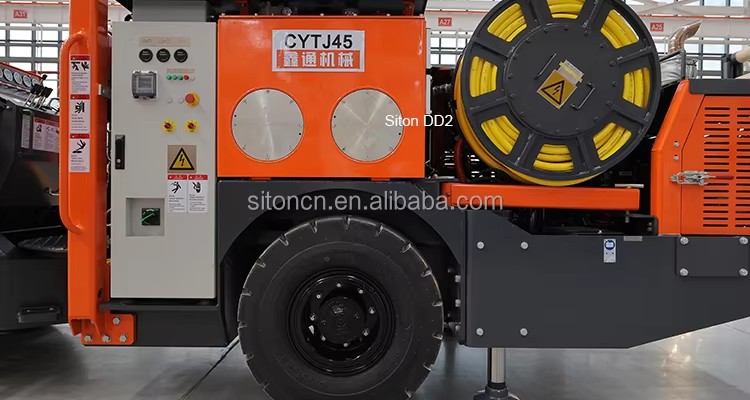

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    45 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
Ore
Type
Face Drilling Rig
Drilling Depth
3400mm/4000mm
Drilling Diameter
102mm(4.02in), 76mm(2.99in), 33mm(1.30in)
Power Type
Diesel
Voltage
380 V
Core components
Bearing, Motor, Pressure Vessel, Gear, Pump, Other
Warranty
3 Years
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Automatic
Place of origin
China, Jiangxi
Weight
11500 KG(25353.16lb)
Dimension (L*W*H)
10375X1600X (2080/2780) mm
Model
DD2
Dimension
10375X1600X (2080/2780) mm
Working area (Specification)
2.8X2.8-6X6
Application
Coal Mine, underground mine
Usual Trading Ports
Shanghai, Shenzhen, Ningbo
Payment terms
T/T, L/C, Western Union, PayPal (PP)
Packaging Details
FCL and Wooden Cardboard Packaging
Production Ability
800 sets /year
Selling Units
Single item
Single package size
XX cm
Single gross weight
0.0 kg
Model number
DD2
Power (W) (Product option)
18kwRockDrill, 20kwRockDrill, 22kwRockDrill
Lead time
45 days
Minimum order
1 Units
