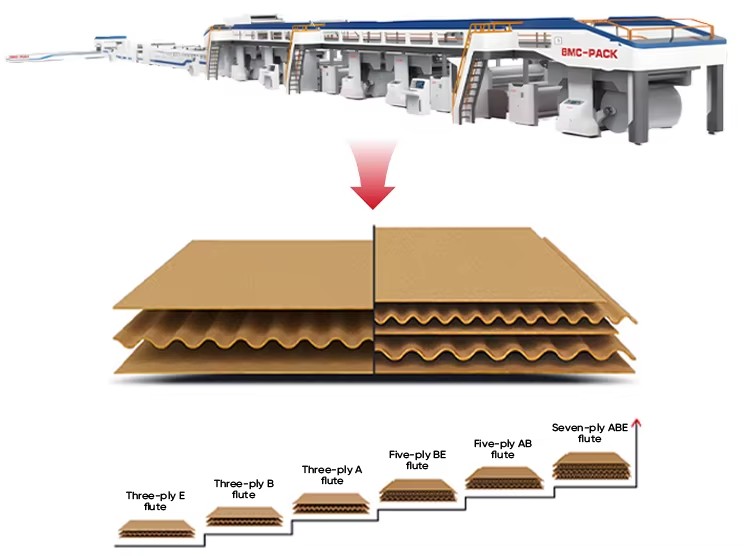

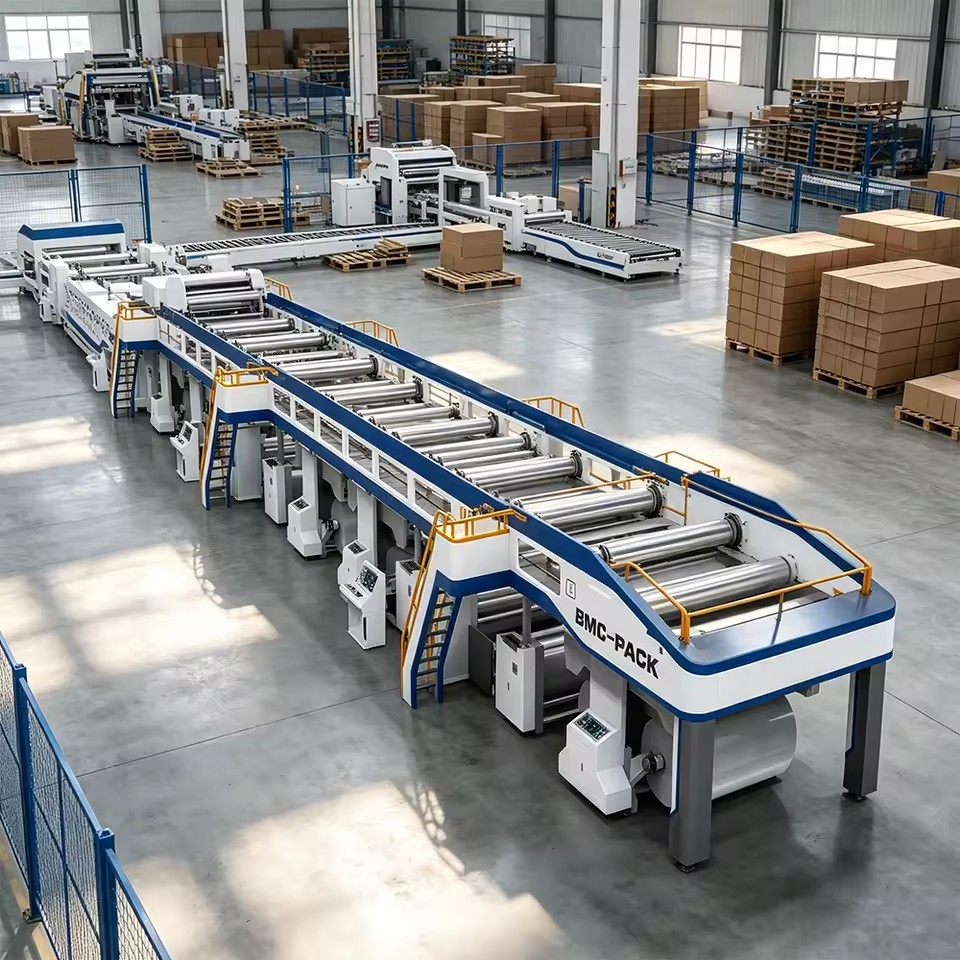

Precision Processing 3 5 7 Layer Corrugated Paperboard Production Line Fully Automatic Corrugated Board Making Unit

Available for enquiry 0.0 · 0 reviews
USD

$ 1,331,920.00 1331920.0 USD $ 1,331,920.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Automatic grade
Automatic
Packaging material
Cardboard, Corrugated Cardboard, Corrugated Carton, Carton
Key machines
Packaging Forming Machines, Gluing Machines, Boxing Machines, Corrugator, Gluing Machine, Drying Oven Slitting
Voltage
380V / 50Hz
Machinery capacity
200-300m/min
Place of origin
China, Hainan
Product description
  • Supports high-volume automatic continuous production, manufactures qualified corrugated cardboard conforming to international quality standards. Adopts centralized control system, simple, safe and reliable operation & maintenance, greatly reduces labor consumption for cardboard factories.
  • Equipped with advanced thermal oil heating energy-saving system. Energy consumption is reduced by 40% compared with traditional steam heating lines, effectively cutting operating costs. Ideal economical and efficient production solution for medium & large carton packaging manufacturers.
  • Flexible whole-line configuration. Total line length approx.110 meters, total power around 450kW. Customers can choose electric mill roll stand or hydraulic mill roll stand according to raw paper loading requirements.

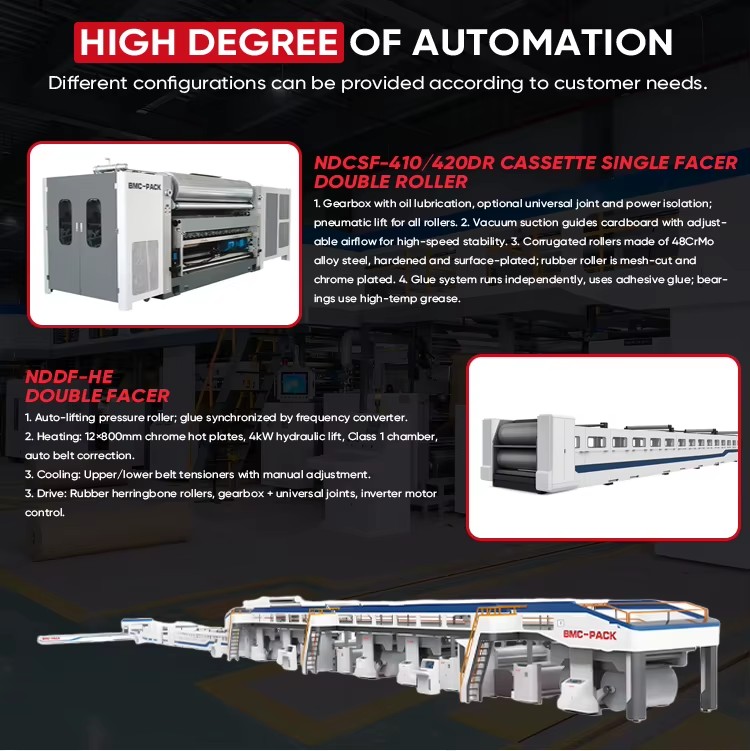

  • Corrugating unit equipped with corrugating rollers ranging from 280mm to 405mm diameter, matched with variable speed motor. Stable forming, neat corrugation shape, ensures flat surface and consistent strength of finished cardboard.
  • Double cylinder gluing machine adopts built-in twin-layer paper suction structure. Realizes stable paper feeding and precise guiding, achieves uniform glue coating, avoids glue shortage or overflow defects. Three optional speed specifications to satisfy different production capacity demands.

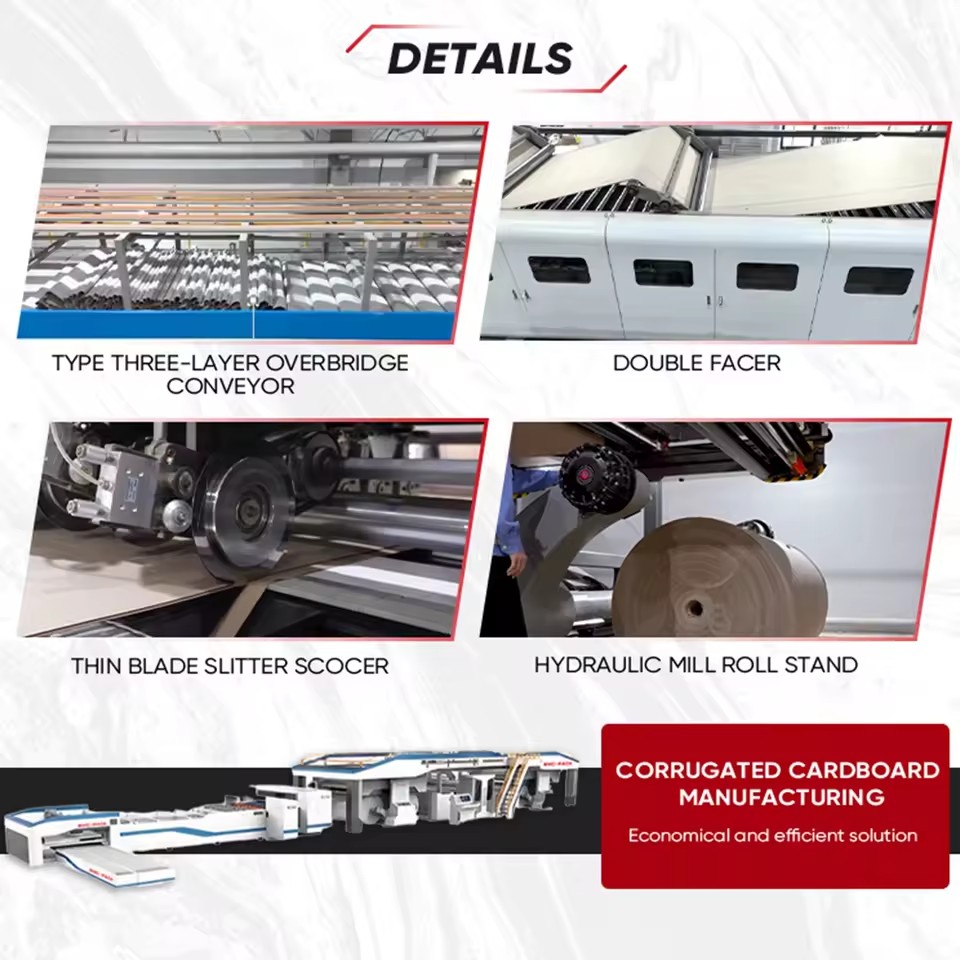

  • Complete supporting post-processing units: 7.8m long drying oven with 9–18 heating assemblies; 3.8–5m setting section with symmetrical pressing rollers; integrated horizontal & longitudinal slitter. Ordinary blades and ultra-thin blades are optional, high automation, clean cutting edges, easy operation.
    • MODELNDWJ300 -2200 -2500 -3000
    Total meterAbout 11Ometers (based on foundation drawing)
    Design speed300m/min
    Working speedWithin the normal cardboard range 200m/min
    Max.Paper size2200-2500-3000mm
    Total powerApproximately 450kW
    Line directionLeft
    Steam pressure0.8 -12MPa
    Air compression0.6 - 1.0MPa
    Oil compression6-10MPa
    Direction of operatingCustomer decides (left or right side)
    Description images

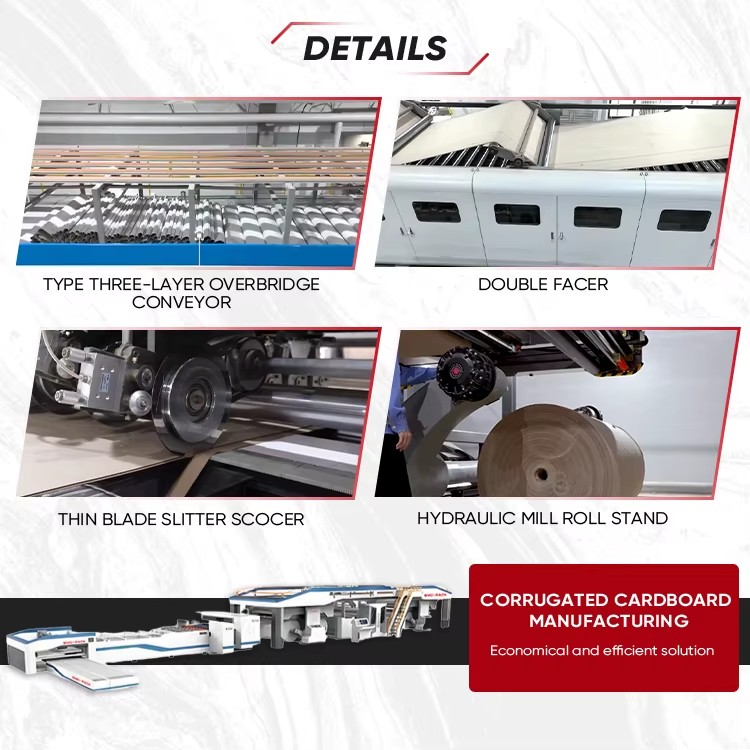

    Precision Processing 3 5 7 Layer Corrugated Paperboard
    Precision Processing 3 5 7 Layer Corrugated Paperboard
    Precision Processing 3 5 7 Layer Corrugated Paperboard
    Precision Processing 3 5 7 Layer Corrugated Paperboard
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      15 days

    • Step 3

      Packaging and dispatch

      Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 22 fields
    Automatic grade
    Automatic
    Packaging material
    Cardboard, Corrugated Cardboard, Corrugated Carton, Carton
    Key machines
    Packaging Forming Machines, Gluing Machines, Boxing Machines, Corrugator, Gluing Machine, Drying Oven Slitting
    Voltage
    380V / 50Hz
    Machinery capacity
    200-300m/min
    Place of origin
    China, Hainan
    Weight (kg)
    120000
    Dimension(L*W*H)
    110m*5m*4.5m
    Power
    450kW
    After-sales Service Provided
    After-sales Service Provided
    Application
    Carton box making machine and corrugated packaging industry
    Keyword
    Corrugated Carton Paperboard Making
    Function
    High Effieciency, Automatic corrugated box production line
    Advantage
    Easy Operation High Efficiency
    Material
    Carton, Corrugated Cardboard
    Usage
    3/5/7 Ply Corrugated Cardboard Machine
    Suitable for
    Package Box Making Machine
    Speed
    200-300m/min
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Model number
    3 5 7 Layer Corrugated Paperboard Production Line
    Lead time
    15 days
    Minimum order
    1 Units
