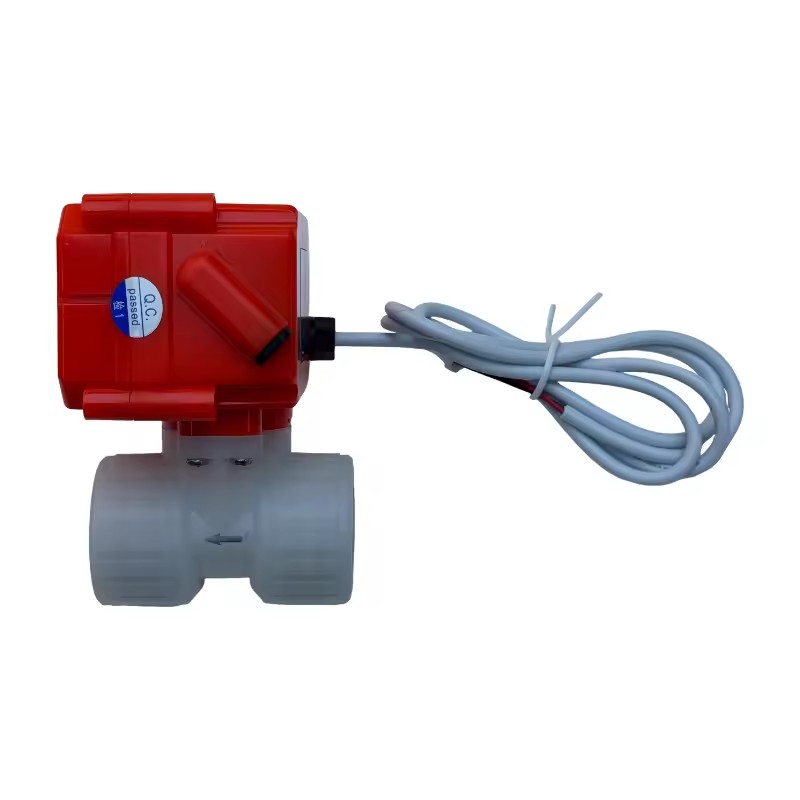

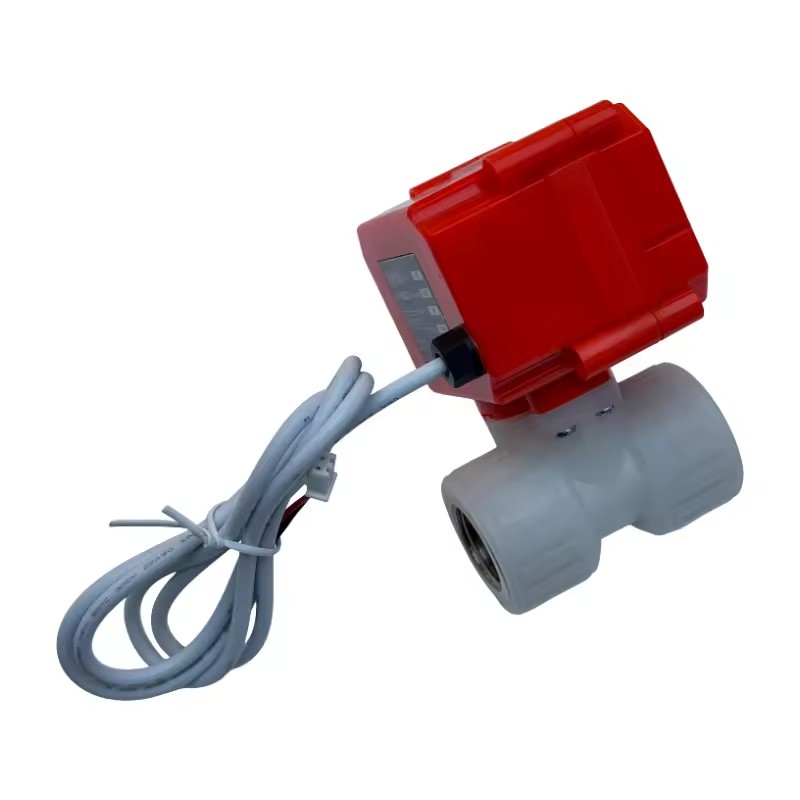

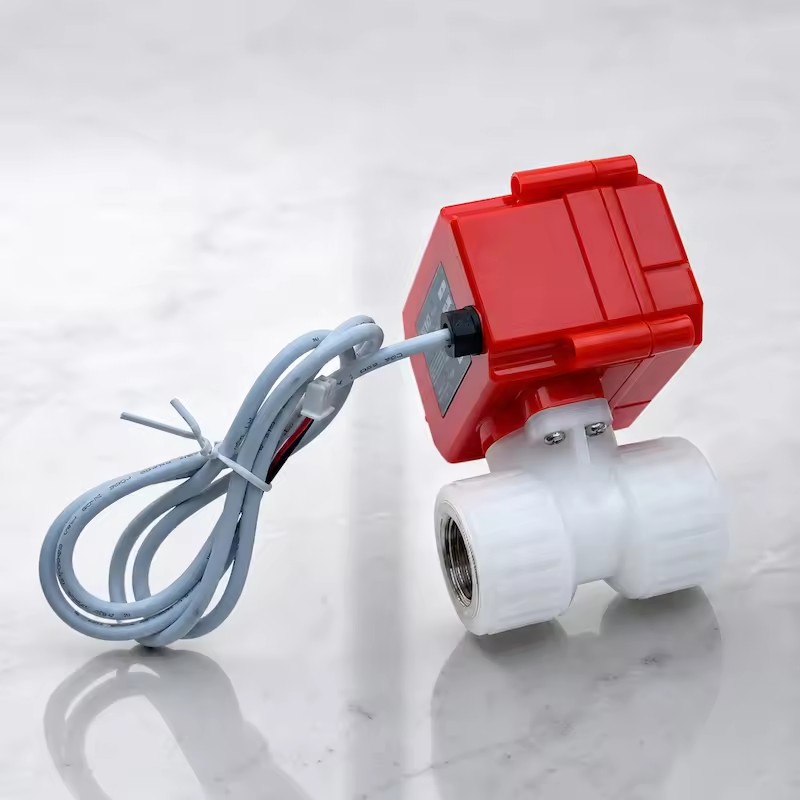

DC12V/24V Quick-operating Electric Ball Valve 2-way PVDF Water Use Control IP67 Protection 0.6MPa OEM Supported Electric

• Connection Size
  • 1/2 in
• Operating Pressure
  • Maximum 0.6 MPa (PN6)
• Operating Temp. Range
  • 20°C to 45°C
• Media
  • Gas
  • Liquid
• Sealing Material
  • Silicon rubber
• Connection Type
  • Thread
• Power
  • electric
• Ball Material
  • PVDF
• Port Size
  • 1/2 in
• Flow rate
  • Varies with valve size and application
• For Maximum Pipe Size
  • 10mm
• Application
  • General
  • Demanding quick opening and quick closing
• Temperature of media
  • 0°C to 100°C
• Structure
  • Ball
• Customized support
  • OEM
  • ODM
  • OBM
• Place of origin
  • China
  • Tianjin
• Model number (Specification)
  • Quick-operating electric valve
• Nominal Voltage
  • DC12V
  • DC24V
• Max Angle Of Rotation
  • 90±2°
• Degree Of Protection
  • IP67
• Medium Temperature
  • 0°C to 100°C
• Ambient temperature
  • 20°C to 45°C

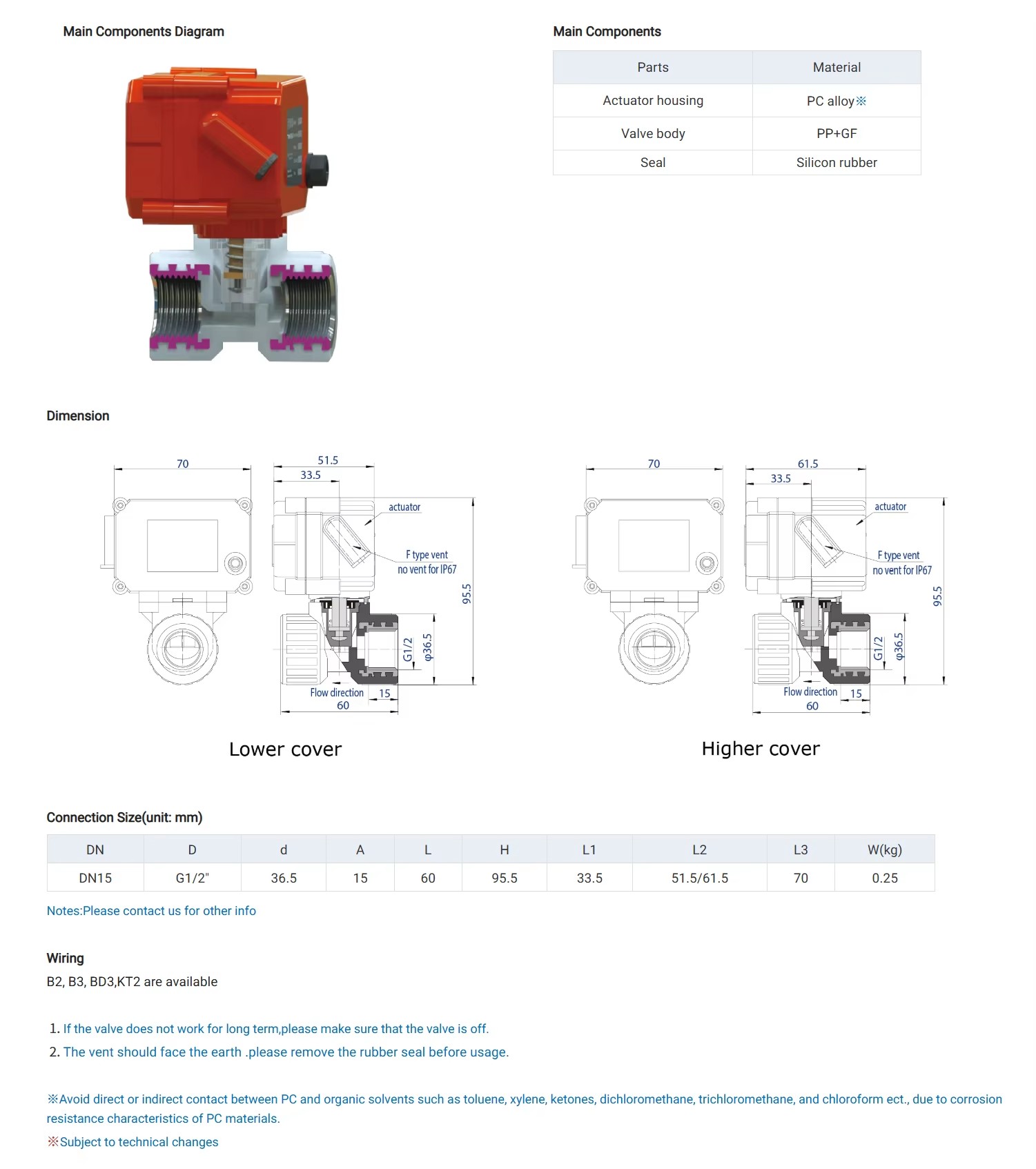

• Parts
  • Actuator housing
  • Valve body
  • Seal
• Applications

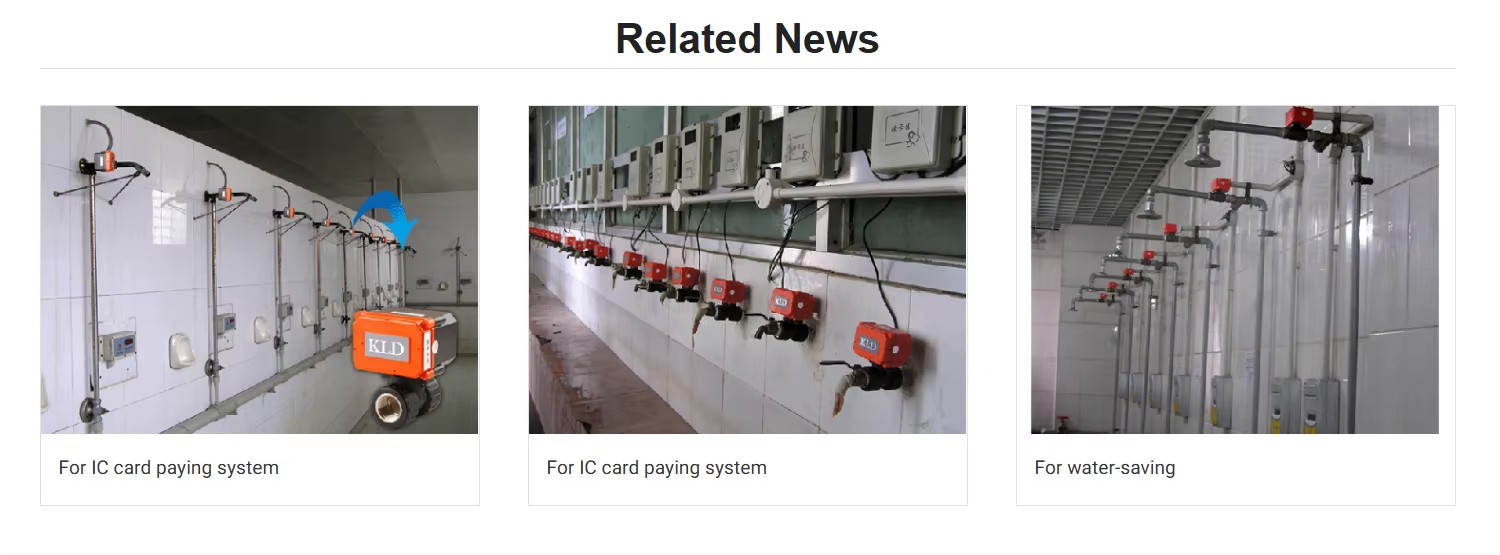

  • Water billing
  • Instrument-control equipment
• Wiring
  • B2
  • B3
  • BD3,KT2 are available
• Selling Units
  • Single item
• Single package size
  • 30X30X40 cm
• Single gross weight
  • 5.0 kg
• Pressure (Product option)
  • 0.6 MPa
• Size (Product option)
  • DN15-1/2 in
• Material (Product option)
  • DC12V
  • DC24V
