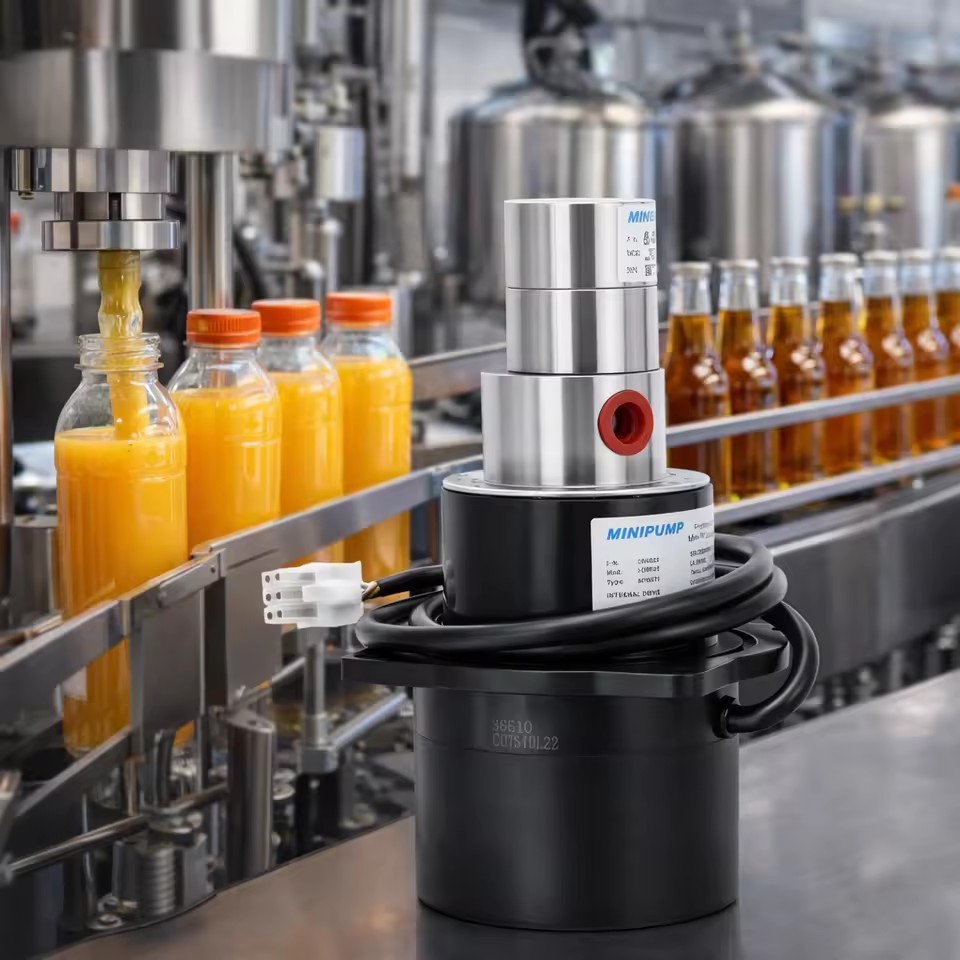

High Precision Self-Priming Magnetically Coupled Drive Dosing Gear Pump with BLDC Motor for Food Filling Oil Transfer Metering
Price
$
320.00
Product information
Attributes
Application
Other
Structure
ink pump
Max flow rate
7.3L/min
Max pressure
0.05-1.2MPa (preset value0.7MPa)
Power source
Electric
Applicable temperature
40 to 105 degrees Celsius
Material
Stainless Steel
Motor
Stepper Motor, servo motor, Brushless DC Motor
Warranty
1 Year
Customized support
OEM, ODM, OBM
Pressure
0.35MPa

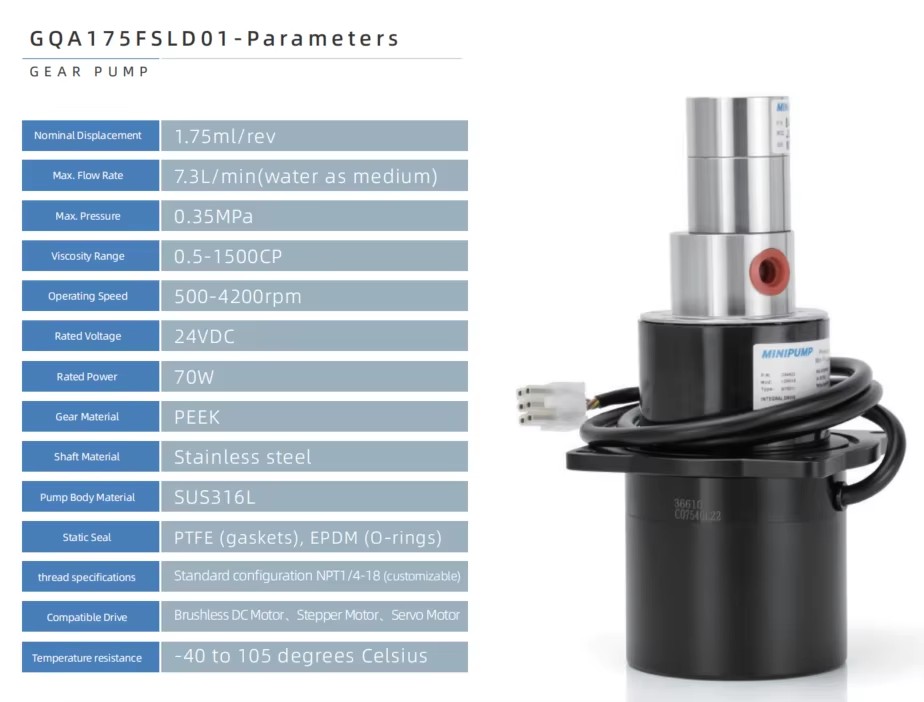

Model number (Specification)
GQA175FSLD01
Place of origin
China
Nominal displacement
1.75ml/rev
Max. flow rate
7.3L/min(water as medium)
Max. pressure
0.35MPa
Viscosity Range (Specification)
0.5-1500CP
Operating Speeds
500-4200rpm
Rated voltage
24VDC
Rated power
70W
Gear material
PEEK
Pump body material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
Thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature Resistance
40 to 105 degrees Celsius
Selling Units
Single item
Single package size
13.5X12X12 cm
Single gross weight
0.8 kg
Flow Rate (Product option)
500-4200rpm
Maximum head
Other
Type (Product option)
Positive Displacement Pumps
Voltage (Product option)
24VDC
