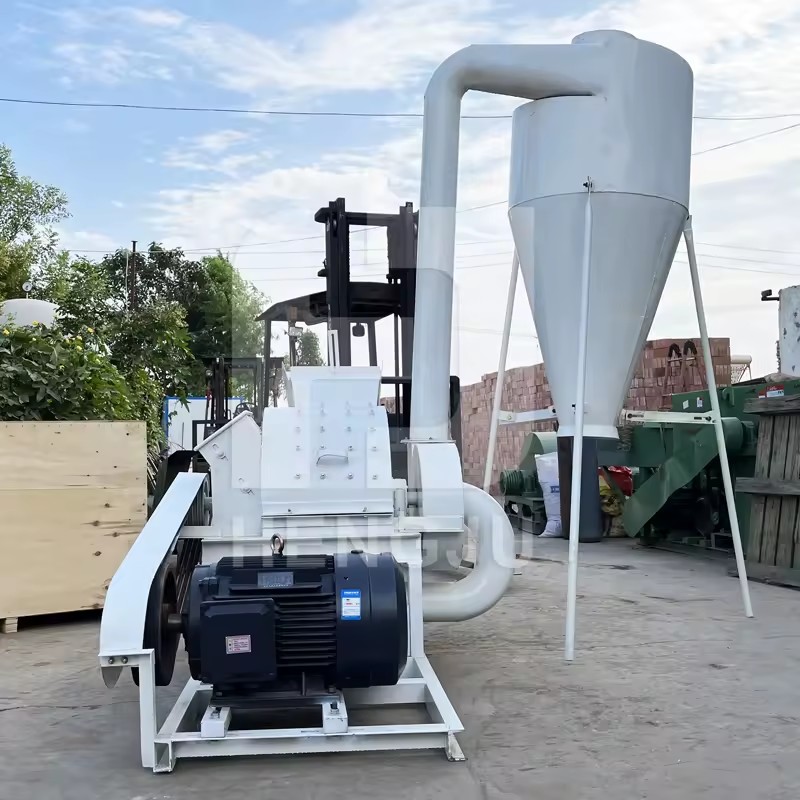

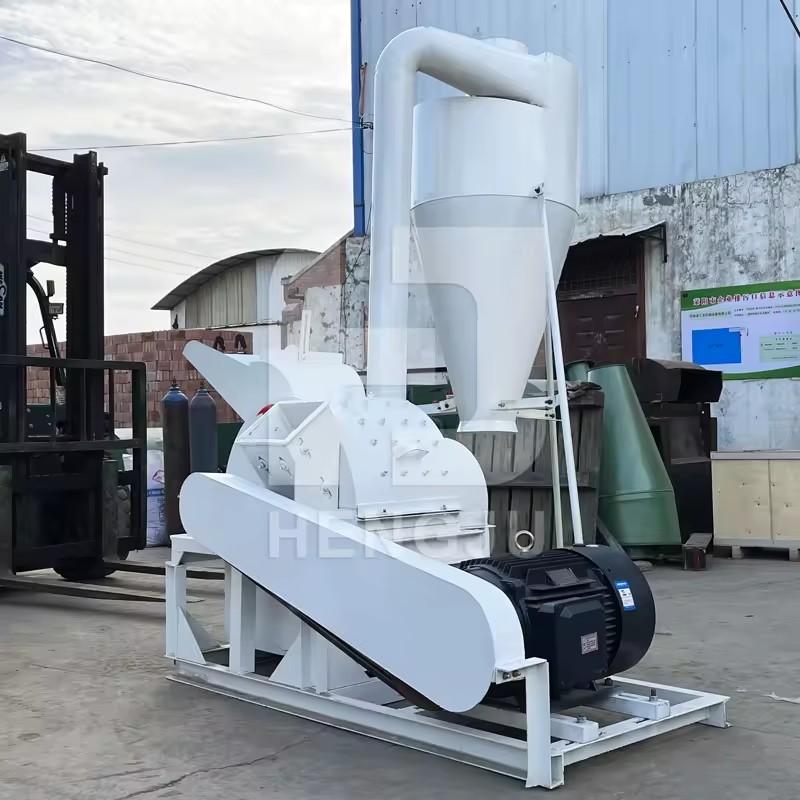

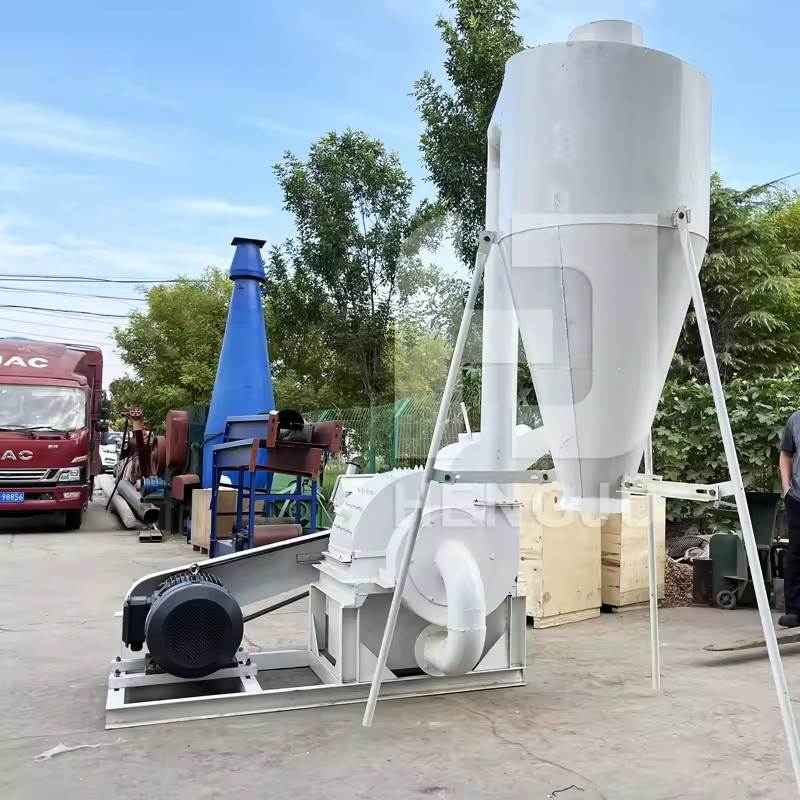

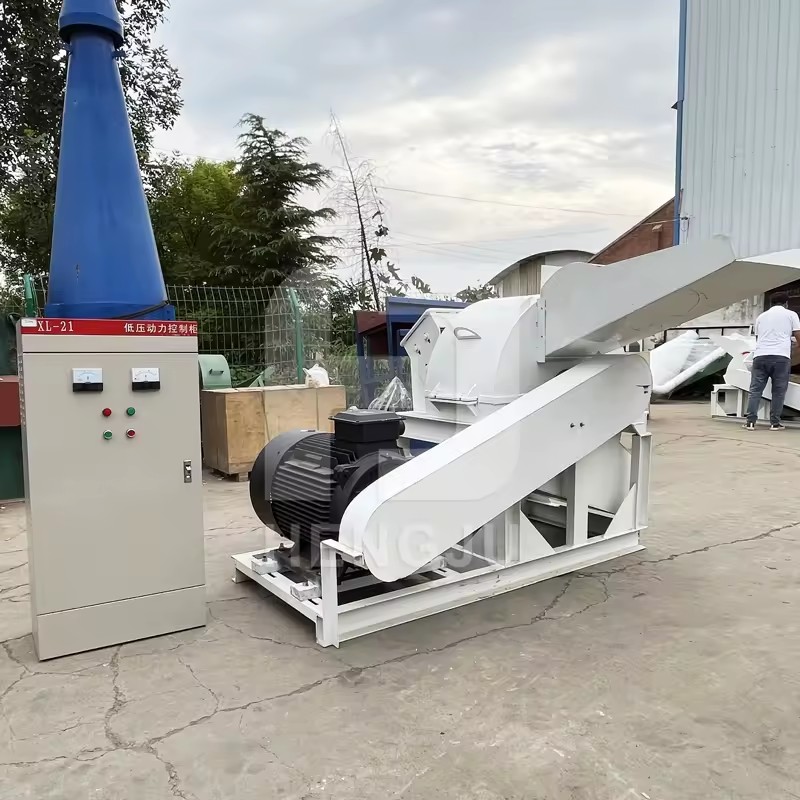

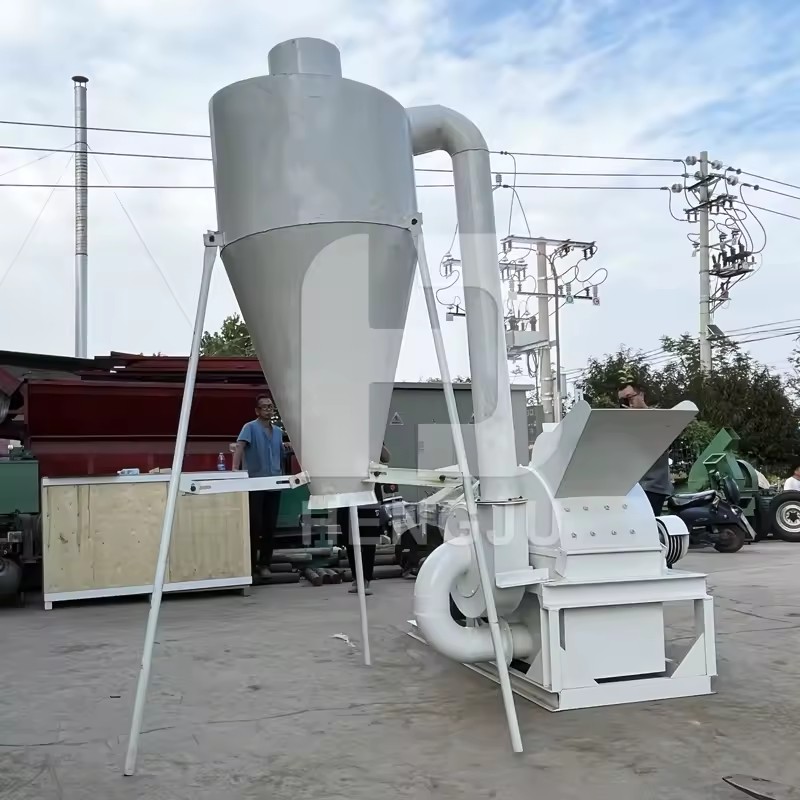

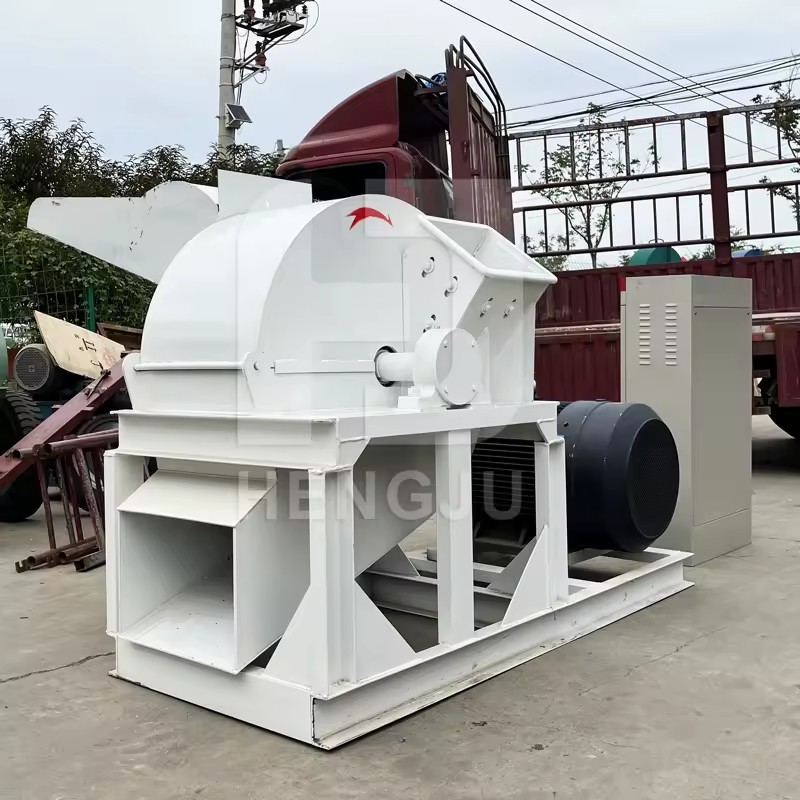

Wood Crusher Machine Industrial Mini diesel Electric Wood Chipper Machine

Available for enquiry 5.0 · 1 reviews
USD

1,640.00 1640.0 USD 1,640.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Capacity
2T/H, 4t/h, 5T/h, 3T/h
Voltage
380V
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Core components
Bearing, Engine
Product description

Multi functional wood crusher in the original basis of the increase of the disc cutting function, in addition to grinding wood, branches, leftover material, wood, cutting feed inlet can be into the phi 150-250mm logs and not easy to crush the raw materials.

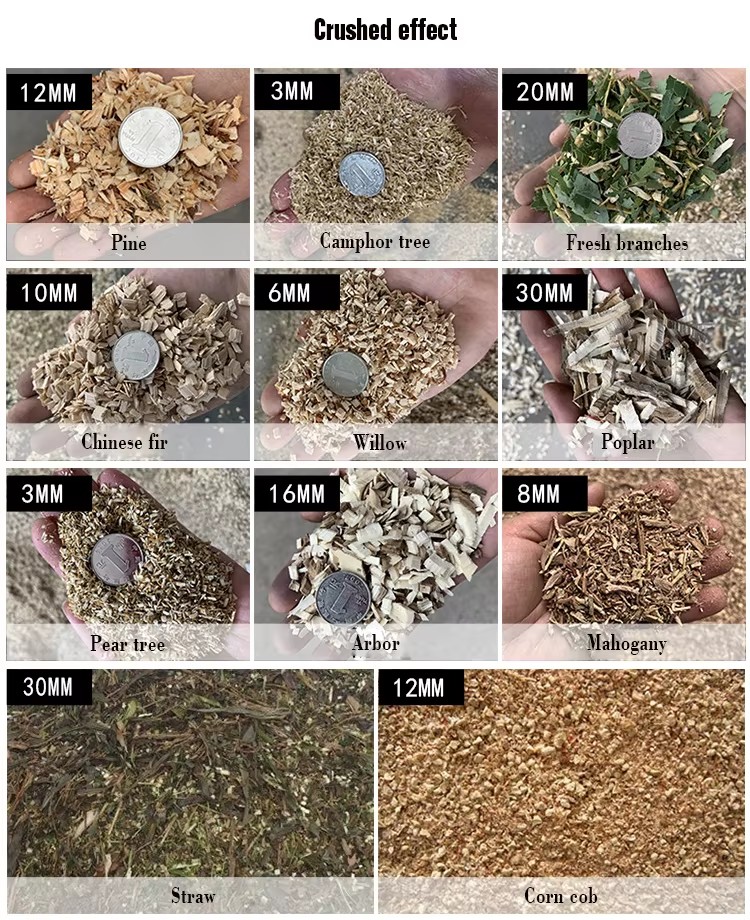

The working principle: The cutter cutting into sheets, and then crushed by the crushing cavity of the hammer. Applicable Materials: 1. PHI150-250mm logs and not easy to crush the raw materials. 2. Grinding wood, branches, leftover material, wood.

TypeBlade numberImport · size (mm)cutter diameter (mm)Blade size (mm)speed of mainshaft (r/min)Power (kw)Capacity (t/h)boundary dimension (cm)
4204180*21042070*90*8260011-150.5-1150*77*90
5004170*21051070*120*8200018.5-221-2150*68*85.5
7006190*23060070*150*8200037-452-3160*80*105
10008300*290750100*150*10200055-753-5112*115*107

Product Advantage: 1. Trealize diversification and multi-function of the raw materials, 2. The raw material is no longer a single. 3.The types of raw materials more suitable for complex user.

Notice: 1.Big machines packed in nude or shipping in containers. 2. Spare parts packed in wooden case. 3. If you have any special requirement, we will pack as request.

Q: Are the machines you produce all of a uniform standard?

A: We will customize the machine for you according to your requirements.

Q: How to choose the right machine?

A: Please tell us your raw materials for production and the output you need as well as other requirements, we will recommend the most suitable products for you.

Q: How is the machine installed?

A: Under normal circumstances, we provide the whole machine for delivery. We will provide detailed installation drawings for each machine. We can also arrange technicians to go to the site to guide the installation.

Q: What about the supply of main parts?

A: Spare parts will always be available at cost and a spare parts list will be provided when you purchase the machine.

Q: Do you test the machine before shipping?

A: Yes, we will test each machine and

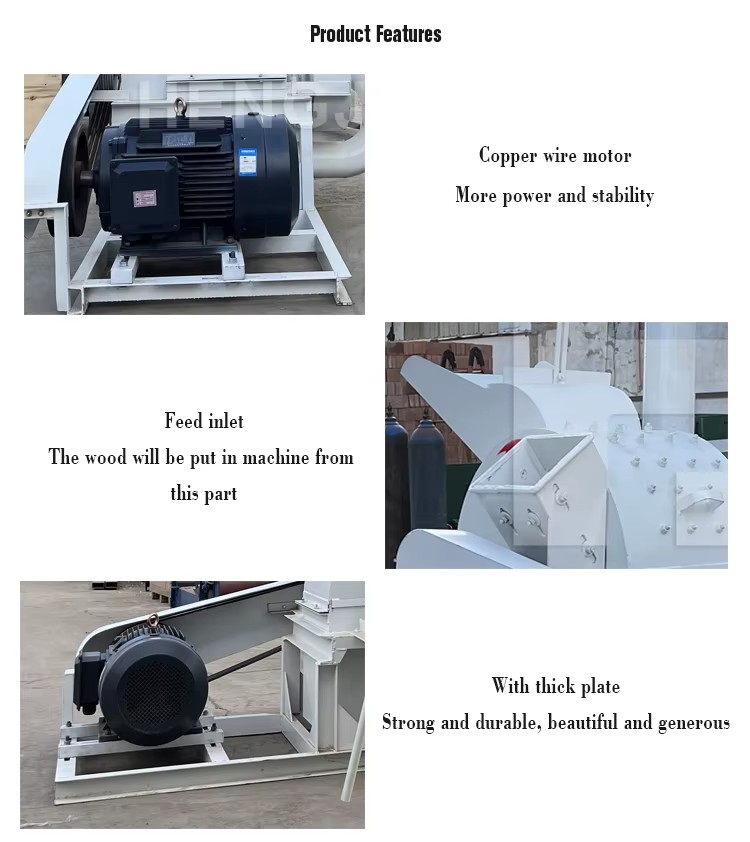

Description images

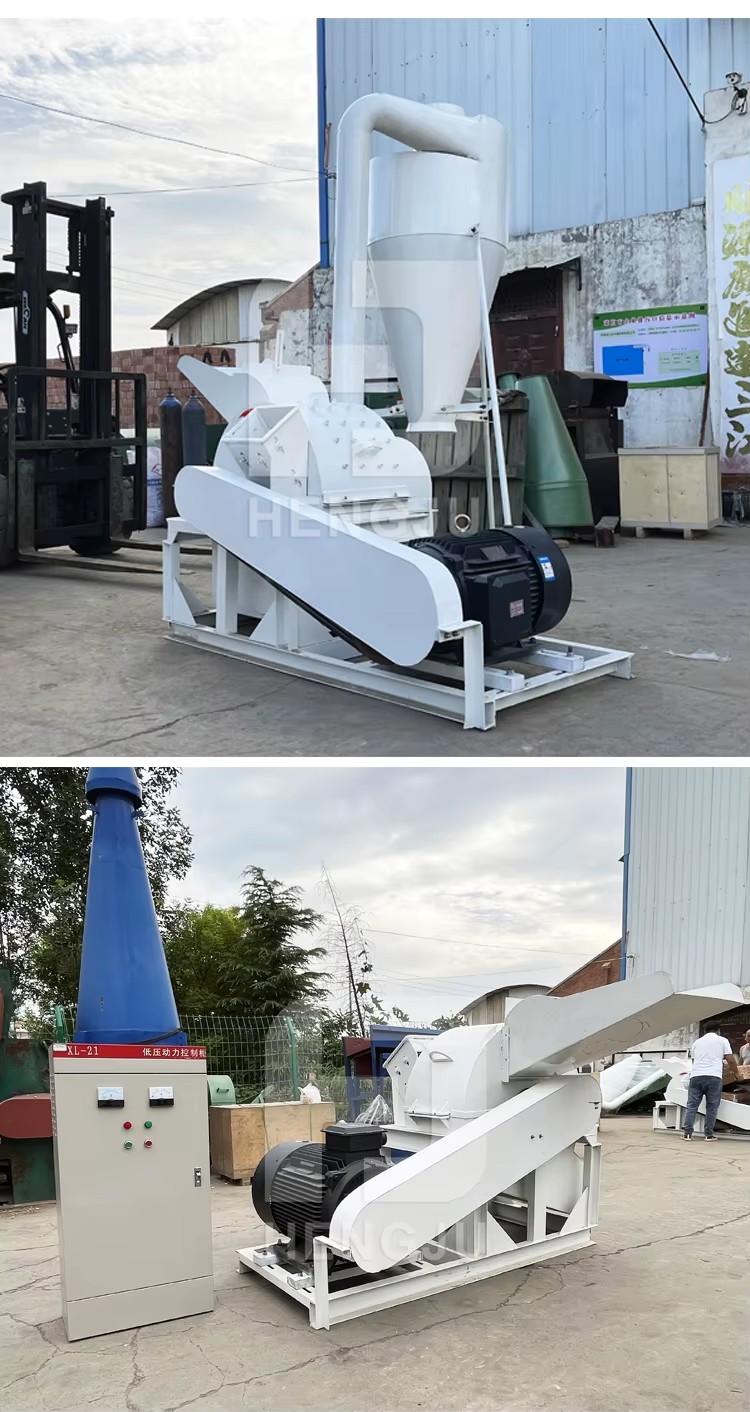

Wood Crusher Machine Industrial Mini diesel Electric Wood Chipper Machine
Wood Crusher Machine Industrial Mini diesel Electric Wood Chipper Machine
Wood Crusher Machine Industrial Mini diesel Electric Wood Chipper Machine
Wood Crusher Machine Industrial Mini diesel Electric Wood Chipper Machine
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 21 fields
Capacity
2T/H, 4t/h, 5T/h, 3T/h
Voltage
380V
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Core components
Bearing, Engine
Key selling points
Famous Brand PLC
Place of origin
China, Henan
Power(w)
45
Weight (kg)
600
Advantage
energy saving
Package
Wooden Case
Shipping
By sea and air
Usage
Chip.shaving.sawdust
Type
Widely Used Wood Shaver
Model number (Specification)
wood chipper machine
Certification
CE ISO
Warranty of core components
1 Year
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Lead time
15 days
Minimum order
1 Units
