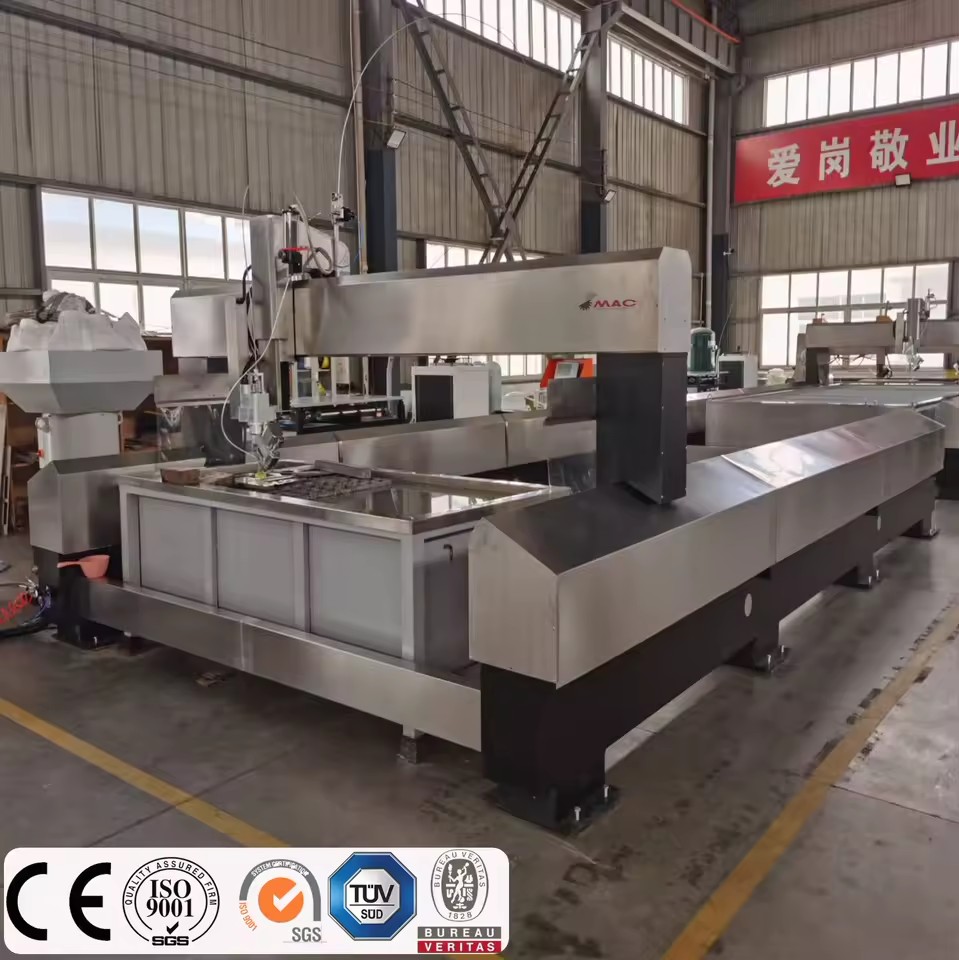

High Quality CE Certification Heavy Duty Full-automatic CNC Machine Meta Cnc Cutter Waterjet Cutting Machine

Introduction

X Axis Cutting Stroke

3m

Y Axis Cutting Stroke

1.6m

1.8m

Z axis Stroke

180mm

CNC Control

SEMYX

CAM Software

Included

Cutting Speed

0-15m/min

Free Speed

20m/min

Acceleration

1m/s2

Accuracy

0.08mm

Drivers

AC Servo Motors

Motion for X Axis

Ball Screw

Motion for Y Axis

Motion Part Protection

Bellow

Pump

50HP

Pump pressure

4000Bar

Z -axis

1

Water Treatment System

optional

Abrasive Tank Capacity

50 L

Abrasive Feeder

Automatic

Abrasive Removal

Layout

See the layout

Product Description

Water jet technology is the ordinary water through

the ultra-high pressure supercharger

the pressure increased to 100000PSI. Water arrows are then formed through a tiny gem nozzle hole. There are two types of water jet cutting

pure water cutting

and

abrasive cutting.

Charasteristic

● Water level control

● High quality and precision components ● Adopt stainless steel anti-rust and protection ● Fully enclosed organ shield ● Control software designed for all kinds of cutting

Details Images

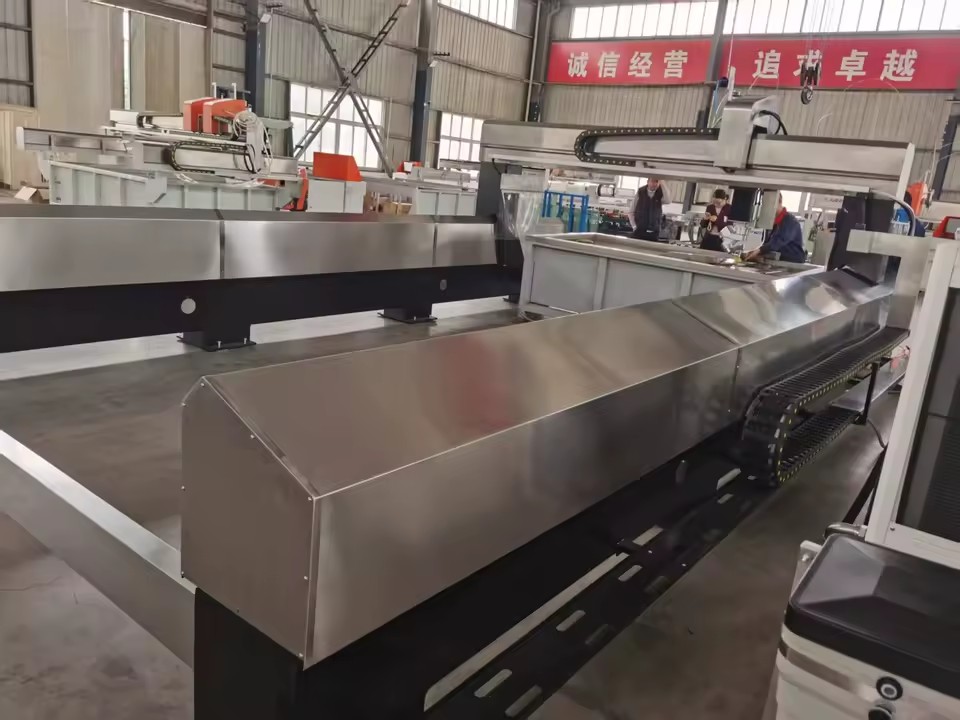

A.Body and Drive

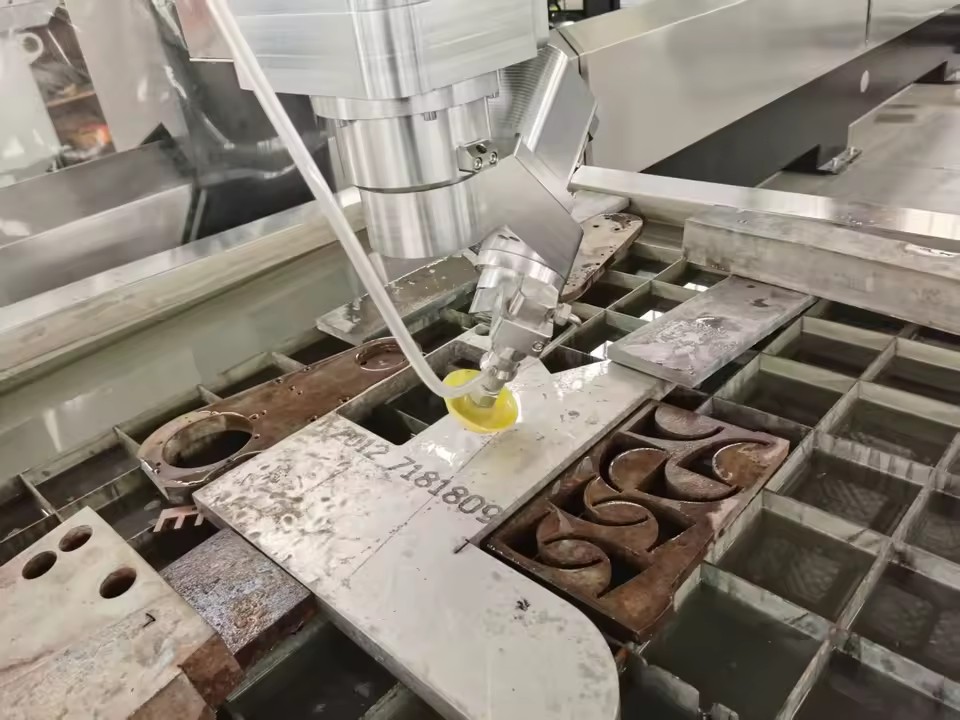

⭕A cutting head holder vertically driven on the (Z - axis) by Acme screw. The Z - axis unit driven along the beam (Y - axis) also by ball screw (rotary nut which guarantee high rigidity & speed).

⭕

3 axes including Z controlled by an accurate AC digital servo motor which means maintenance free, better life time and high performance

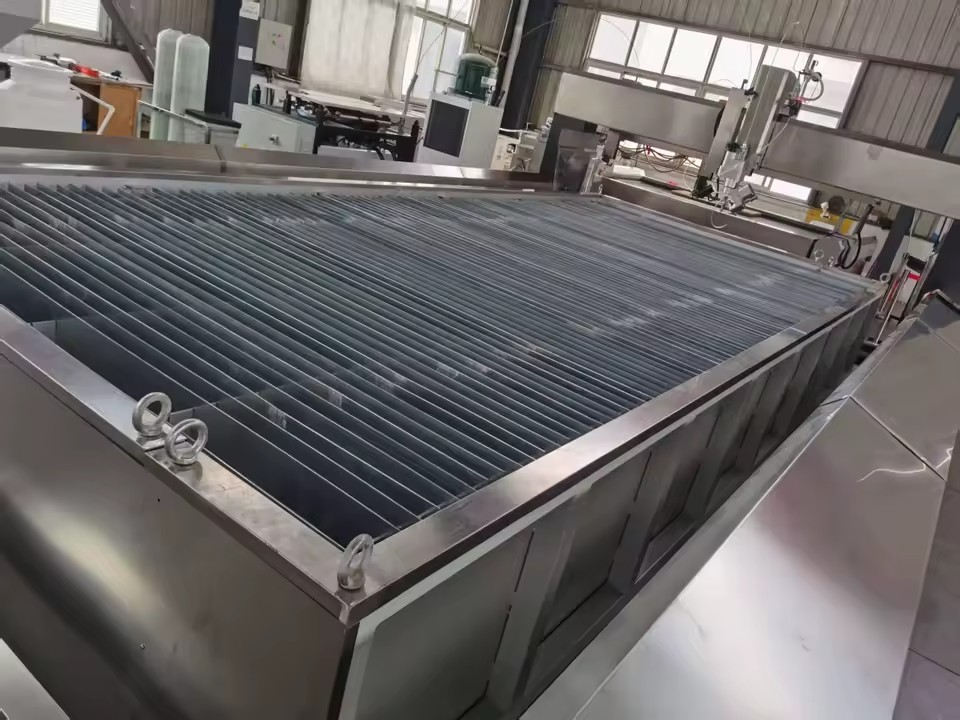

Additional grill to catch small cut objects that fall through the main layer。

D.The abrasive tank and feeder

Abrasive tank capacity (approx. 200 liters)

Automatic abrasive transfer

Two level sensors; one sensor to ensure there is enough abrasive in the lower tank the other sensor to warn the operator to refill the upper tank

Reduces abrasive waste.

Saves plenty of abrasive p/yr (which is the most expansive consumable item).

High-efficiency plate-type heat exchanger/cooler integrated into the separate recirculation oil circuit.

Relief valve in HP water circuit

Insulated sound proof enclosure.

Pressure reservoir for HP water (TÜV certificated)

Electrical shut-off valve for cutting-water supply.

Separate catch basins for hydraulic fluid and water.

"Remote control" via CNC interface

Max. Capacity 1gal/min (3.8Lt/min).

60000 psi/approx. 4150 bar maximum pressure.

Max. power HP: 50

Specification

Company Profile

was founded in 1984, which is the main partner member of Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to

Order Evaluation

Exhibition

Customer Photos

Certifications

FAQ

1. How can I choose the most suitable machines?

A: Please tell me your specifications,we can choose the best model for you, or you can choose the exact model.

You can also send us the products drawing,we will choose the most suitable machines for you.

2.

What is your payment terms?

A

30% down-payment after contract,and 70% payment before shipment

Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?

A: Our factory is located in

No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province

226001. You are warmly welcomed to visit us.

4. What is your delivery time?

The delivery depends on different machines with different configurations. Please

5.

Can you send the service engineer to our company?

We have engineers stationed in

and

. The after-sales service system is very perfect.
