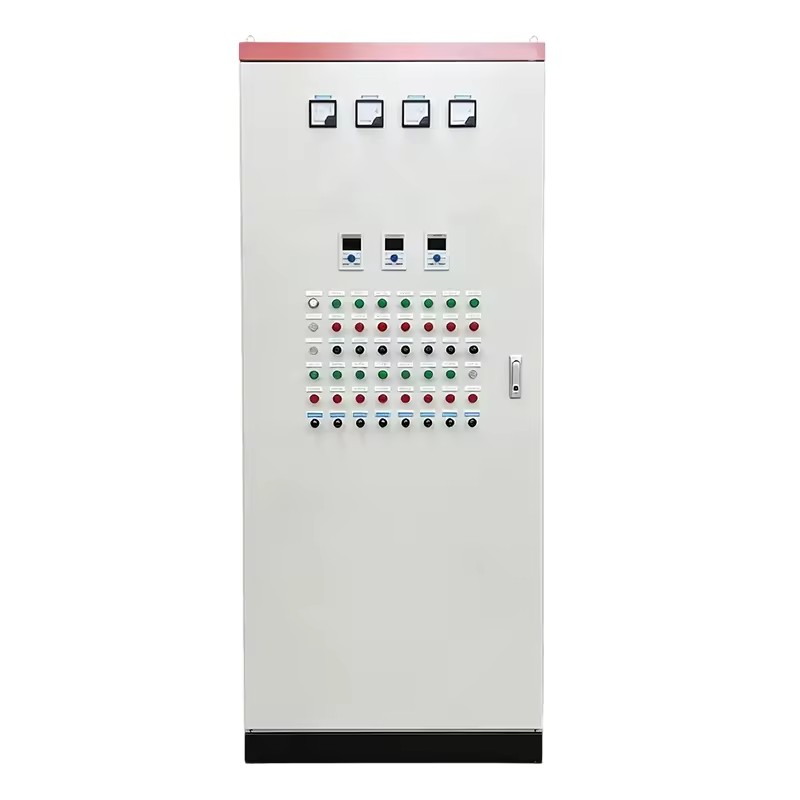

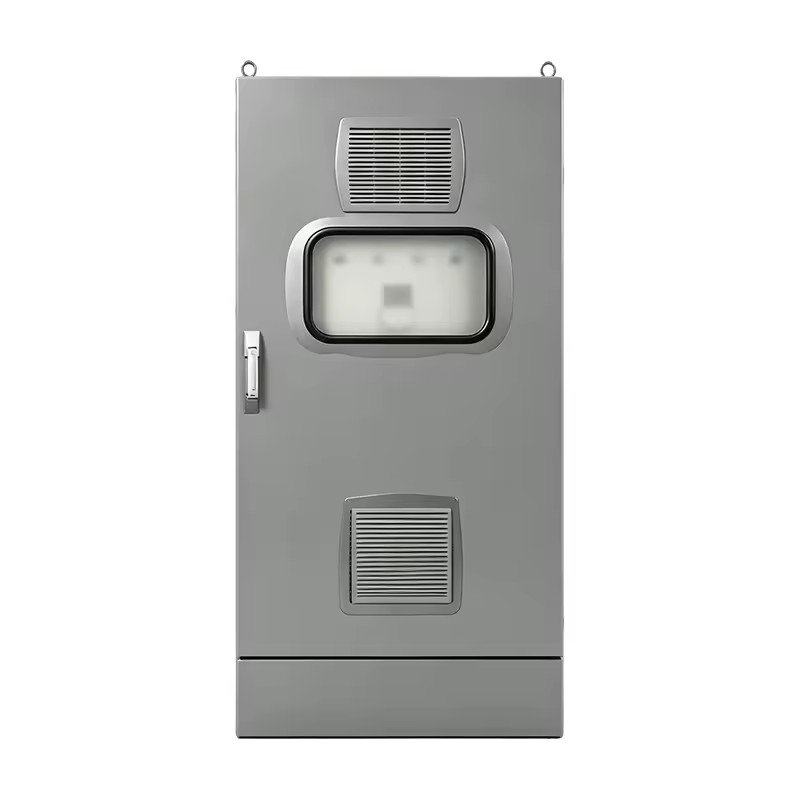

JHD Full Set Low Voltage Switchgear Cabinet MCCB Distribution Panel Electrical Control Equipment IP31 Start Stop Hybrid Lock

Available for enquiry 0.0 · 0 reviews
USD

$ 330.00 330.0 USD $ 330.00

Not Available For Sale

Minimum order quantity: 5 Units

Key attributes

View all
Rated voltage
220/380/415/440/460/480V
Rated current
Customizable
Application
Industrial
IP level
IP31
Type
LV Switchgear Cabinet
Number of Sockets
12
Product description
  • Working Principle
  • Main Power Access & Protection: External power is connected to the TGBT main distribution cabinet. The main circuit breaker controls on/off status and provides overload, short-circuit, and reverse power protection, blocking faults at the source.

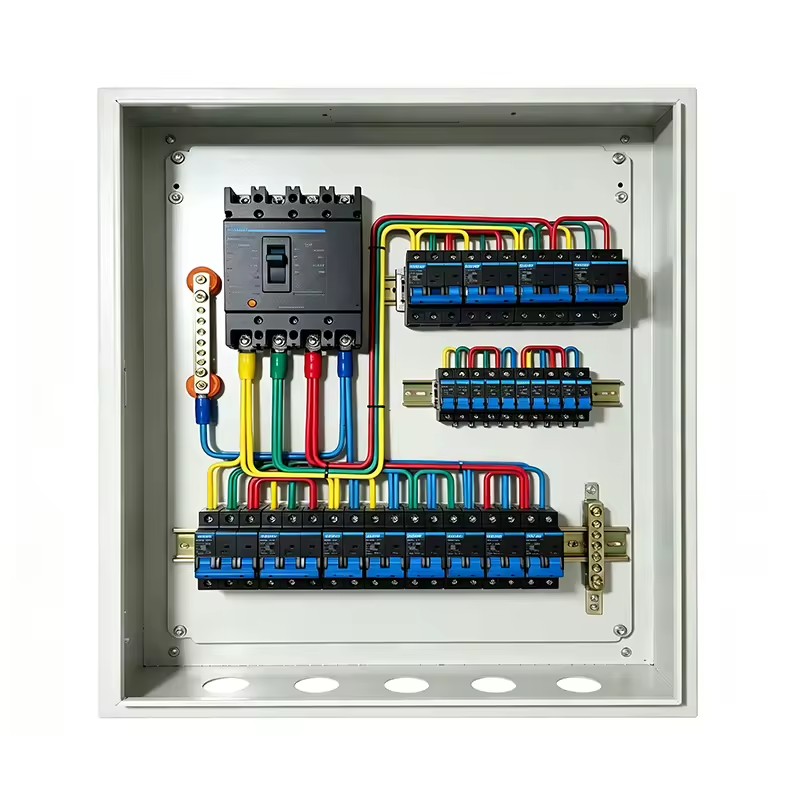

  • Power Distribution: Main power is distributed to each branch via copper bars. Branch circuit breakers protect downstream loads and prevent local faults from affecting the whole system.
  • Motor Control: The MCC cabinet uses Siemens drive modules to achieve precise motor start/stop, speed regulation, and soft start. Reactors suppress harmonics and protect equipment.
  • Environmental Adaptation & Monitoring: Digital displays monitor real-time operating parameters. Cooling fans, anti-corrosion and dust-proof designs ensure stable operation in desert environments.
  • Product Selling Points
  • Brand Components: Uses Schneider, Siemens, Delixi and other top-brand parts, high reliability, service life over 15 years.
  • Desert-Specific Protection: Anti-corrosion cabinets + dust-proof wiring + active cooling, resistant to high temperature, sand and corrosion.
  • Intelligent Control & Full Protection: Precise motor control + multiple protection functions, visual operation for fast troubleshooting.
  • Modular & Easy Maintenance: Drawer-type structure, single-circuit maintenance without power outage, reducing downtime cost.
  • Fully Customizable: Capacity, circuits and control logic can be customized to meet different industrial needs.
  • Application Scenarios
  • Desert Industry: Steel plants, chemical plants, mines, etc., ensuring continuous power supply for heavy loads.
  • Large Infrastructure: Rail transit, ports, airports, adapting to harsh outdoor conditions.
  • Data Centers / Base Stations: Provide high-reliability, low-harmonic power for core IT equipment.
  • Commercial Complexes: Ensure power redundancy for central air conditioning, elevators and other key facilities.
  • Remote Areas: Desert oil fields, pastures, etc., working with generators to provide stable power distribution.
    • System TypeLow-Voltage Complete Distribution System
    Component UnitsIncoming Cabinet + Multiple Feeder Cabinets (Modular Combination)
    Input Voltage LevelAC 380V/220V
    Phase/FrequencyThree-phase/Single-phase; 50Hz
    Main Circuit Breaker TypeMolded Case Circuit Breaker (e.g., Schneider NSX Series)
    Main Switch Rated Current Range250A-630A
    Branch Switch TypeMiniature Circuit Breaker (e.g., Schneider C65 Series)
    Branch Circuit Number per Cabinet8-36 Circuits
    Core Protection FunctionsOverload/Short-circuit/Undervoltage Protection
    Operation ModeManual + Automatic Dual Mode
    Basic Monitoring FunctionsVoltage/Current Digital Display Monitoring
    Description images

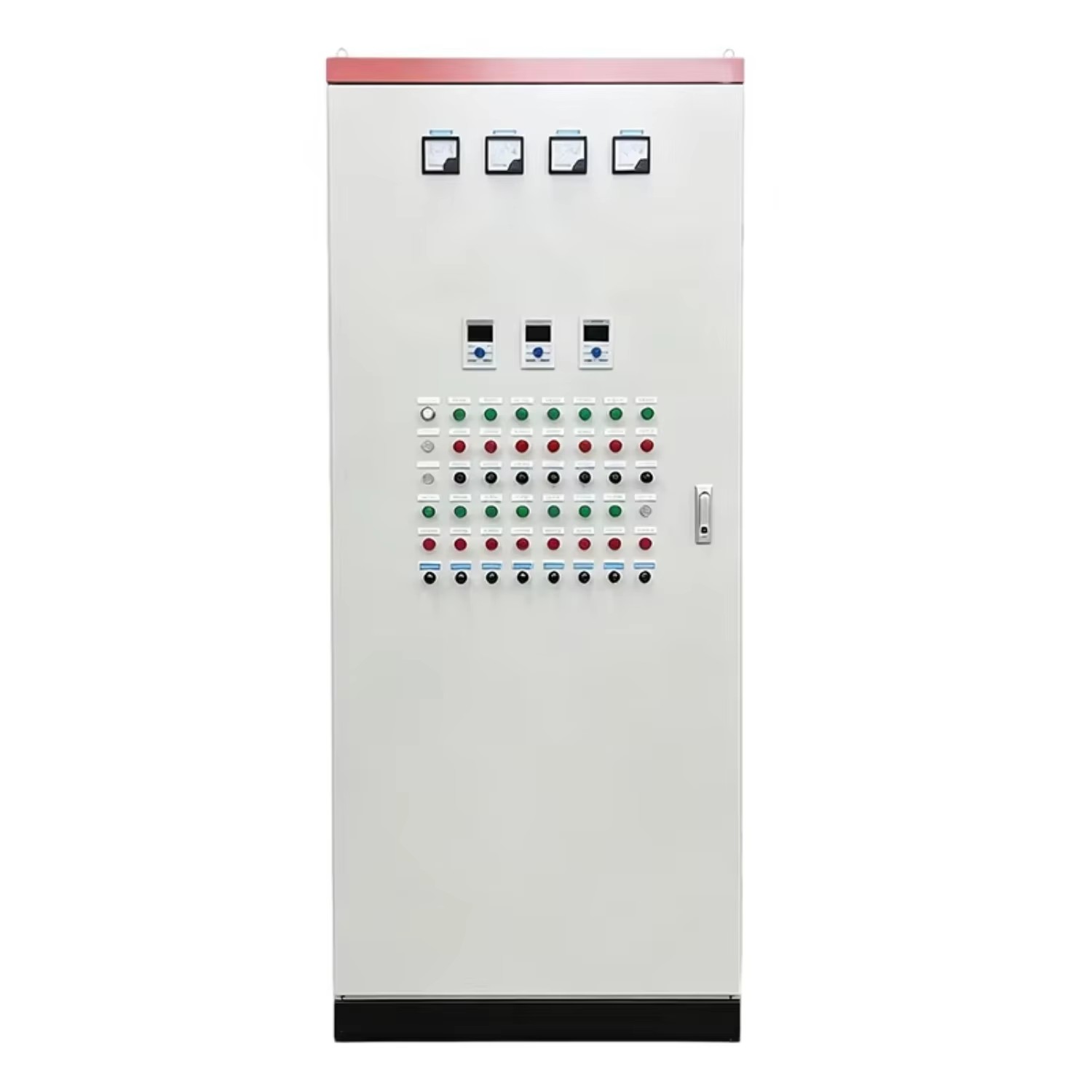

    JHD Full Set Low Voltage Switchgear Cabinet MCCB Distribution Panel Electrical Control Equipment IP31 Start Stop Hybrid Lock
    JHD Full Set Low Voltage Switchgear Cabinet MCCB Distribution Panel Electrical Control Equipment IP31 Start Stop Hybrid Lock
    JHD Full Set Low Voltage Switchgear Cabinet MCCB Distribution Panel Electrical Control Equipment IP31 Start Stop Hybrid Lock
    JHD Full Set Low Voltage Switchgear Cabinet MCCB Distribution Panel Electrical Control Equipment IP31 Start Stop Hybrid Lock
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 5 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      31 days

    • Step 3

      Packaging and dispatch

      Ocean + Truck via Maersk · Approx. shipping fee: $ 548.40 for 5 sets · Transit time: Est. 17-24 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 24 fields
    Rated voltage
    220/380/415/440/460/480V
    Rated current
    Customizable
    Application
    Industrial
    IP level
    IP31
    Type
    LV Switchgear Cabinet
    Number of Sockets
    12
    Lock Type
    Hybrid Lock
    Place of origin
    China, Fujian
    Model number (Specification)
    distribution box JHD-GC38
    Product Type
    One control by one
    Box/cabinet size
    Customizable
    Funtion
    Start Stop
    Specifications
    support customization
    Box/cabinet thickness
    0.8/1.2/1.5mm
    Instal type
    floor-standing
    Weight
    customizable
    Feature
    Overload protection
    Phase protection
    Short circuit protection
    Selling Units
    Single item
    Single package size
    70X70X180 cm
    Single gross weight
    120.0 kg
    Color (Product option)
    Gray
    Material (Product option)
    Carbon Steel
    Size (Product option)
    70X70X180 cm
    Lead time
    31 days
    Minimum order
    5 Units
