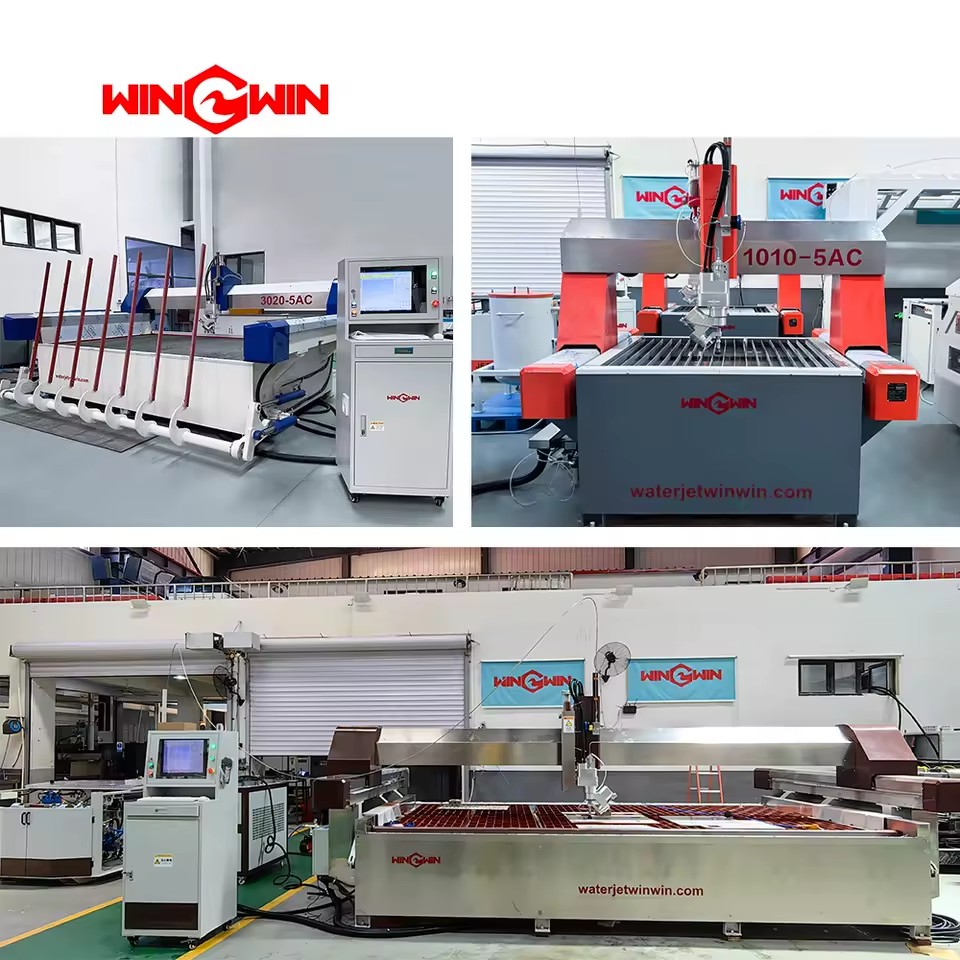

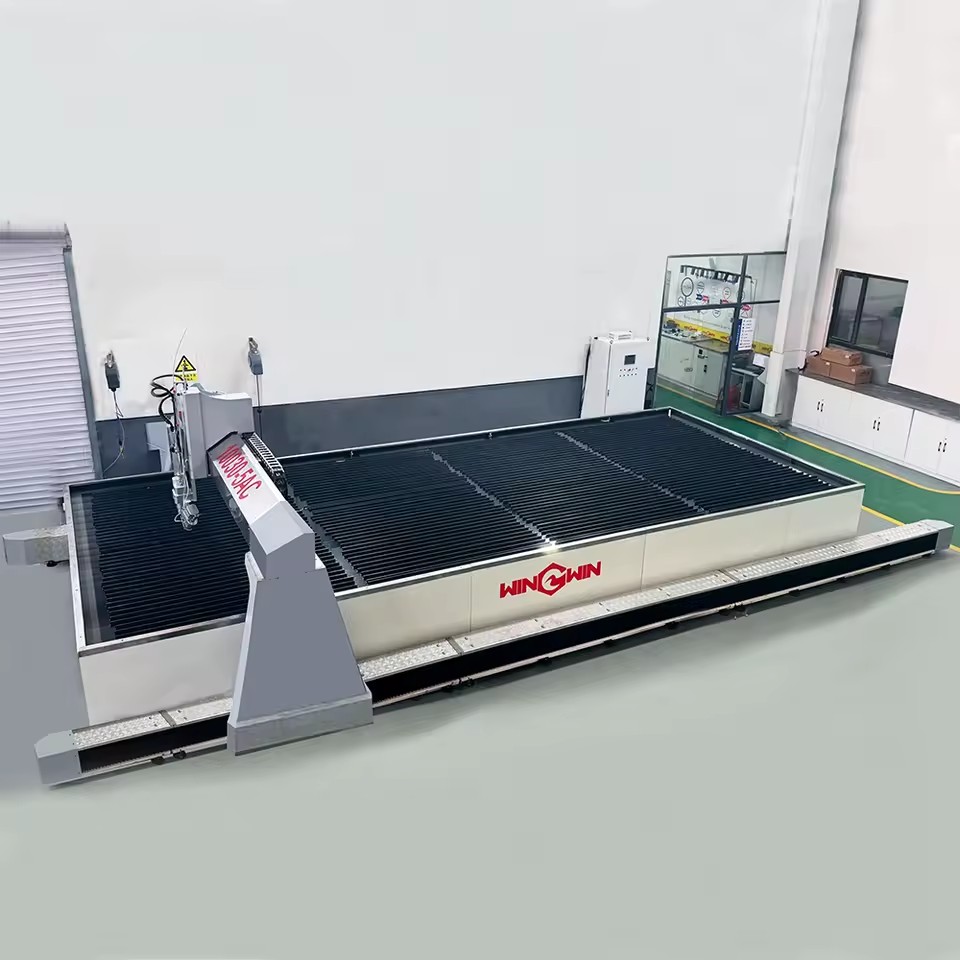

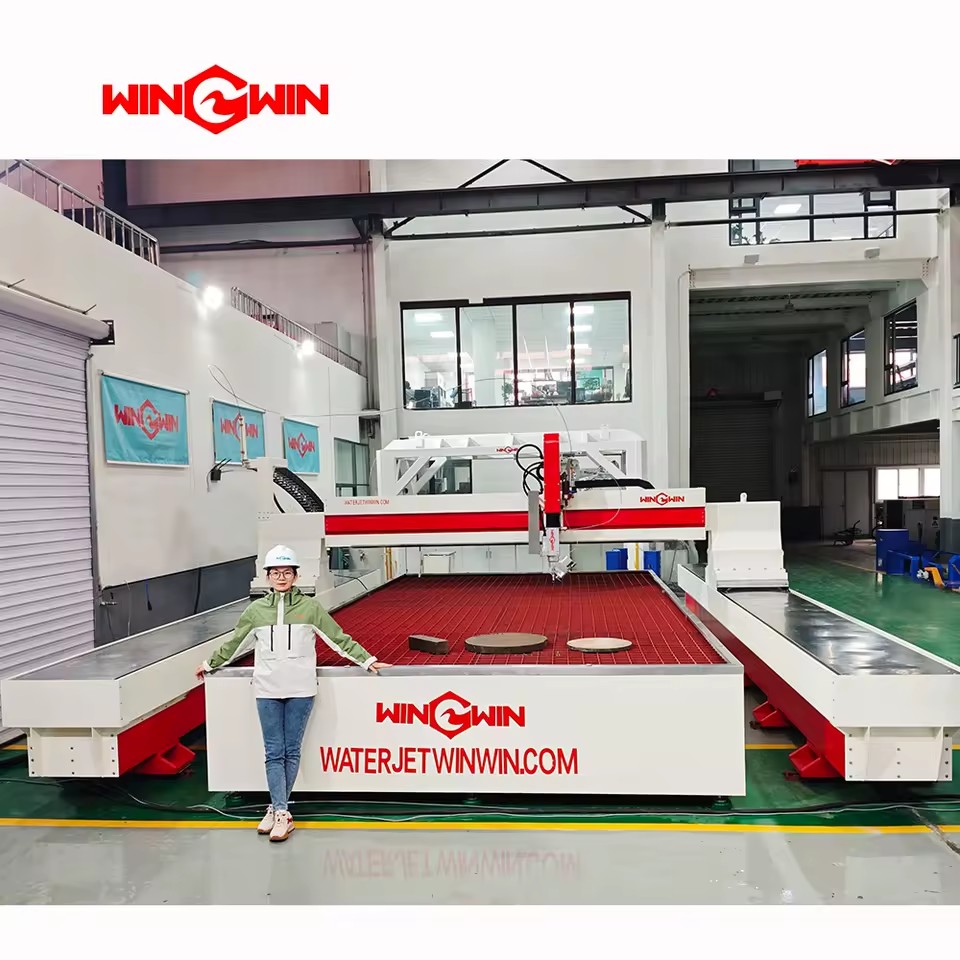

AC 5 Axis Waterjet Cutting Machine
Series
Water Jet
Type
Gantry Cutting Table
Cutting Angle
0-±68 Degrees
Control Accurcy
±0.01mm
Table Size
Custom sizes
Travel Of Z Axis
200mm
Cutting Precision
±0.1mm
RE-Positioning Accuracy
±0.05mm/m
Cutting Speed
11000mm/min
Certificate
CE ISO
Motor
30kw / 40HP
After-sales Service
Field Installation Online Service
MAX.Cutting Range
4000mmx2000mmx200mm
Material
Stainless steel
company supports color customization, this equipment is jet50 intensifier pump AC 5 cutting table, full stainless steel protective structure, good protection, no rust, oil immersed structure, long service life of ball screw and linear guide, fully aluminum alloy cutting head, light weight, reduce the load of the cutting table, AC 5 axis head, cutting angle can reach ±68°, C axis can be 360° rotation
Product Parameters
Product Description
1. Utilizing an oil-immersion structure, the lead screw and slider are constantly submerged in lubricating oil, ensuring
cleanliness and lubrication of the ball screw and linear guide at all times during machine operation, increasing their service
life by 15 times.
2. Employing thickened ball screws and larger guide rails eliminates vibrations during operation, ensuring accuracy and transmission stability even at high speeds.
3. Using Weihong motors and Weihong waterjet cutting systems offers better compatibility, and motor parameters can be set internally within the waterjet cutting system.
4. Employing a stainless steel protective cover prevents breakage and rust, effectively protecting the lifespan of the ball screw and guide rails.
5. The Z-axis also uses a double guide rail and ball screw structure, ensuring the stability of the cutting head operation and the durability of the equipment. The Z-axis is a servo motor with automatic height adjustment.
6. Utilizing a high-quality tow chain, it possesses high temperature resistance, cold resistance, wear resistance, and fire resistance.
1. The Weihong system can recognize the following file formats: GXF, G-code, ENG, and PLT.
2. The Weihong waterjet cutting system is highly operable and easy to operate; users can become proficient within a day. 3. It employs an absolute encoder system to ensure memory of previous data in case of operational errors or power outages. It allows for simulated operation, pausing and resuming at any time, and can resume cutting from any point based on the graphic.
4. It uses soft limit control, allowing users to set the machine tool travel range through the system, preventing collisions due to operational errors.
5. It features a dynamic graphic model and allows for realtime observation of tool movement, cutting position, and cutting changes.
6. It includes laser height measurement, AC 5-axis angle setting, and laser edge finding.
7. The designers thoughtfully included a sealed drawer for storing documents or personal belongings, protecting them in harsh environments.

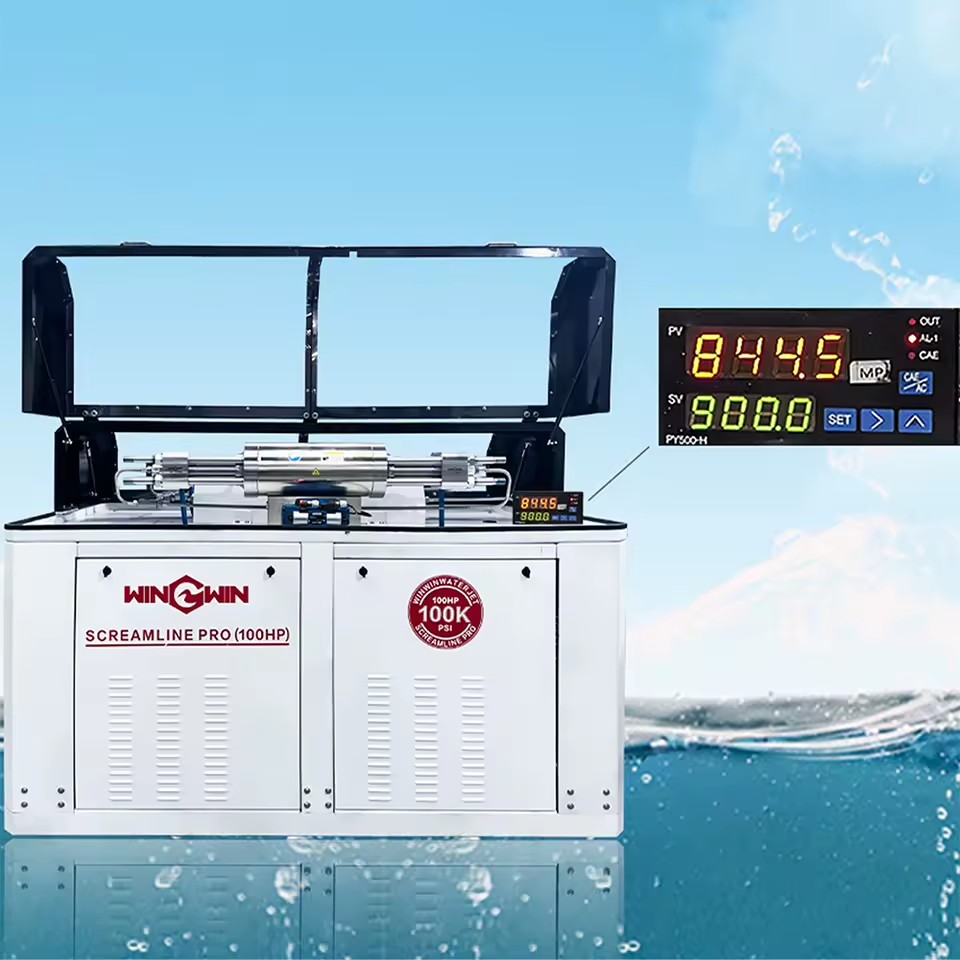

Rated pressure：420Mpa（60000psi）
Working pressre：50-380Mpa（7200-55000psi）
Power： 37KW（50HP）
Max flow-rate： 3.8L/min Maximum orifice aperture：0.33mm
pressure ratio 1：20
Maximum number of stroke： 95times/min
Maximum oil pressure： 31Mpa
Oil pump maximum flow-rate：119L/min
fuel tank capacity： 130L
Weight 1.2t
Demensions： 1600mm*1300mm*1100mm

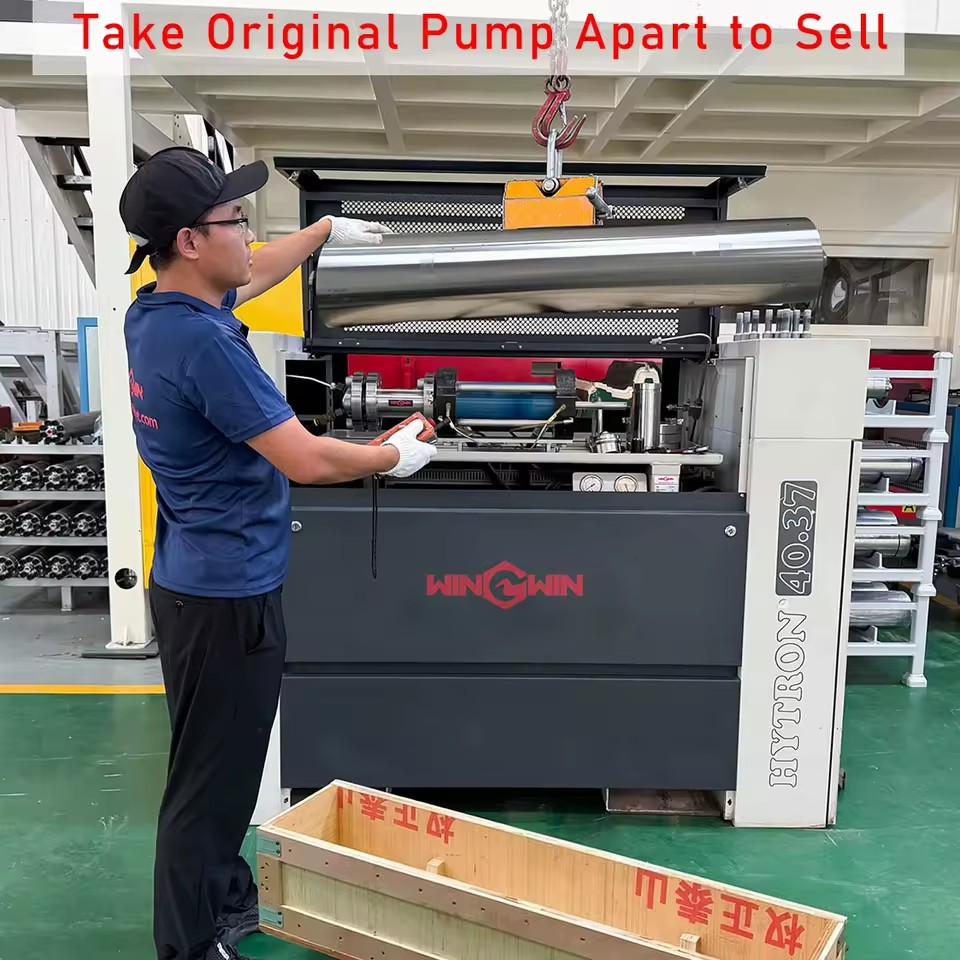

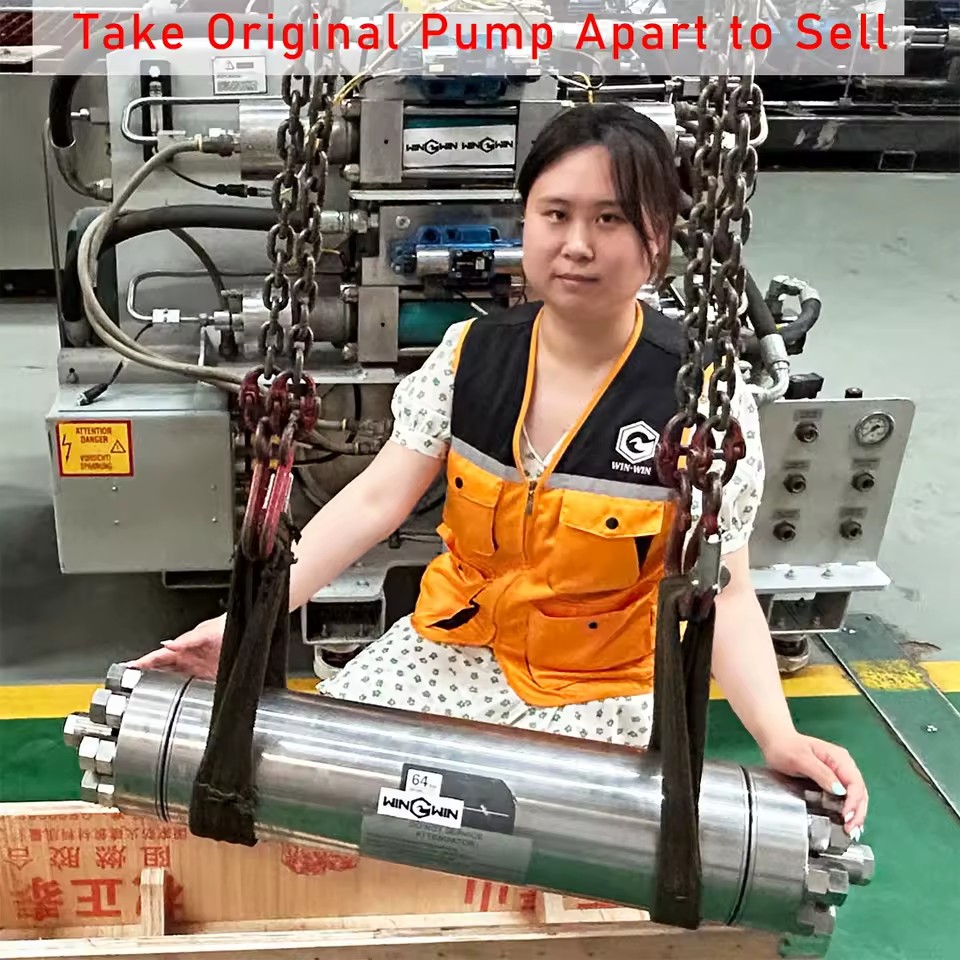

1. Standard WW40JET intensifier pump, using an internationally recognized intensifier core, with interchangeable specifications and models with international standard parts, ensuring equipment versatility.
2. Independent cooling circulation system; cooling circulation occurs simultaneously with motor operation, ensuring oil temperature remains within the normal range.
3.High-performance thermally conductive copper plate cooler; maximizes the
4. Equipped with an automatic constant-pressure variable pump with a flow rate of 119L/min, ensuring sufficient and stable pressure for rapid cutting.
5. Employs a high and low pressure regulating valve mode, eliminating pressure fluctuations and ensuring pressure stability.
6. Uses a 1.4L large-capacity accumulator, integral forging process, maintenance-free design, resulting in more stable pressure.
7. High-performance hydraulic shift valve; rapid response, low noise, and smoother equipment operation.
1. Oil quality alarm system: When the oil quality fails to meet the standard, the oil filter will indicate blockage.
2. Oil level detection system: When the hydraulic oil level is too low, the equipment will automatically shut down and sound an alarm.
3. Oil temperature detection system: When the oil temperature rises above the set value, the equipment will automatically shut down and sound an alarm.
4. Low-pressure water detection system: When the inlet water pressure is insufficient, the equipment will automatically shut down and sound an alarm.
5. Water filtration system: Equipped with a two- stage water filtration system to ensure water quality.
6. Two-stage pressurization system: Equipped with a two-stage stainless steel intensifier pump to ensure sufficient pressure for the water entering the intensifier.
7. Monitoring system for mechanical parts: Before high-pressure parts wear out and fail, water will overflow from the detection port, facilitating observation of the parts' condition.
1. Star-delta start program reduces starting shock, protects the motor and circuit equipment, and saves electricity costs. 2.Omron PLC with built-in intensifier pump start program.
3. Convenient and quick push-button switches; emergency stop button is conveniently located, stable and reliable.
4. Equipped with inlet water pressure gauge and oil pressure gauge for real-time monitoring of equipment operation.
5. Uses national standard oil pipes; four-layer steel wire high-pressure oil pipes, capable of with standing up to 38 MPa.
6. Ultra-high pressure pipelines with extremely high tensile strength and explosion-proof capability.
7. Standard high-pressure accessories; each accessory has a corresponding part number and can be replaced with internationally compatible parts.
1. WIN-WIN's chiller is specifically designed for waterjet cutting equipment and differs from ordinary chillers on the market.
2.This chiller effectively reduces oil temperature, as well as the overall temperature of the intensifier and the cutting head. This significantly increases the lifespan of the intensifier's high-pressure seal, reducing seal failure caused by thermal expansion and contraction, and ensuring more stable intensifier pump operation.
3. Features include automatic start/stop, constant temperature setting, English interface, microcomputer control system, and more precise temperature control.
4. The connection between the chiller and intensifier pump uses a modular design with quick-connect circuitry for convenience and speed.
1. The abrasive supply system employs a non-electrical structure, requiring no power connection and containing no electrical components. It is suitable for operation in harsh environments such as humid conditions, featuring a maintenance-free and trouble-free design.
2. The pressure tank is constructed from 5mm thick metal plate, effectively bearing greater air pressure, ensuring safety and reliability.
3. The automatic abrasive supply system continuously supplies abrasive to the adjusting abrasive tank on the cutting head via a large supply tank. This automatically supplying tank is rationally designed; a single fill allows for continuous operation for 10-12 hours.
4. A large-diameter drain port at the bottom allows for the removal of foreign objects from the abrasive.
5. Equipped with a safety valve, it automatically releases air and reduces pressure when it becomes too high
ensuring production safety.
1. Equipped with a Water Softening System, it effectively filters particulate matter, rust, bacteria, suspended solids, etc., from the water. Eliminating these substances effectively extends the orifice's lifespan and reduces the impact of impurities in the water.
2. The Water Softening System removes chlorine, heavy metals, colloids, and other substances from the water, effectively
softening the water. This reduces wear and tear on dynamic seals and metal seal surfaces, extending the lifespan of high-pressure components in the intensifier and ensuring more stable equipment operation.
3. A five-stage filtration system using quartz sand, granular activated carbon, resin, PP cotton, and an RO reverse osmosis membrane ensures the filtered water meets direct drinking water standards.
4. A microcomputer control display screen makes operation convenient.
n effectively and quickly remove abrasive in large sinks
2.When the waterjet cutting machine operates, the large-scale abrasive removal system operates automatically without affecting each other.
3.Simple, economical and effective abrasive removal method, no need to stop the waterjet cutting machine.
4.The device can be installed within 10m of the waterjet cutting machine.
5. 8HP diaphragm pump provides powerful suction.
6. The flow rate can reach 162L/min.
7. Get the ability to clean large sinks with floor space.
8. The abrasive removal rate is more than 90%.
9. During the entire abrasive removal process, the filtered
water continues to be discharged into the water sink, and the water sink does not need to be replenished after abrasive removal.
Application
