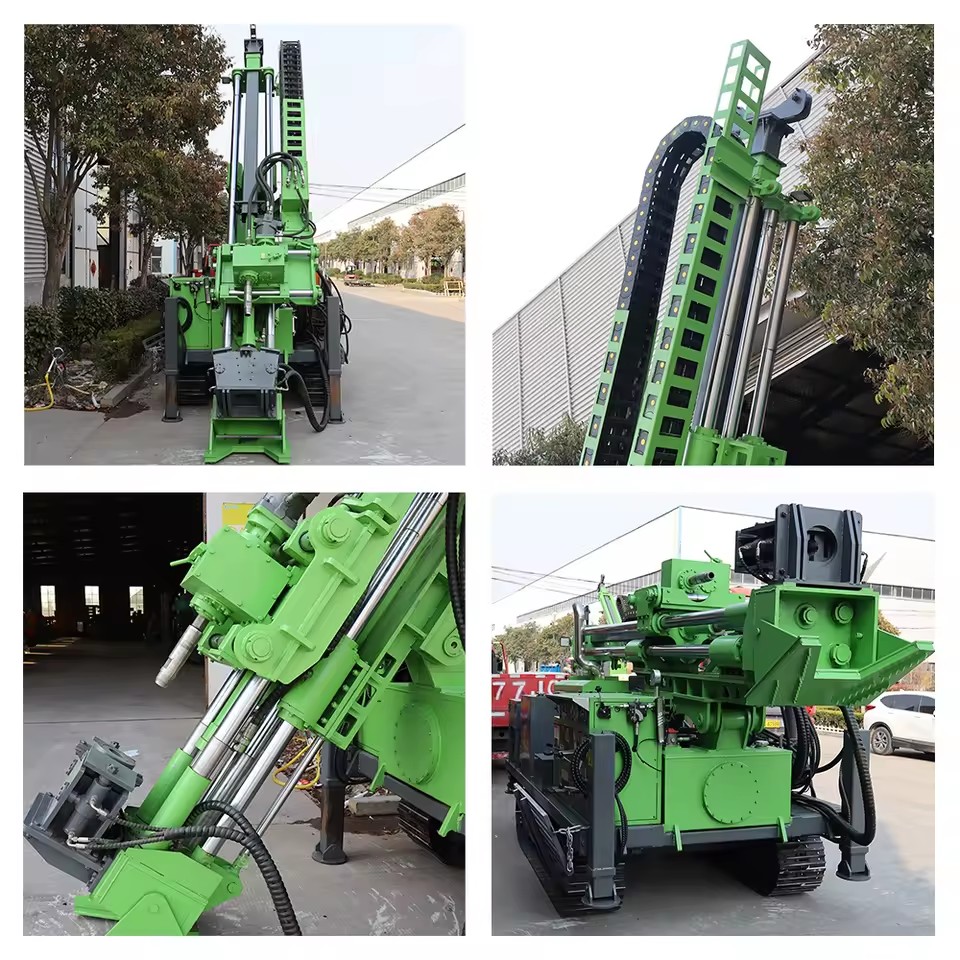

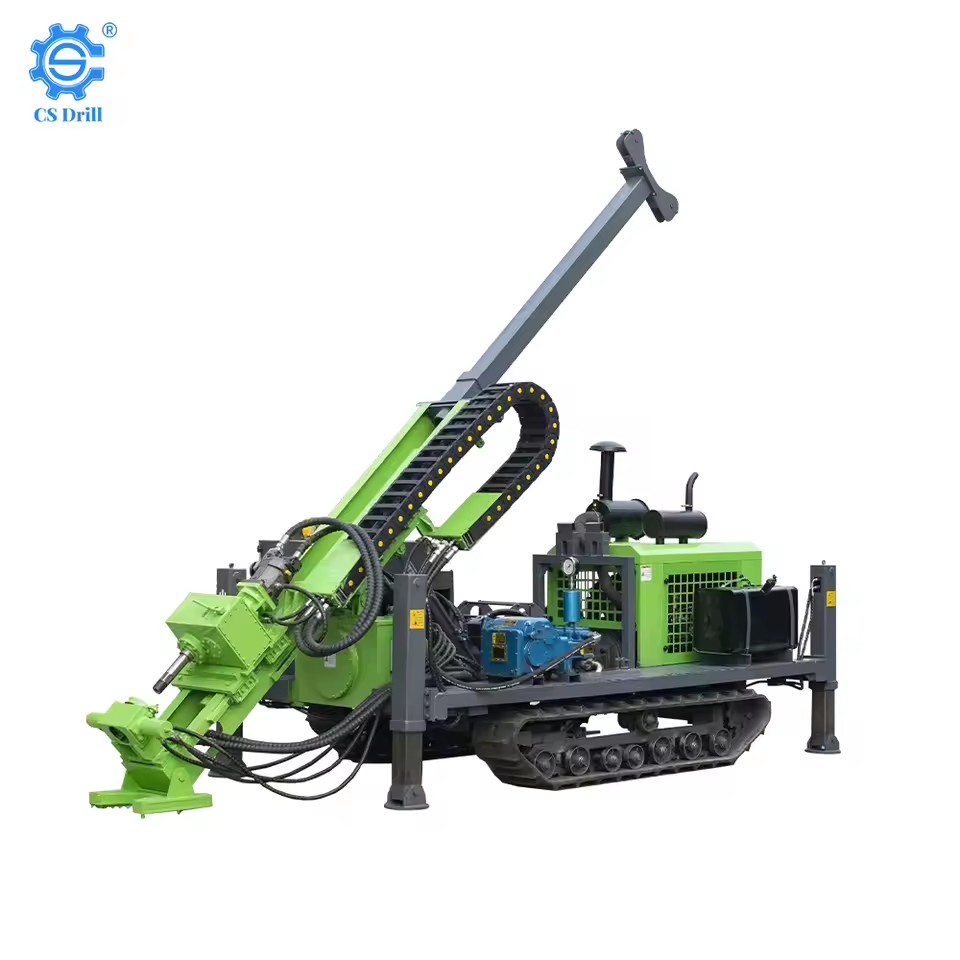

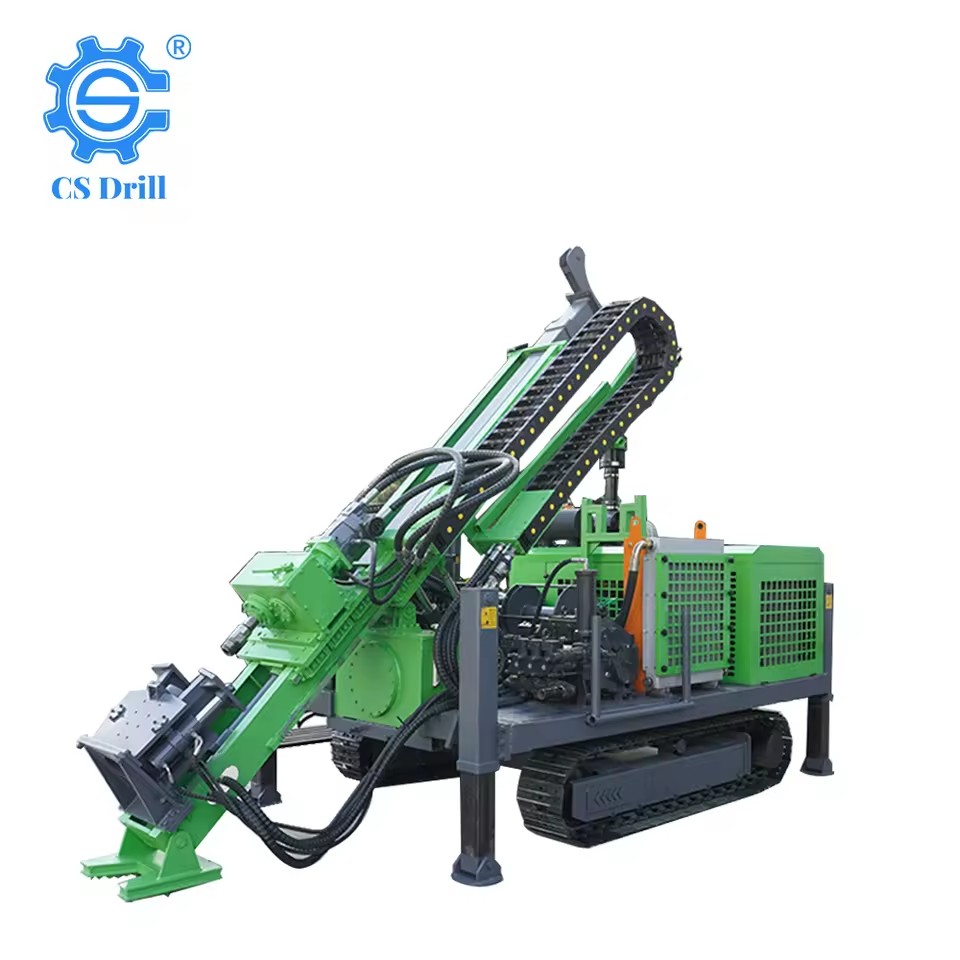

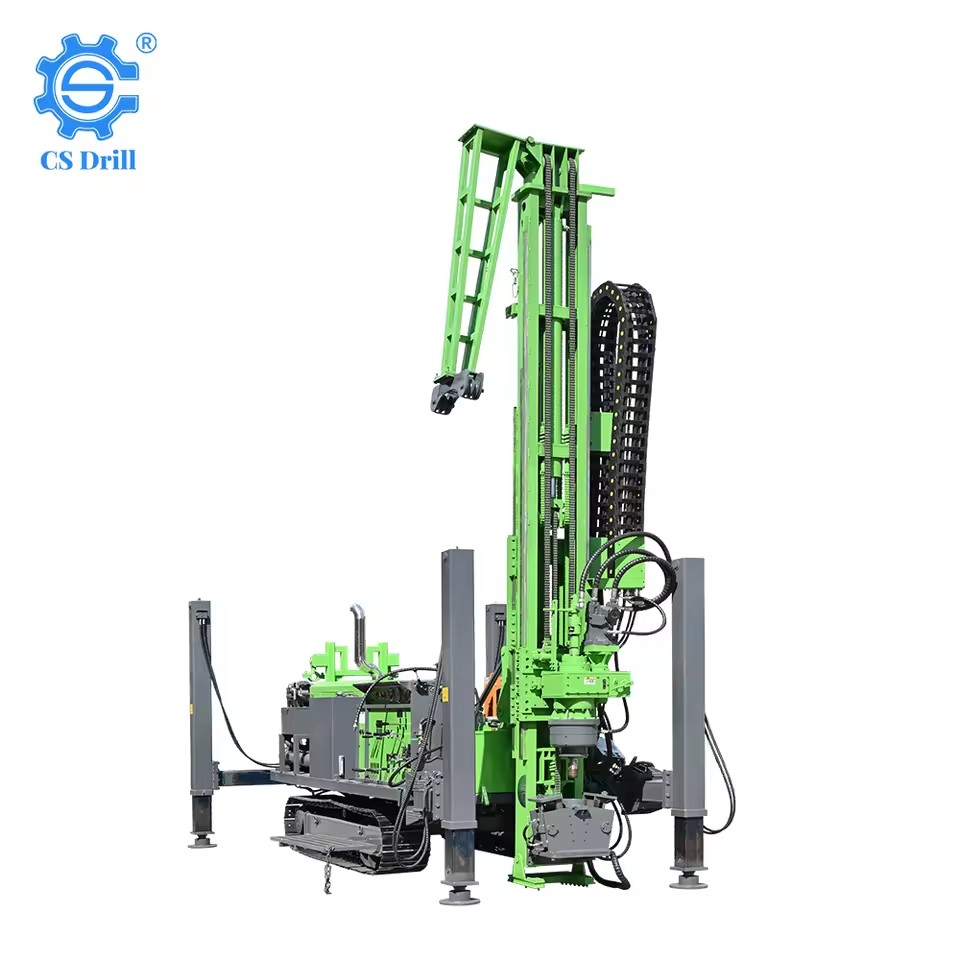

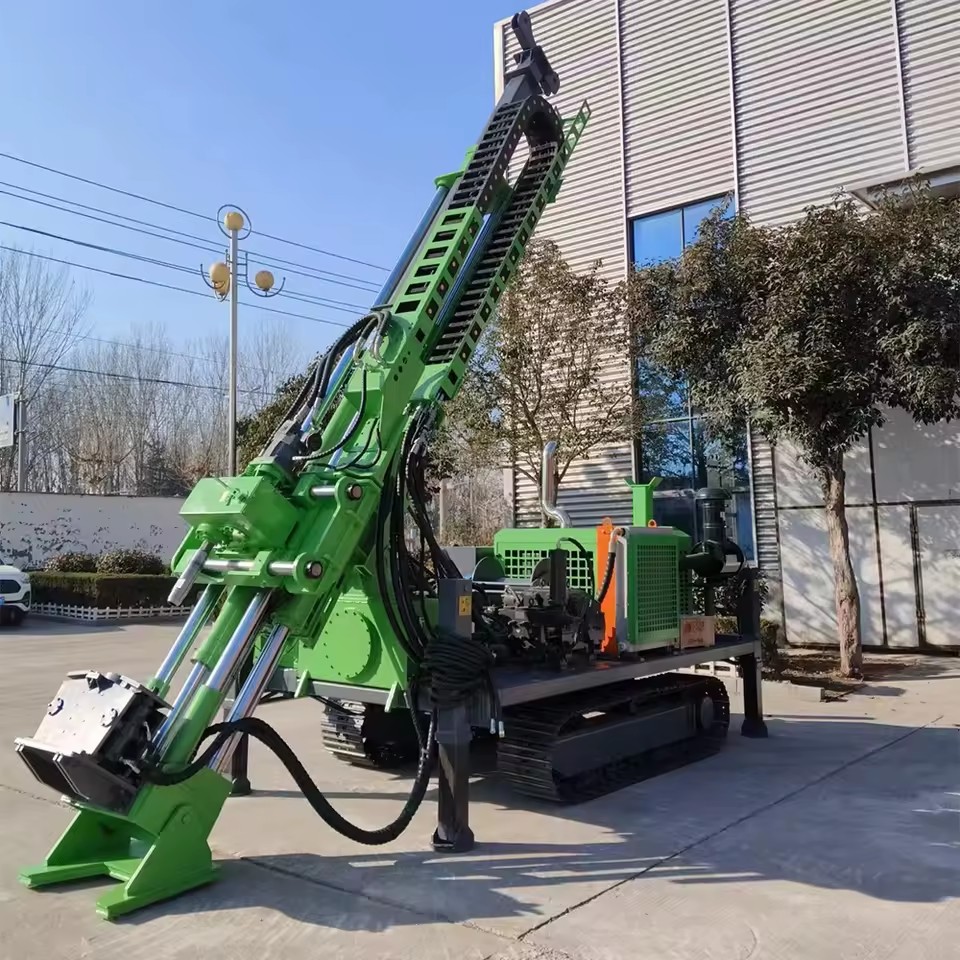

Name: CS Drill CSQX Full Hydraulic Diamond Core Drilling Rig for Geological Gold Mining Sample Exploration 600m 800m 1000m 1600m 2000m
SKU: B2B-38462
Price: 39420.0 USD
Availability: PreOrder

Product description

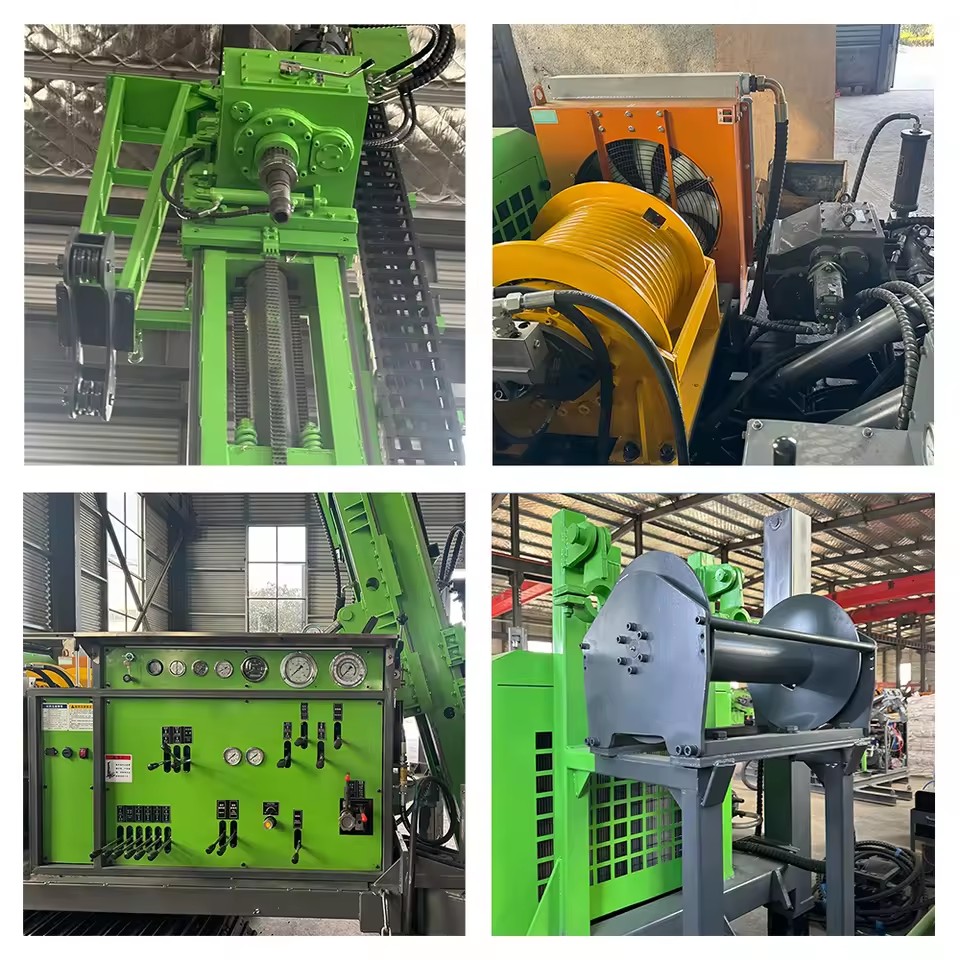

Geotechnical Core Sample Full Hydraulic Mining Deep Coal Core Drilling Rig uses and advantages 1. This full hydraulic core exploration drilling rig using for prospecting, gold ore, iron ore, coal, lithium ore, rubidium ore, stone ore, etc. 2. It is easy to install, and the rope coring process does not need to lift the drill pipe. The winch is connected to the salvage device, and the coring efficiency is high. The traditional vertical shaft control machine drills and lifts the drill pipe, which has low efficiency and troublesome disassembly and assembly of the tower, which requires large equipment to be lifted and transported, and the cost is high. 3. Thin-wall drilling tools, the core diameter is 56, and the wall of the drill bit is thin. Traditional drilling rig Core diameter 48 bit wall thickness.

Model/ltem	Unit	CSQX600	CSQX800	CSQX1000A/B	CSQX1000C	CSQX1600	CSQX2000
Weight	kg	5000	6500	7000/8000	9000	10000	12000
Dimension (Transport)	mm	4500* 1900* 2650	4400* 2200* 2800	4700/5600 2100 2600	5500* 2100* 2600	5900* 2100* 2400	6100* 2200* 2500
Dimension (Working)	mm	4500* 2500* 6100	4000* 2700* 6500	4200* 2650* 6500/8100	4600* 2650* 8000	5900* 2650* 8100	5300* 3600* 8100
Drilling Angle	°	45-90	45-90	45-90	45-90	45-90	45-90

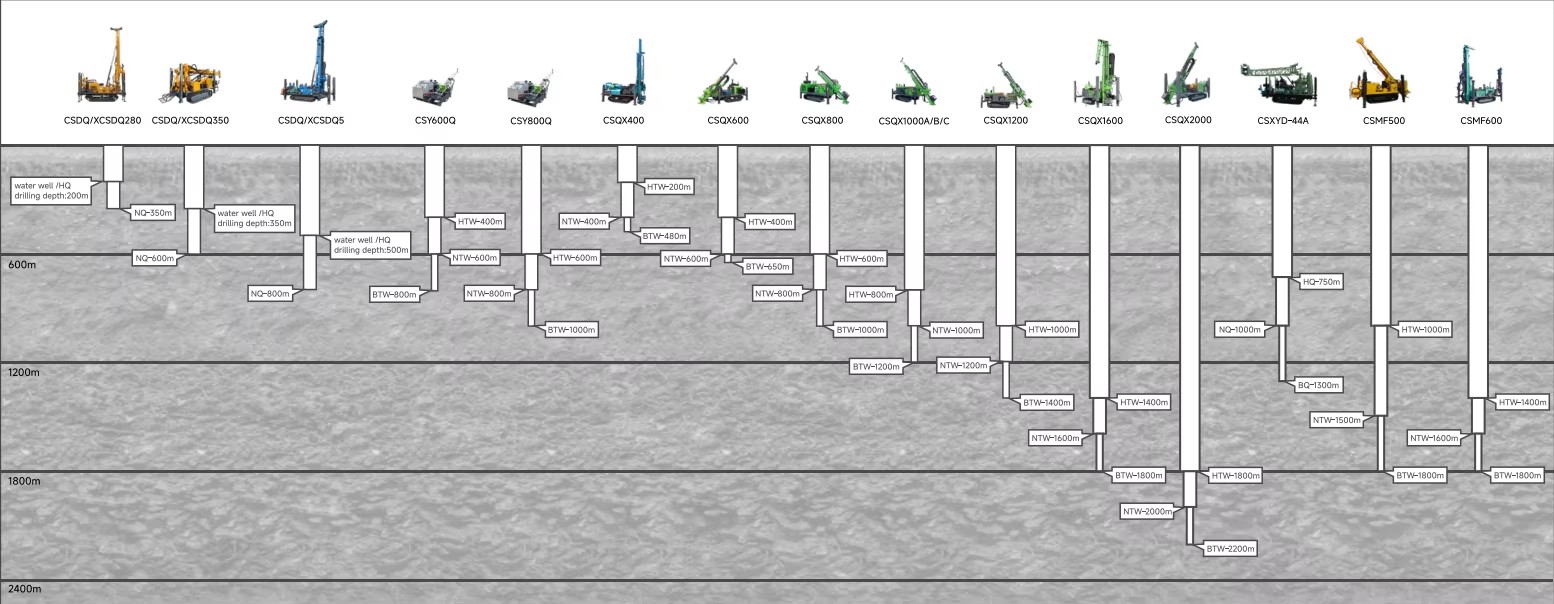

Drilling Depth BTW	m	650	1000	1200	1200	1800	2200
Drilling Depth NTW	m	600	800	1000	1000	1600	2000
Drilling Depth HTW	m	400	600	800	800	1400	1800
Drill Head Lifting Force	kN	240	300	360	360	460	600
Drill Head Feeding Force	kN	120	150	180	180	230	300
Rotary Speed	rpm	0-1100	0-1100	0-1100	0-1100	0-1100	0-1100
Max. Torque	N.m	1400	1800	2400	2600	4000	5000
Drill Head Feed Stroke	mm	1800	1800	1800/3500	3500	3500	3500
Drill Mast Slide Stroke	mm	800	1200	1200	1200	1200	1200
Hydraulic Pumps	Main pump 95ml/r. 32MPa Auxiliary pump 80mWr. 25MPa	Main pump 95ml/r. 32MPa Auxiliary pump 80mlr. 25MPa	Main pump 115ml/r. 32MPa Auxiliary pump 96ml/r 25MPa	Main pump 115ml/r 32MPa Auxiliary pump 96ml/r. 25MPa	Main pump 145ml/r 32MPa Auxiliary pump 96mlr. 25MPa	Main pump 190ml/r. 32MPa Auxiliary pump 80ml/r. 25MPa
Hydraulic Cooling System	Water Cooling	Water cooling +Air cooling	Water cooling+ Air cooling	Water cooling+ Air cooling	Water cooling+ Air cooling	Water cooling+ Air cooling
Power Unit	Yuchai 4-cylinder engine 91kw/2200rpm	Yuchai 6-cylinder engine 92kw/2200rpm	Weichai 6-cylinder engine 129kw/2200rpm	Weichai 6-cylinder engine 129kw/2200rpm	Weichai 6-cylinder engine 140kw/2000rpm	Weichai 6-cylinder engine 178kw/2200rpm
Hydraulic Winch Capacity	m	600	800	1000	1000	1600	2000
Mechanical Winch Capacity	kN	15	20	24	24	30	45
Winch Lifting Speed	m/min	110	110	110	110	110	110
Mud Pump	BW100/ BW160( 0ptional)	BW100/BW160( 0ptional)	BW100/BW160(0ptional)	BW160/BW250(0ptional)	BW250	BW250
Crawler Chassis	Rubber/ 6t Steel 300mm(Optional)	6t steel 300mm/8t steel 400mm (Optional)	8t steel 400mm*40	10t steel 400mm*43	10t steel 400mm* 43	13t steel 400mm*46
Crawler Climbing Angle	°	25	25	25	25	25	25
Crawler Walking Speed	km/h	2-3	2-3	2-3	2-3	2-3	2-3

$588.75-592.50 / piece

1. Are you exact manufacturer or just trading company? We are both, we have our own factory. And also have many long-relationship factories. 2.What is your minimum order quantity? Our MOQ are 1pc or 1 complete set, the price may rely on the order quantity. We are welcome your sample order to testing our quality。 3. Can you accept OEM & ODM? Yes, both of them are acceptable,.Please tell us your requirements or design drawings kindly. As we have our own R&D team and the team leader is Dr.Zhao mingchun who has been always in the material research and drawing design of drilling tools for 25 years. And he had designed the world’s biggest top hammer bit and DTH hammer bit, highly praised by the users. 4. How about the delivery time? It depends, generally it takes about 15-25. If have stocks, Usually only 5-10 days if in stock. 5. Can I have a visit to your factory before the order? Sure, welcome, kindly

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

25 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Usage

coal

Type

Core Drilling Rig

Drilling Depth

Max.600/800/1000/1600/2000m

Drilling Diameter

60 mm(2.36in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 95, 108, 114

Power Type

Cummins

Core components

Motor, Engine, winding engine

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Flexible Manufacturing

Place of origin

China, Hunan

Weight

8000 KG(17636.98lb)

Dimension (L*W*H)

5900*2200*2600mm(232.28*86.61*102.36in)

Drilling Capacity

600 800 1000 1600 2000m

Heat-dissipating Method

Water-cooled + independent air-cooled

Power

91-178kw

Torque

1400-5000 N.M

Speed of Rotary

0-1100RPM

Drilling Angle

45-90 angle

Max. climbing angle°

Maximum speed km/h

2-3

Application

Rock Core Drilling Rig

Selling Units

Single item

Single package size

450.0X190.0X265.0 cm

Single gross weight

5000.0 kg

Model number

CSQX-600, CSQX-800, CSQX-1000A, CSQX-1000B, CSQX-1000C, CSQX-1600, CSQX-2000

Power (W) (Product option)

92KW(123.37hp), 91kw(122.03hp), 129kw(172.99hp), 140kw(187.74hp), 153KW(205.18hp), 178KW(238.70hp)

Certifications & Compliance

Lead time

25 days
