Crude Oil Screw Pumps Oil Transfer Pump single Screw Oil Transfer Pump

Available for enquiry 0.0 · 0 reviews
USD

$ 10,310.00 10310.0 USD $ 10,310.00

Not Available For Sale

Minimum order quantity: 5 Units
  • Application
  • Structure
  • Max flow rate
  • Max pressure
  • Power source
  • Chemical Compatibility
  • Sealing Material
  • Impeller Material
  • Applicable temperature
  • Outlet size
  • Import Size
  • Connection Type
  • Suction head
  • Outlet Type
  • Discharge Pipe Size
  • Inlet Height
  • Material
  • Control Method
  • Motor
  • Surface Treatment
  • Membrane material
  • Warranty
  • Customized support
  • Cable length
  • Horsepower
  • Pressure
  • Dwell time
  • Hardness
  • Flow Meter Specification
  • Outlet Water Oil Content
  • Model number (Specification)
  • Place of origin
  • Capacity
  • Pressure(Head)
  • Frequency
  • Gear Reducer and Motor
  • Frequency Converter
  • Pump Stage
  • Unique Advantages
  • Quality warranty
  • Selling Units
  • Single volume
  • Single gross weight
  • Voltage (Product option)
  • Type (Product option)
  • Flow Rate (Product option)
  • Maximum head

This combination is unavailable.

Key attributes

View all
Application
Chemical Industry
Structure
Screw Pump
Max flow rate
0.1 - 500 m3/h(3.53-17657.33ft3/h)
Max pressure
60bar(870.23psi)
Power source
Electric
Chemical Compatibility
Water, oils, Alcohol, Gasoline
Product description

Working Principle and Structure of Progressive Cavity Pump

PC pump as a type of positive displacement pump works based on the interference fix between the stationary stator and the eccentric turning rotor. This interference movement forms several separated and air-proof cavities, running from the inlet to outlet along the axis because of the rotor's rotation, which results in the medium's continuous conveyance in cavities.

For the special structure and working principle, PC pump is the most suitable for the conveyance of various medium of solid particle or fiber, viscous, corrosive, shear-sensitive, mixture of gas and at different temperature.

Medium Transferred by Positive Displacement PC Pump

• High solid content fluid

• Suitable for medium with viscosity up to 1,000,000 cp.

• Fluids containing fibrous materials

• Shear force or centrifugal force sensitivity medium

• Multiphase mixture of gas, solid and liquid

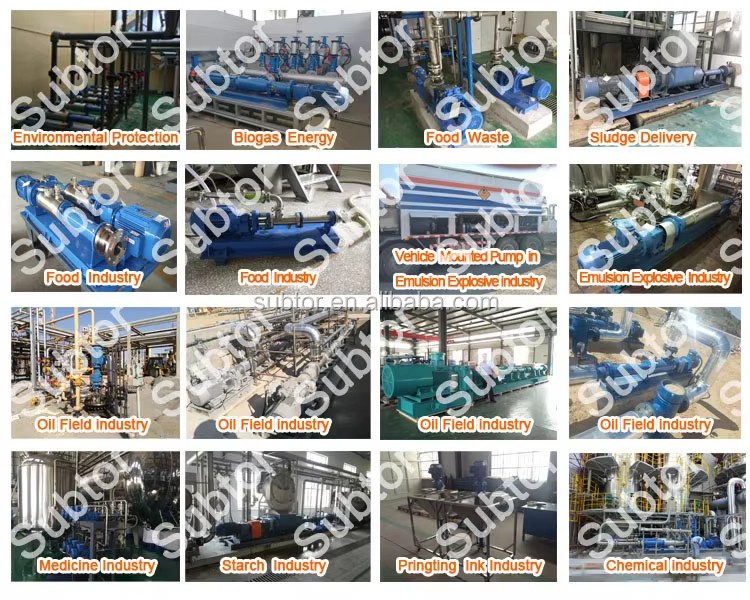

Usage Fields of Screw Pump

• Environmental Protection Field

• Biogas Energy Field

• Petroleum and Petrochemical Industry

• Offshore Platform

• Coal Water Slurry Field

• Mining Industry

• Paper Making Industry

• Emulsion explosive Industry

• Food, Beverage and Pharmaceuticals Industry

• Accurate Dosing Processing Industry

Notes on Type Selection of Progressive Cavity Pump For Chemical Solution

Outstanding Advantages of Positive Displacement Screw Pumps

(Specially Designed For Accurate Doing/Metering Various Chemical Additives)

Compact structure,flow rate(capacity) is strictly proportional to rotating speed

Accurate doing/metering additives,accuracy tolerance 1%.

Continuous operation,no pulsation,low noise,lower vibration, reliable operation

brand NORD gear reducer and motor,well-known high quality

Wide range of materials available(pump housing,rotor,stator,universal joint...)

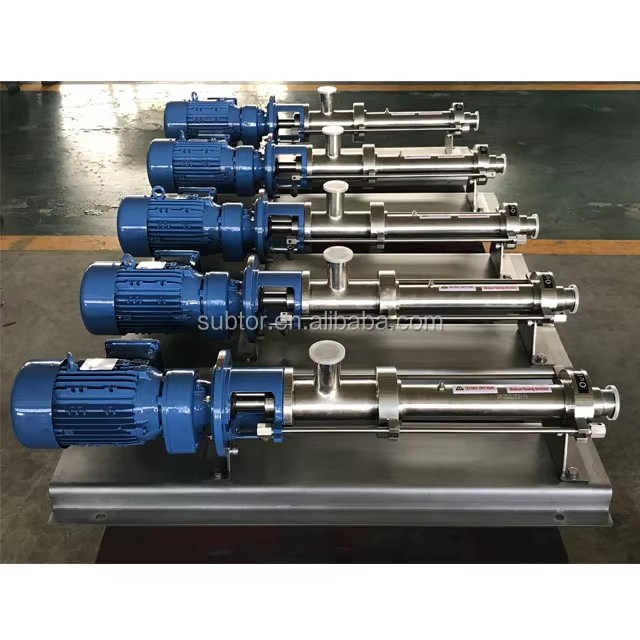

Hygienic screw pumps are offered for food,beverage,cosmetic and pharmaceutical

Rotor

Wide range of raw material for choice to meet the various requirements of individual application.

Carbon steel, Stainless Steel S304, Stainless Steel S316, Stainless Steel 2Cr13, Intermediate Duplex Stainless Steel S32205, Advanced Duplex Stainless Steel S31260, Tool Steel Cr12MoV, Alloyed Carbon Steel 42CrMo are all available.

Besides, the rotor’s surface can be treated by chrome-plated, vacuum quenching or WC/CrC thermal spray welding technology to meet different abrasion and corrosion resistant requirements.

Rotors can also be designed and machined into different geometrical shapes (A Type, B Type, D Type and P Type) to be suitable for customers’ various working conditions.

Stator

has its own unique rubber compouding to produce various types of quality stator.

NBR Rubber, NBRH Rubber, HNBR Rubber, EPDM Rubber are chosen for general application with high performance of abrasion and corrosion resistance, swelling resistance, oil bearing and anti-aging.

Sanitary Grade NBRF Rubber, EPDMF Rubber are selected for the special requirements in food, beverage, cosmetic and pharmaceutical industry.

FKM Rubber and PTFE Rubber are offered for the transportation of medium with extremely high temperature endurance and strong corrosive resistant property.

Transmission System

Several types of universal joint are available for your choice to meet the various requirements of different torque and axial load.

Pin type universal joint and pin with bushing type universal joint are the most widely used in general application with excellent performance.

Titanium alloy flexible rod universal joint are specially developed and adopted for food, beverage, cosmetic, emulsion explosive and pharmaceuticals industry, with the outstanding advantages of food grade sanitary processing, non-contamination to medium, reliable and endurable operation.

Open universal joint are strongly recommended for the medium with good lubricating property.

Cross universal joint is specially designed and the most suitable for the multi-stage pump with super higher torque and axial loading endurance property.

Shaft Seal

Packing seal and mechanical seal are offered for different working conditions.

Also there are various types and materials to choose for mechanical seal.

brand Eagleburgmann mechanical seal are used for the well-known of

reliable and endurable operation.

The most widely used type of mechanical seal

1. Single Mechanical Seal(MG1,M7N,HJ977)

2. Double Mechanical Seal(M74D, Single Mechanical Seal Back to Back Installation)

3. Cartridge Mechanical Seal

4. Material of mechanical seal: Q2Q2VGG or U2U2VGG,etc.

Driving System

Gear Reducer and Motor

To ensure the pump reliable operation, the gear reducer and motor of SEW brand and NORD brand is strongly recommended for the outstanding advantages of low noise, no vibration, safety working and well-known high quality and reliability.

Explosion-proof Motor

Usually, explosion-proof motor of Dazhong or Xianda brand is recommended. ABB brand is also available, if necessary. Protection class IP55, insulation class F, explosion-proof class DIIBT4 or DIICT4.

Inlet and Outlet Connection

Inlet: Reinforced customized rectangular hopper is specially designed for M2 type screw pump with medium much easier entrance into the suction housing. The size of the hopper can be customized for your individual application.

Outlet: Flange connection, Threaded connection, Quick Release Clamp Connection are are available for your choice. We can do according to your requirements.

Flushing System

Different flushing systems are available for individual working condition, according to API682 standard, such as Plan 31, Plan 53A, or Plan 54.

The goods are offered with standard plywood case, no need of fumigation, suitable for long distance transportation. Excellent protection your goods from damage.

The goods can be transported by sea, by train, by air or by the combined transportation modes as your requirements.

Our Services

Our professional after-sale engineers are ready to provide solutions for you at any time.

Services include

•Training operators

•Fast response and solution to solve clients' problems

•Commissioning, maintenance and repair

•Technical consultation and spare parts purchase suggestion

Key products: Progressive Cavity Pump, Grinder Macerator, Directional Drilling Mud Motor Power Section, Down Hole PC Pump, Stator Core and the relevant spare parts and services.

Every year, we attend the international professional exhibitions related to pc pump, not only for better service of

FAQ

1.

We are one of the most professional manufactures in progressive cavity pump and the relevant spare parts, a joint venture company with GmbH.

2. Where is your company and is it convenient to visit your company?

We are located at Weifang City, Shandong Province,, and it only takes about one hour from Qingdao airport to

3. Why do we choose your company as the partner?

² GmbH expansion project, German pumping technology, leading standards worldwide.

² Technology is ’s core competitiveness. Customized pumping solutions for your individual requirements.

² T he most advanced production facilities directly imported, like PS 1000 multifunctional helicoidal CNC. Excellent equipment is the basic guarantee for quality products in.

² Unique stator rubber formula with outstanding advantages. German original stator is also available.

4. How long will it take to receive your orders?

Usually we arrange the shipment within one week if in stock.

It takes about 4-8 weeks for the new production. (According to the order quantity)

5. What’s your acceptable payment mode?

T/T

6. What’s the package?

The goods are offered with plywood case, no need of fumigation.

Excellent protection your goods from any damage.

7. How do you deal with client’s quality complaints? We are always responsible for every customer. Once any quality complaint, our professional after-sales service engineer will contact you and help you to solve the problems as soon as possible.

How could you find the most suitable pump? Please offer us specific information as much as possible.

1) Medium details: medium temperature, viscosity, solid content, abrasive and corrosive property, welling property,etc.

2) Pump capacity 3) Pump pressure (head) 4) Outlet and inlet pipe diameter and the transportation distance

5) Working site condition (indoor/outdoor, explosion-proof)

6) If possible, please provide more details about the pump you are using at present.

If you have any question,please contact

Janet

Sales Support Engineer

Description images
Product detail
Crude Oil Screw Pumps Oil Transfer Pump single Screw Oil Transfer Pump
Crude Oil Screw Pumps Oil Transfer Pump single Screw Oil Transfer Pump
Crude Oil Screw Pumps Oil Transfer Pump single Screw Oil Transfer Pump
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 5 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    40 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 47 fields
Application
Chemical Industry
Structure
Screw Pump
Max flow rate
0.1 - 500 m3/h(3.53-17657.33ft3/h)
Max pressure
60bar(870.23psi)
Power source
Electric
Chemical Compatibility
Water, oils, Alcohol, Gasoline
Sealing Material
PTFE, Stainless Steel
Impeller Material
Stainless Steel
Applicable temperature
≤150°C
Outlet size
Φ10 mm, 100MM(3.94in), 12 mm(0.47in), 104MM(4.09in), Φ13 MM, 14 mm(0.55in)
Import Size
Dn100
Connection Type
Direct Coupling, Fixed Coupling, shaft coupling, quick coupling
Suction head
3m(9.84ft)
Outlet Type
Universal Style
Discharge Pipe Size
1-1/2 in, 1 in, 1-1/4 in, 1/2 in, 3/4 in, 1 in-1/8 in
Inlet Height
500 mm(19.69in), 600mm(23.62in), 800 mm(31.50in), 900 mm(35.43in), 1000 mm(39.37in), 1100 mm(43.31in), 700 mm(27.56in)
Material
Stainless Steel
Control Method
Manual Control, Semi-Automatic Control
Motor
Three-Phase Motor, Explosion-Proof Motor, servo motor
Surface Treatment
Electroplating
Membrane material
Ethylene Propylene Diene Monomer (Epdm)
Warranty
1 Year
Customized support
OBM
Cable length
1m(3.28ft), 2 meters(6.56ft), 35 cm(13.78in), 42 CM(16.54in), 48CM(18.90in)
Horsepower
7.5 HP, 0.5 HP, 5 HP, 1 HP, 2 HP, 1.5 HP, 3 HP
Pressure
Low Pressure
Dwell time
10 Minutes
Hardness
60Shorea
Flow Meter Specification
10-100M3/H(353.15-3531.47ft3/h)
Outlet Water Oil Content
15mg/l
Model number (Specification)
VD010-VD040
Place of origin
China, Shandong
Capacity
35L/H-12000L/H
Pressure(Head)
6Bar(87Psi)--------12Bar(174Psi)
Frequency
50HZ/60HZ
Gear Reducer and Motor
Germany Brand
Frequency Converter
Available
Pump Stage
1 Stage-2 Stage
Unique Advantages
Accurate Dosing, No Pulsation
Quality warranty
One Year
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Voltage (Product option)
220 V, 380 V, 440 V
Type (Product option)
Chemical Pumps, Mechanical Pump
Flow Rate (Product option)
12 Cbm/H(423.78ft3/h)
Maximum head
120Meter(393.70ft)
Lead time
40 days
Minimum order
5 Units
