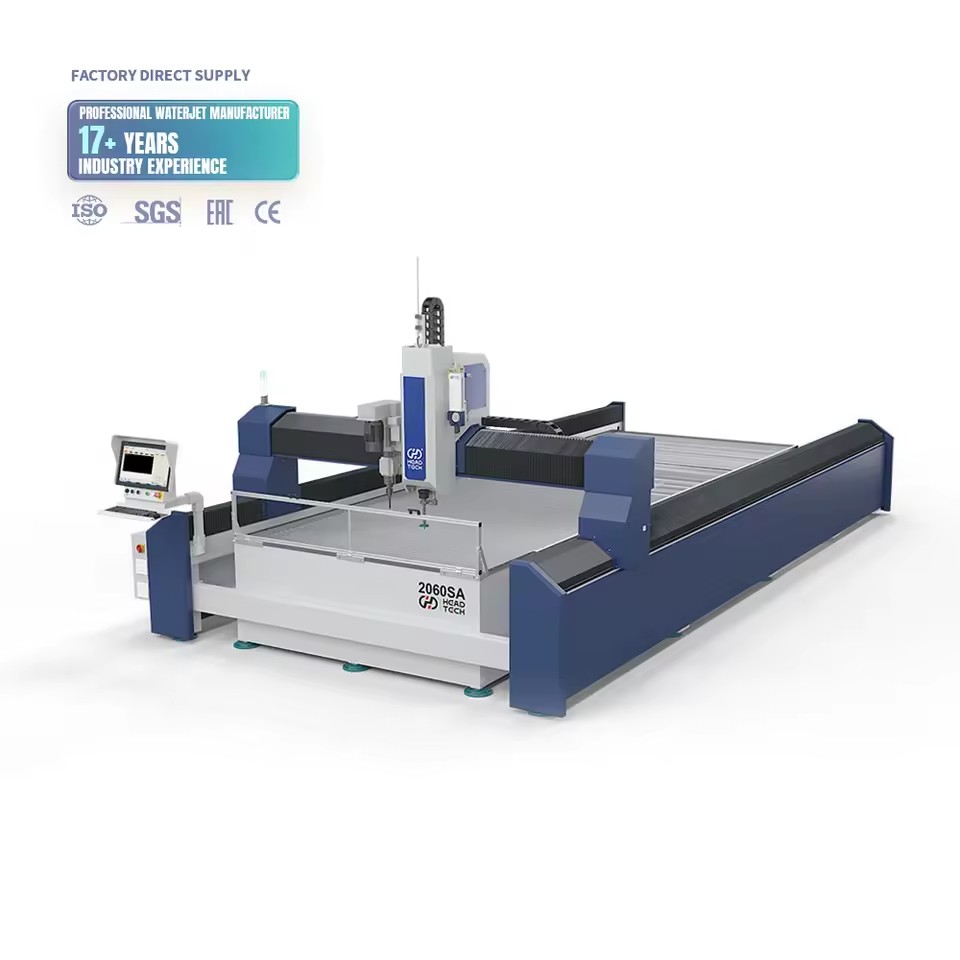

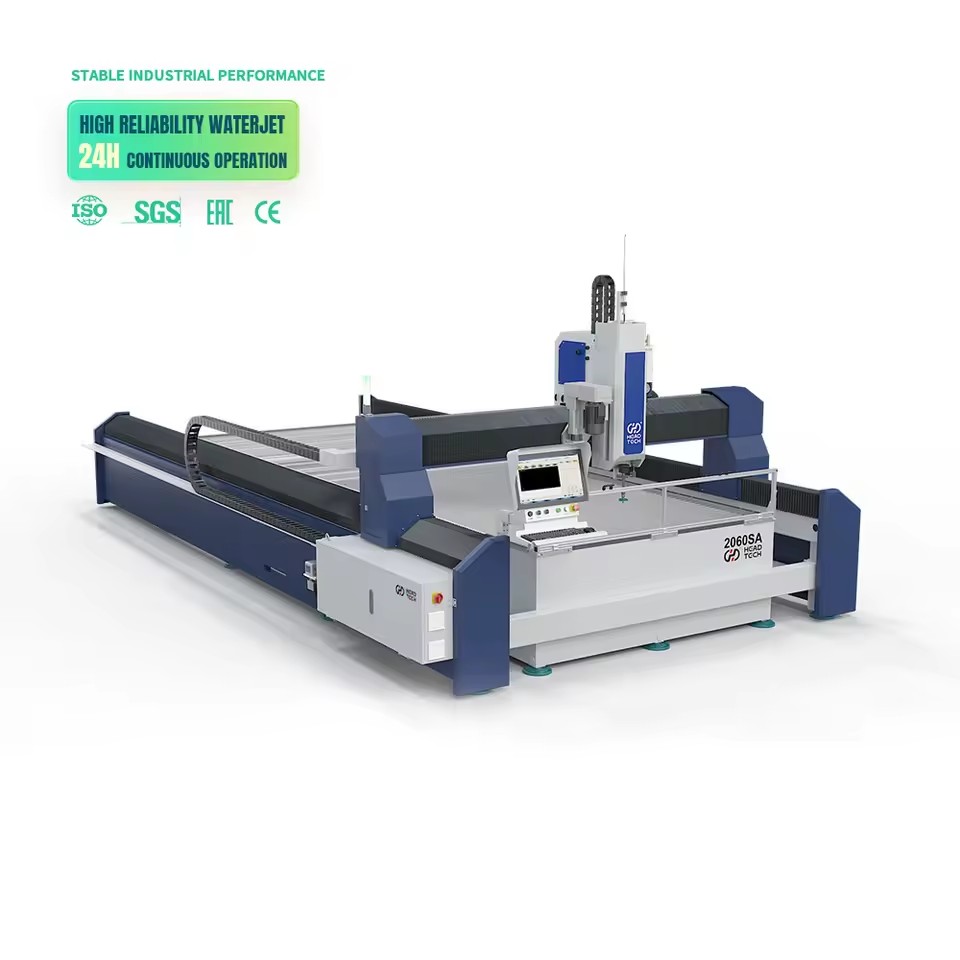

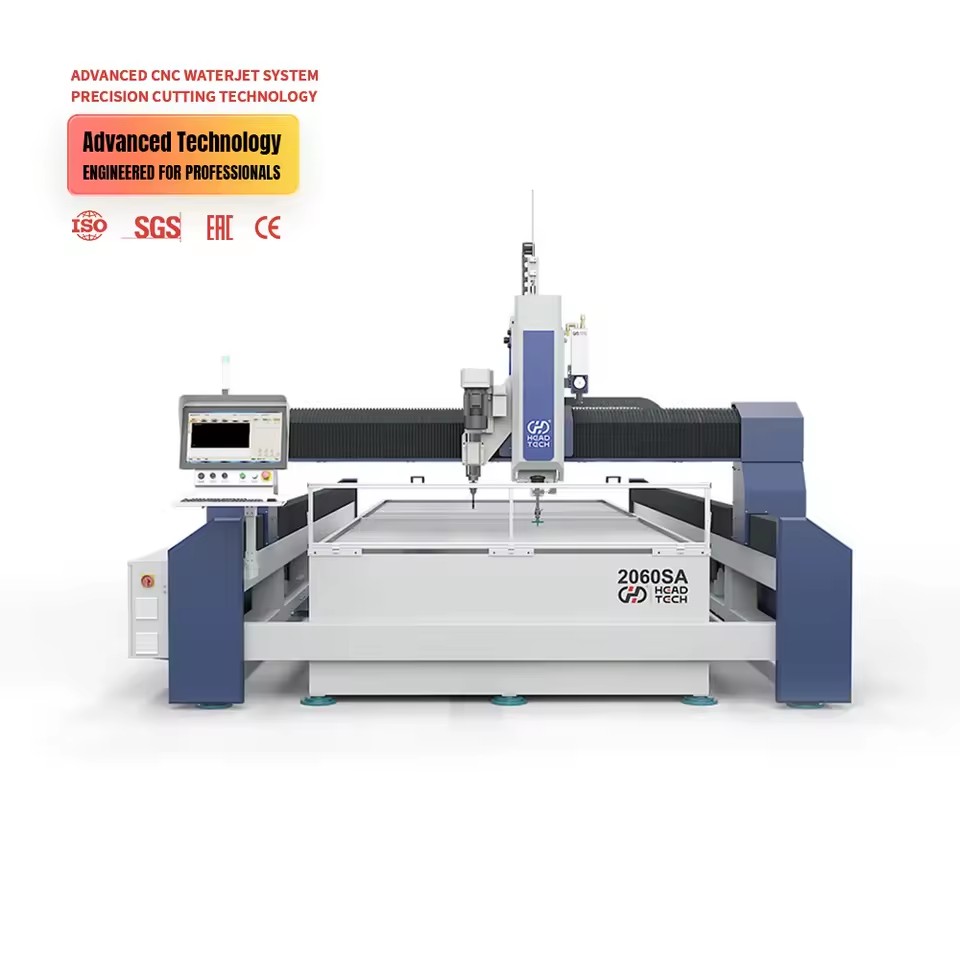

Name: CP-E 2060 CNC Automatic Water Jet Cutting Machines Prices | Factory Direct Price Water Jet Cutting Machine for Composite
SKU: B2B-4305
Price: 71520.0 USD
Availability: PreOrder

Product description

Highlights at a glance

Designed for heavy duty composite material processing, this CNC waterjet cutting machine is ideal for carbon fiber, fiberglass, thick honeycomb panels and multilayer laminated materials. Cold cutting technology using high pressure waterjet with abrasive eliminates heat affected zones, preventing delamination, deformation and material damage while ensuring smooth and precise cutting edges.
The split gantry structure provides exceptional rigidity and load capacity, making it suitable for large format and thick material applications. By separating the machine frame and water tank structure, it effectively avoids deformation caused by heavy load, ensuring long term cutting accuracy and stability for industrial production.
Equipped with an integrated waterjet cutting and drilling system, the machine enables both precise contour cutting and efficient hole processing in one setup. This multi process solution reduces handling time, improves production efficiency and lowers labor cost.
Advanced CNC control system supports intelligent switching between waterjet and drilling functions, automatic path planning and optimized cutting parameters for different composite materials. It minimizes manual operation while ensuring high precision and repeatability.
The system is optimized for high strength composite materials such as carbon fiber reinforced plastics, glass fiber materials and sandwich structures, solving common challenges like edge tearing and internal layer damage.
With circulating water system and automatic abrasive management, the machine ensures continuous stable operation while reducing consumable costs and maintenance requirements.
Widely used in aerospace, rail transit, wind energy, new energy and advanced manufacturing industries, this waterjet cutting machine is a reliable solution for high precision composite material cutting and drilling applications.

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

Empowering advanced manufacturing with high-precision 3D cutting, real-time dynamic compensation, and a high-rigidity structure with minimal thermal deformation. Under 380 MPa high-pressure water reaction force and temperature variations from 0 to 40 C, cutting point deviation remains below 0.01 mm. By integrating waterjet cutting and drilling, the system enables precise cutting of composite materials and efficient hole processing, meeting diverse manufacturing needs while improving productivity

Aerospace-grade aluminum beam with T6 treatment offers high strength, low weight, and deformation resistance, ensuring rigidity, faster cutting movement, improved efficiency, reduced energy consumption, and long-term stability.

The integrated waterjet cutting machine features a one-piece body structure, delivering excellent stability. It ensures consistent precision in cutting and drilling even under long-term, high-load operation. This design allows for immediate use upon installation, saving significant time and labor costs. The compact integrated structure also reduces the machine footprint, making it easy to install in spaces and adaptable to various production environments.

The machine is equipped with prominent LED indicators that display real-time operating status through different colors and flashing patterns. A steady green light indicates normal and efficient operation; a flashing yellow light signals standby mode; and a red light indicates a critical fault, triggering automatic shutdown to prevent further damage and ensure operational safety and production continuity.

Cable-free, highly stable operation that breaks spatial limitations. With long-distance signal reception, dustproof and shock-resistant design, it adapts to harsh environments. The remote features multiple integrated control functions, making operation more convenient and fully under control.

Cutting Capabilities.

Certifications & compliance

Complies with EU standards

Frequently asked questions

Yes, this machine is certified to meet European CE safety standards.

The cutting thickness ranges are as follows: Marble: 0-120 mm, Granite: 0-110 mm, Tiles: 0-40 mm, Glass and mosaic: 0-80 mm, Steel, stainless steel, copper: 0-60 mm, Aluminum: 0-80 mm, Plastics, acrylic, foam: 0-200 mm. With our dual-pressure system, it can also cut: Steel plate: 0-160 mm, Stone: 0-200 mm. This provides an advantage for customers needing to cut thicker materials.

Absolutely.

Waterjets are incredibly versatile, cutting nearly any material. Soft materials like foam and rubber are cut with water only. Hard materials, including titanium, steel, stone, and glass, are cut with an abrasive-mixed stream.

Key factors are the material type and thickness you need to cut, your required precision, and your workspace size. Our expert team is available to help you select the perfect model for your needs and budget.

Yes, specialized training is required. We offer comprehensive programs covering machine operation, software, and safety protocols to ensure optimal performance and safe use.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

45 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 27 fields

Voltage

380 V, 220 V, 110 V

Number of axes

Repeatability (x/y/z) (mm)

±0.001

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

2000*6000*150

Key selling points

Easy To Operate

Rated power

37kw(49.62hp)

Place of origin

China, Liaoning

Weight (kg)

3000

Table travel (x) (mm)

2000

Table travel (y) (mm)

6000

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Application

WATERJET CUTTING MACHINE

Type

Water Jet Cutters

Name

Water Jet Cutting Machine Cutter

Keyword

Cutting Waterjet Parts

Usage

Ultra High Pressure Cutting

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

MP-E 2060 SA

Effective cutting range (mm)

1000×1000, 1300x2500, 1200×1200, 1300×1300, 1500×1500, 1500×3000, 2000×1500, 2000x3000, 2000×6000, 1300x1300, 1000×3000, 1500×2500, 1000*2000, 1500*2000

Certifications & Compliance

Lead time

45 days

Minimum order

1 Units
