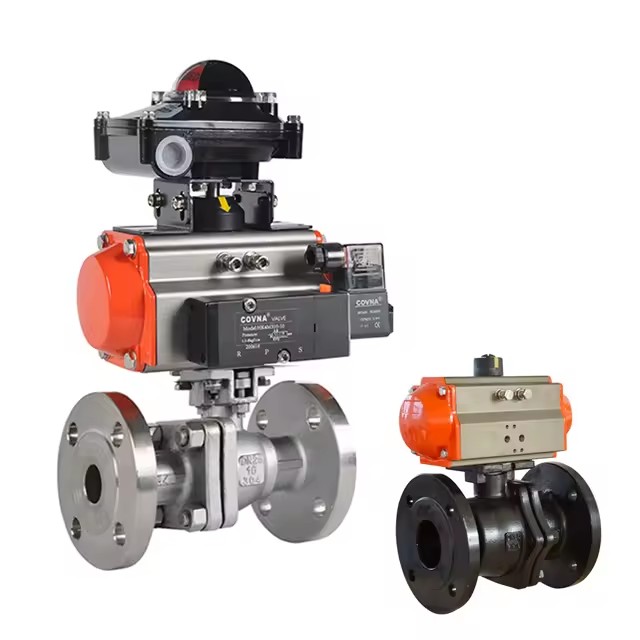

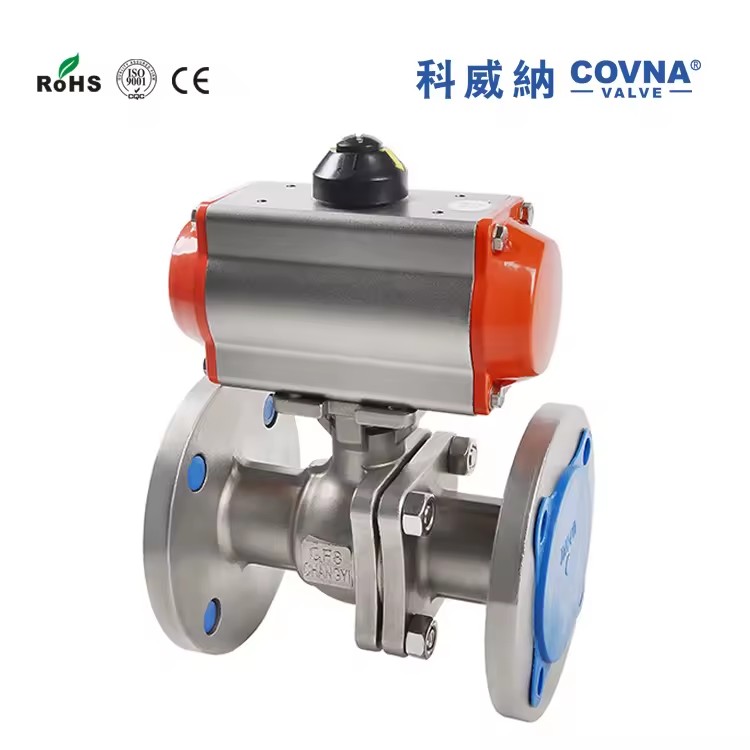

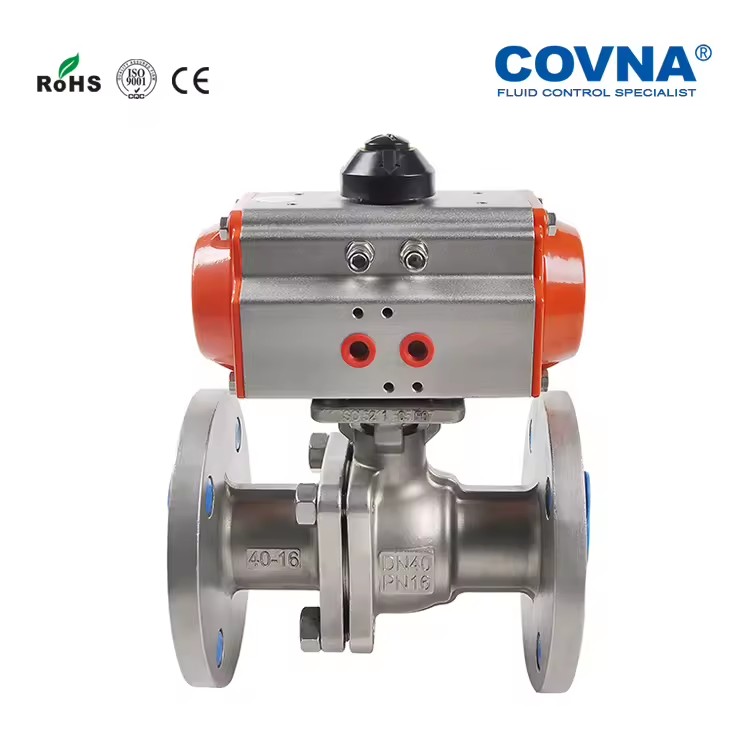

Name: COVNA Urgent Order Valves Spring Return Double Acting With Switch Box Stainless Steel for Steam Actuator 3pc Ball Valve
SKU: B2B-12543
Price: 130.0 USD
Availability: PreOrder

Product description

$72.13-77.13 / piece

Features Of Flange Pneumatic Ball Valve

Item	COVNA Valves Spring return Double Acting With Switch Box Stainless Steel For Steam Pneumatic Actuator pneumatic 3pc ball valve
Applicable Standards	GB, DIN, ANSI, ASME, JIS, API
Size Range	DN15 to DN200, 1/2" to 8"
Acting Mode	Double Acting, Sping Return (Single Acting) are Available
Air Supply Pressure	2.5 to 8bar
Operating Pressure	PN10/16/25/40/64
Output Torque	14 to 4678Nm
Lifespan	1,000,000 (1 Million) Times
Angle of Rotation	90° ±4°
Body Material	Stainless Steel 304/316/316L
Sealing Material	NBR, EPDM, PTFE
Core Material	Stainless Steel 304/316/316L
Structure Options	2 Way or 3 Way
End Connection	Flange
Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media	Range from -10 to +180°C
Ambient Temp.	Standard Type: -20 to +80°C (-4 to 176°F)
Optional Accessories	Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application	Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine, Power Industries, Shioyard

Pneumatic Accessories Options

Technical Parameters Of Pneumatic Actuator

Double Acting	Air to open, Air to close, air supply failure keep the current position
Spring Return	Air to open, interrupt air to open, air failure to close
Operating Media	Dry or lubricated air, or the non-corrosive gases. The maximum particle diameter must less than 30 um
Air Supply Pressure	Minimum supply pressure is 2.5 bar. The maximum supply pressure is 8 bar
Operating Pressure	Standard: -20~80℃
Travel Adjustment	Have adjustment range of ±5° for the rotation at 0° and 90°

Your Preferred Manufacturer Of Pneumatic Actuator Valve

QUALITY CONTROL

COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.

MADE BY EXPERIENCED ENGINEERS

All products are designed, engineered and manufactured by experienced industry engineers to provide safe, reliable, dependable and affordable valves, actuators and solutions.

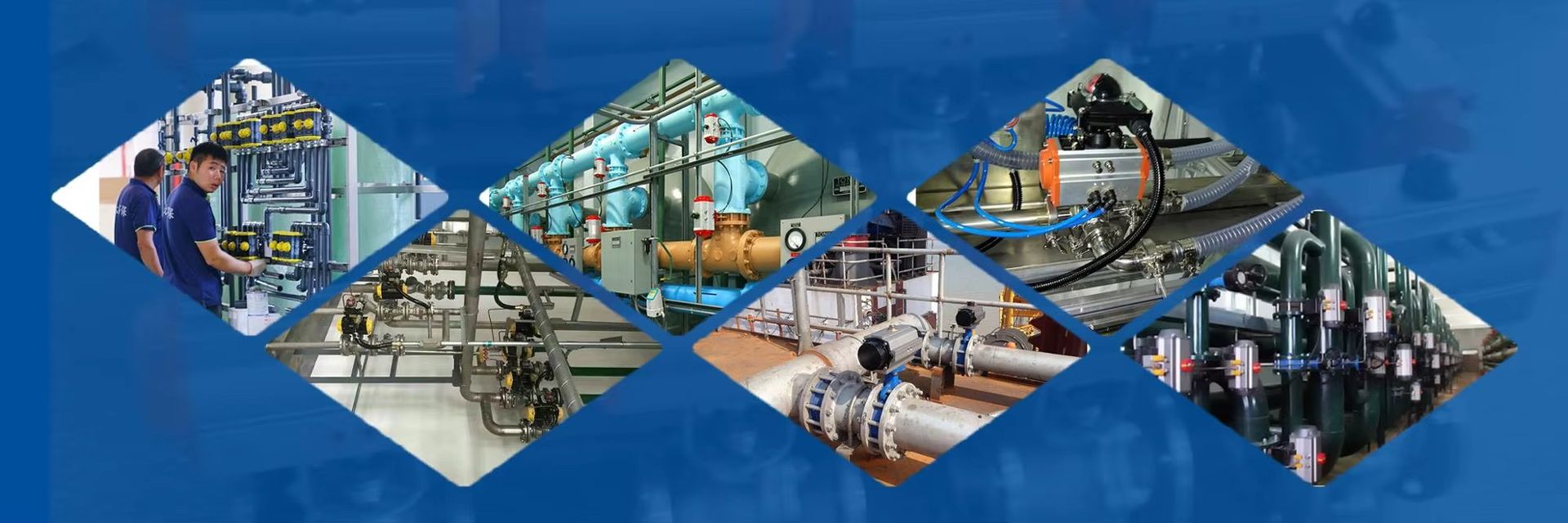

Project Reference

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Media

Water, Oil, Steam, Gas, air, Liquid

Power

pneumatic

Port Size

1/2" to 8"

Application

General

Temperature of media

High Temperature, t<180°C

Structure

Flanged Pneumatic Ball Valve

Customized support

OEM

Warranty

1 Year

Place of origin

China, Guangdong

Model number (Specification)

HK55F Pneumatic Ball Valve

Item

Pneumatic Ball Valve

Air Supply Pressure

2.5 to 8bar

Acting Mode

Double Acting, Single Acting (Spring Return)

Sealing Material

PTFE, EPDM, NBR

End Connection

Flange End

Certificate

RoHS, ISO9001:2008 CE

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Pressure (Product option)

Medium Pressure

Size (Product option)

1/2" to 8"

Material (Product option)

Stainless Steel, Carbon Steel

Lead time

7 days

Minimum order

2 Units
