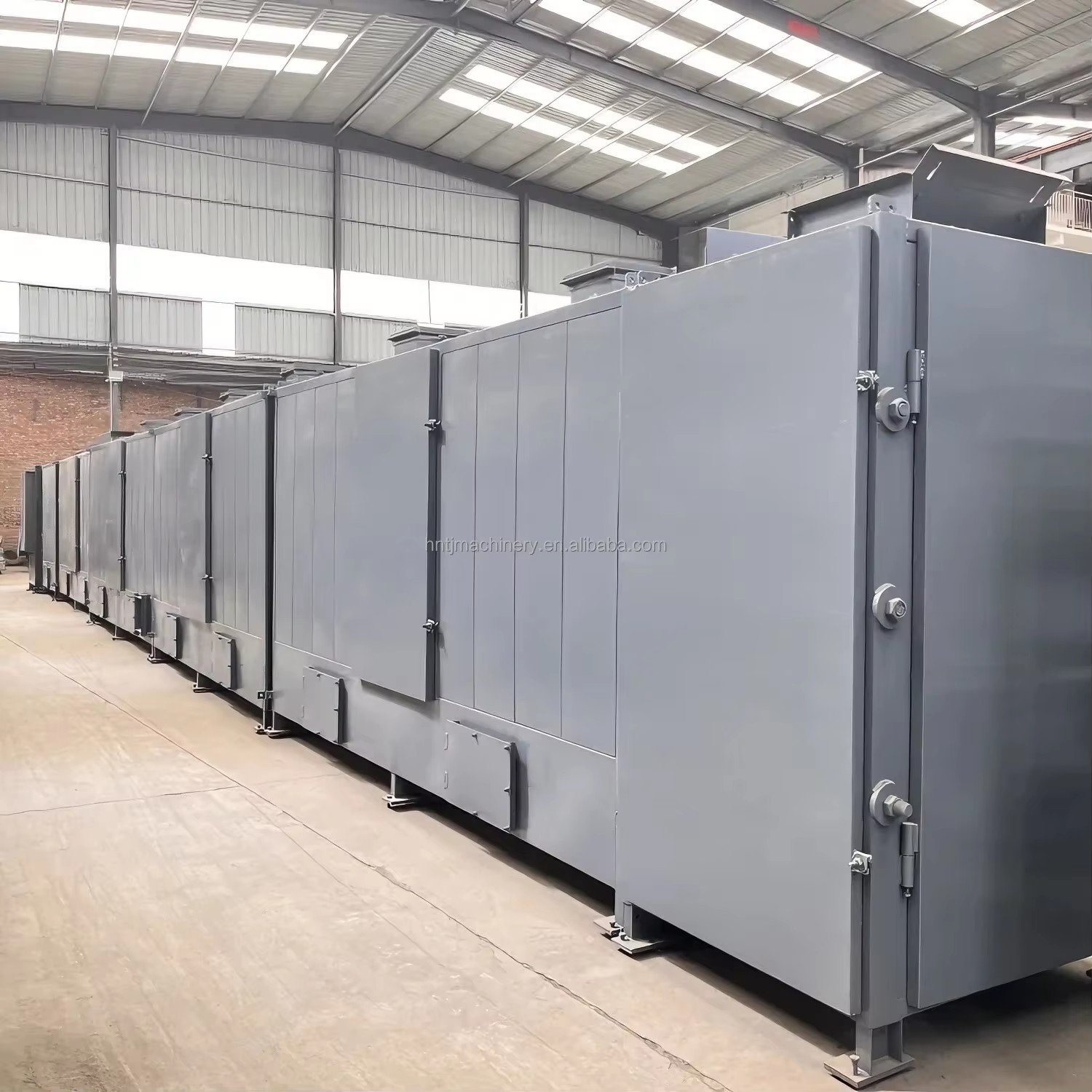

Name: Continuous Coal Briquette Chain Belt Dryer Iron Briquettes Iron Ball Mesh Belt Dryer Steel Dryer Briquette BBQ Mesh Belt Dryer
SKU: B2B-35143
Price: 4890.0 USD
Availability: PreOrder

Product description

Continuous Coal Briquette Chain Belt Dryer Iron Briquettes Iron Ball Mesh Belt Dryer Steel Dryer Briquette BBQ Mesh Belt Dryer

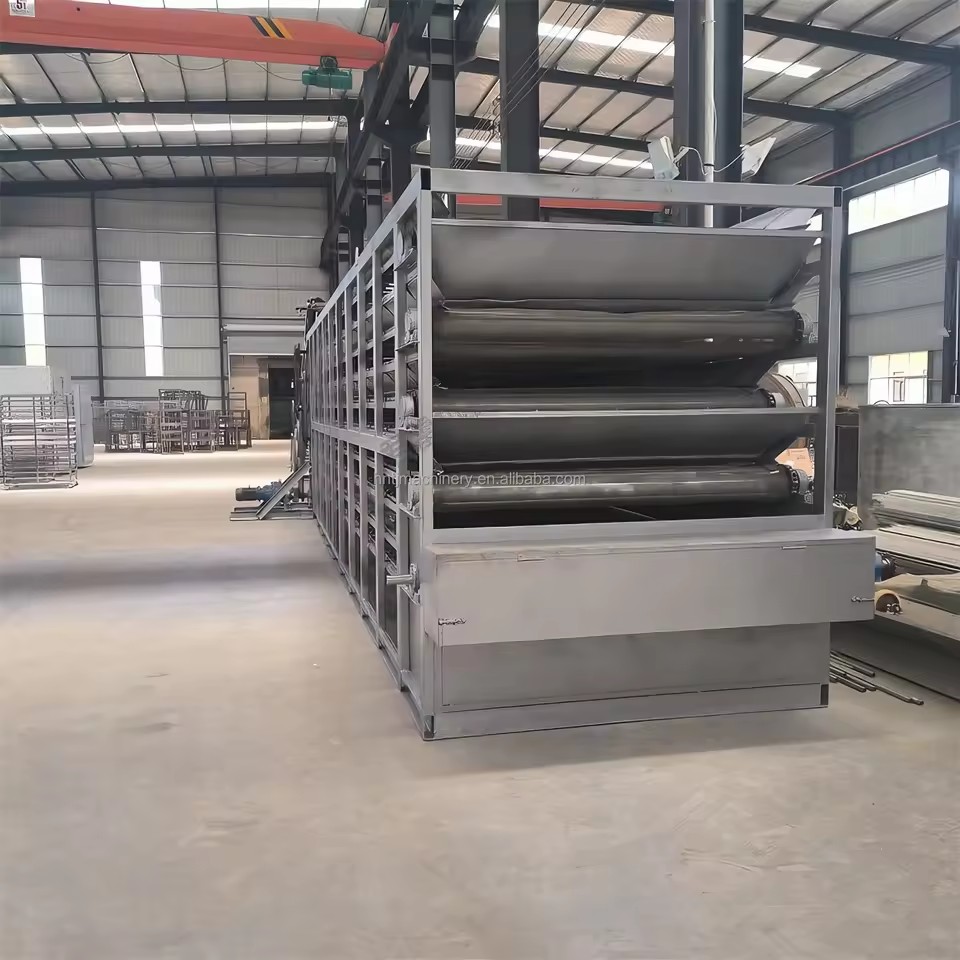

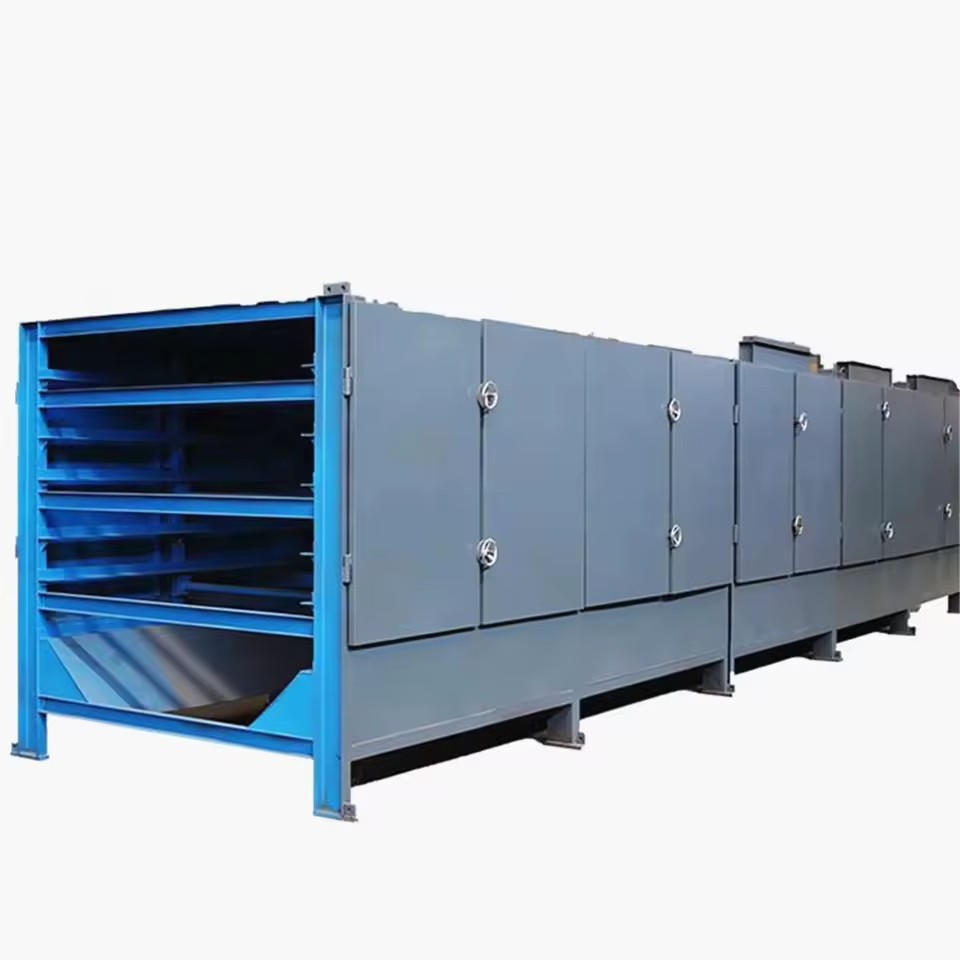

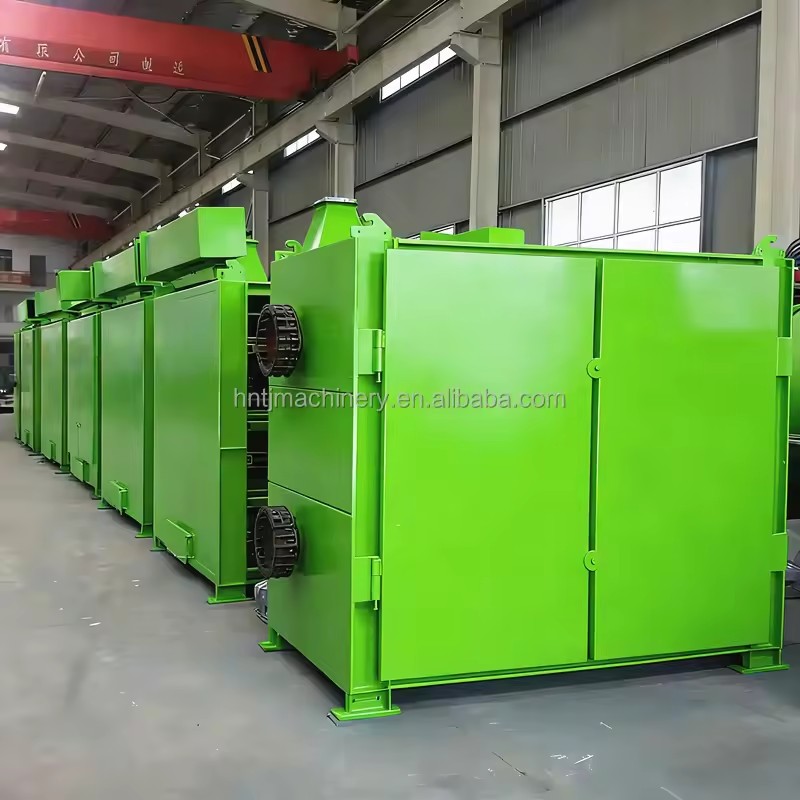

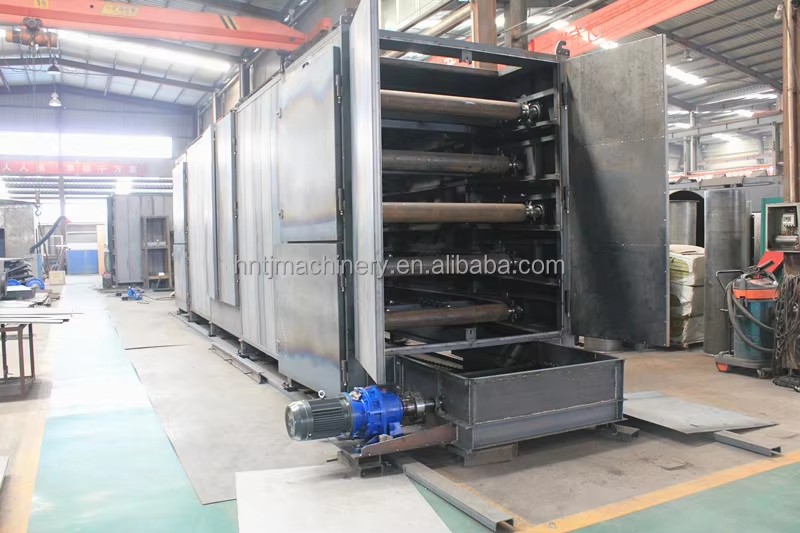

Mesh belt dryer is professional drying charcoal briquette, coal briquette and others.

And the mesh belt dryer length can customize depends on the customer need.And the mesh belt dryer have three and five layers. This machine is very popular in the world. The raw material can be spread on the conveyor belt through suitable mechanism such as star distributor, vibrating belt, grinder or granulator. The conveyor belt will pass the channel that consist one or several drying units. Each drying unit is equipped with air heating and circulating system, and each drying unit has one or several dehumidification system. The hot air will move up and down when the conveyor belt passes though.

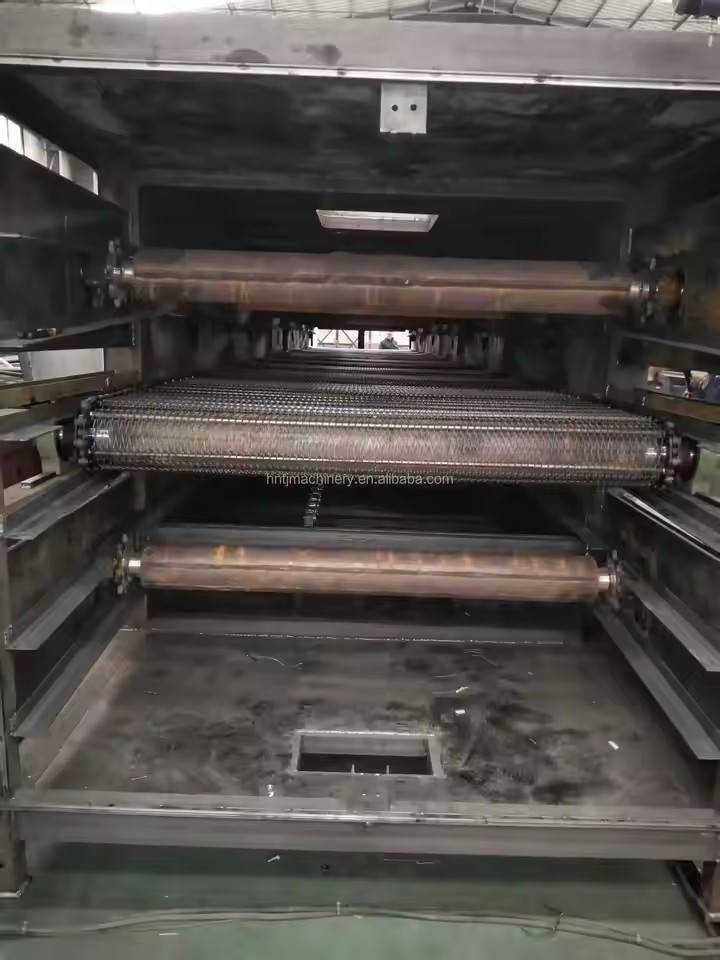

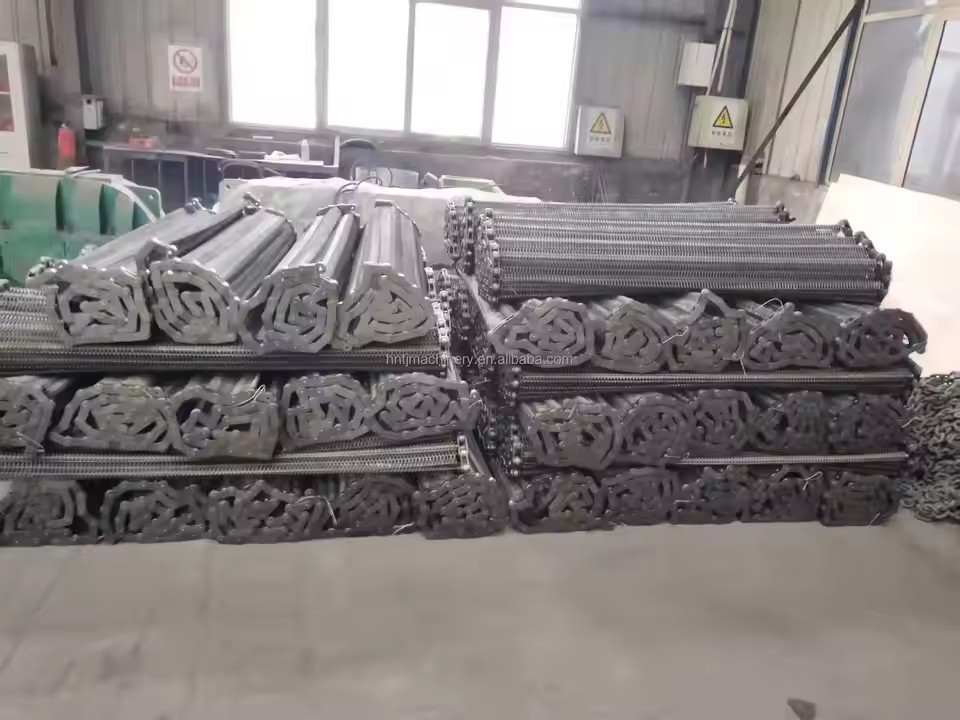

The Machine have different models. And the length is different.We have different models for you chose. And the inside have metal mesh.

3-Layers Mesh Belt Dryer

Model	TJ3-12-1.8	TJ3-16-1.8	TJ3-18*1.8	TJ3-20*1.8	TJ3-22*1.8	TJ3-2 4 *1.8
Mesh Belt Width	1.8	1.8	1.8	1.8	1.8	1.8
Drying Length	12	16	18	20	22	24
Material Thickness	10-50mm	10-50mm	10-50mm	10-50mm	10-50mm	10-50mm
Dring Temperature	50-150	50-150	50-150	50-150	50-150	50-150
Power	21.2	21.2	21.2	22.7	22.7	22.7
Overall Diamension	1221.8	1621.8	1821.8	2021.8	2221.8	2421.8
Total Weight	3t	4t	5t	5.5t	6t	7t

5-Layers Mesh Belt Dryer

Model	TJ5-12-1.8	TJ 5 -16-1.8	TJ 5 -18-1.8	TJ 5 -20-1.8	TJ 5 -22-1.8	TJ 5 -24-1.8
Mesh Belt Width	1.8	1.8	1.8	1.8	1.8	1.8
Drying Length	12	16	18	20	22	24
Material Thickness	10-50mm	10-50mm	10-50mm	10-50mm	10-50mm	10-50mm
Drying Temperature	50-200	50-200	50-200	50-200	50-200	50-200
Power	21.2	21.2	21.2	22.7	22.7	22.7
Overall Diamension	12122m	16162m	181.82m	201.82m	221.82m	241.82m
Total Weight	5t	5.5t	6t	6.5t	7t	7.5t

The Mesh belt dryer is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction industry, electronic industry and so on. This dryer is especially suitable for drying the materials that have a good breathability and shaped as pieces, strips, or granules. It is also applicable to dry the pasted materials such as filter cake after shaped by granulator or extruder.

Features

1) Air quantity, heating temperature, materials staying time and feeding speed can be adjusted in order to improve drying quality. 2)The equipment configuration is flexible. The mesh belt washing system and materials cooling system are available to use. 3)Most of the hot air is reused to realize energy saving. 4)The machine is equipped with unique air distributor; it distributes the hot air to the dryer and

ensured the quality of products is constant. 5)The heat source can use steam, thermal oil, electricity, coal (oil), or hot air furnace.

We have export more than 20 years. And

1. Your company is trader our manufacturer?

2. Do you have professional engineer for design?

Yes, We have professional engineer design the machine, we accept customize machine. If you have some special requrie, Please contact with us, We will give you some good advices.

3. How long time of the guarantee?

5. If we order the machine, Will have discount?

Different equipments the price is different. We make sure give you the best price and quality. About the price, we can talk directly.

6. The voltage and hertz are different, Can you change it depends on reuqire?

Yes, We can change the voltage and hertz depends on clients need. We have professional engineer change the motore voltage and hertz.

7. Which sea port is nearest your factory?

8. What's trade terms are you doing?

We accept CIF. FOB. EXW.DDP.DDU and others. We have already cooperation with the professional forwarder more than 10 years.

9. Do you send your engineer install the machine?

If the client order the full line and need engineer to install the machine in working site. We will send our engineer to your country and install machine, guide your worker how to use the machine.

n we visit

Yes, certainly. Welcome to visit

Warranty: We provide one-year warranty for our equipment. For damage of equipment arising from non-artificial factors within the warranty period, we will provide repair service for free; and for damage of equipment arising from artificial factors, we will provide repair service in time and collect corresponding cost. Maintenance and period: For damage of equipment after expiration of warranty period, we will provide on-site repair service within 24h/48h for enterprises inside/outside the province after receiving buyers’ notification. The service provided after expiration of warranty period is fee-based, and flat cost will be collected each time when the service is provided.

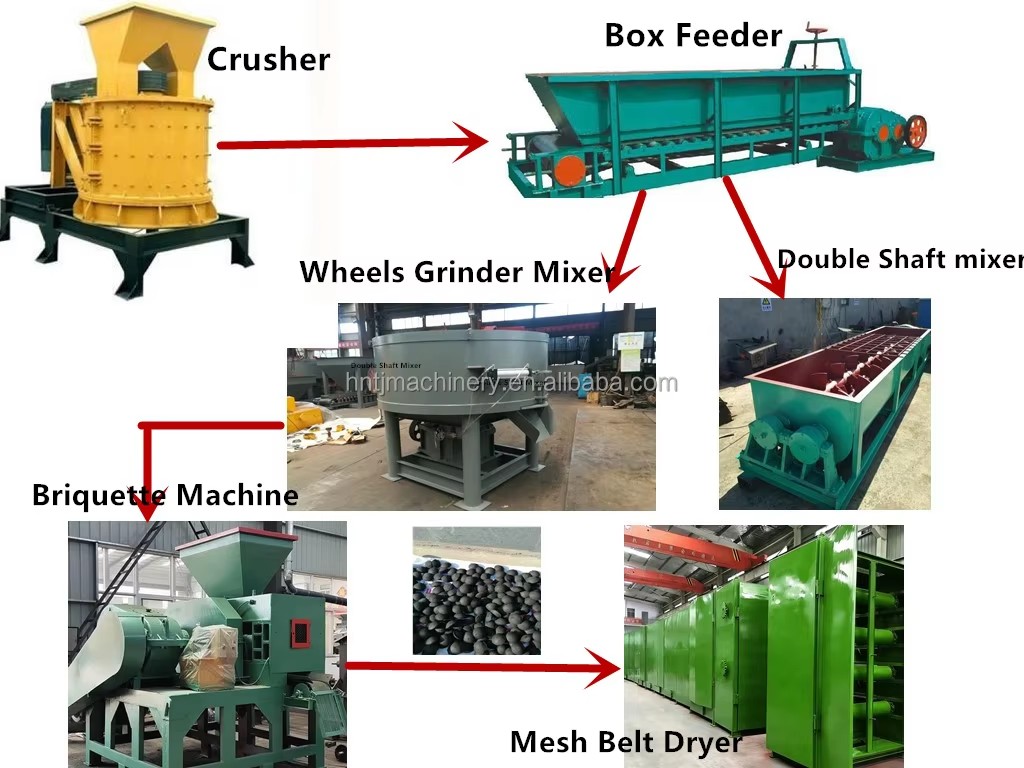

Briquette machine, We have different briquette machine for you chose. We have hydraulic briquette machine, Normal Briquette machine.

Welcome to visit

Description images

Continuous Coal Briquette Chain Belt Dryer Iron Briquettes Iron Ball Mesh Belt Dryer Steel Dryer Briquette BBQ Mesh Belt Dryer

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Type

mesh belt dryer

Voltage

Customize

Heating method

Gas Heating, Steam Heating, Electric Heating, Heat Pump

Material

Stainless Steel, Carbon Steel, Q235

Power(w)

3000 W

Application

Chemicals Processing

Core components

Bearing, PLC, Motor, Gear, Engine, Gearbox

Key selling points

Automatic, Competitive Price, Multifunctional, High Safety Level, Eco-Friendly, Energy Saving

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Operating System Language

English

Place of origin

China, Henan

Weight (kg)

5000

Dimension(L*W*H)

18.5*2.4*1.8m

Name

Mesh Belt Dryer

Function

Drying+Dehumidity

Dryig process

Continuous Automatic Vegetables Dryer Machine

Usage

Drying Briquette

Heating source

Gas Coal Oil Electric

After-sales Service Provided

24 Hours Online

Temperature range

RT+10-250

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

TJ-12.5*16M, TJ16.5*20M, TJ18.5*20M, TH2.5*22.5M

Lead time

20 days

Minimum order

1 Units
