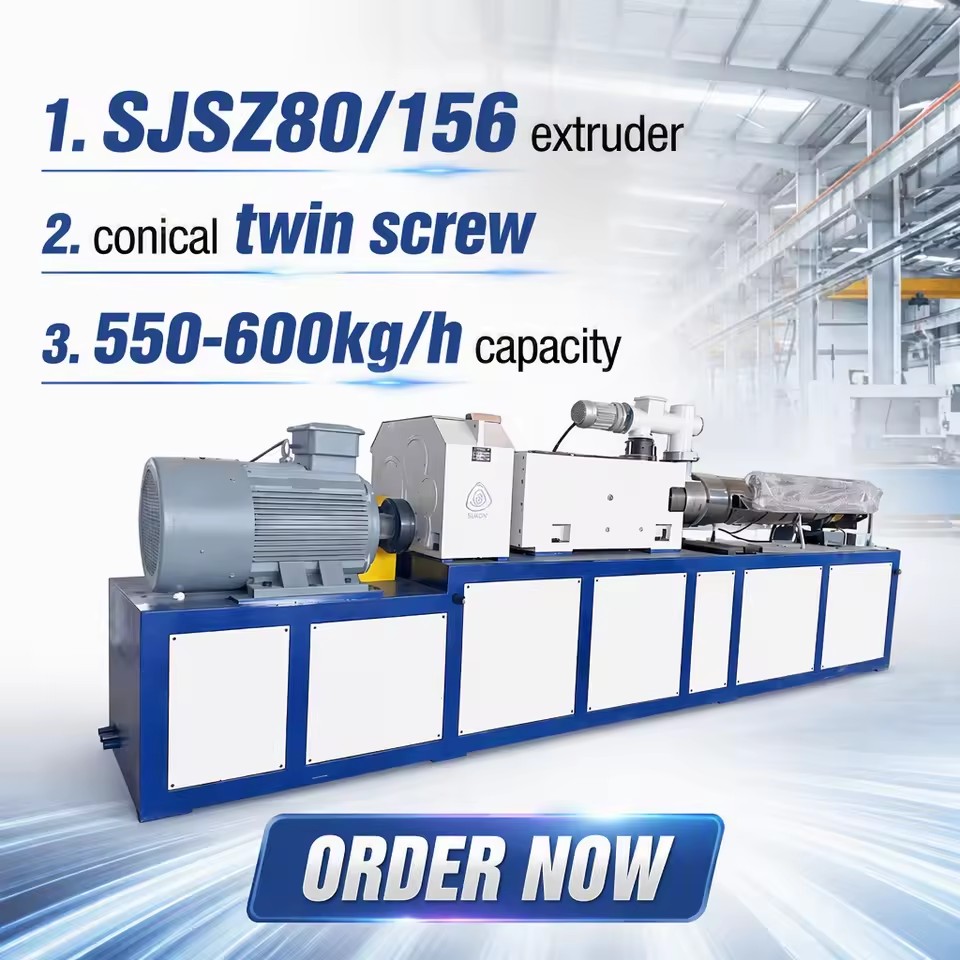

Name: Conical Twin Screw Extruder SJSZ80/156 Machine for Multi-layer Plastic Co-extrusion Compound Production Line Customize Available
SKU: B2B-34009
Price: 52340.0 USD
Availability: PreOrder

Product description

Highlights at a glance

1. Basic Overview Type

Full intermeshing conical twin-screw plastic extrusion equipment

Core Application: Directly processes rigid PVC powder into finished products without pre-granulation, widely used for PVC pipes, WPC foam boards, profiles, sheets, and PVC pelletizing

Design Feature: Tapered screw structure (inlet diameter 156mm, outlet diameter 80mm) enables low-temperature melt extrusion with excellent plasticizing and mixing performance

2. Key Technical Parameters

Screw Diameter: 80/156 mm

Main Motor Power: 55 kW

Output Capacity: 350-600 kg/h

Screw Speed Range: 1-37 r/min

3. Structural & Performance Advantages

Material: Screw and barrel made of 38CrMoAl with nitriding treatment (nitride depth 0.4-0.7mm), hardness HV>740, long service life

Control System: Adopts Siemens PLC touch screen operation

Cooling System: Screw core with circulating oil cooling, barrel with forced air cooling, equipped with vacuum exhaust system to eliminate material bubbles

Drive System: Hard-tooth surface reduction gearbox with 20CrMnTi carburizing grinding process, low noise, stable operation

4. Standard Configuration & After-sales

Complete Line Composition: Spring feeder, main extruder, T-die, three-roller calender, haul-off unit, cutter, stacker

Warranty: 1-year full machine warranty, lifetime technical support, 24-hour on-site after-sales response

Customization: Supports non-standard configuration adjustment according to different product processes

Certifications & compliance

Complies with EU standards

Frequently asked questions

(1)We have complete system of designing of extrusion equipment, so customize is available. (2)We can provide perfect extrusion management solutions and extrusion equipment. (3)We could make you in a leading position in the industry.

You should prepare raw material, workshop, water line, electric line, compress air(if you need I can help you buy air compressor). We would supply workshop layout drawing for you.

First of all, we will test the machine before shipment. we will send our engineer to your factory to assemble and adjust the machine, and teach your operators to use the machine in the right way.

Within one year after installation under normal condition operation.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

90 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 31 fields

Application

Film, Profile, Plates, Sheet, Pelletizing

Plastic processed

HDPE, LDPE, PP, PVC, EVA, Polylactic Acid, TPU, LLDPE

Extruder type

twin screw

Voltage

380 V, 220 V

Screw L/D Ratio

156:1

Screw Material

38CrMoALA, nitriding treatment

Key selling points

Energy Saving

Video outgoing-inspection

Provided

Warranty

1 Year

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other, Screw

Screw Design

Double-screw

Screw Speed (rpm)

Place of origin

China

Weight (kg)

5000

Dimension(L*W*H)

Customized

Power (kW)

Name

Conical Twin Screw Extruder SJ80/156

Model

SJ80/156

Raw material

PVC Powder

Screw quantity for single extruder

2pcs

Output Capacity (Specification)

550 - 600 kg/h

Dimensions

4300 * 1250 * 1770mm

ROTATION SPEED

0-37r/min (counter-rotating outer direction)

Temperature control range

50-300 °C

Vacuum pumping device

Direct-coupled water ring sealed vacuum pump

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

SJSZ80/156

Output (kg/h)

550, 400, 450, 500, 600, 350

Certifications & Compliance

Lead time

90 days

Minimum order

1 Units
