Name: Commercial Electric Food Dehydrator Lerford FD-08B Stainless Steel Tray Dryer 30-90C Temperature Range Vegetables Fruits Flower
SKU: B2B-17157
Price: 170.0 USD
Availability: PreOrder

Product description

Basic principles of dryers

Dryers are equipment that removes moisture from materials by hot air, microwaves, vacuum, or other means. Its core principle is to use heat energy to evaporate the moisture in the material and discharge the moisture through the ventilation system to achieve the purpose of drying.

The main structure of the dryer machine Feeding device: trays are placed one by one to feed wet materials evenly into the dryer to ensure that the materials enter the drying chamber continuously and evenly.

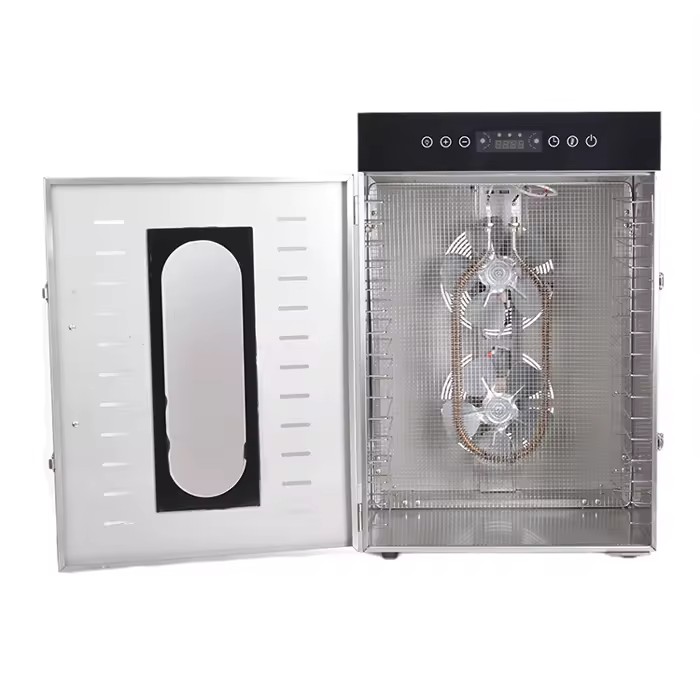

Drying chamber: The drying chamber is the core part of the dryer. Each layer has an independent hot air circulation system to ensure that the materials are heated evenly. The design of the drying chamber directly affects the drying efficiency and product quality.

Heating system: The heating system provides the heat energy required for drying. Common heat sources include electric heating, steam heating, gas heating, and microwave heating. The selection of the heating system depends on the characteristics of the material and production requirements.

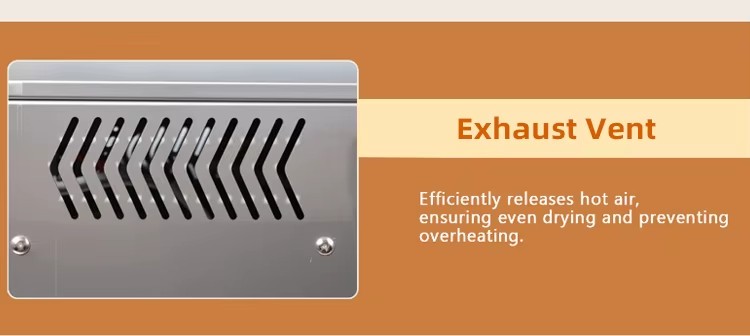

Ventilation system: The ventilation system distributes hot air evenly to each layer through fans and air ducts to ensure that the materials are heated evenly. At the same time, the ventilation system is also responsible for discharging moisture and maintaining a dry environment in the drying chamber.

Control system: The control system is used to adjust the temperature, wind speed, conveyor belt speed, and other parameters of the dryer to ensure a stable and efficient drying process. Most modern dryers use intelligent control systems to achieve remote monitoring and automatic operation.

Applicable raw materials of vegetable dryer machine

This multifunctional fruit dryer can not only be used for drying fruits but also can be widely used for dehydrating the following raw materials: Fruits: such as apples, bananas, mangoes, strawberries, kiwis, and other fresh fruits. Vegetables: such as carrots, pumpkins, spinach, tomatoes, bell peppers, and other vegetables. Meat: can make beef jerky, pork jerky, and other meat products. Seafood: drying seafood such as fish fillets and shrimps. Nuts and seeds: almonds, walnuts, pumpkin seeds, etc. Flowers: used to make dried flowers, scented tea, etc.

Features of fruit and vegetable dryer machine

Box material Thickness 0.6mm, using 201 single-sided snowflake sand stainless steel, sturdy and durable, exquisite appearance.

Screen design The edge is smoothed to avoid scratches and is safer to use; the 304 stainless steel grid ensures safe and hygienic food drying.

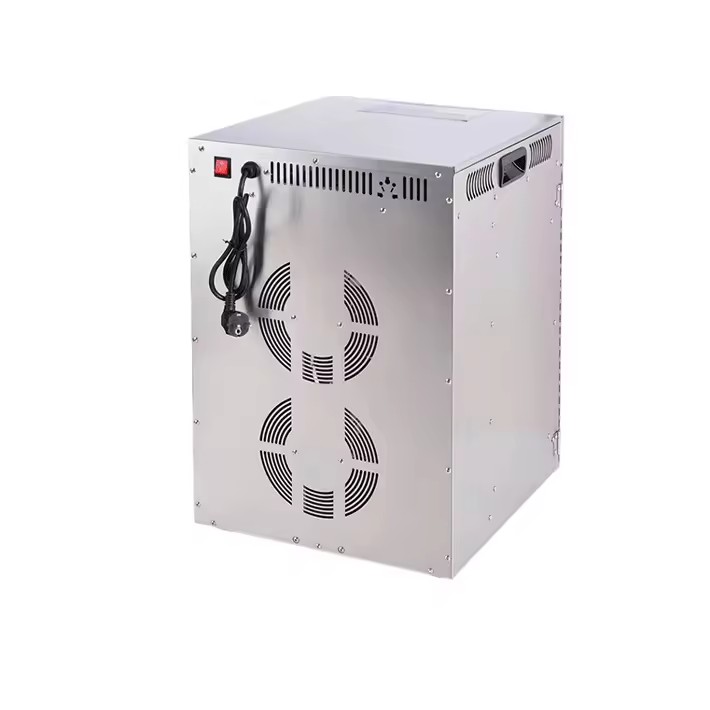

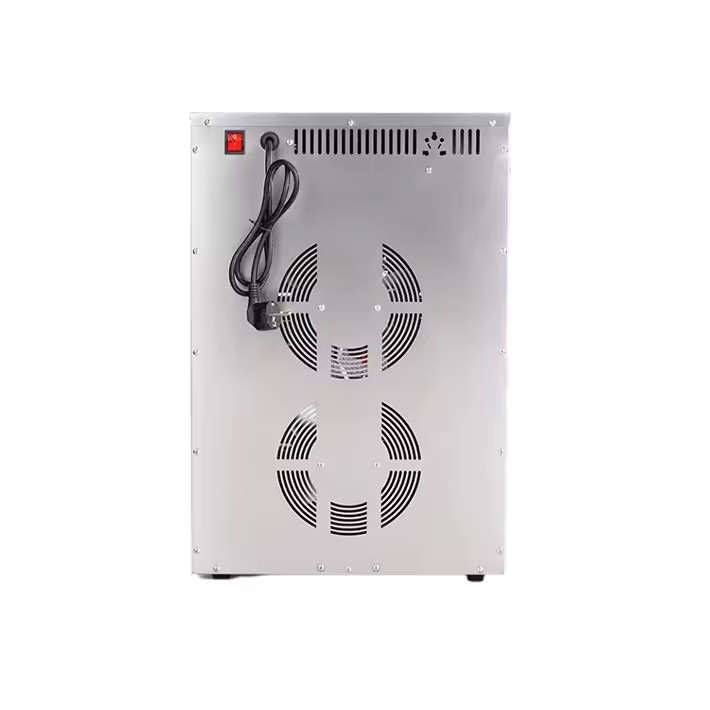

Back panel structure The welded edge bracket is used to strengthen the internal structure, making the overall more stable and reliable.

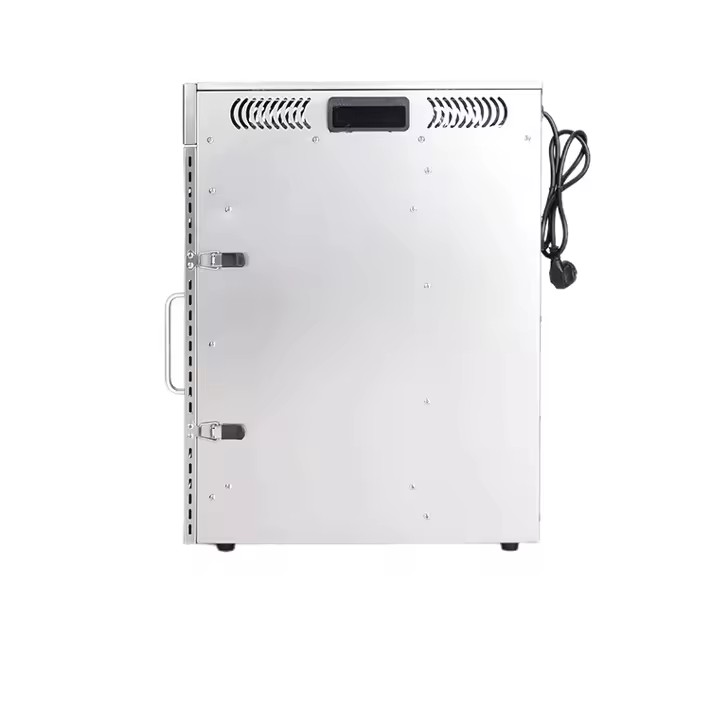

Door handle Solid aluminum alloy material, excellent heat insulation effect, more comfortable to use.

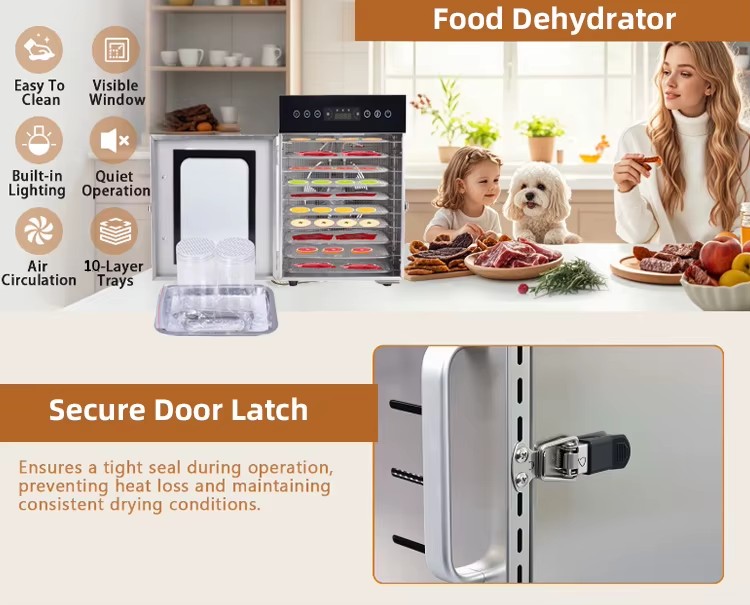

Lock design Rubber sleeve wrapping provides a better heat insulation effect to avoid scalding.

Handle design Ergonomic, large space design for easy handling, suitable for users of different body types.

Independent main switch Independent control switch, safer operation, in line with safety regulations.

Waterproof PG wire clamp The power cord is firmly fixed, not easy to fall off, and safer to use.

Power cord specifications The power cord specifications are unified, safe, and reliable. For example, 1000W power uses 0.75 square wire (usually 0.75 square wire can carry 1500W).

Fan function In intelligent heat dissipation design, the heating tube stops running after power failure, and the fan continues to run for 4 minutes, accelerating heat dissipation and extending the life of the equipment.

Product parameter table

Item No.	Material Type	Capacity (Layers)	Internal Volume	Yield (kg)	Fan Motor (pcs)	Frequency (HZ)	Heating Power (W)	Voltage (V)	Tray Size (CM)	Tray Distance (cm)	Temperature (℃)	G.W/N.W (kgs)	Size of Package (MM)	Volume (CBM)
FD-08B	Full S.steel	8	0.02m³ (20L)	10-15	1	50/60	400	110/220/240	19.5*28	3	30-90	7.75/6.9	360420455	0.07
FD-10B	Full S.steel	10	0.02m³ (20L)	10-15	1	50/60	400	110/220/240	19.5*28	3	30-90	8/7.15	360420455	0.07
FD-12B	Full S.steel	12	0.04m³ (40L)	20-30	1	50/60	1000	110/220/240	28.5*38.5	3	30-90	12.45/11.2	460510535	0.13

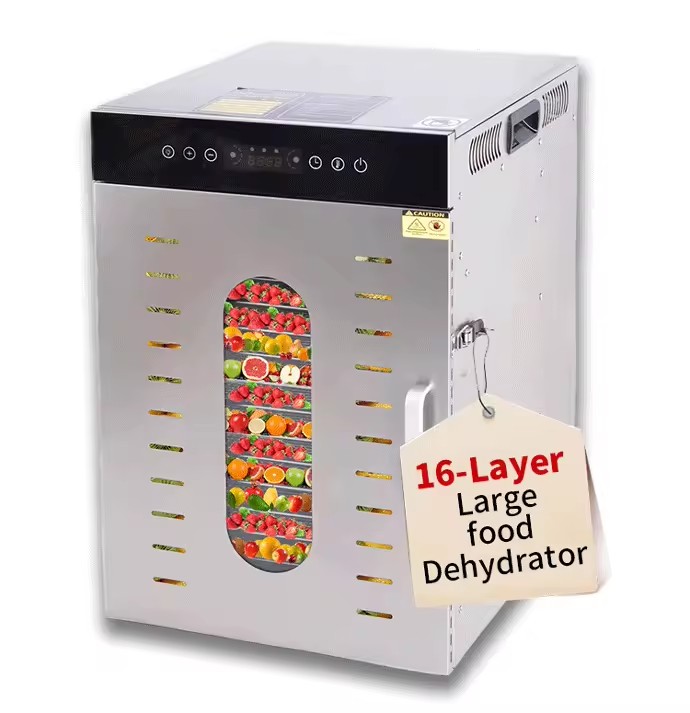

FD-16B	Full S.steel	16	0.06m³ (60L)	30-45	2	50/60	1500	110/220/240	28.5*38.5	3	30-90	16.2/14.7	460510670	0.16
FD-20B	Full S.steel	20	0.07m³ (70L)	35-55	2	50/60	1500	110/220/240	28.5*38.5	3	30-90	17.9/16.25	460510765	0.18
FD-24B	Full S.steel	24	0.08m³ (80L)	40-60	3	50/60	2000	110/220/240	28.5*38.5	3	30-90	20.45/18.75	460510875	0.21
FD-16D	Full S.steel	16	0.08m³ (80L)	40-60	2	50/60	1500	110/220/240	40*40	3	30-90	38/32	540640680	0.24
FD-24D	Full S.steel	24	0.13m³ (130L)	65-100	3	50/60	2000	110/220/240	40*40	3	30-90	48/40	540640895	0.31
FD-32DV	Full S.steel	32	0.16m³ (160L)	80-120	4	50/60	3000	110/220/240	40*40	3	30-90	76/64	5406401220	0.42
FD-48DV	Full S.steel	48	0.26m³ (260L)	130-200	6	50/60	4000	110/220/240	40*40	3	30-90	96/80	5406401680	0.58
FD-96D	Full S.steel	96	0.52m³ (520L)	260-400	12	50/60	8000	110/220/240/380	40*40	3	30-90	192/160	10606601780	1.25

Fruit Drying Machine is Packed In Wooden Boxes

As a large-scale mechanical equipment, the dryer needs to be packed in a reliable way during transportation and storage to ensure that the equipment is not damaged during transportation. Wooden box packing is a common and effective packaging method, which has the advantages of being strong, durable, moisture-proof, and shock-proof.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 5 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Application fields

Dairy Products Factory, Beverage Factory, Seasoning Plant, Snack Food Factory, bakery, Meat Processing Plants, Vegetable Processing Plant, Frozen Food Factory, Commercial Catering, Fruit Processing Plant, Winery

Type

Tray Dryer

Material

Stainless Steel, Carbon Steel, SUS304L

Voltage

380 V, 220 V, 110 V, 480V

Core components

Motor

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Weight (kg)

150

Place of origin

China, Henan

Dimension(L*W*H)

30*37*38

After-sales Service Provided

Online Support

After Warranty Service

Video Technical Online Support

Temperature range

30-90

Key word

Vegetable Flower Drying Machine

Model

FD-08B

Application Material

Fruit Vegetable Flower Animal Feed

Application scope

Vegetable Fruit Processing Industries

MOQ

1 Set

Color

Silver

Selling Units

Single item

Single package size

50X30X86 cm

Single gross weight

35.0 kg

Drying Capacity (kg)

5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130, 140, 150, 200, 180

Power(W) (Product option)

4000 W(5.36hp), 1000 W(1.34hp), 2000 W(2.68hp), 3000 W(4.02hp), 5000 W(6.71hp), 300 W(0.40hp), 800 W(1.07hp), 600 W(0.80hp), 500 W(0.67hp), 200 W(0.27hp), 100 W(0.13hp), 400 W(0.54hp), 900 W(1.21hp), 700 W(0.94hp)

Lead time

7 days

Minimum order

5 Units
