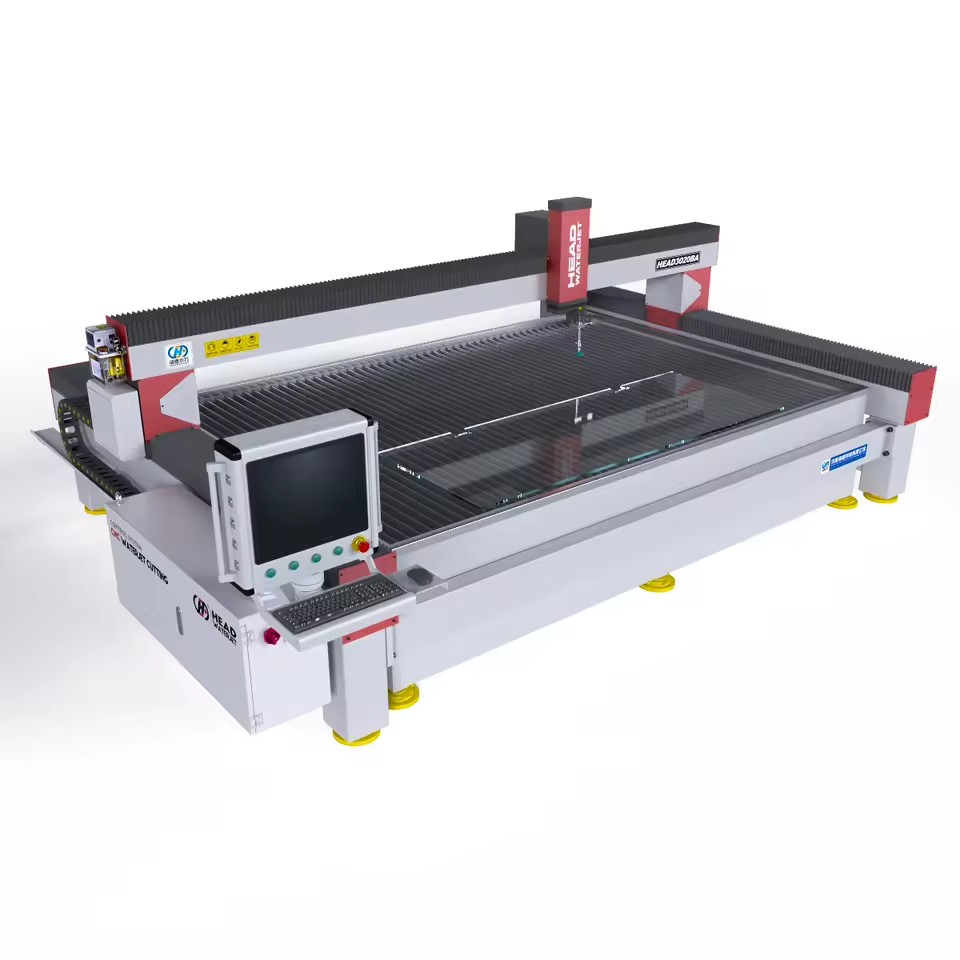

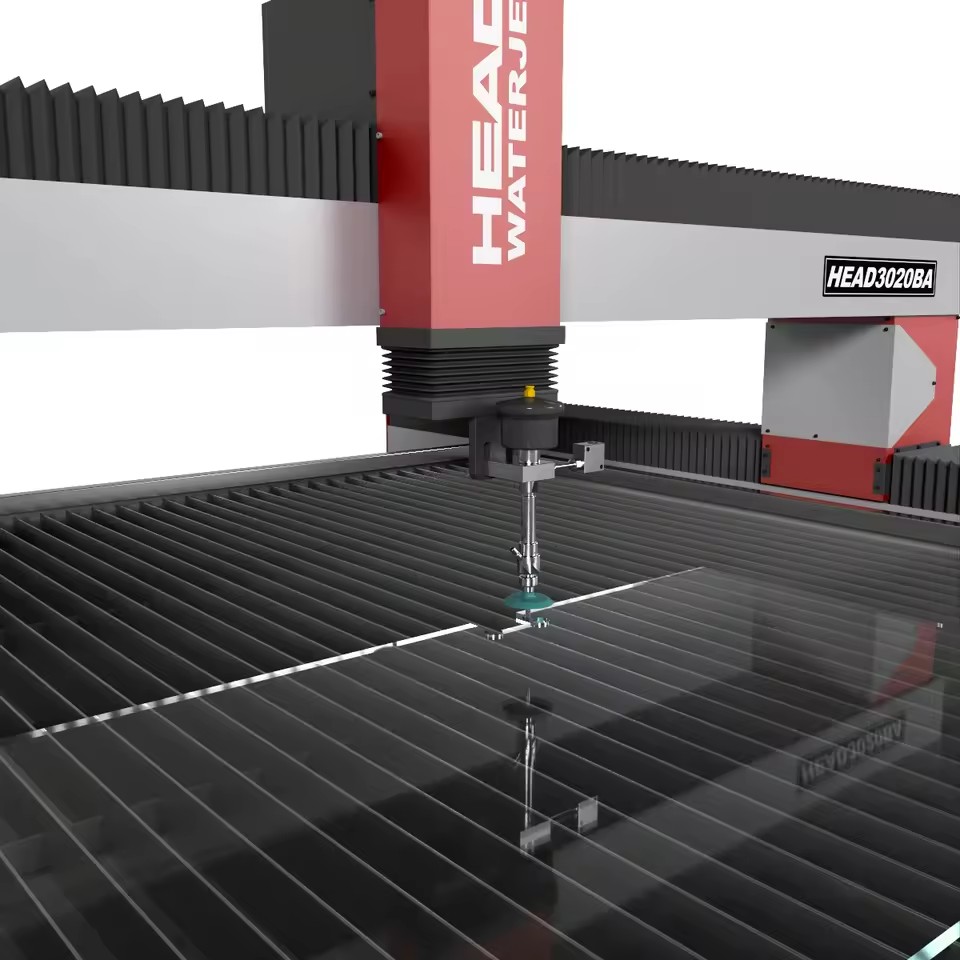

abrasive cnc glass cutter water jet glass cutting machinery
Detailed information of water jet cutting machine just for you!
Main technical parameter of import goods abrasive products cnc glass cutting water jet cutting machinery
Intensifier Pump
Item
Parameter
Model
HEAD42030Z
Brand
Imported
Method of Direction Regulation
Electronic Direction Regulation
Pressure Range
370-390MPA
Maximum Flow of Hydraulic Pump
96L/min
Maximum Discharge Capacity
3.8L/min
Maximum Diameter of Gem Nozzle
0.35mm
Power of Master Motor
37KW(50Hp)
Power Source
380V/50HZ
Cutting Table
2000mm*4000mm
X axis characteristic
One-off extrusion forming aluminum alloy
Y axis characteristic
Cast iron used as foundation base
Z axis characteristic
double linear guide and four sliding block
Driving system
Z axis automatic controll,3axis association process
Ball screw,linear guide
ABBA
Table structure
Separated body
Driving way
Servo drive system
CNC system
Ncstudio,Fagor
Servo motor
YASKAWA/FUJI
Cutting
Casting structure and concrete structure
Sealing way
Whole piece sealing
Loading weight water tank
Wall thickness is 5mm,using fluorocarbon coating
CNC Controller
Control Method
CNC
Display Size
19inch LCD
Model of Cutting Text
DXF
Model of Computer
Industrial Control Computer
Operating System
Windows XP/7
PLC
OMRON
Cutting software advantage
Auto save and transfer common parameter
Controller displace
Can be fit to suitable place at own will
Automitic Abrasive Feeder
Founction
Sand storage and sand delivery
Operating
No need electrocnic control,sample operation
Capacity
200 liters for 8 hours
Pressure
Less than 0.2Mpa compresses gas pressure
Level
Standard equipment of waterjet
It can supply the sand quantity according to the adjustable sand level location tube in the sand bin, without any electrical connect units,more safe and reliable.
Deionization System
Softening water
Operation
Simple operation
advantage
Inmproving useful life of other parts
Groundwater,minerals contained is very high, will cause the problem of cutting accuracy after long time using.
Groundwater,minerals contained is very high, will cause the problem of cutting accuracy after long time
using.
Wireless Handel
Wireless controlling waterjet
Display
Real- time display condition of X,Y,Z axis
Settings
Zero point, on/off valve set, X,Y,Z axis moving
Technology
Advanced technology
Special designed for water jet control system, it could realise wireless controling water jet and it can control long-distance material processing,improving work efficiency.
Our best partners who could guarantee the KEY component s!!!
• Cut glass geometry that common machining cannot perform • Delicate glass does not crack during processing • Precisely cut thin to thick glass without changing any tooling • Cuts glass panels up to 100MM in thickness • Eliminates pressure of cutting process on surface material • No heat affected zone (HAZ) • No tool to sharpen • No or reduced need for reworking of the cut edge • No waste of material, narrow cutting gap • Cost effective means of cutting holes in glass • Create intricate design in any shape and size (Not suitable for the processing of tempered or hot glass)

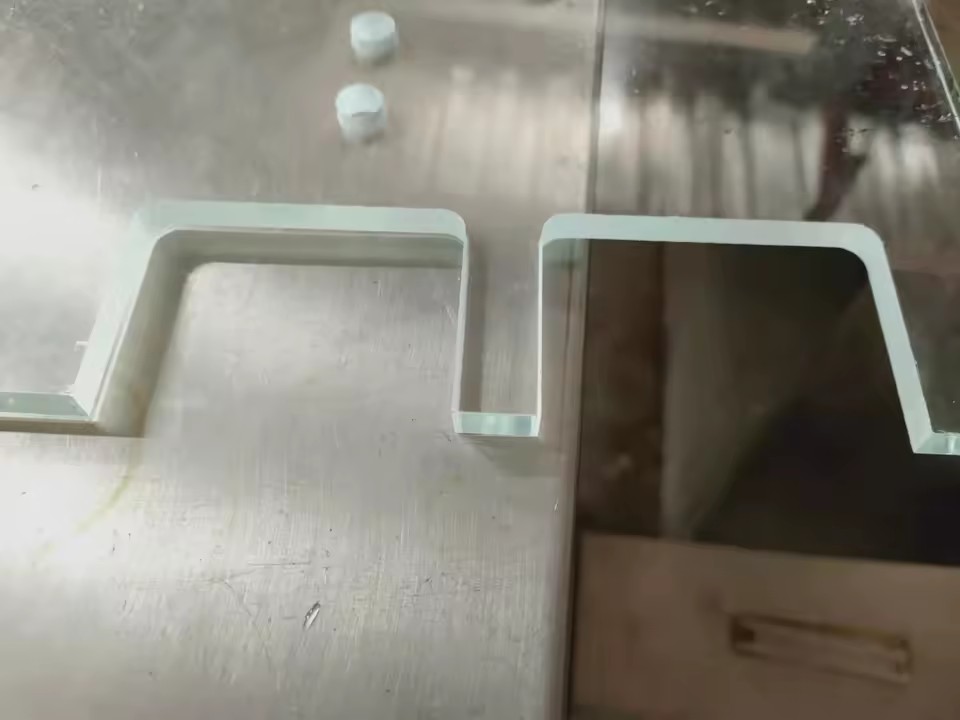

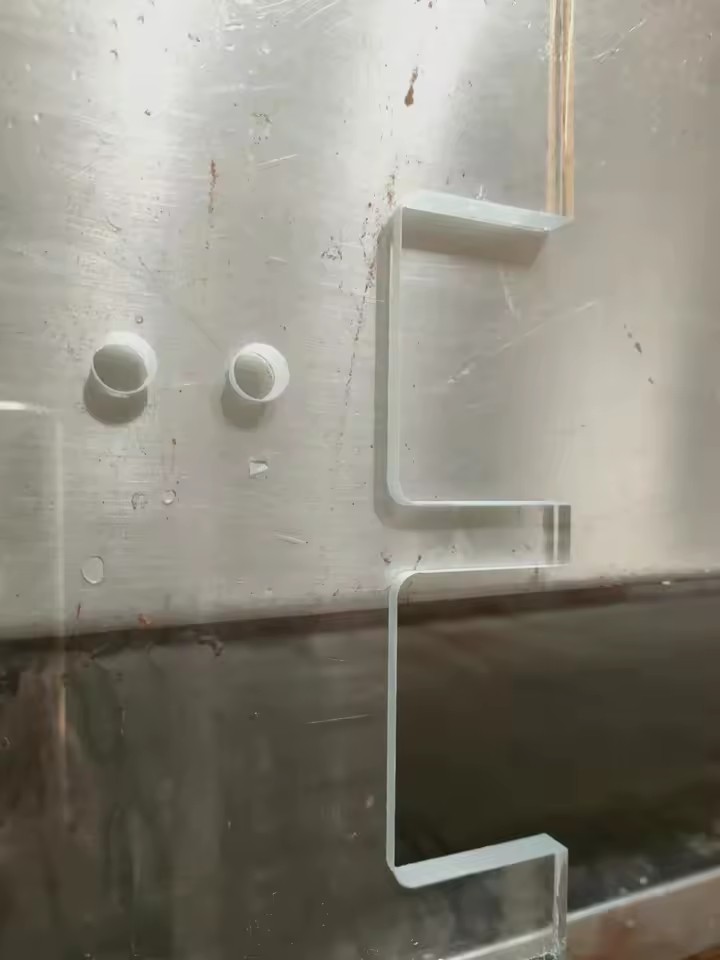

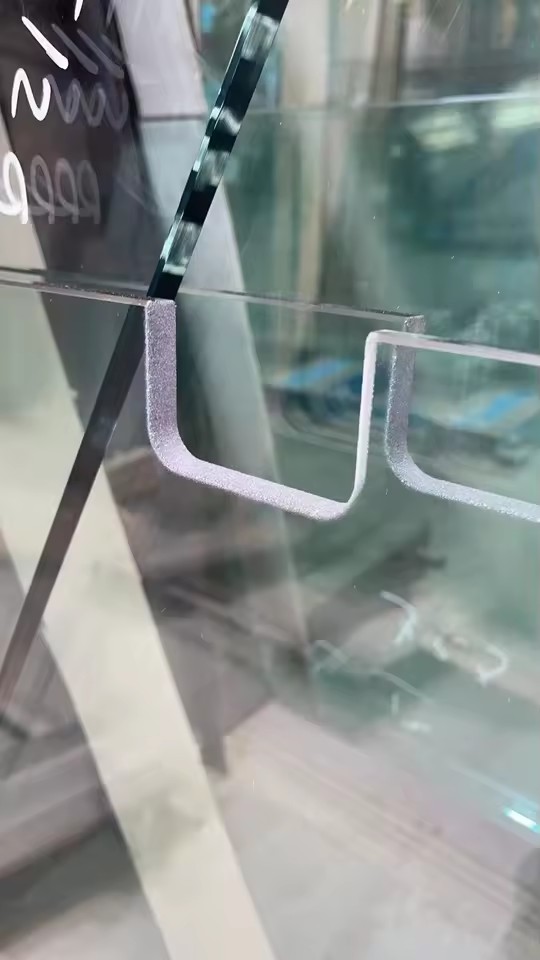

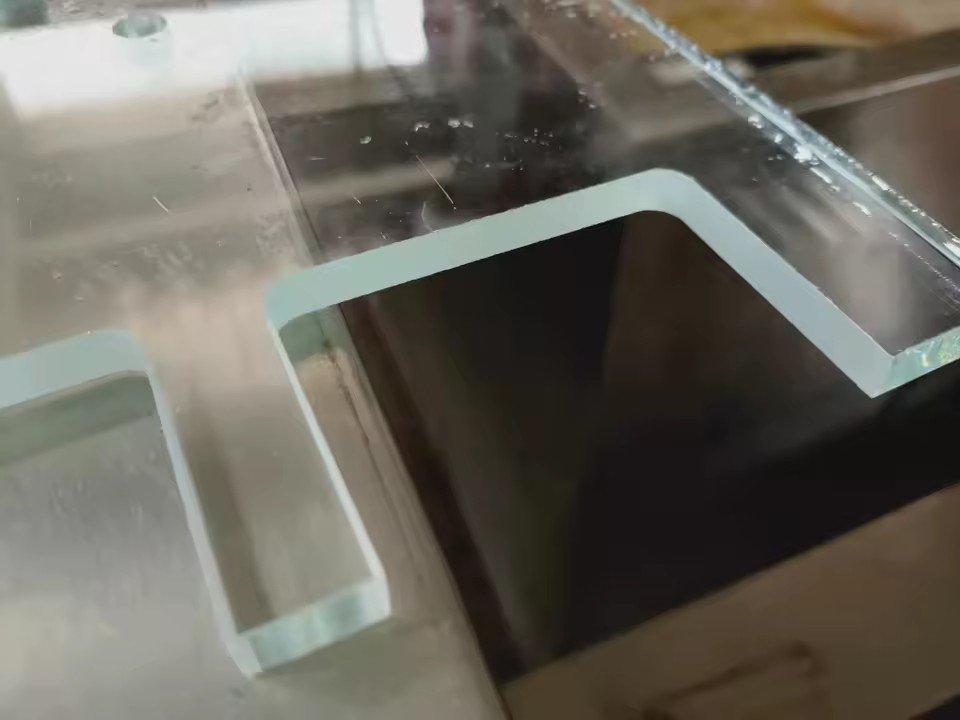

CUTTING SAMPLES
"One to One" exclusive service: provides technical and maintenance support,make you master water jet operation
Instant response: water jet after-sale will reply and solve within 2 hours after receivingyour problem
Spare parts green channel: provides high quality accessories,supplies and services to you.
As concentrated So professional
has specialized in designing,manufacturingl water jet machine, water jet machine will make the water jet machine field much more abundant,Our craftmanship water jet machine has been in the international leading level,we sincerely hope to creat and share success with you.
"Teamwork,Diligent,Realistic,Creative" our consistent business principle.with our rich experience and considerate services,we have been recognised as a realiable water jet machine supplier among the international buyers.
Product Description
Our best partners who could guarantee the KEY component
s!!!
• Cut glass geometry that common machining cannot perform
• Delicate glass does not crack during processing
• Precisely cut thin to thick glass without changing any tooling
• Cuts glass panels up to 100MM in thickness
• Eliminates pressure of cutting process on surface material
• No heat affected zone (HAZ)
• No tool to sharpen
• No or reduced need for reworking of the cut edge
• No waste of material, narrow cutting gap
• Cost effective means of cutting holes in glass
• Create intricate design in any shape and size
(Not suitable for the processing of tempered or hot glass)
