High Pressure Water Jet Washing Machine Water Cutting

New Design Water Jet Cut Machine Price Cnc Mosaic Floor Waterjet Cutting Machine

model

WL-QSM2007DY

WL-QSM3011DY

WL-QSM5015DY

Max. pressure

25 MPa

30 MPa

50 MPa

Operating pressure

20 MPa

45 MPa

Max. water flow rate

15L/min

20L/min

30L/min

Motor power

7.5KW

11KW

15KW

Power supply

380V/50Hz

External dimension

1240mm length ×740 mm width × 900mm height

Equipment weight

380KG

Delivery Time

30days

Payment Term

T/T,30% in advance,70% before shipment(negotiable)

Packaging details

Normal packaging is container. We can also according to the special requirements of customers for packaging

port

Dalian

Validity

45 days from the date we offered validity

Product Description

15

Years

Experience

PORTABLE WATERJET

CUTTING MACHINE

✔Support non-standard customization

✔

Provide free sample trial cutting service for you

The cold cutting characteristics of waterjet cutting machine and the cutting method with high efficiency and environmentally friendly can fundamentally eliminate the risk of dangerous goods cutting and make the cutting operation of dangerous goods safe, simple and efficient. It is an epoch-making significance for the cutting field of dangerous goods. portable waterjet cutting machine has been widely used in many fields, such as petroleum, chemical industry, coal mine, weapon destruction, emergency rescue and so on.

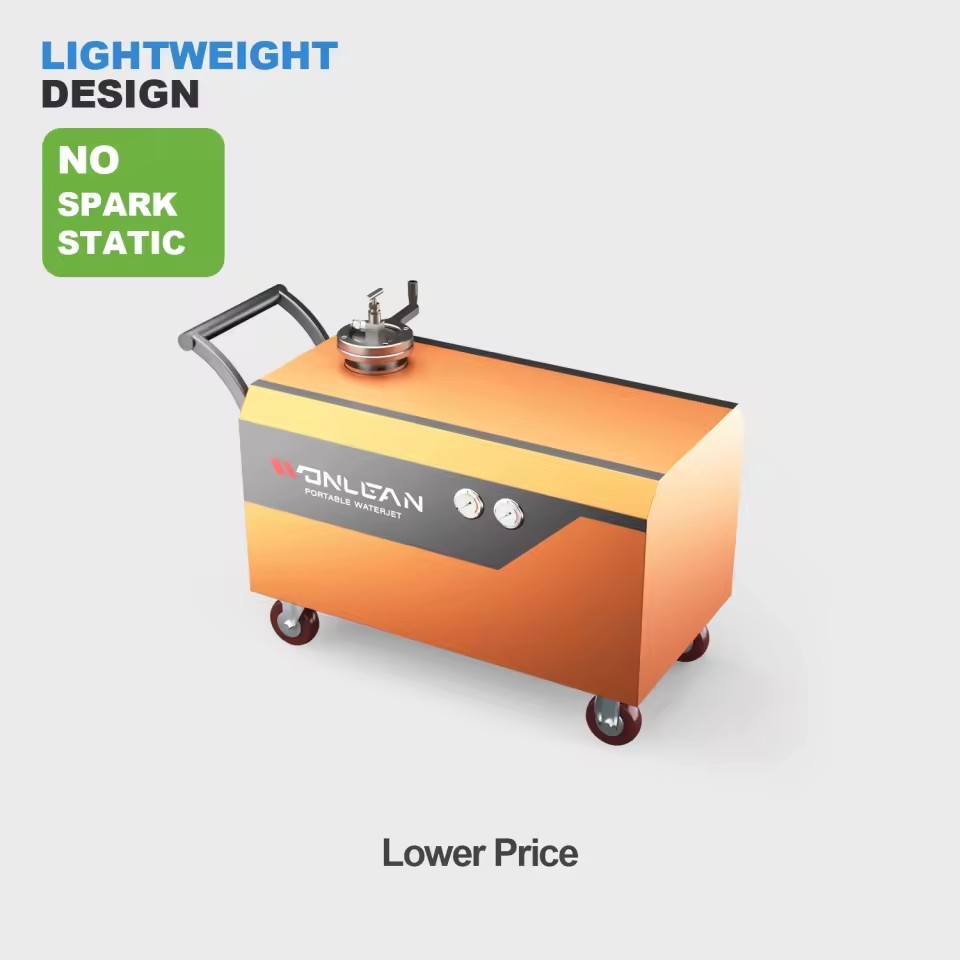

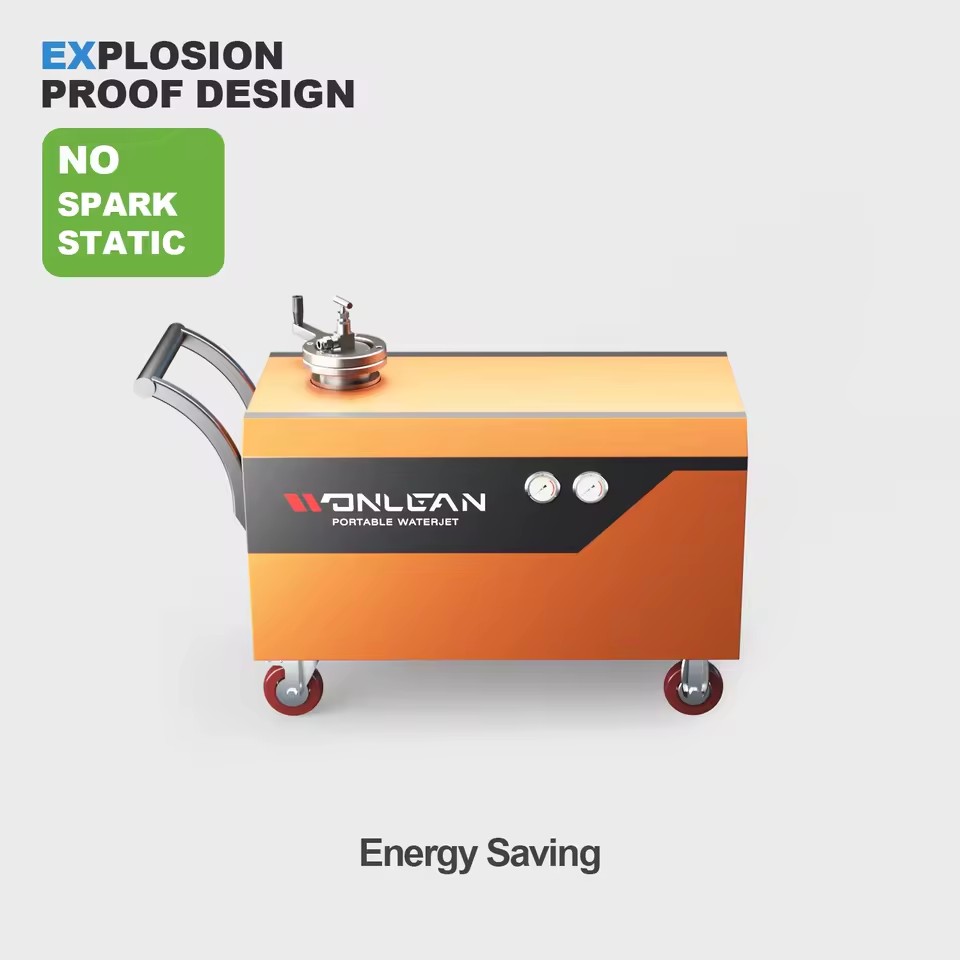

Electric integrated host

Exd II BT4 explosion-proof level.

Unique valve design eliminates sand blocking.

Small size is easy to move, flexible and light.

Oversized load-bearing wheels and universal wheels can adapt to various road surfaces.

Powerful integration capabilities can adapt to various complex cutting conditions.

Capacity of sand tank can be customized.

Electric split host

Powerful cutting performance.

Unique valve design prevents sand blocking.

Split design is suitable for two places to operate.

Light weight Capacity of sand tank can

be customized.

Gasoline engine

Integrated design, flexible movement.

Special valve body design does not block sand.

Equipped with oversized load wheels and universal wheels.

Gasoline powered without power.

Remote control.

Magnetic Track Cutter

Lightweight body design.

Ingenious structure design can adapt to a

large diameter range above 110mm.

Equipped with large suction and strong magnetic wheels to adapt to various complicated working conditions.

Equipped with an adjustable flexible track to eliminate the unevenness of the cutting surface and cause it to fall.

Equipped with guide wheels to ensure cutting straightness.

Waterproof.

Chain Track Cutter

Detachable chain design.

Gear transmission does not slip, high precision.

Size: 290 × 305 × 285mm.

Waterproof.

Electric, pneumatic and hydraulic power.

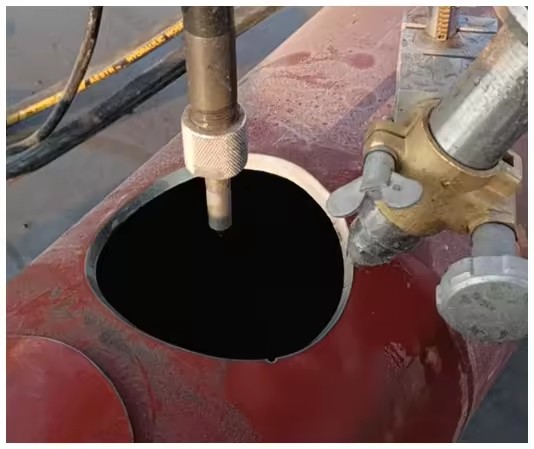

Tapping Cutter

Strong magnetic or vacuum adsorption, firm and stable.

Equipped with adjustable height universal feet to adapt to various working conditions.

Custom opening size.

Linear Cutter

Linear Cutter.

Custom cutting strokes.

Waterproof design.

Handheld Cutter

Handheld operation, flexible and convenient.

The cutter head is equipped with a two-jaw roller to provide

The cutter head is equipped with a safety water shield.

Remote high-pressure water controller.

Size: 1270 × 240 × 40mm.

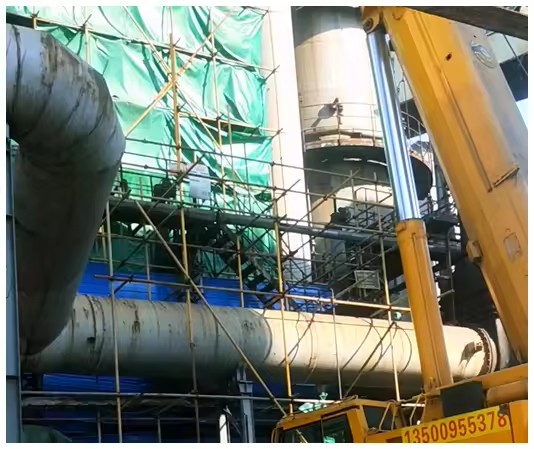

Customer's Construction Site

Why Choose Us

Company Profile

ABOUT US

Service

Packing and Delivery

FAQ

Q: What are the advantages of a portable water jet cutter?

A: Waterjet is cold-processed and is very sutiable for the cutting of flammable and explosive dangerous goods. The slit temperature is kept below 60 degrees and sparks. It is most advanced technology for cutting dangerous goods.

Q: Can you cut dangerous goods as long as it is water cut?

A: Special attention! This is not the case. The water cutting is divided into premixing and postmixing. We have done a lot of experiments. The postmixing still has sparks in the cutting process. Only the premixing waterjet cutting machine can cut dangerous goods.

Q: Is portable waterjet operation easy to maintain?

A: Operation and maintenance is very simple. portable waterjet is very user-friendly and has few wearing parts. We provide on-site training services, and you can operate and maintain the equipment independentty through about two days of on-site training.

Q: ls the portable waterjet safe to operate？

A: We have done a lot of demonstrations and experiments on the equipment, and equipped with safety relief devices. The company has not had a safety accident since its establishment. Please feel free to use it.

Q: I don't know what is right for me?

A: We have many customers and cases to design various materials and fields for dangerous good cutting. You can
